Edge Street Series EDS1SQTN-E1 Silk Dome Tweeters 1.9 Inch 100w RMS Pair

Name: Edge Street Series EDS1SQTN-E1 Silk Dome Tweeters 1.9 Inch 100w RMS Pair
Brand: Edge
SKU: 92710
Price: 39.99 GBP
Availability: OutOfStock

£39.99 Out of stock

Out of Stock

SKU: 92710MPN: EDS1SQTN-E1

Product variants

Part of the range · 22 productsPart of the Edge Street Series · 22 products See the range →

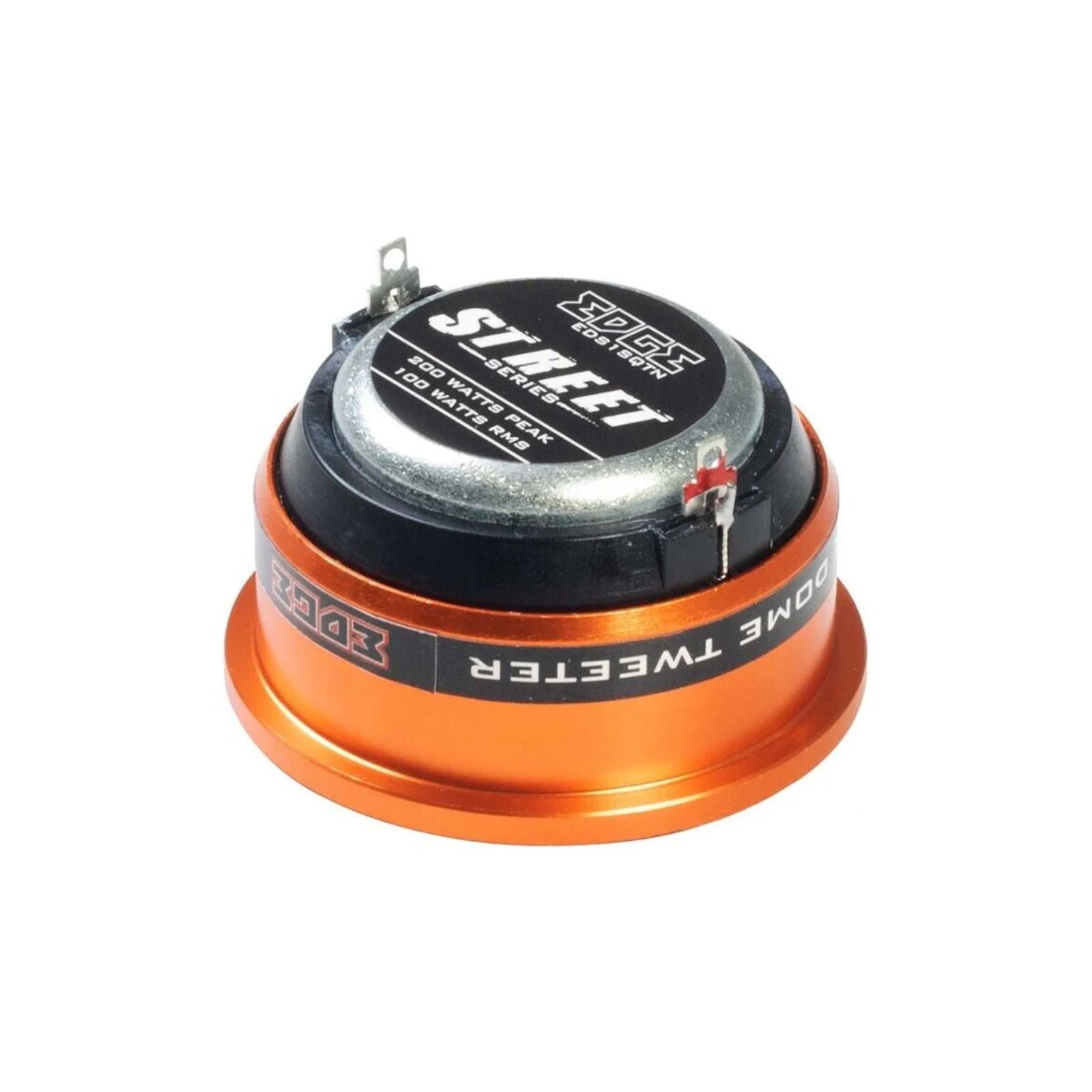

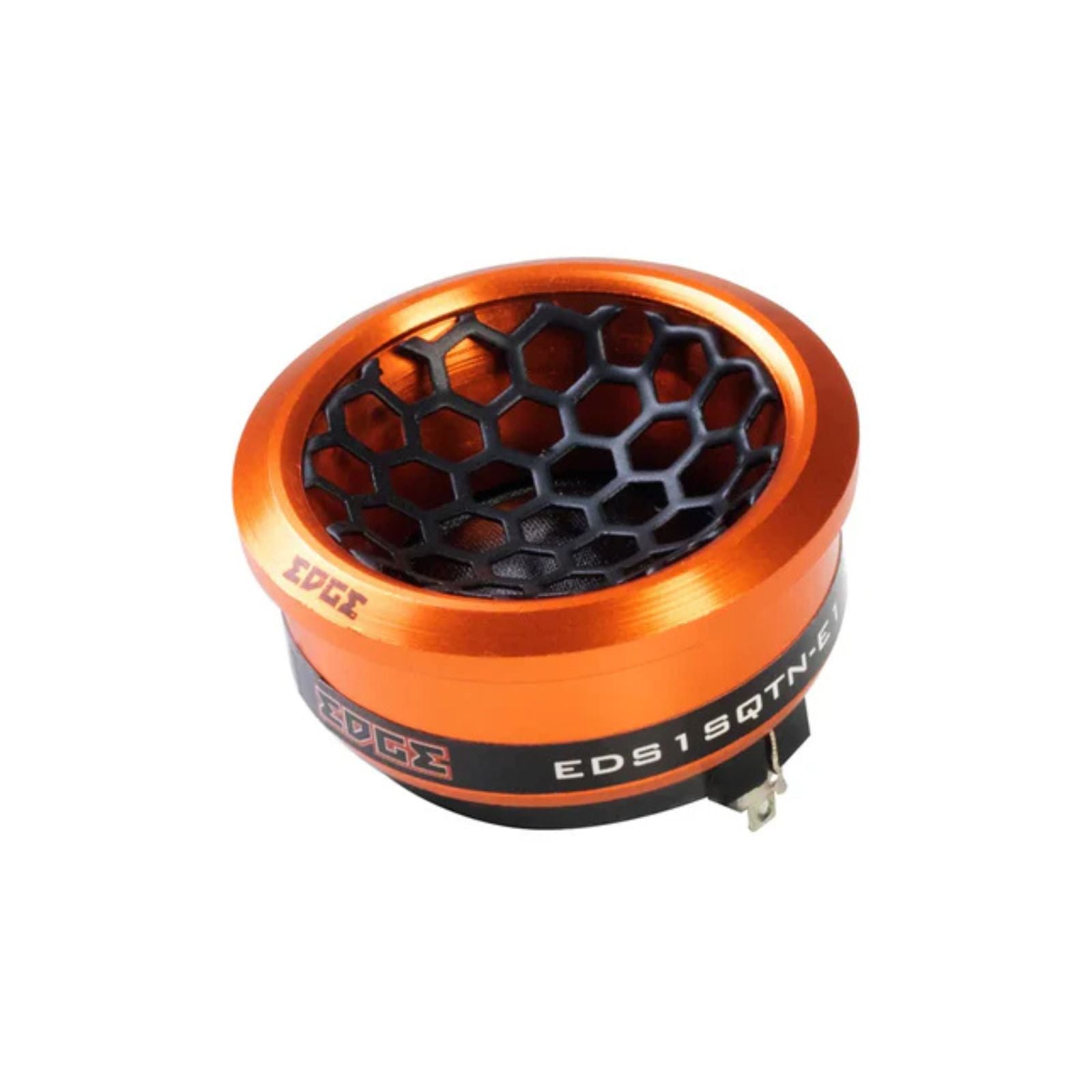

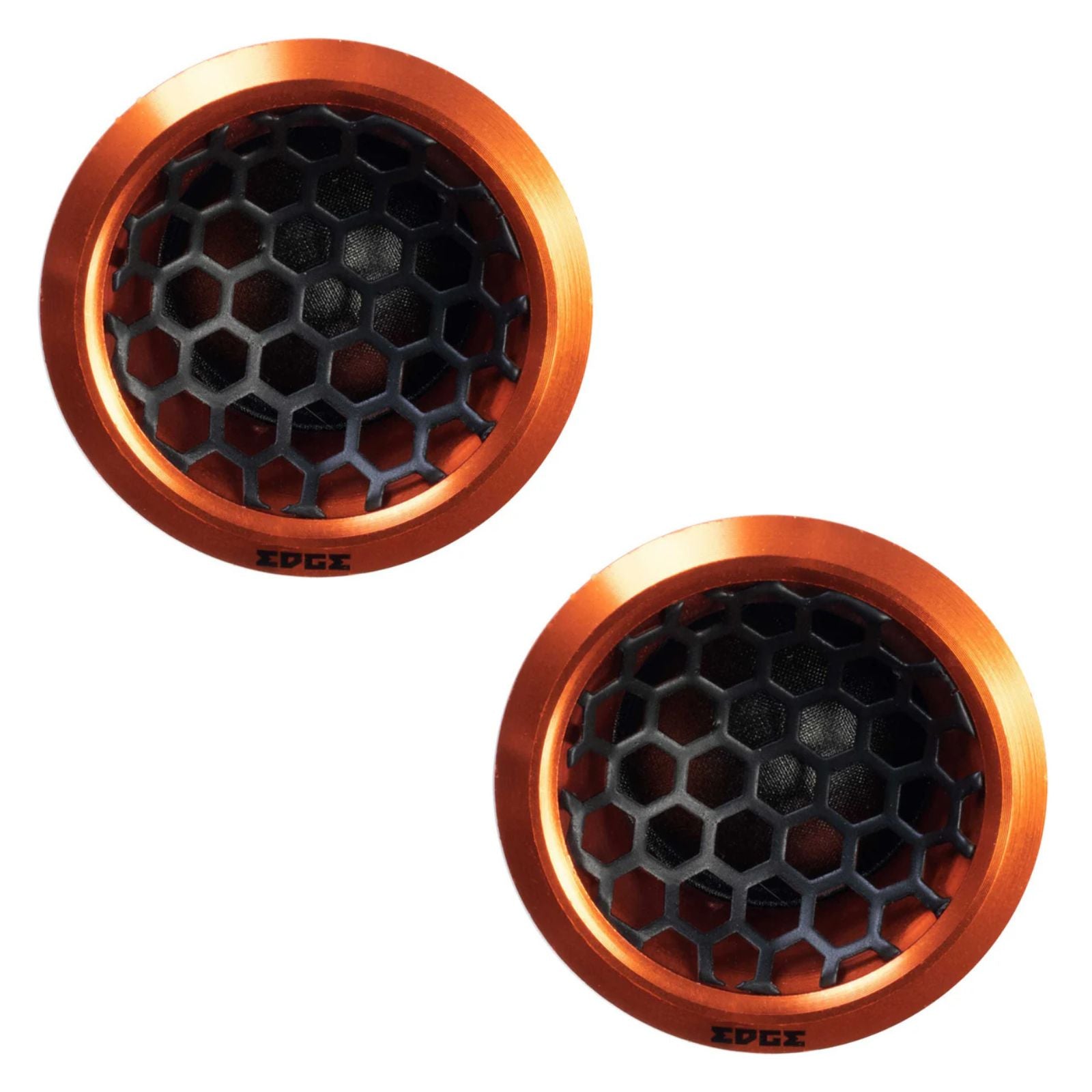

The Edge EDS1SQTN-E1 are a pair of Street Series silk dome tweeters, 1.9 inch (48mm), rated at 100W RMS (200W peak) each with 96dB sensitivity.

This is the silk dome SQ version. For crisper, higher-volume output, the EDS1SPLTN-E1 titanium dome tweeters share the same size and mounting dimensions.

Key specifications

Model: EDS1SQTN-E1
Type: 1-way component tweeter, silk dome
Size: 1.9" (48mm)
Power: 100W RMS / 200W peak
Sensitivity: 96dB
Frequency response: 1.2kHz–20kHz
Impedance: 4 ohms
Magnet: neodymium
Mounting depth: 23mm, mounting diameter: 43mm

Edge Street Series 1.9 inch silk dome tweeters

Built for high-fidelity listening, the EDS1SQTN-E1 delivers accurate, smooth high-frequency reproduction with the warmth characteristic of a silk dome. The horn design provides a wide bandwidth, making it a good match for any Edge midrange driver.

Features

1-way component tweeter
Neodymium magnet
Silk dome diaphragm for smooth vocal reproduction and extended high-frequency response
Hexagon mesh grille
Alloy chassis
High sensitivity at 96dB

Explore the full range in Edge Street Series.

Specification

Configuration	1 way
Speaker Size	1.9" (48mm)
Sensitivity	96dB
RMS Power	100 watts
Peak Power	200 watts
Frequency Response	1.2kHz - 20kHz
Impedance	4 Ohms
Recommended Amplifier	EDA100.4-E7
Mounting Depth	0.9" (23mm)
Mounting Diameter	1.7" (43mm)

What's Included

EDS1SQTN-E1

Product information

Edge

About the Edge EDS1SQTN-E1

From our tech experts at CEN

Edge tweeters, 1.9 inch, handling 100w RMS, a dome design for smoother top end.

Who it suits

Drivers building a front stage where the tweeter needs to sit higher than the door.

Our tech experts advise

Placement and aiming change the result more than the tweeter does, and they must be crossed over so they are never asked to play too low. get in touch. See car audio installation.

Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Edge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3 - CEN

Staff Pick Edge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3 £179.00

In stock

Save 33% Best Seller Edge Street Series EDS10ADSP-E4 10 Inch Compact Active Bass Enclosure 300w RMS RRP ~~£299.99~~ £199.99 Save 33%

In stock

Edge EDS8DSP-E3 Street Series 8 Channel DSP Digital Sound Processor - CEN

Save 28% Edge EDS8DSP-E3 Street Series 8 Channel DSP Digital Sound Processor RRP ~~£249.99~~ £179.00 Save 28%

Low stock

Best Seller Edge DB Series EDB1TN-E1 Component Dome Tweeters 1.8 Inch 25w RMS Pair £19.99

Low stock

Edge DB Series EDBPRO37T-E0 Pro Audio Tweeters 3.7 Inch 75w RMS Pair £39.99

In stock

Best Seller Edge DBX Series EDBX12ADSP-E3 12 Inch Active Bass Enclosure DSP 400w RMS £199.99

Low stock

Save 4% Best Seller Edge DBX Series EDBX2200.1D-E4 Amp Class D 1 Channel Mono Amplifier 2200w RMS RRP ~~£249.99~~ £239.99 Save 4%

Low stock

Edge 10 Inch Active Bass Box Sub Subwoofer Ported Enclosure EDB10A 250w RMS - CEN

Save 7% Edge 10 Inch Active Bass Box Sub Subwoofer Ported Enclosure EDB10A 250w RMS RRP ~~£149.00~~ £139.00 Save 7%

Low stock

Best Seller Edge DBX Series EDBX6-E1 3 Way Coaxial Speakers 6.5 Inch 90w RMS Pair £39.99

In stock

Edge DBX Series EDBX1800.1D-E4 Amp Class D 1 Channel Mono Amplifier 1800w RMS £199.99

Low stock

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.

Get a Quote Our Services

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Frequently Asked Questions

Q: What is the difference between the EDS1SQTN-E1 and EDS1SPLTN-E1?

A: The EDS1SQTN-E1 has a silk dome for smooth, warm sound, rated at 100W RMS and 96dB. The EDS1SPLTN-E1 has a titanium dome for crisper, higher volume sound, rated at 120W RMS and 98dB. Both are 1.9 inch with the same mounting size.

Q: What size hole do the EDS1SQTN-E1 tweeters need?

A: The mounting diameter is 1.7 inches (43mm) and the mounting depth is 0.9 inches (23mm).

Q: What amplifier does Edge recommend for the EDS1SQTN-E1?

A: Edge recommends the EDA100.4-E7 amplifier. Each tweeter is rated at 100W RMS (200W peak) at 4 ohms.

Q: Can CEN fit these tweeters for me?

A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
