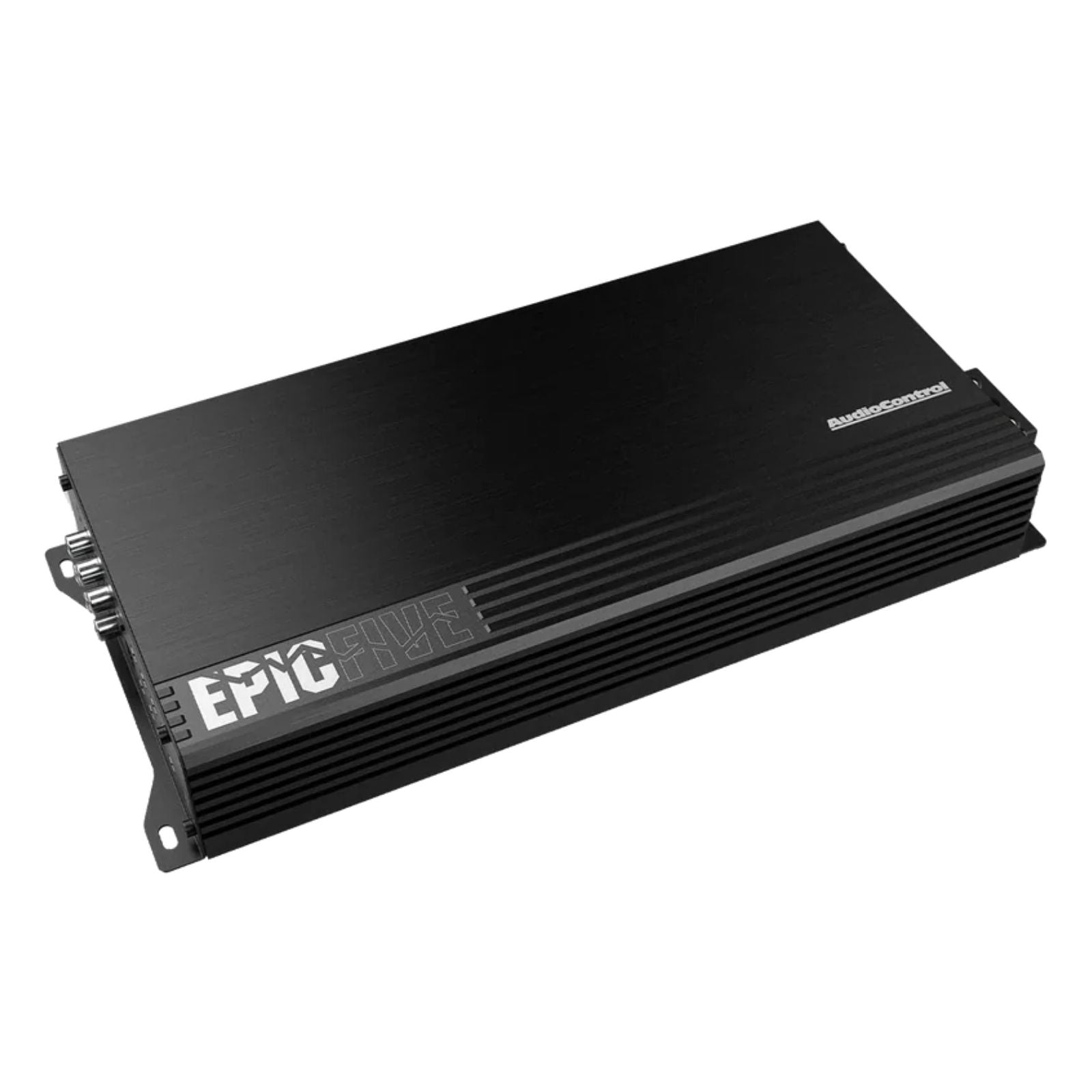

The AudioControl EPICFIVE is a compact Class D 5-channel car amplifier delivering 4 x 150 W + 1 x 500 W RMS at 2 ohms (1,100 W total), running four speakers and a subwoofer from a single unit, with an included ACR-E bass knob. It is part of AudioControl's EPIC Series.
Key specifications
- Channels: 5 (4 full-range + 1 subwoofer), Class D
- Power (RMS at 14.4 V, 4 ohms): 4 x 75 W + 1 x 300 W
- Power (RMS at 14.4 V, 2 ohms): 4 x 150 W + 1 x 500 W
- Subwoofer channel at 1 ohm: 1 x 700 W; bridged: 2 x 300 W at 4 ohms
- Filters: high pass 50 Hz–500 Hz, low pass 40 Hz–180 Hz, subsonic off to 50 Hz (12 dB/octave Linkwitz-Riley)
- EPIC Boost: 45 Hz centre, 0–12 dB gain
- Line-level inputs: 500 mV to 12 V RMS
- Power/ground wire: 4 AWG; recommended fuse: 150 A
- Dimensions: 6.1" W x 13.35" L x 2.01" H
AudioControl EPIC Series 5-Channel Amplifier
The EPICFIVE uses a high-current Class D design for maximum power output with strong thermal efficiency. It pairs directly with The Epicenter Bass Restoration Processor (sold separately) via the dedicated Epicenter Link, which provides a single connection for power, ground and remote turn-on — keeping installation tidy and straightforward. The included ACR-E bass knob gives easy in-cabin control. If your source unit lacks preamp outputs, AudioControl's LC6i 6-Channel Line Out Converter is a clean solution for feeding this amplifier from a factory head unit.
Features
- Compact high-power Class D amplifier
- High-current design
- 4 x 75 W + 1 x 300 W at 4 ohms
- 4 x 150 W + 1 x 500 W at 2 ohms
- 1 x 700 W at 1 ohm
- 2 x 300 W at 4 ohms bridged
- Smart auto-reset protection circuit
- 12 dB/octave Linkwitz-Riley variable HP/LP filters
- 12 dB/octave variable subsonic filter

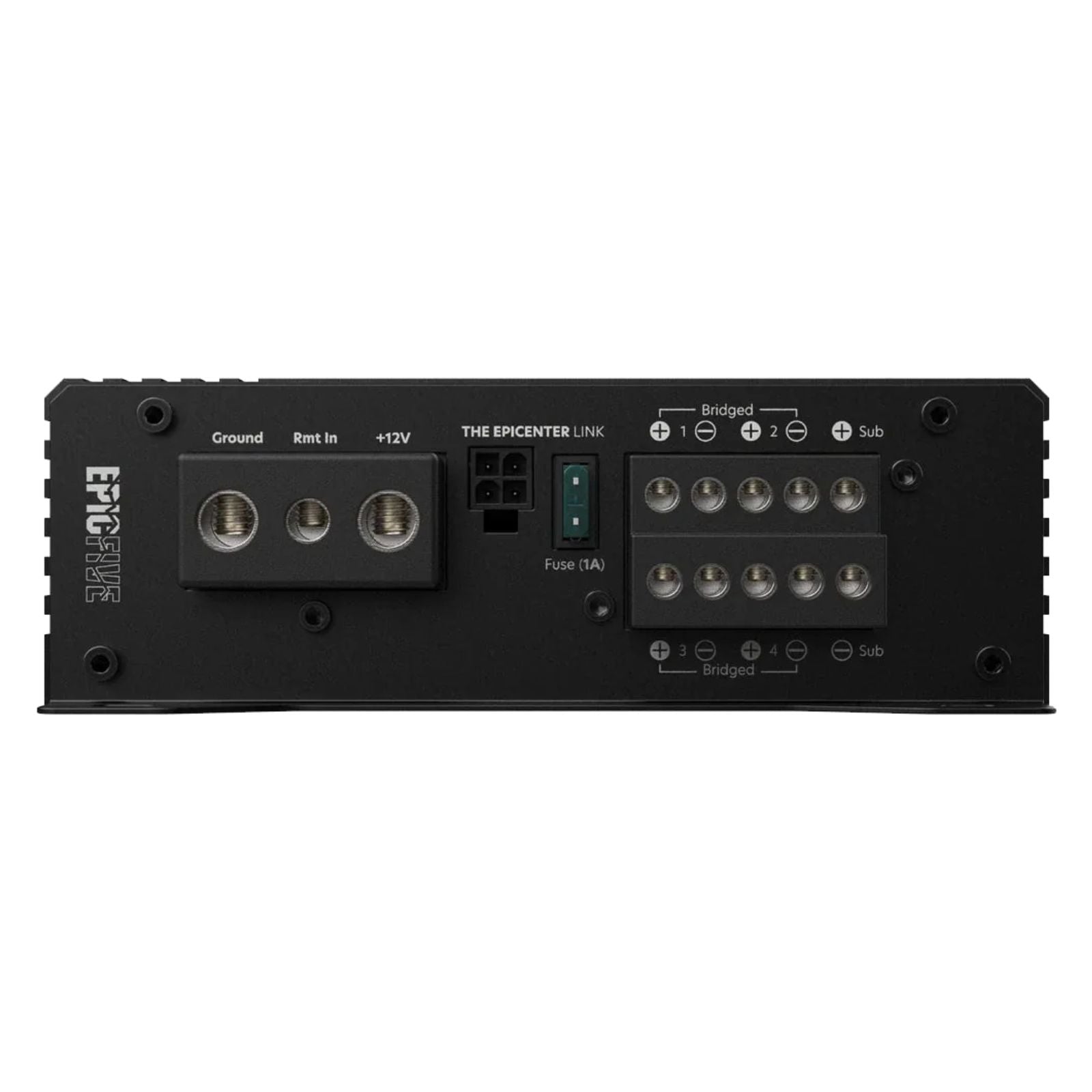

- Solid power/speaker terminals with hex screws
- Built for The Epicenter
Explore the full range in AudioControl Amplifiers.
Specification
| Line-Level Inputs | 500mV – 12V RMS |
|---|---|
| Dimensions | 6.1″ W x 13.35″ L x 2.01″ H |
| Frequency Response | (+/- 1 dB) |
| S/N Ratio | 92.1 dBa, Ref 75 Watts @ 4 ohms |
| Power / Ground Wire Gauge | 4 AWG |
| Recommended Fuse Rating | 150 Amps |
| High Pass Filter | 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz |
| Low Pass Filter | 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz |
| Subsonic Filter | 12 dB/octave Linkwitz-Riley, Off to 50 Hz |
| EPIC Boost | Frequency Center: 45 Hz, Gain: 0 to 12 dB |
| Speaker Terminal Wire Gauge | 8 AWG |
More specs
| |
What's Included
- EPICFIVE
- Wrench
- Screws
- ACR-E Remote Level Control and Cable
- The Epicenter Link (1 meter harness)
- Manual
- Warranty
AudioControl
About the AudioControl EPICFIVE
From our tech experts at CEN
A 5-channel amplifier from AudioControl, rated at 1100w RMS.
Who it suits
Drivers whose speakers have outgrown the head unit. AudioControl built its name on signal processing, and that thinking runs through the amplifiers too.
Our tech experts advise
Matching matters more than headline watts, the gains want setting with a meter, and it needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from AudioControl
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Can the EPICFIVE power a whole system?
A: Yes. Its four main channels run front and rear speakers (4 x 75 W at 4 ohms or 4 x 150 W at 2 ohms) while the fifth channel powers a subwoofer (300 W at 4 ohms, 500 W at 2 ohms or 700 W at 1 ohm).
Q: Does the EPICFIVE come with a bass knob?
A: Yes. The ACR-E remote level control and cable are included, along with The Epicenter Link (1 metre harness), wrench, screws, manual and warranty.
Q: What frequency range does the EPICFIVE cover?
A: Channels 1 to 4 cover 10 Hz to 24 kHz and the subwoofer channel covers 12 Hz to 181 Hz (+/- 1 dB).
