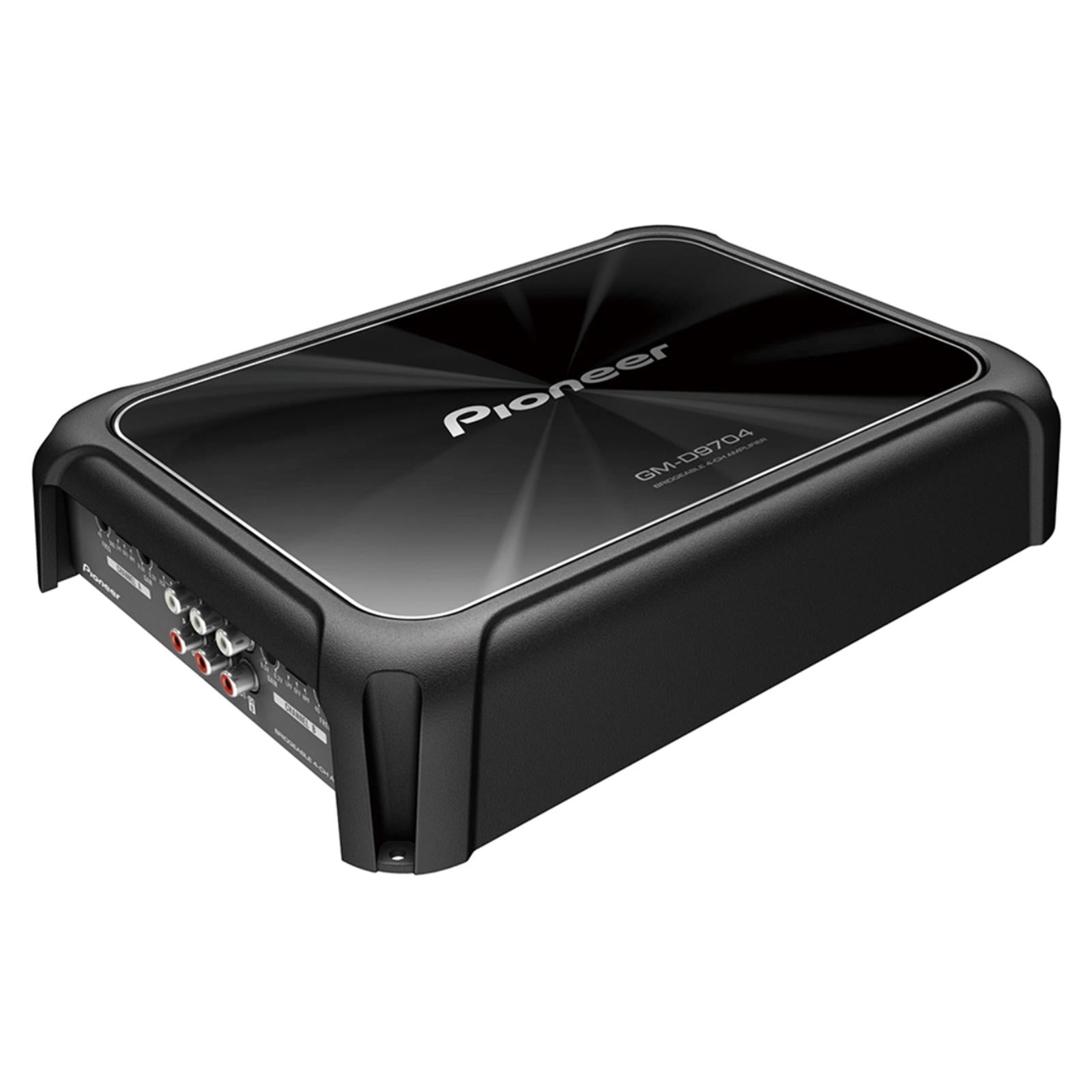

Pioneer GM-D9704 Stereo Amp Compact 4 Channel Class FD Car Amplifier 800w RMS
Couldn't Load Pickup availability
The Pioneer GM-D9704 is a compact 4-channel Class FD (Class D) car amplifier delivering 800W RMS — 4 x 200W at 2 ohms — with a maximum output of 1600W. It is 1-ohm stable and part of Pioneer's GM-D Series amplifier range.
Key specifications
- Channels: 4 (bridgeable to 2)
- Continuous power: 4 x 130W RMS (4 ohm), 4 x 200W RMS (2 ohm), 4 x 130W RMS (1 ohm)
- Bridged power: 2 x 400W RMS (4 ohm)
- Maximum power: 1600W total
- Amplifier class: Class FD (Class D)
- Frequency response: 10Hz to 50kHz
- Crossover: variable LPF and HPF, 40 to 500Hz (-12dB/oct)
- Inputs: RCA (0.2V to 6.5V) and speaker level (0.8V to 16V)
- Chassis size: 302 x 60 x 215 mm (W x H x D)
GM-D9704 4-channel Class-FD car amplifier
Compact 4-channel power
The GM-D9704 puts out 800W RMS in a compact chassis, making it well suited to builds where space is limited.
- 1-ohm stable circuit for flexible speaker pairing
- High-power output in a compact chassis
Speaker line input sensor
Connects directly to an existing OEM head unit — no add-on adapters required.
Variable LPF
Adjustable low-pass filter frequency (40–500Hz, -12dB/oct) to suit your speaker configuration and audio setup.
Variable HPF
Adjustable high-pass filter frequency (40–500Hz, -12dB/oct) for greater flexibility across your audio system.
Multi-block terminal
Connect up to 4 subwoofers cleanly through a single multi-block terminal for high-power output.
Class D
The Class FD design runs efficiently in a compact chassis without sacrificing sound quality or volume. If you need a dedicated mono channel for a subwoofer, the Pioneer GM-D8701 mono Class FD amplifier pairs well alongside this unit.
Explore the full range in Pioneer Amplifiers & Accessories.
Specification
| Frequency response | 10 Hz - 50 kHz |
|---|---|
More specs
| |
What's Included
- Pioneer GM-D9704
- Manual
Pioneer
About the Pioneer GM-D9704
From our tech experts at CEN
A 4-channel amplifier, Class FD, rated at 800w RMS. Enough channels for a front and rear stage, or a front stage with the rest bridged onto a sub.
Who it suits
Drivers who have upgraded their speakers and found the head unit cannot drive them properly.
Our tech experts advise
Power figures mean little until the amplifier is matched to the speakers and the gains are set with a meter rather than by ear. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Pioneer Amplifiers & Accessories
More options from the same range, in stock and ready to go
PopularPioneer ND-BC9 Rear View Reversing Camera Universal SPH AVH DMH AVIC Car Stereos
(1)RRP £99.00Save 10%£89.00
Pioneer GM-DX104 Amp Compact Micro Class D Hi-Res 4 Channel Amplifier 4x45w
£149.99

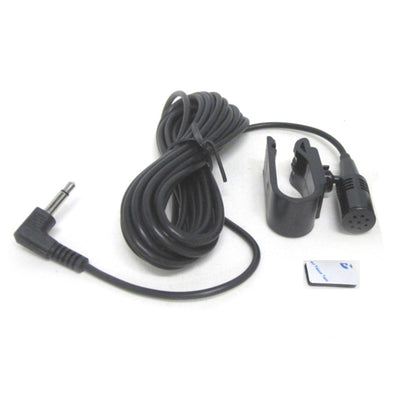

Pioneer External Microphone Mic 2.5mm Jack DEH MVH AVH DMH SPH AVIC Car Stereos
£15.00

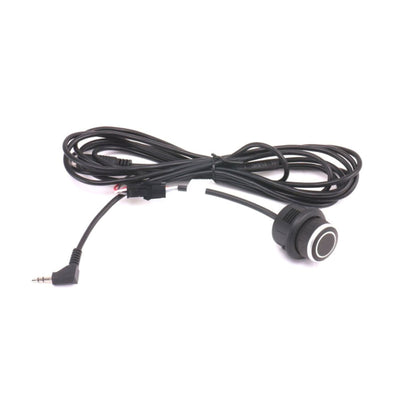

Pioneer CA-ROT-UNI.001 Universal Rotary Volume Knob
£79.99

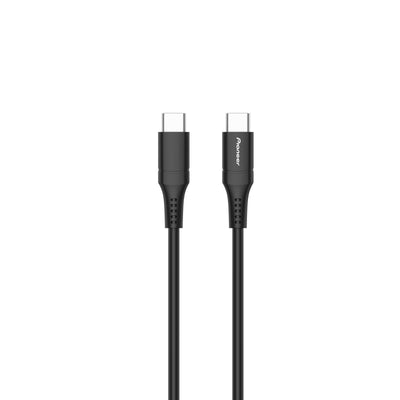

Pioneer CD-U5210CC USB Type C to USB Type C Flexible Silicone 1m Cable
£15.00
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: Is the Pioneer GM-D9704 1-ohm stable?
A: Yes. It has a 1-ohm stable circuit and is rated at 4 x 130W RMS into 1 ohm, alongside 4 x 200W RMS into 2 ohms and 4 x 130W RMS into 4 ohms.
Q: Can the GM-D9704 connect to a factory stereo without RCA outputs?
A: Yes. It has a speaker line input sensor that accepts speaker-level signals (0.8V to 16V) from an OEM head unit, so no add-on adapter is needed. RCA inputs (0.2V to 6.5V) are also provided.
Q: Can the GM-D9704 power a subwoofer?
A: Yes. Bridged, it delivers 2 x 400W RMS into 4 ohms, and the variable low-pass filter (40 to 500Hz) lets you set the crossover for a subwoofer. The multi-block terminal allows up to 4 subwoofers to be connected.
