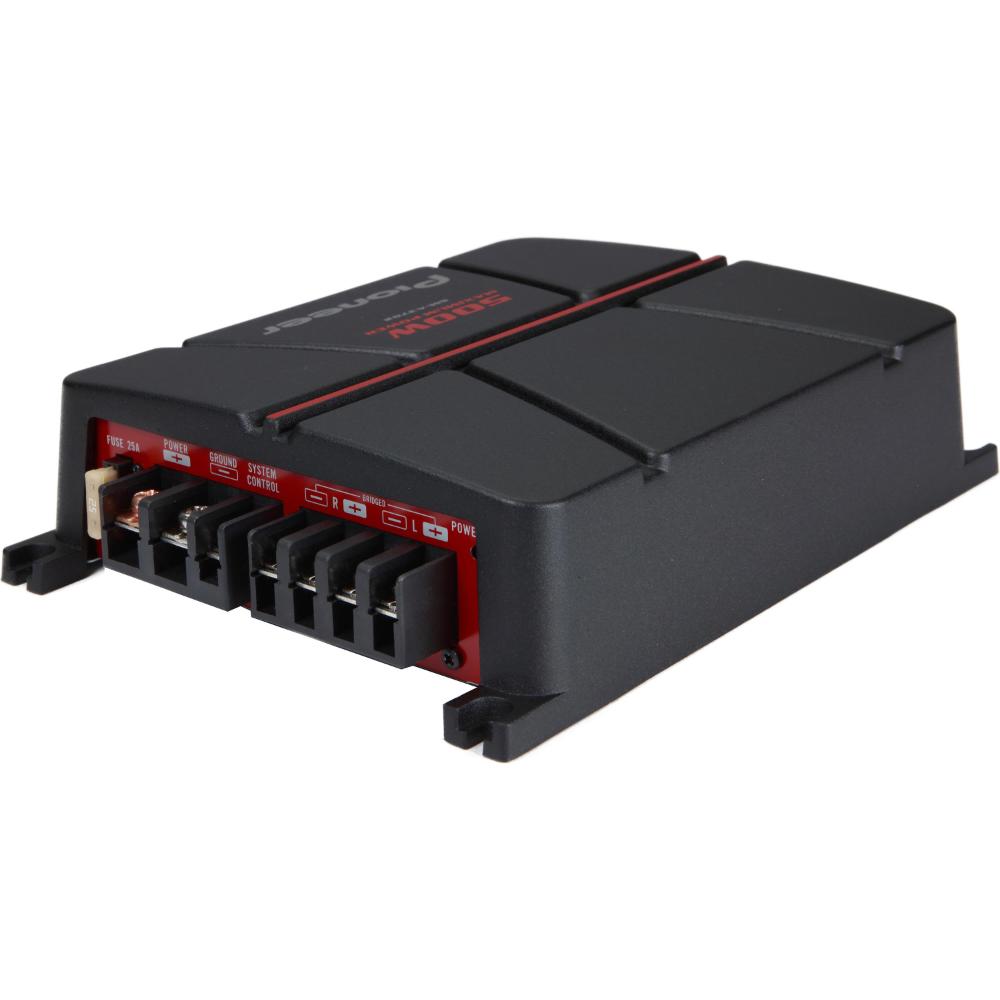

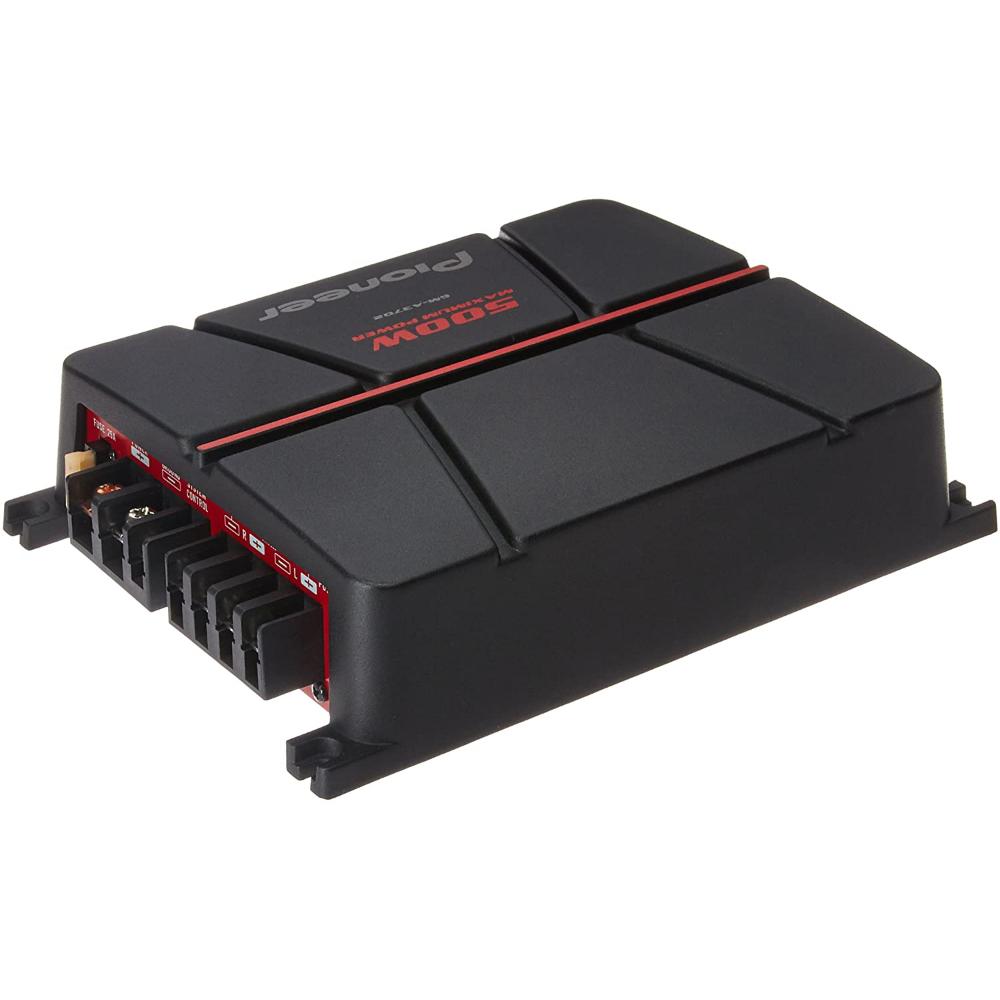

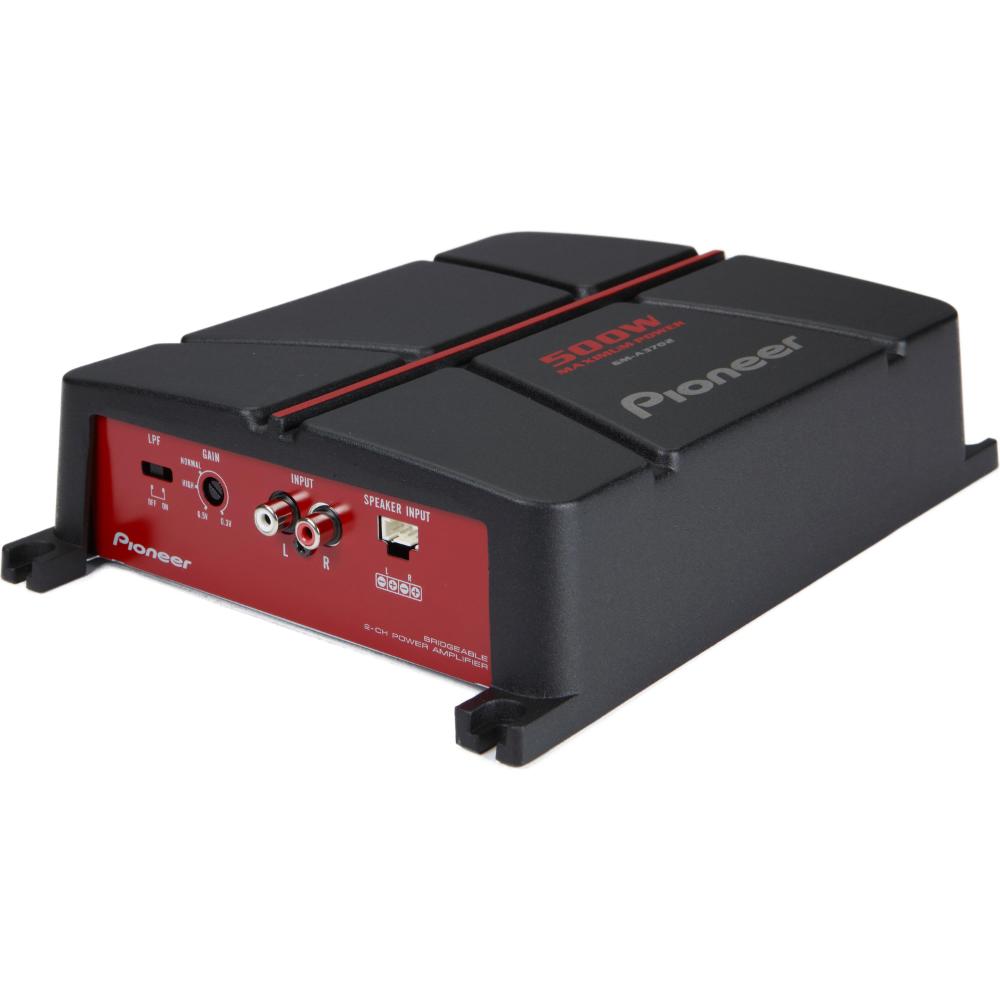

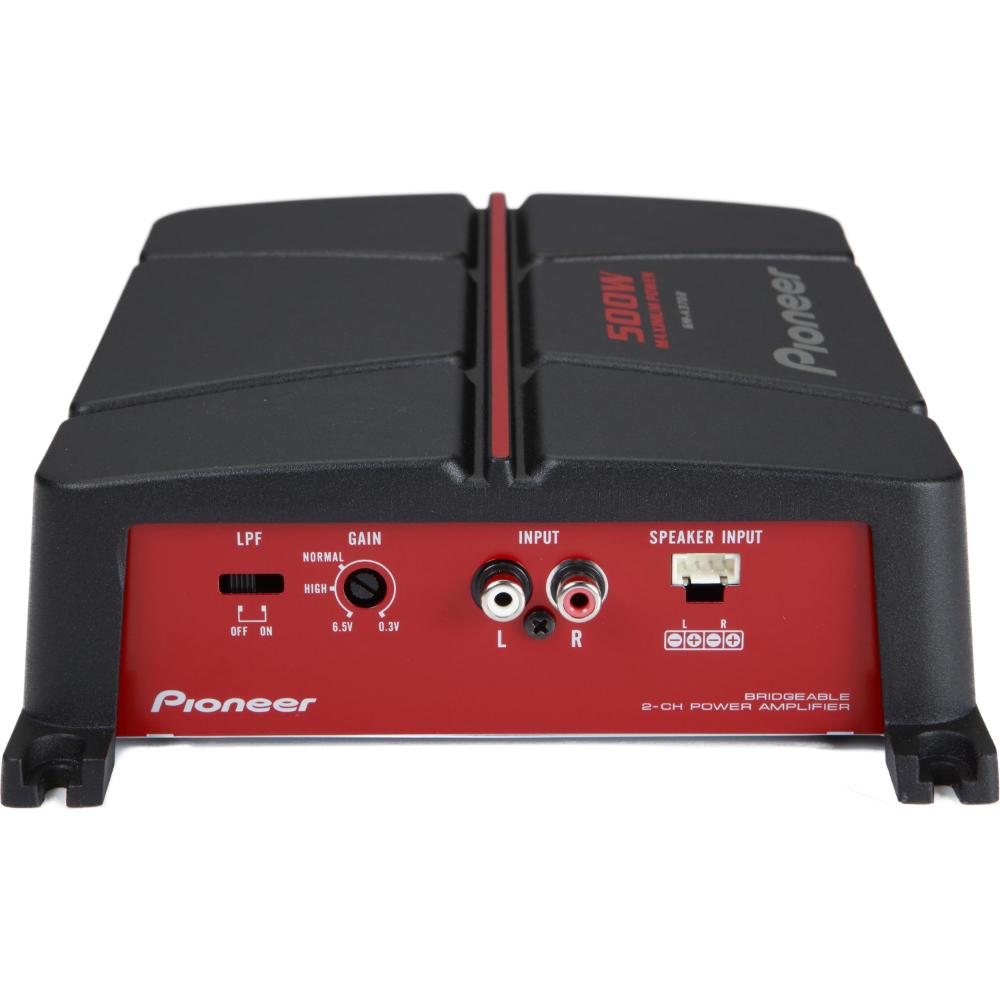

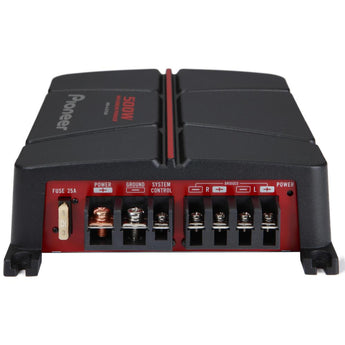

Pioneer GM-A3702 2 Channel Bridgeable Car Audio Speaker Sub Amplifier 190w RMS

£79.00 Popular
In stock
SKU: 91344MPN: GM-A3702

GM-A3702

2-Channel Bridgeable Amplifier (500W)

Configure your perfect audio setup.

A compact, flexible amplifier that works as a stereo two-channel unit or bridges into a single channel for more power.

The Pioneer GM-A3702 delivers 190W RMS across two channels. Bridge it and you get up to 500W from a single channel — useful if you want to drive a subwoofer without buying a separate mono amp. It handles both 2 Ohm and 4 Ohm speakers, so it fits most existing setups without rewiring. Gain adjustment goes up to 6.5V, giving you accurate matching to your head unit. The one-body heat sink manages heat efficiently, and distortion is kept very low for clean output at higher volumes.

Key Features

  • 190W RMS output across 2 channels
  • Bridgeable for up to 500W total output
  • Compatible with 2 Ohm and 4 Ohm speakers
  • Gain adjustment up to 6.5V
  • One-body heat sink design for efficient cooling
  • Very low distortion for cleaner audio

Explore the full range in 2 Channel Amplifiers.

Specification
Frequency response   10Hz ~ 70kHz (+0dB , -3dB)
More specs
  • Maximum power    500W (Bridged) or 2 x 170W (4 Ω) or 2 x 250 W (2 Ω)
  • CEA 2006 Power    2 x 60W (4 Ω)
  • Continuous power output    2 x 60W (4 Ω) or 1 x 190W (4Ω bridged) or 2 x 95 W (2 Ω)
  • Load impedance capability    2-8 ohm allowable (Stereo)
  • Distortion    < 0.05 %
  • S/N ratio    > 95 dB
  • LPF    80 Hz (-12 dB/oct)
  • Chassis size (W x H x D)    246(W) x 60(H) x 180(D)
  • Unit weight    1.4
  • Speaker Terminals    Screw-type
  • 2-channel
What's Included
  • Pioneer GM-A3702
  • Manual
Product information

Pioneer

About the Pioneer GM-A3702

From our tech experts at CEN

A 2-channel amplifier, rated at 190w RMS. Enough channels for a front and rear stage, or a front stage with the rest bridged onto a sub.

Who it suits

Drivers who have upgraded their speakers and found the head unit cannot drive them properly.

Our tech experts advise

Power figures mean little until the amplifier is matched to the speakers and the gains are set with a meter rather than by ear. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer
