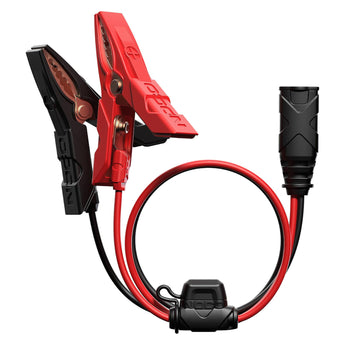

NOCO GC001 X-Connect Micro Battery Clamps with M6 Eyelets for Genius 1 2 5 10
Couldn't Load Pickup availability
The NOCO GC001 X-Connect Micro Battery Clamps are a replacement or additional charging accessory for NOCO Genius and G Series chargers. They feature needle-nose micro clamps for temporary connections and removable M6 eyelets for permanent battery mounting, with a built-in 20 A mini blade fuse and 16 AWG wire. They are part of the NOCO X-Connect accessory range.
Key specifications
- Compatible with: GENIUS1, GENIUS2, GENIUS5, GENIUS10, GENIUS2x2, GENIUS2x4 and G750, G1100, G3500, G4, G7200 (all versions)
- Not compatible with: NOCO Boost UltraSafe lithium jump starters
- Input: X-Connect female
- Output: battery clamps with removable M6 eyelets
- Fuse: 20 A mini blade
- Wire size: 16 AWG
- Overall length: 24 in (61 cm); cable length 18.5 in (47 cm)
- Clamp span: 1.25 in
Made for Genius chargers
The GC001 clamps plug directly into the X-Connect lead on compatible NOCO Genius and G Series chargers. Use them as a straight replacement for a lost set, or add a second set to another vehicle for quick changeover.
Compatible with
- G750 (all versions)
- G1100 (all versions)
- G3500 (all versions)
- G4 (all versions)
- G7200 (all versions)
- GENIUS1
- GENIUS2
- GENIUS2x2
- GENIUS2x4
- GENIUS5
- GENIUS10
- Not compatible with NOCO Boost UltraSafe lithium jump starters.
Dual-purpose clamps
Use the micro clamps for temporary connections, or remove the eyelets from the clamps and hard-mount them directly to battery terminals. Once mounted, simply plug your Genius charger in for daily charging and maintenance without re-clamping each time.
Needle-nose micro clamps
The needle-nose profile gives a secure grip on smaller terminals. The 1.25 in clamp span and improved clamping force accommodate a wide range of terminal sizes.
Built-in protection
A 20 A mini blade fuse is built in for overcurrent protection. For larger battery terminals requiring M10 eyelets, the GC014 X-Connect XL Battery Clamps are the recommended alternative. If you also need an eyelet cable compatible with both Boost and Genius models, see the NOCO GBC007 Boost Eyelet Cable.
Explore the full range in NOCO Genius Accessories.
Specification
| Type | Wiring |
|---|---|
| Series | Genius |
| Article Number | GC001 |
| Country of Manufacture | China |
More specs
| |
What's Included
- NOCO GC001 X-Connect Battery Clamps
- Hex Wrench (3mm)
NOCO
About the NOCO GC001
From our tech experts at CEN
A genuine NOCO eyelet connector lead, for permanently attaching to a battery so charging takes seconds, for NOCO chargers and jump starters.
Who it suits
Owners of NOCO chargers and boosters who want the right connection rather than an adapter. Eyelet leads are the sensible answer on a bike, classic or seasonal vehicle that goes on charge regularly.
Our tech experts advise
Leads are specific to particular NOCO models and connector types, so confirm what your unit uses before ordering. get in touch and we will check.
Explore the full NOCO range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all NOCO
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
More from NOCO Genius Accessories
More options from the same range, in stock and ready to go
Save 9% NOCO GC019 12V Power Plug 12ft Extension Cable for GC003 GC017 GC018 GC020 RRP£21.95£19.95 / Save 9%In stock
Save 10% NOCO GC008 X-Connect XL Eyelet Terminal Connector for Genius 1 2 5 10 & G Series RRP£19.95£17.95 / Save 10%Low stock
Frequently Asked Questions
Q: Which chargers is the GC001 compatible with?
A: NOCO GENIUS1, GENIUS2, GENIUS5, GENIUS10, GENIUS2x2 and GENIUS2x4, plus the G750, G1100, G3500, G4 and G7200 (all versions).
Q: Can I use the GC001 with a NOCO Boost jump starter?
A: No. The GC001 is not compatible with NOCO Boost UltraSafe lithium jump starters.
Q: What's in the box with the GC001?
A: The NOCO GC001 X-Connect battery clamps and a 3 mm hex wrench.
