NOCO GC008 X-Connect XL Eyelet Terminal Connector for Genius 1 2 5 10 & G Series

The NOCO GC008 X-Connect XL Eyelet Terminal Connector is a permanent-mount battery connector for M10 (3/8-inch) terminal holes, designed for use with NOCO Genius and G Series chargers. It is part of the NOCO X-Connect accessory range.

For smaller M6 terminals, see the GC002 X-Connect Eyelet Terminal Connector.

Key specifications

• Compatible with: GENIUS1, GENIUS2, GENIUS5, GENIUS10, GENIUS2x2, GENIUS2x4 and G750, G1100, G3500, G4, G7200 (all versions)
• Not compatible with: NOCO Boost UltraSafe lithium jump starters
• Input: X-Connect female
• Output: M10 (3/8 inch) eyelet terminals
• Eyelets: copper-plated, lie-flat design
• Fuse: 20 A mini blade ATC
• Wire size: 16 AWG

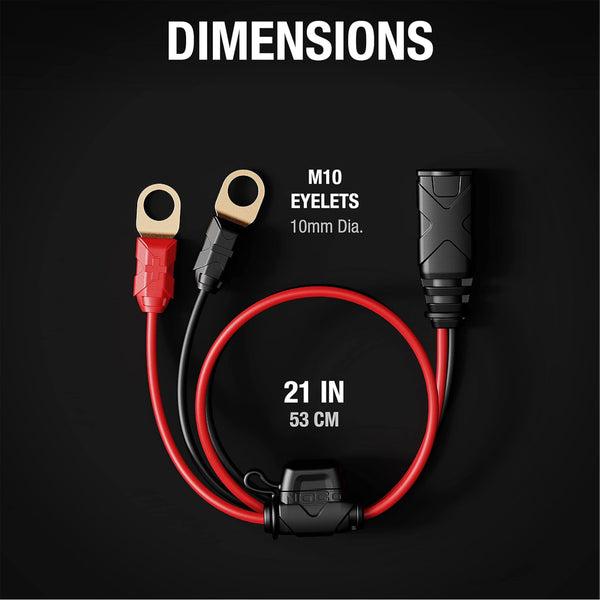

• Overall length: 22.5 in (57.2 cm); cable length 21 in (53.3 cm)

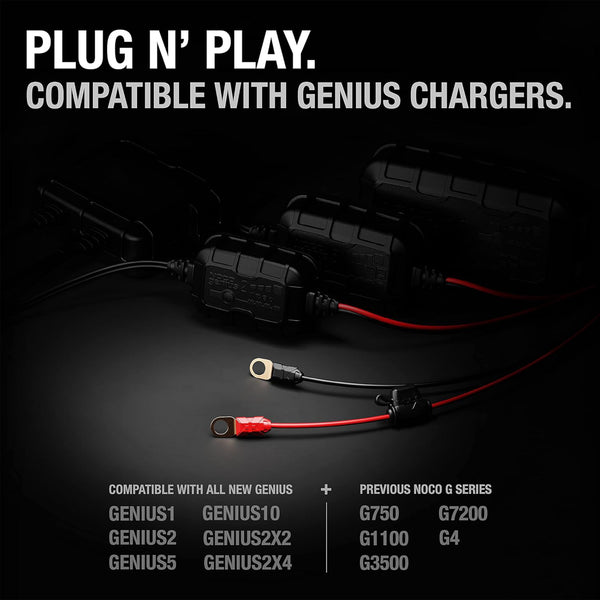

Plug-and-play charging connection

The GC008 is compatible with the full range of Genius chargers and all X-Connect accessories. Hard-mount it to any battery with M10 (3/8-inch) terminal holes on a car, boat, truck or other vehicle, then plug and unplug your Genius charger as needed — no reconnecting clamps each time.

Compatible with

• G750 (All Versions)
• G1100 (All Versions)
• G3500 (All Versions)
• G4 (All Versions)
• G7200 (All Versions)
• GENIUS1
• GENIUS2
• GENIUS2x2
• GENIUS2x4
• GENIUS5
• GENIUS10
• Not compatible with NOCO Boost UltraSafe lithium jump starters.

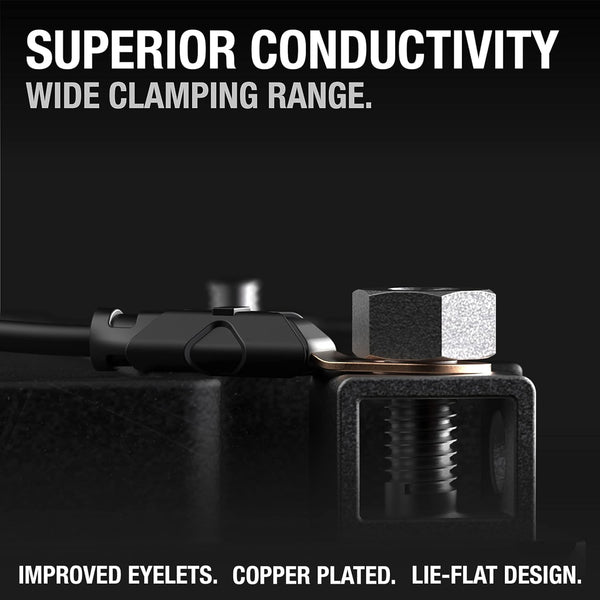

Lie-flat eyelet design

The GC008's lie-flat copper-plated eyelets sit low against the terminal post, improving conductivity and reducing the risk of bending or damaging the eyelet or terminal. This maximises performance from the connected Genius charger.

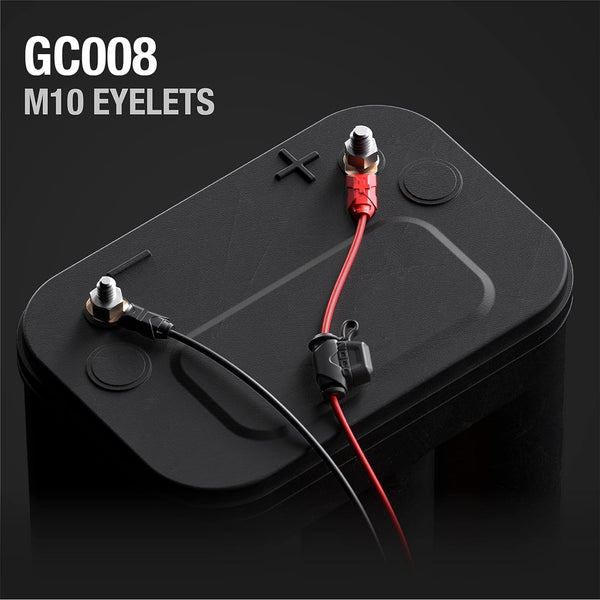

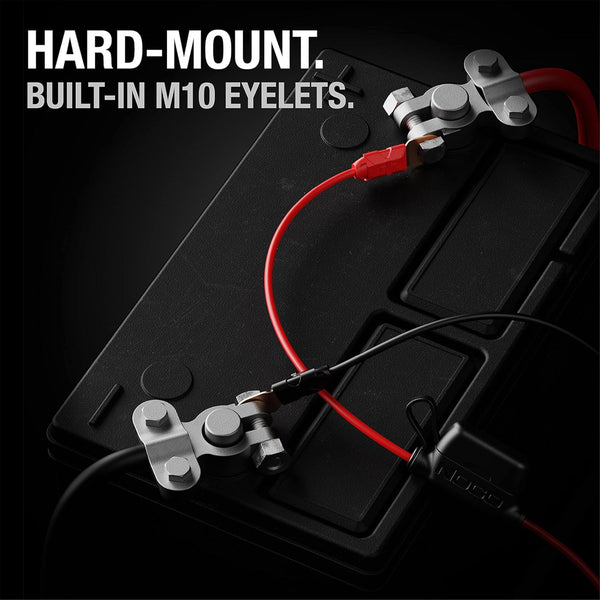

Hard-mount installation

Leave the GC008 permanently fixed to the battery terminals. The X-Connect female connector lets you move a single Genius charger between multiple batteries quickly, without tools or clamps.
