Mosconi Pico 8 | 12 DSP Amp 8 Channel Amplifier with 12 Channel DSP Up to 480w

£969.99 Out of stock
Out of Stock
SKU: 91236MPN: MOSCONI PICO 8|12 DSP

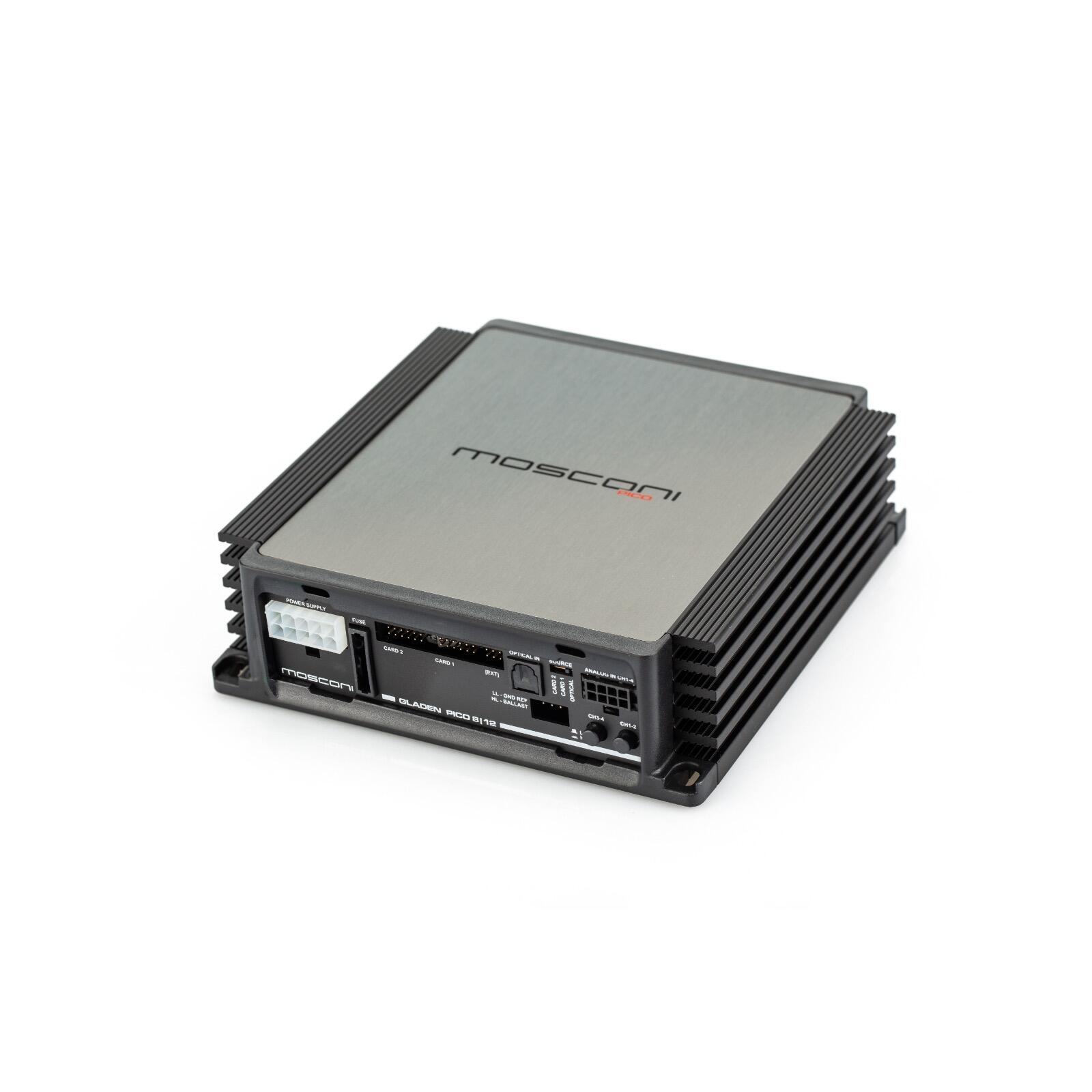

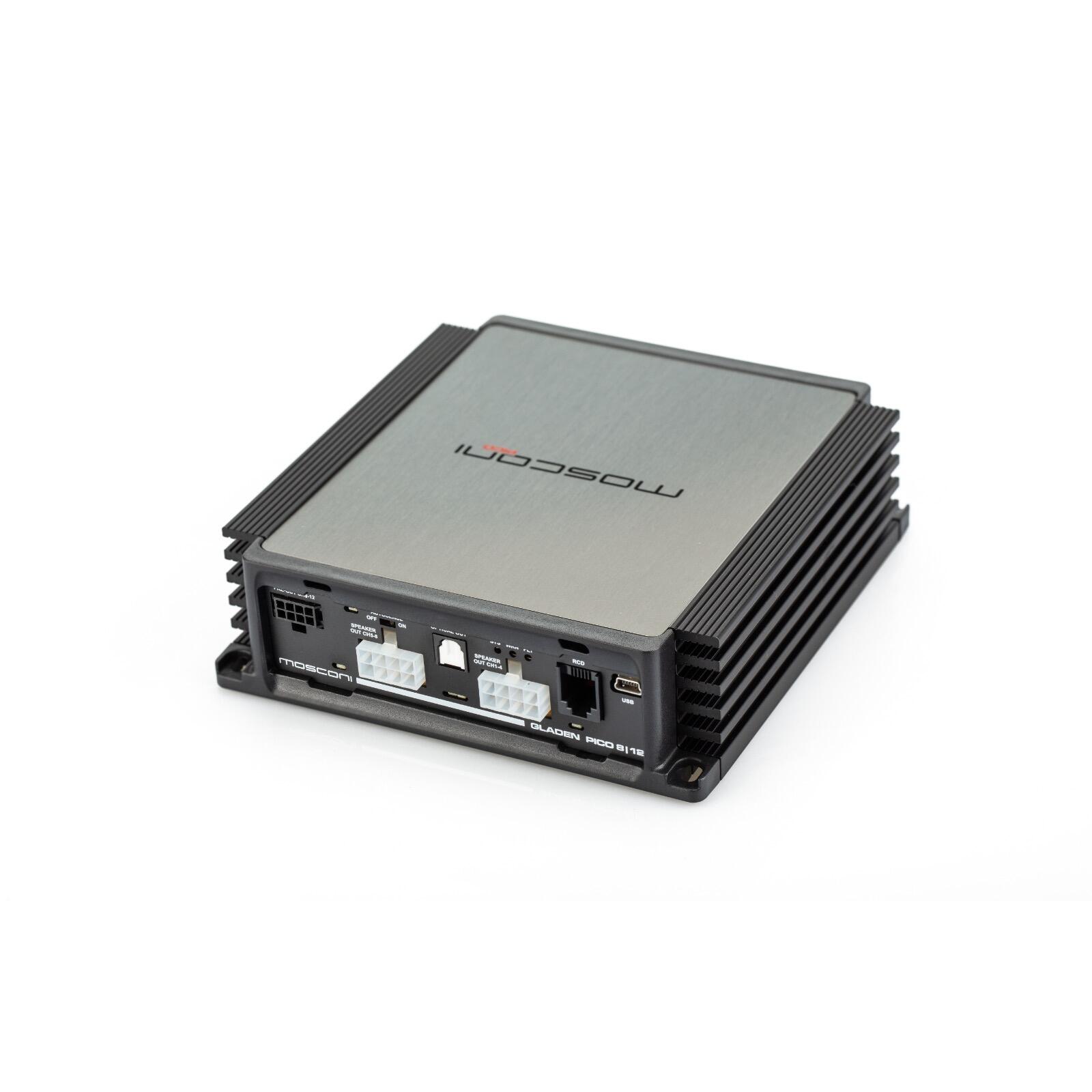

The Mosconi Pico 8|12 DSP is a compact 8-channel Class D amplifier with a built-in 12-channel DSP and signal-controlled power supply, rated at up to 480W. It is part of Mosconi's Pico DSP amplifier range.

This listing is the Pico 8|12 DSP. The Pico DSP range is also available as the Mosconi Pico 6|8 DSP (6 channels, 8-channel DSP, up to 440W).

Key specifications

  • Amplifier: 8 channels, Class D, 3 ohm stable
  • DSP: 12 channels
  • Total power: up to 480W (8 x 60W @ 2 ohm)
  • Line outputs: 4 x 2 Vrms (112dB S/N)
  • Digital inputs: S/PDIF optical and BT+
  • Digital output: optical, 96kHz/24-bit
  • Quiescent current: 250 to 450mA
  • PC connection: USB serial (GUI)

Perfect OEM Integration

Optimised for factory radio use. Features four analogue inputs, flexible routing, 3 x input EQ and delay. Eight channels at 60W make it well suited to active multi-way systems and larger installations. Two digital inputs (S/PDIF optical and BT+) and two processed line outputs are included. If you need a standalone DSP without amplification, see the Mosconi Aero 8|12 DSP.

Signal Controlled Power Supply

Unlike Class G/H designs, the power supply only activates when required — at high signal levels — and scales with power demand. Quiescent current sits between 250mA and 450mA depending on speaker load, making this particularly suited to electric vehicles and motorhomes.

Transducerless High-Speed PWM Power Amplifiers

High-efficiency PWM amplifiers run at a carrier frequency above 2MHz, enabling HiRes audio and an extremely compact footprint. Modulation is handled directly from the 96kHz TDM signal of the DSP — no DAC — resulting in a noise floor close to zero and THD+N of approximately 0.02% at 1W.

Specification
Bluetoothextended digital audio port (BT+)
More specs
  • 2 x analog inputs switchable (high level / low level)
  • 1x digital input SP-Dif optical (8 kHz - 96 kHz sampling rate)
  • 1 x bluetooth port with SP-Dif - TTL (8 kHz - 96 kHz, e.g. for Mos AMAS bluetooth streaming module)
  • (flexible 8 kHz - 384 kHz synchronous digital input for audio sources with 2 - 16 channels, direct DSP access without jitter, e.g. for MOS BTS-LD4C BT streaming module or extended analog inputs)
  • 294.912 MHz, 32-bit audio port, 64-bit core
  • Double precision 56 bit filter calculation
  • 3072 SIMD instructions per sample at 96 kHzASRCs from 1:8 up to 7.75:1 ratio and 139 dB DNR
  • 1 x USB serial data (connection PC / GUI)
  • 1 x remote connector (connection for RCD, RC-Mini, RTC-Hub)
  • 2 x bluetooth control port (connection MOS-BT3.0 (app control), RC-Can (CAN bus control)
  • 1 x remote out, 1 x remote In, auto-remote with highlevel connection
  • Connections with MOLEX® plug contacts
  • Very small size with low heat generation, best suited for installation behind cladding
  • 3 x 9 band parametric input EQ (de-equalizing)
  • 6 x input delay 0 - 3ms / 0.01ms (de-delay)
  • 10 x input level control digital (signal conditioning)
  • Flexible mixer for signal routing
  • (side separated, can sum and subtract, 10 inputs to 4 x 2 output groups)
  • 6 x 30 band or 4 x 30 band + 2 x 15 band group EQ
  • (parametric, relative phase remains stable)
  • 12 x 10 band output filters
  • Highpass / lowpass / highshelf / lowshelf / notch / allpass 1st + 2nd order / speaker-EQ)
  • 12 x speaker delay 0 - 12 ms, 0.01 ms
  • 12 x speaker phase switch
  • 8 x 60 W speaker output 3-Ohm stable (not bridgeable!)
  • 4 x 2 Vrms line outputs SN/R 112 dB
  • 1 x digital output optical (96 kHz / 24 Bit, fully masterable)
What's Included
  • MOSCONI PICO 8|12 DSP
Product information

Mosconi

About the Mosconi MOSCONI PICO 8|12 DSP

From our tech experts at CEN

A 8-channel amplifier from Mosconi, with DSP built in, rated at 480w RMS.

Who it suits

Drivers whose speakers have outgrown the head unit. Mosconi is Italian-built and aimed squarely at people who tune systems properly.

Our tech experts advise

The processing is worth only what the tuning puts into it, which means measurements in the car rather than a preset. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full Mosconi range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Mosconi

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

Frequently Asked Questions

Q: How do I choose the right amplifier for my speakers or subwoofer?

A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.

Q: What wiring do I need to install this amplifier?

A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.

Q: What class of amplifier is this and does it matter?

A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.

Q: Will an amplifier work with my factory head unit?

A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.

Q: Can CEN install this amplifier?

A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.

Q: How many channels does the Mosconi Pico 8|12 DSP have?

A: It has 8 amplified channels and a 12-channel DSP, with 4 x 2 Vrms line outputs and an optical digital output.

Q: Is the Pico 8|12 DSP suitable for electric vehicles and motorhomes?

A: Yes. Its signal-controlled power supply only switches on when required, giving a quiescent current of 250 to 450mA depending on the speaker circuitry.

Q: Will the Pico 8|12 DSP work with a factory radio?

A: Yes. It has balanced high level inputs up to 30V plus switchable high/low level inputs, with input EQ and delay for OEM integration.
