Morel Supremo 602 Flagship 2 Way Carbon Fibre 6.5" Component Speakers 140w RMS

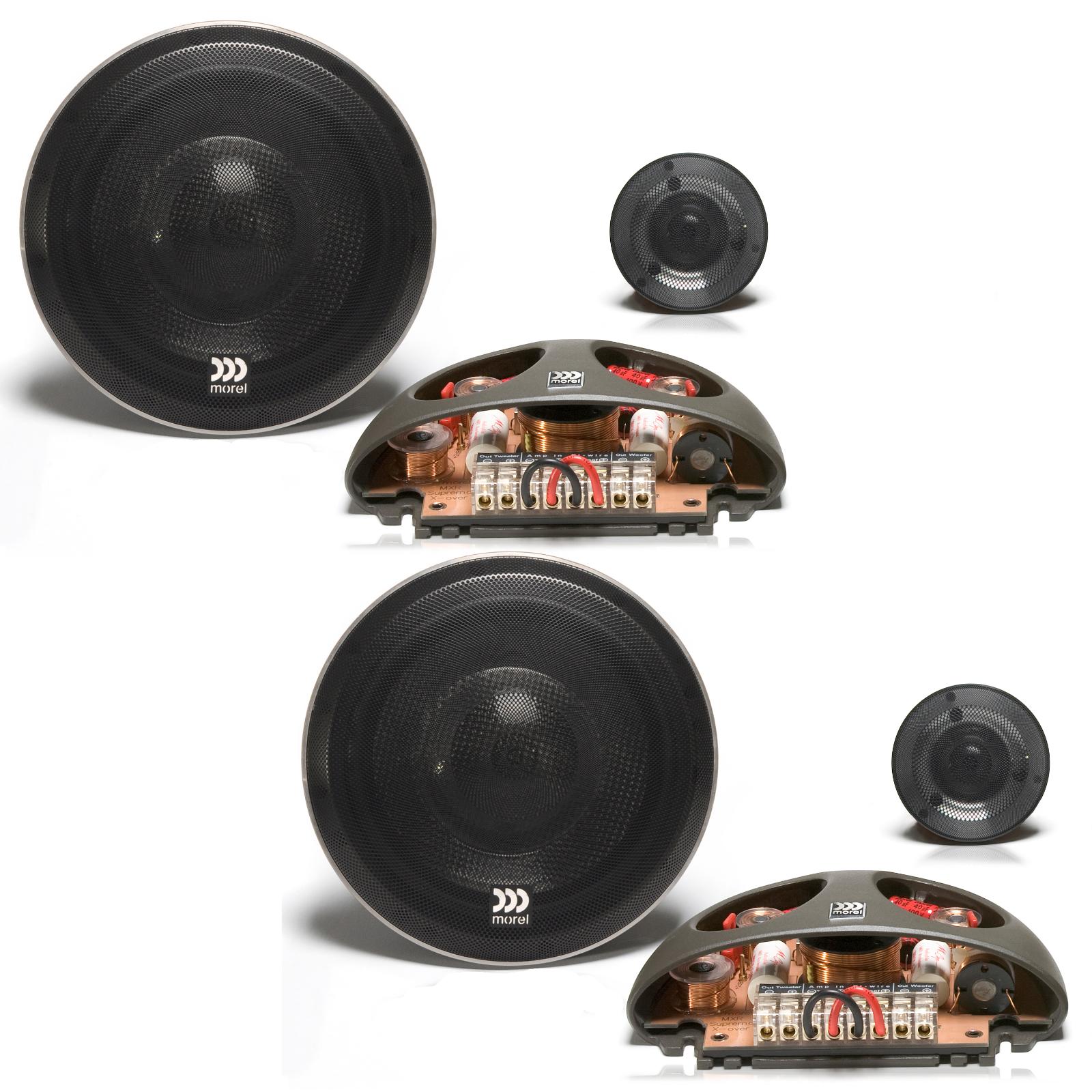

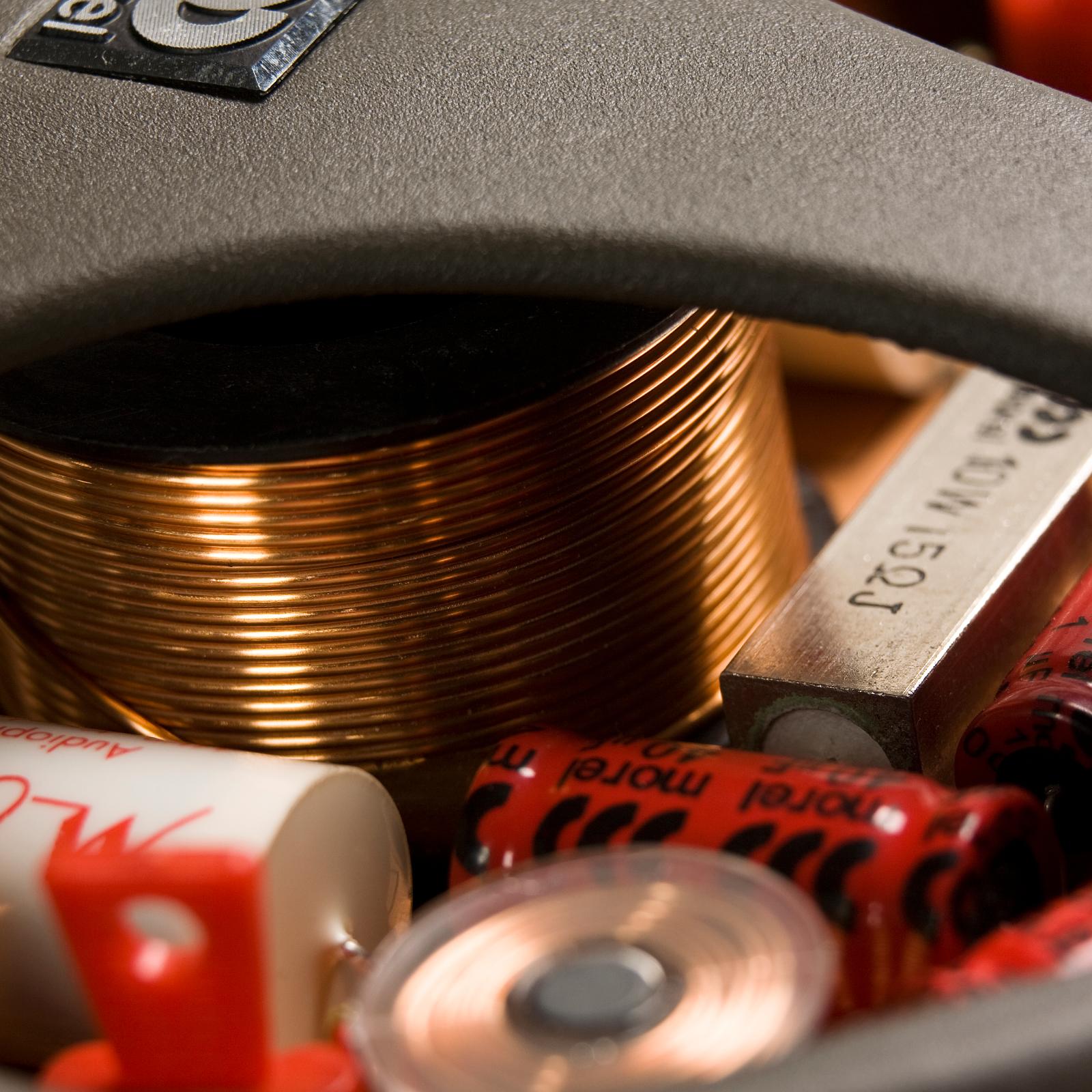

The Morel Supremo 602 is Morel's flagship 6.5" 2-way component speaker set, featuring a carbon fibre and Rohacell sandwich woofer, Supremo Piccolo 28mm Acuflex silk dome tweeter, and passive crossovers. It handles 140W RMS and sits at the top of Morel's car audio range.

Running a DSP? The Morel Supremo 602 Active is supplied without passive crossovers. Morel also offers Supremo separates: the Supremo MW6 woofers and Supremo Piccolo Lotus tweeters.

Key specifications

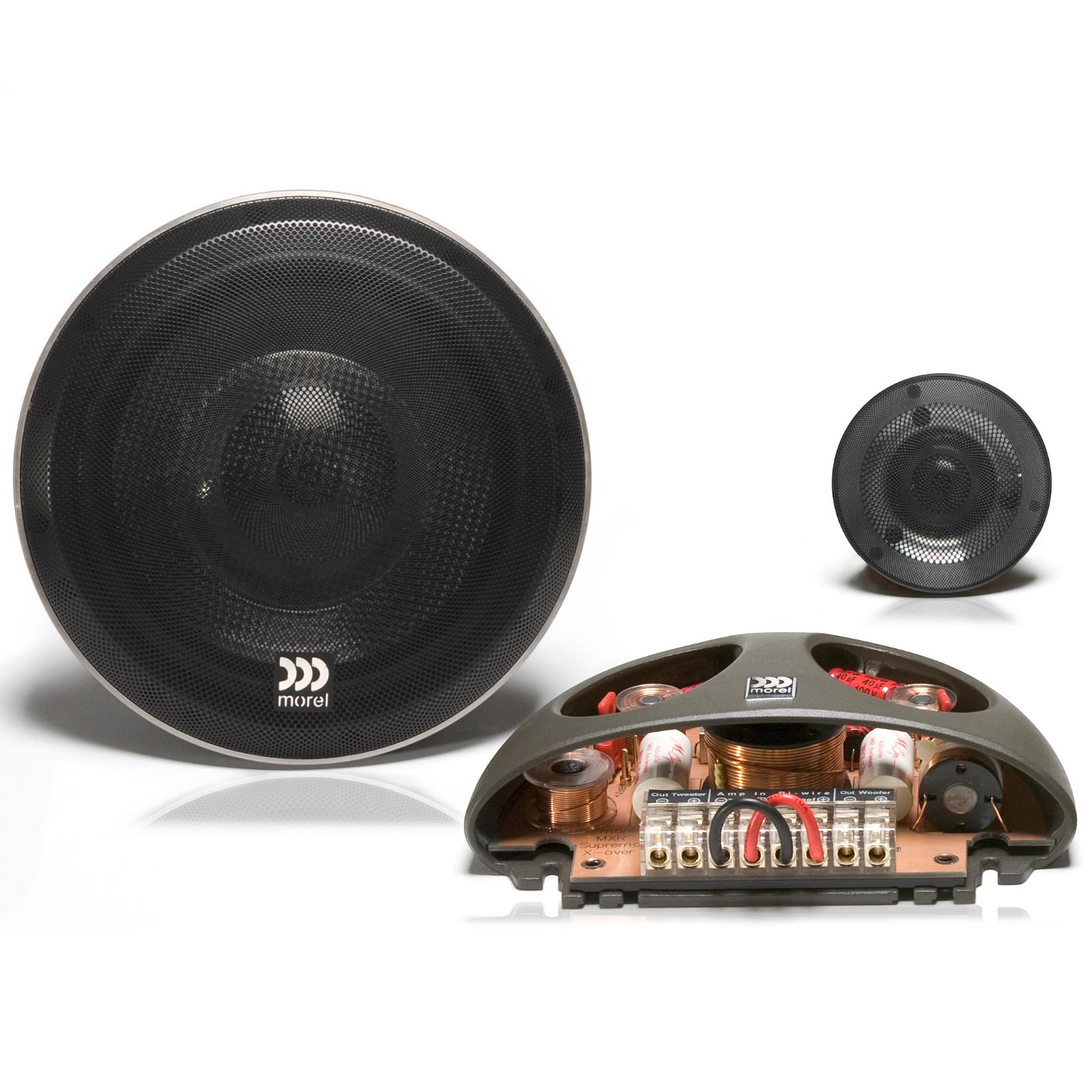

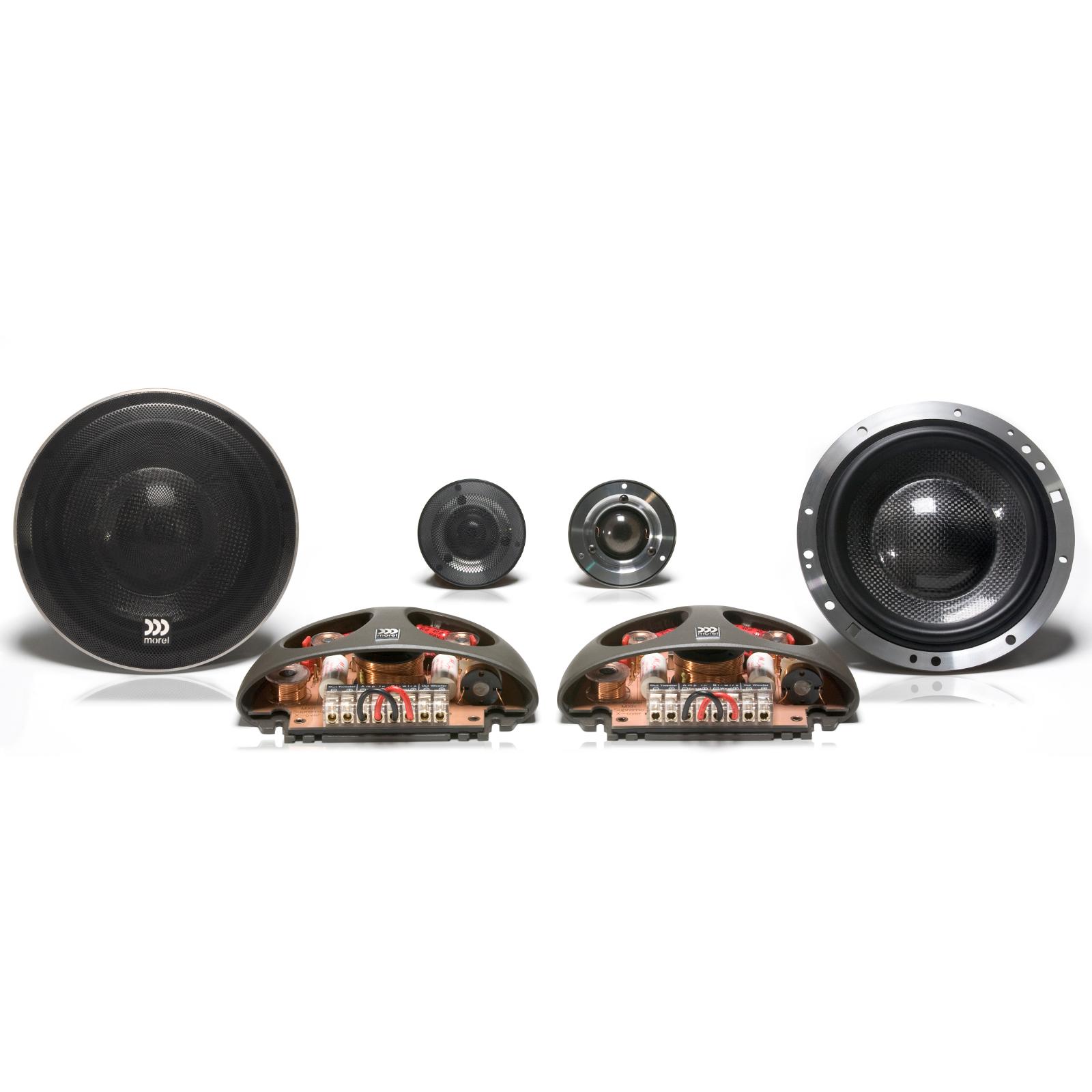

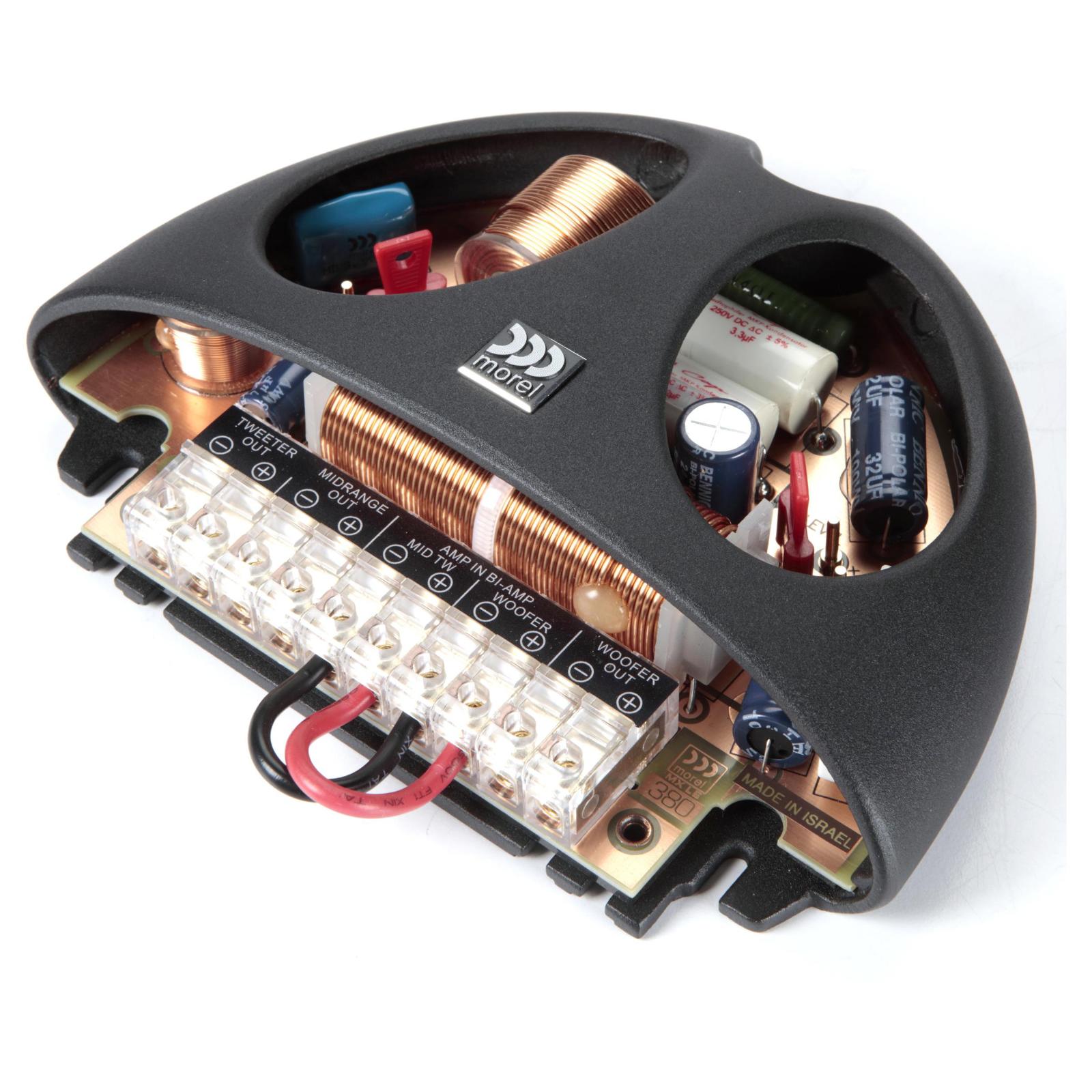

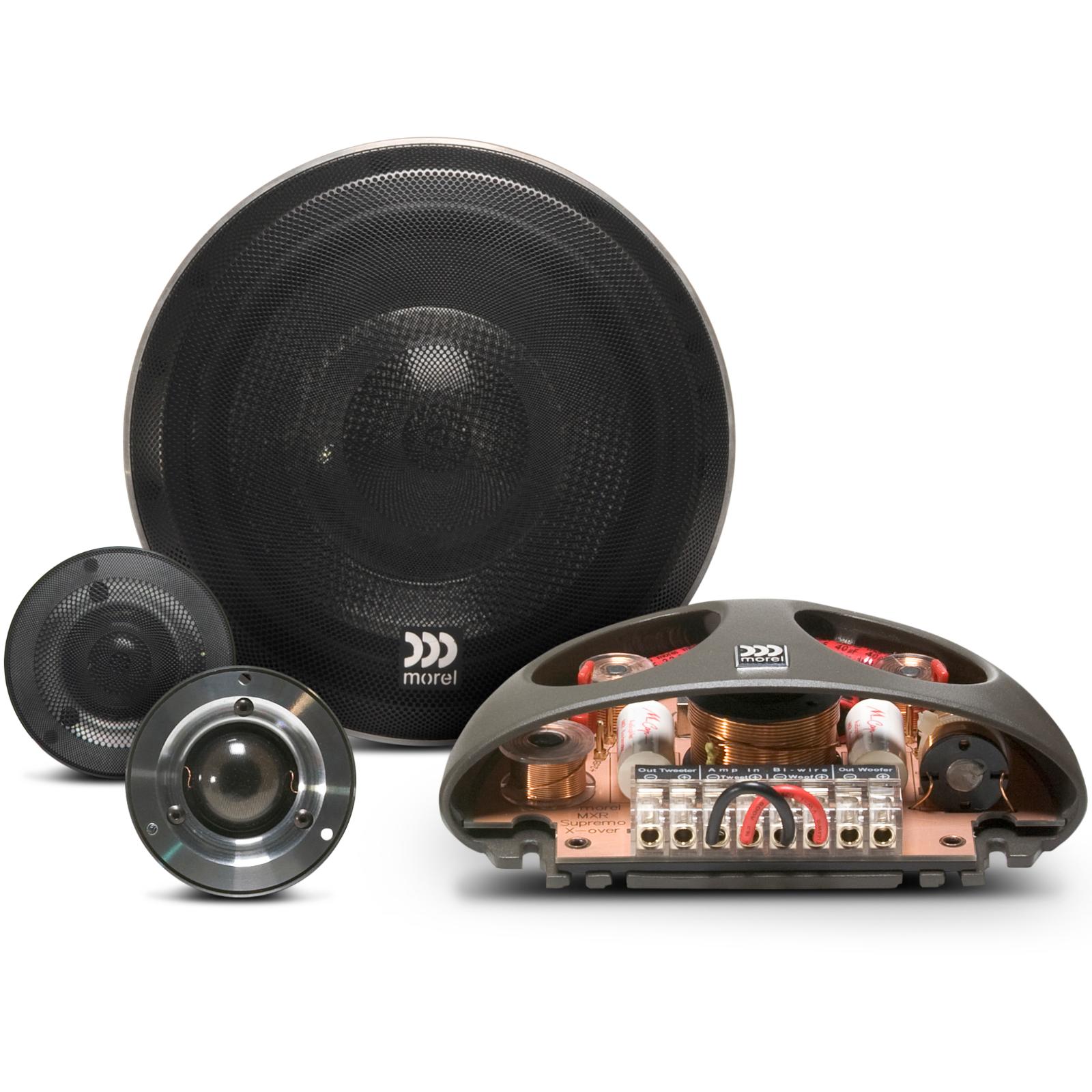

• Type: 2-way component set with passive crossovers
• Woofer: 6.5", carbon fibre/Rohacell sandwich cone, butyl rubber surround

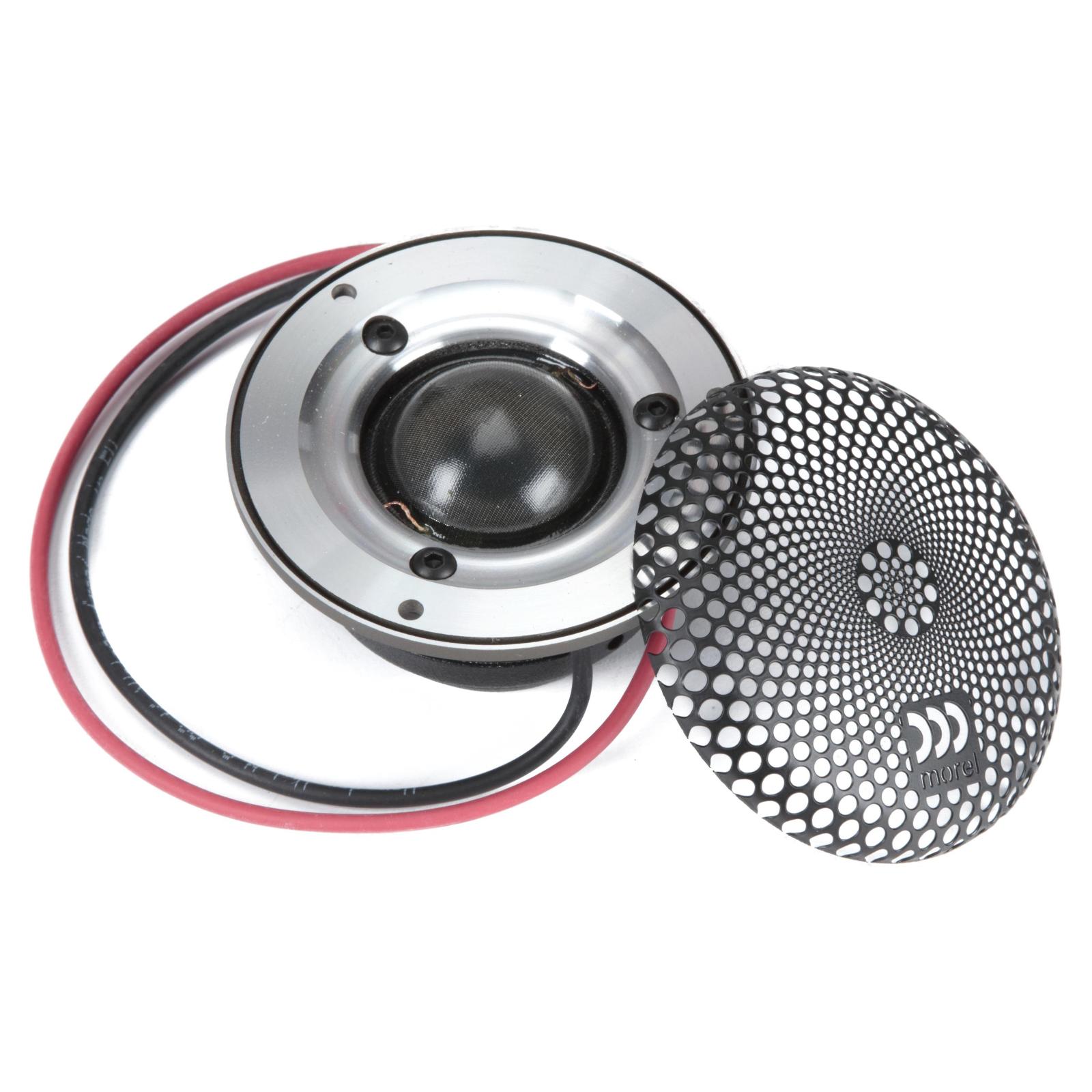

• Tweeter: 28mm Acuflex silk dome (Supremo Piccolo)
• Power handling: 140W RMS, 600W peak
• Sensitivity: 89dB (2.83V)
• Frequency response: 30Hz–25kHz
• Impedance: 4 ohms
• Woofer top-mount depth: 2 1/2in, cut-out: 5 5/8in
• Grilles: Lotus woofer and tweeter grilles included

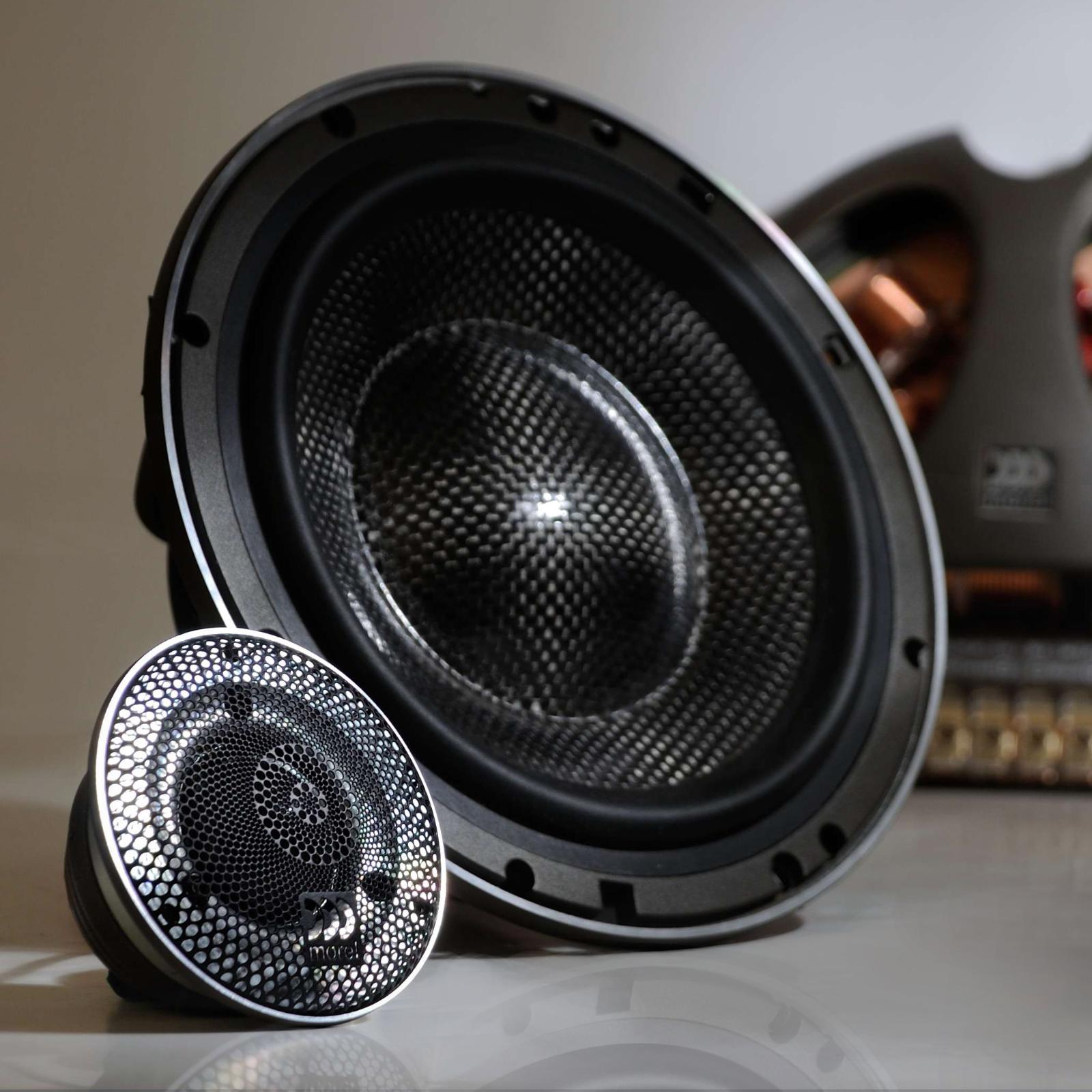

Supremo Series 6-1/2" component speaker system

Morel has been building speakers for 45 years. The Supremo range represents the highest-resolution tier in their car audio lineup, built around a no-compromise design using Morel's most advanced technologies.

The woofer pairs a neodymium magnet and EVC motor topology with a 3" diameter Hexatech aluminium voice coil and a proprietary carbon fibre and Rohacell sandwich cone. High-frequency detail is handled by the Supremo Piccolo tweeter, widely regarded for its open and accurate response.

C.A.R Filter

Controlled Acoustic Resistance. In most car installations, speakers sit in a near free-air environment — such as a door — with minimal acoustic loading. The C.A.R. Filter™ controls airflow within the driver to mimic a cabinet, improving power handling by 30% and giving greater control over cone movement for better bass dynamics.

EVC Motor

Morel's EVC™ technology uses oversized voice coils with the magnetic drive system positioned inside the coil. This eliminates stray magnetic flux by directing all magnetic energy to the voice coil, producing a compact, efficient design with effective heat dissipation and reduced cone breakup for lower distortion.

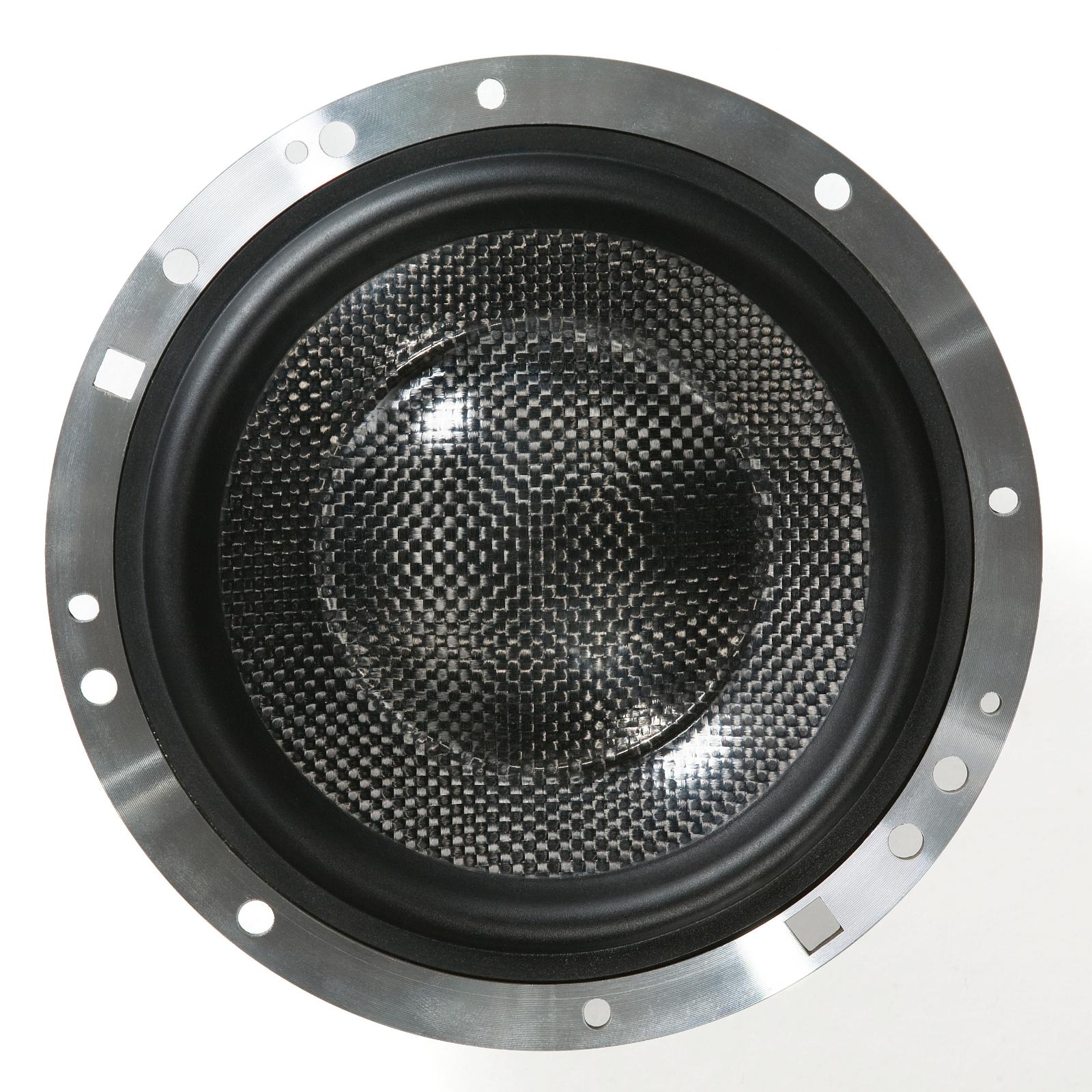

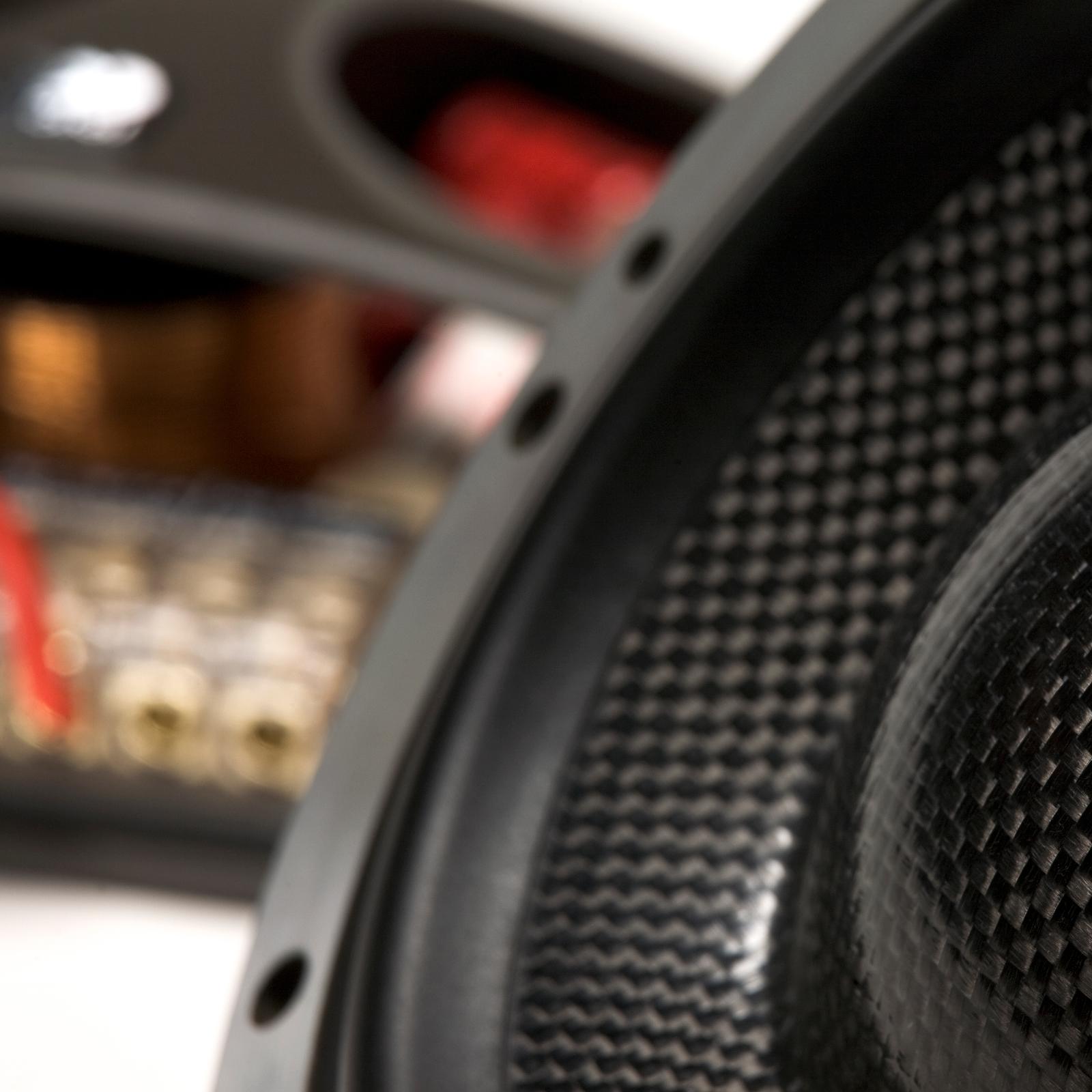

Carbon Fibre Cone

Derived from Morel's award-winning Fat Lady speaker system, the cone uses two outer carbon fibre skins sandwiching a layer of Rohacell — a high-strength, lightweight foam. The result is a cone that is light, stiff, and well-damped for natural, uncoloured audio reproduction.

DMM Motor

Morel's double drive system uses two magnets to generate more magnetic energy than a single magnet of equivalent size. The secondary magnet, fixed above the top plate, controls stray magnetic flux to produce a more focused magnetic field and contributes to the shielded characteristic of the driver.

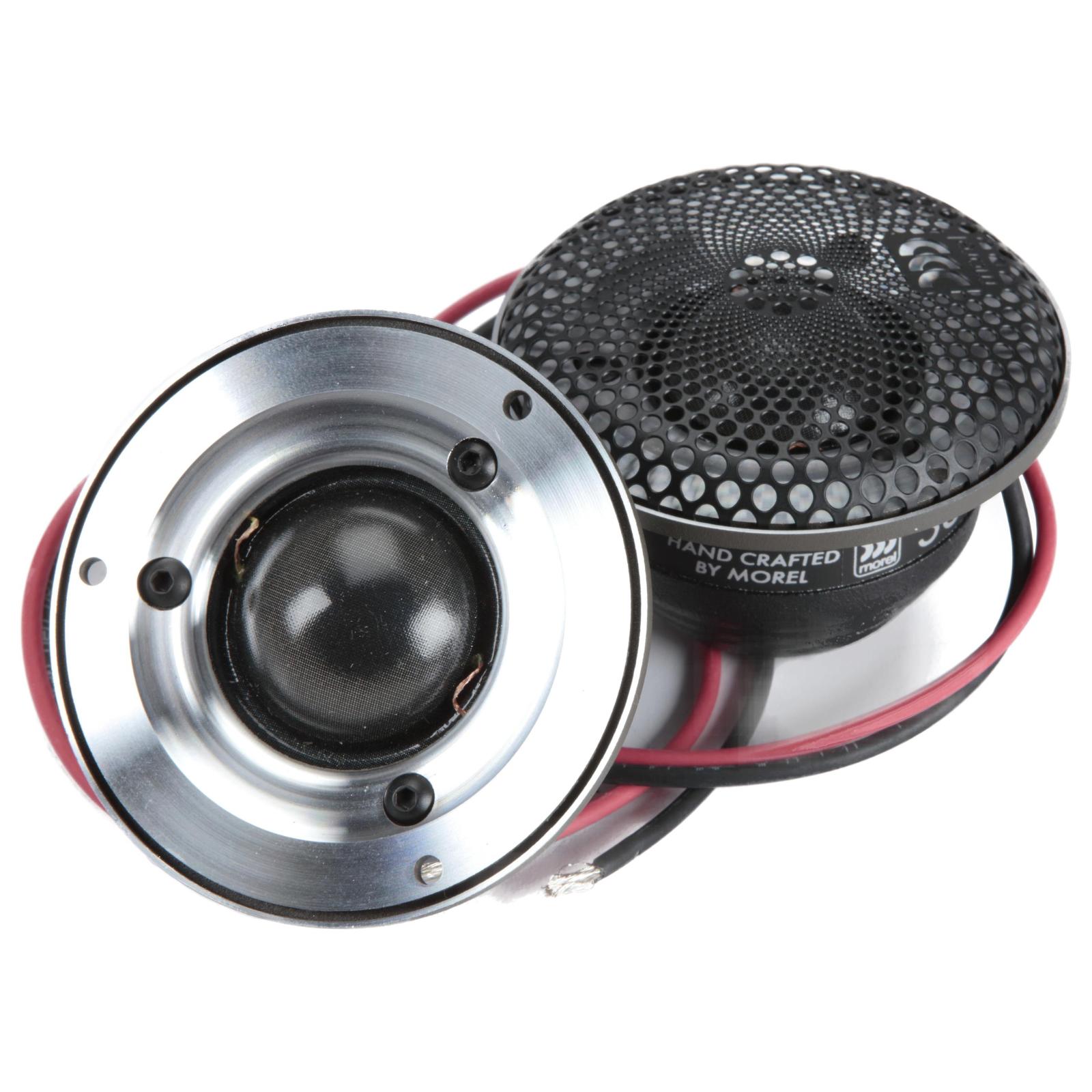

Handcrafted Acuflex Soft Dome

A specially engineered damping compound is hand-applied to the soft dome, adding rigidity and damping to improve clarity and bandwidth. The Acuflex™ diaphragm is designed for controlled cancelling breakup — each breakup mode is counteracted by another in the opposite direction — enabling a smooth frequency response.
