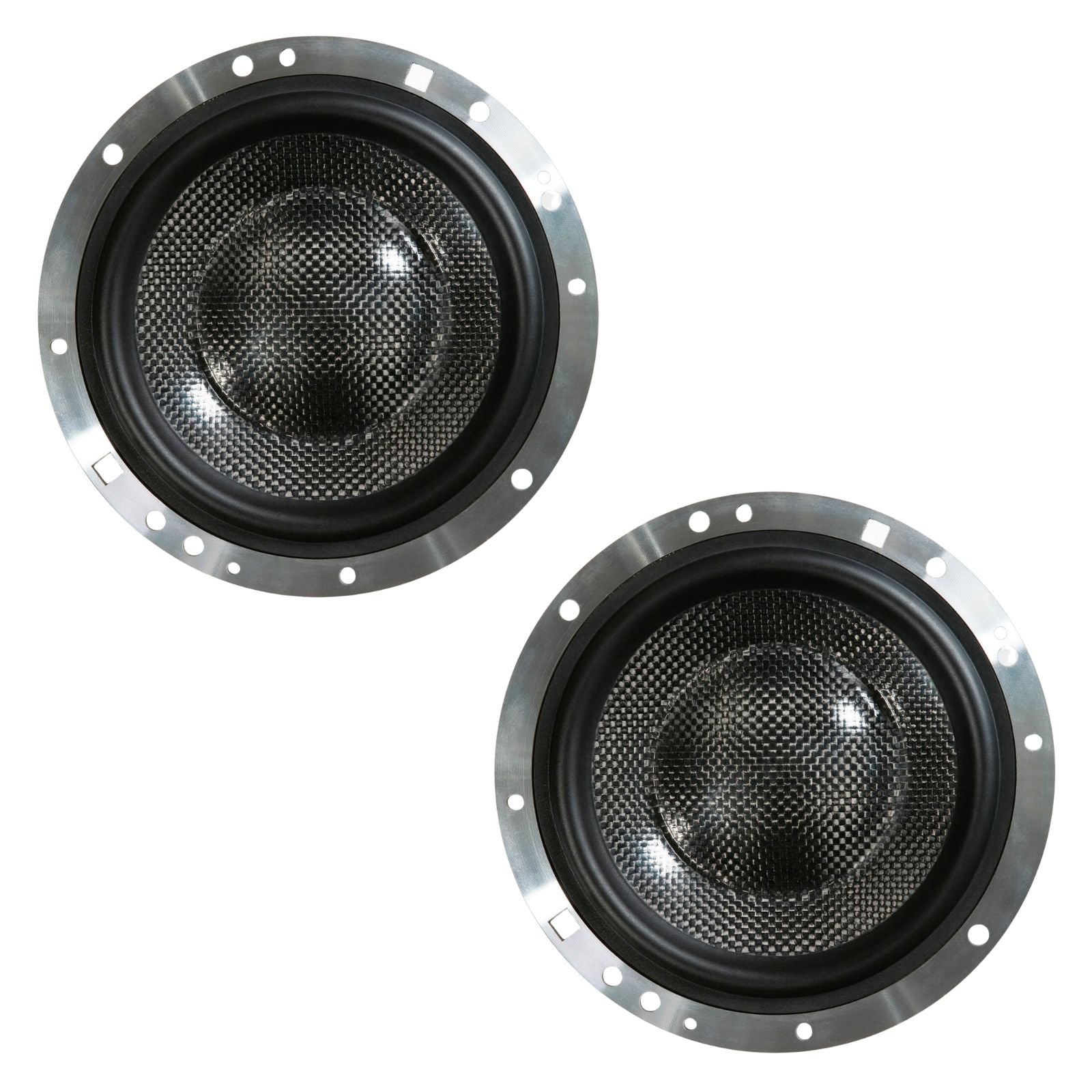

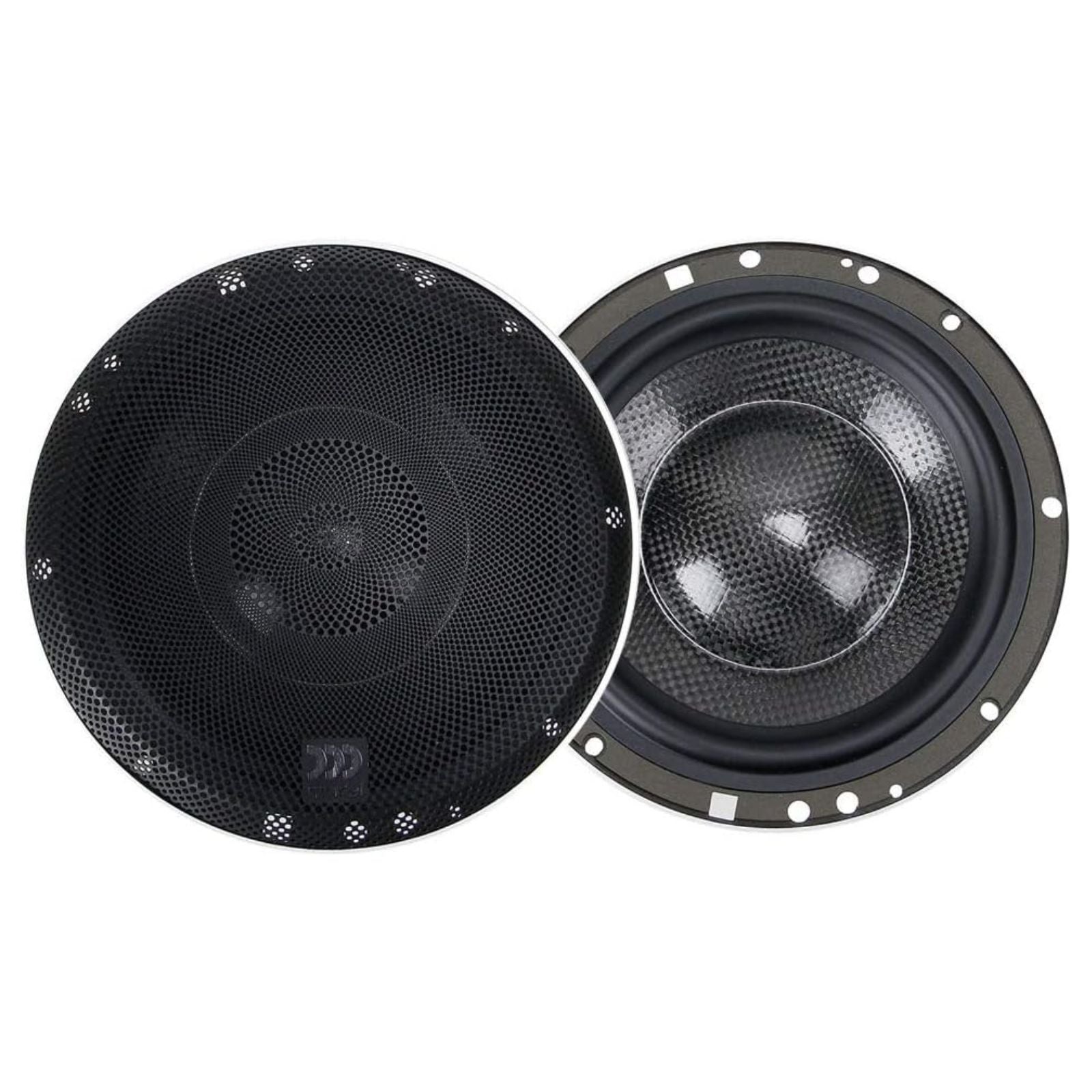

Morel Supremo MW6 6.5 Inch Component Woofers 140w RMS

Morel Supremo MW6 Woofers

An optimised version of the fat lady mid-bass woofer, the Morel Supremo MW6 woofer embodies an advanced under-hung external voice coil and a powerful motor structure to create precision, linearity, dynamics, and wide frequency range.

The Supremo woofer is the culmination of years of development and engineering know-how to deliver accurate and dynamic midbass with a very low distortion level.

Key Features

External Voice Coil (EVC) Technology
Morel speakers featuring EVC technology utilise voice coils up to three times larger than those used in conventional loudspeakers. The EVC design moves the magnetic drive system to within the voice coil, eliminating stray magnetic flux by effectively directing all the magnetic energy to the voice coil. The result is an ultra efficient and powerful design, efficient heat dissipation and reduced cone breakup for lower distortion, that is highly compact.

Neodymium Magnet Motor
Morel's experience in motor design allows it to harness the magnetic energy in extremely effective manners. The most powerful magnet available, neodymium, enables Morel to create physically compact speakers, such as tweeters and midrange, that fit in very limited spaces without limiting the quality of sound.

Woofer Carbon Fibre Sandwich Cone
Derived from the drivers of our award winning fat lady speaker system, this cone design is comprised of two exterior carbon fibre skins sandwiching a layer Rohacell-a high strength, featherweight foam. The combination forms a cone that is light, strong and properly damped for naturally uncoloured audio reproduction.

C.A.R. (Controlled Acoustic Resistance) Filter
In most automotive applpications, speakers are installed in a virtual free-air environment, such as a door, thereby providing minimal acoustic loading. The C.A.R. filter improves the acoustic loading by controlling airflow within the driver, mimicking the effects of a cabinet while improving power handling by 30%. This provides greater control over the the cone movement for improved bass dynamics.

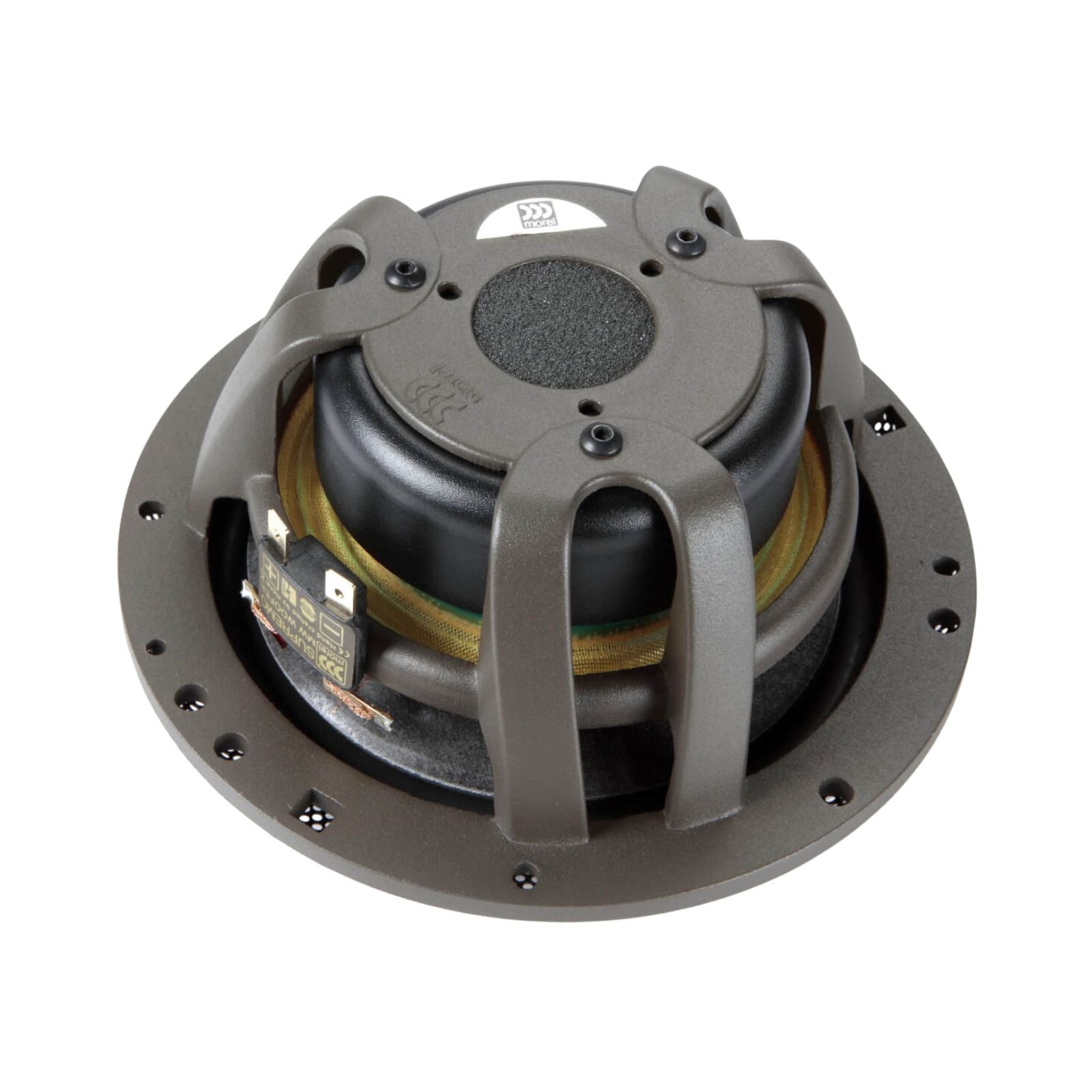

Uniflow Chassis
The Uniflow™ chassis uses an open design that is aerodynamically efficient, allowing air and sound waves to flow uniformly and smoothly. Its geometric shape also eliminates interference with the woofer's moving components, enabling the use of a low-profile spider for greater support and stability.
