Morel MDSP 8/4A Class D 8 Channel DSP Amplifier 320w RMS
Couldn't Load Pickup availability

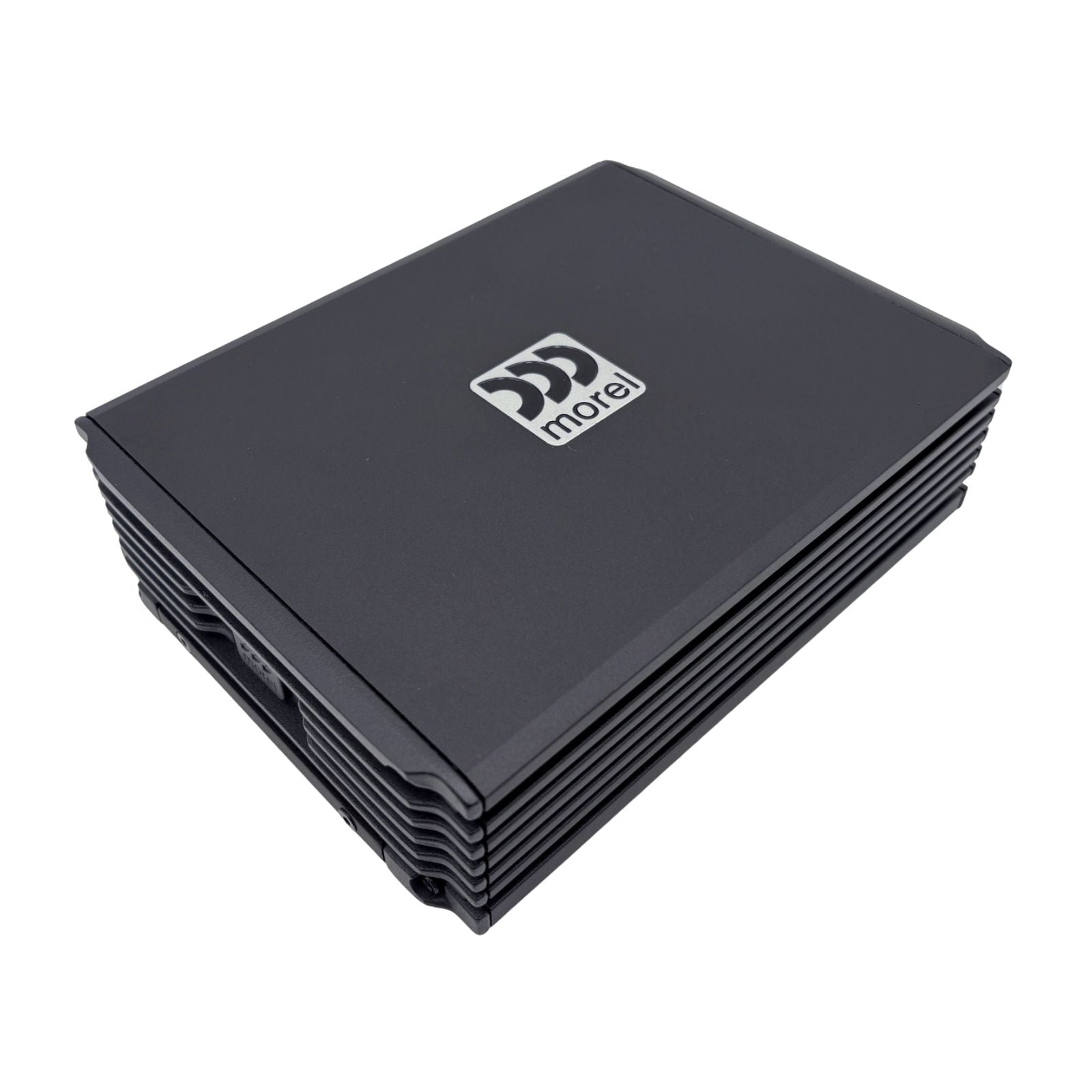

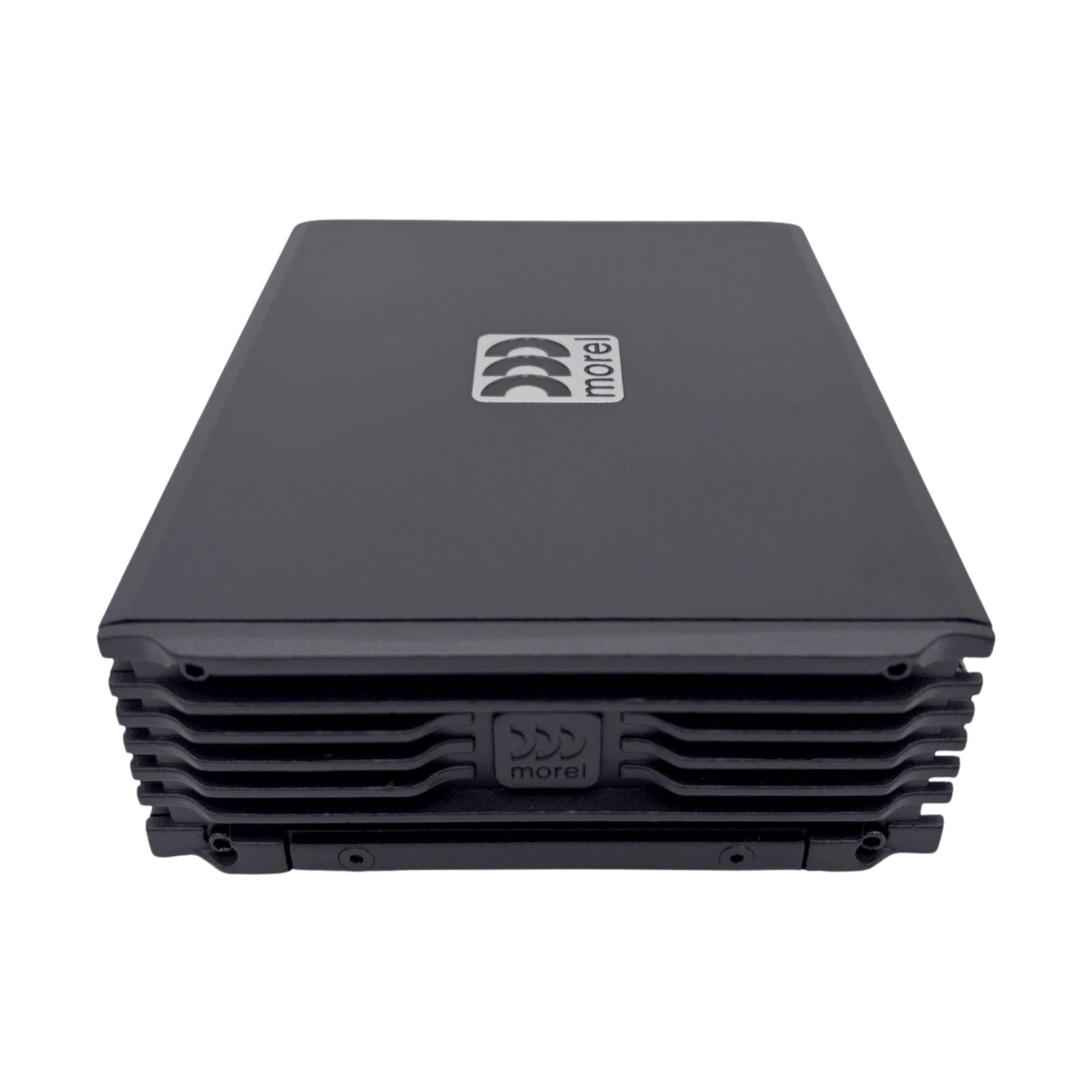

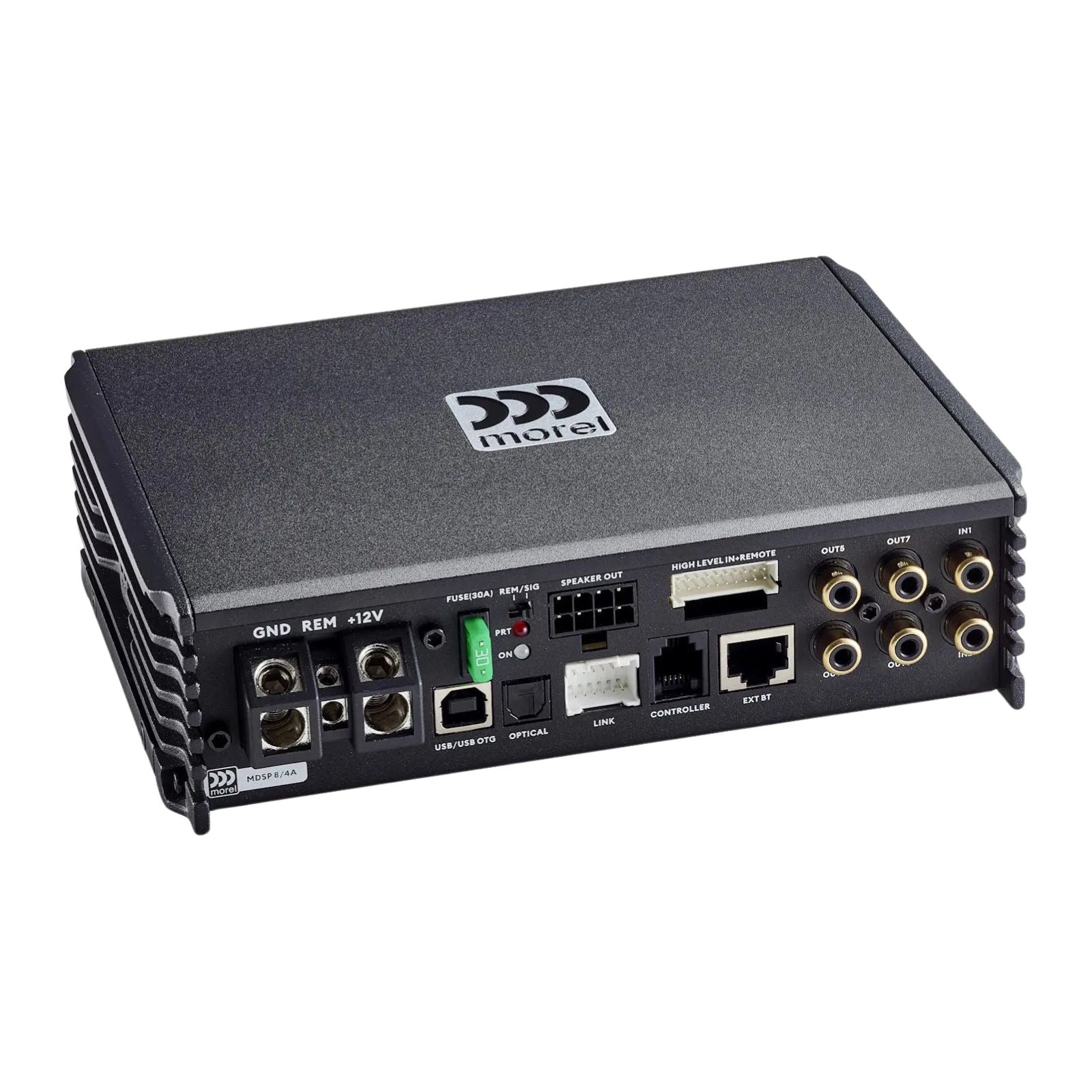

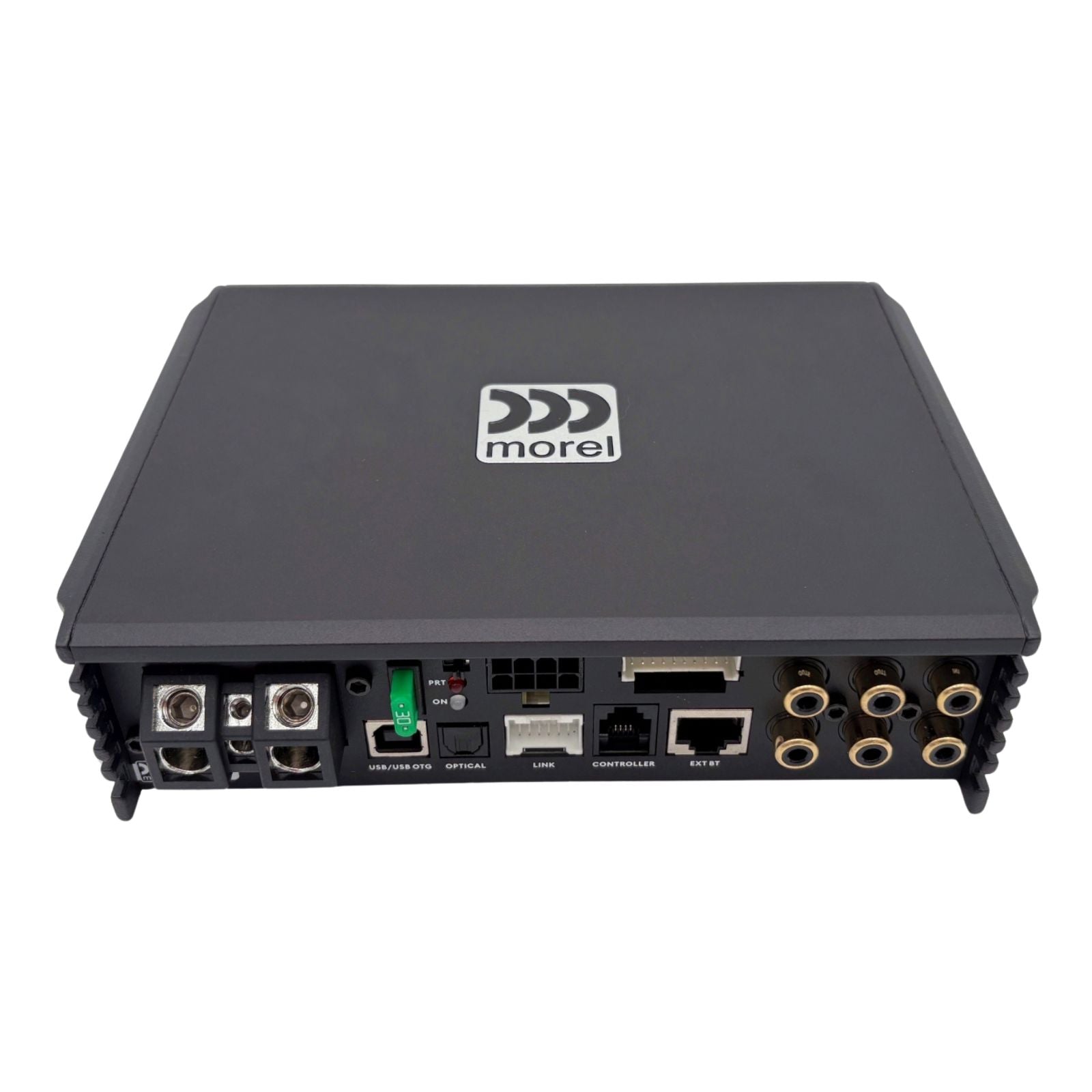

Morel MDSP 8/4A
MDSP Amplifiers: Precision, Power, and Performance in One Compact Design
Developed to meet the demands of modern vehicle integration, the MDSP amplifier series delivers unmatched performance, flexibility, and sound quality in a remarkably compact design. Whether you're upgrading an OEM system or building a high-end custom setup, MDSP amplifiers provide the tools and power to get the job done right.
Authentic Sound with Advanced MDSP Control
At the heart of every MDSP amplifier is Morel’s signature approach to sound: authentic, musical, and uncompromising. Engineered with best-in-class power output, models offer up to 80W x 4 + 160W x 4, delivering clean, powerful output to drive any system with confidence. Featuring high-resolution DSP with parametric EQ, fully adjustable crossovers, and input/output EQ per channel, the MDSP line ensures seamless, system-wide fine-tuning. Installation is streamlined with high-voltage speaker-level inputs, signal summing, and Morel’s Speaker Load Assurance Module (SLAM), which keeps factory amplifiers stable when integrating with OEM systems.
Installer-Focused Features, Listener-Focused Sound
Additional features like start/stop compatibility, automatic source switching, and TuneLink for multi-amp tuning from a single device make setup efficient and flexible. Bluetooth streaming and DRC compatibility provide users with complete control at their fingertips. Compact yet powerful, MDSP amplifiers embody Morel’s renowned sound quality and reliability — built for installers, trusted by professionals, and loved by music enthusiasts.
Specification
| Dynamic Range | ≥100dB |
|---|---|
| S/N (RCA) | ≥98dB |
| T.H.D | ≤0.03 |
| Frequency Response | 20Hz ~ 20kHz |
| Input Sensitivity | 16V / 30V RMS (High-Level) 0.1 - 2V RMS (Low-Level) |
| Input Impedance | High-Level: 4.7Ω RCA: 10kΩ |
| Output Impedance (RCA) | 51Ω |
| Load Impedance (MIN) | CH1~CH4: 2Ω |
| Output Power @ 4Ω | CH1~CH4: 80W (RMS) / 160W (PEAK) |
| Output Power @ 2Ω | CH1~CH4: 80W (RMS) / 160W (PEAK) |
| Bridged Output @ 2Ω (PBTL) | CH1~CH4: 2x160W (RMS) / 2x320W (PEAK) |
| Voltage (DC) | 9~17V |
| Idle Current | ≤0.1V |
| REM Input | High-Level Start (H1+/H1-) or ACC Start is Optional |
| REM Output | 12V (200mA) |
| Outboard Fuse (Mini ATC) | 30A x 1 |
| Signal Output (RCA) | 2V (RMS) |
| System Sampling Rate | 96kHz/24bit |
| Crossover | Full / High-Pass / Low-Pass / Band-Pass |
| Crossover Type | Bessel / Butterworth / Linkwitz-Riley |
| Crossover Slope | 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB |
| Crossover Frequency | 20Hz~20kHz @ 1Hz Step |
| Polarity Inversion | 0º/180º |
| Output Equalizer | 10-Band Parametric Equalizer ± 12dB per Channel 10-Band |
| Output Equalizer Q Value | 0.404 - 28.852 |
| Output Equalizer Resolution | 0.1dB per Step |
| All-Pass Filtering | Input (Per Channel); Output (Per Channel) |
| Delay Distance | 0 - 692 cm; 0 - 273 inch |
| Delay | 0 - 20 ms |
| Delay Step | 0.01 ms |
| Presets | 6 |
| Net Weight (kg) | 0.41 |
| Dimensions | 180mm x 136mm x 50mm |
More specs
| |
What's Included
- Morel MDSP 8/4A
