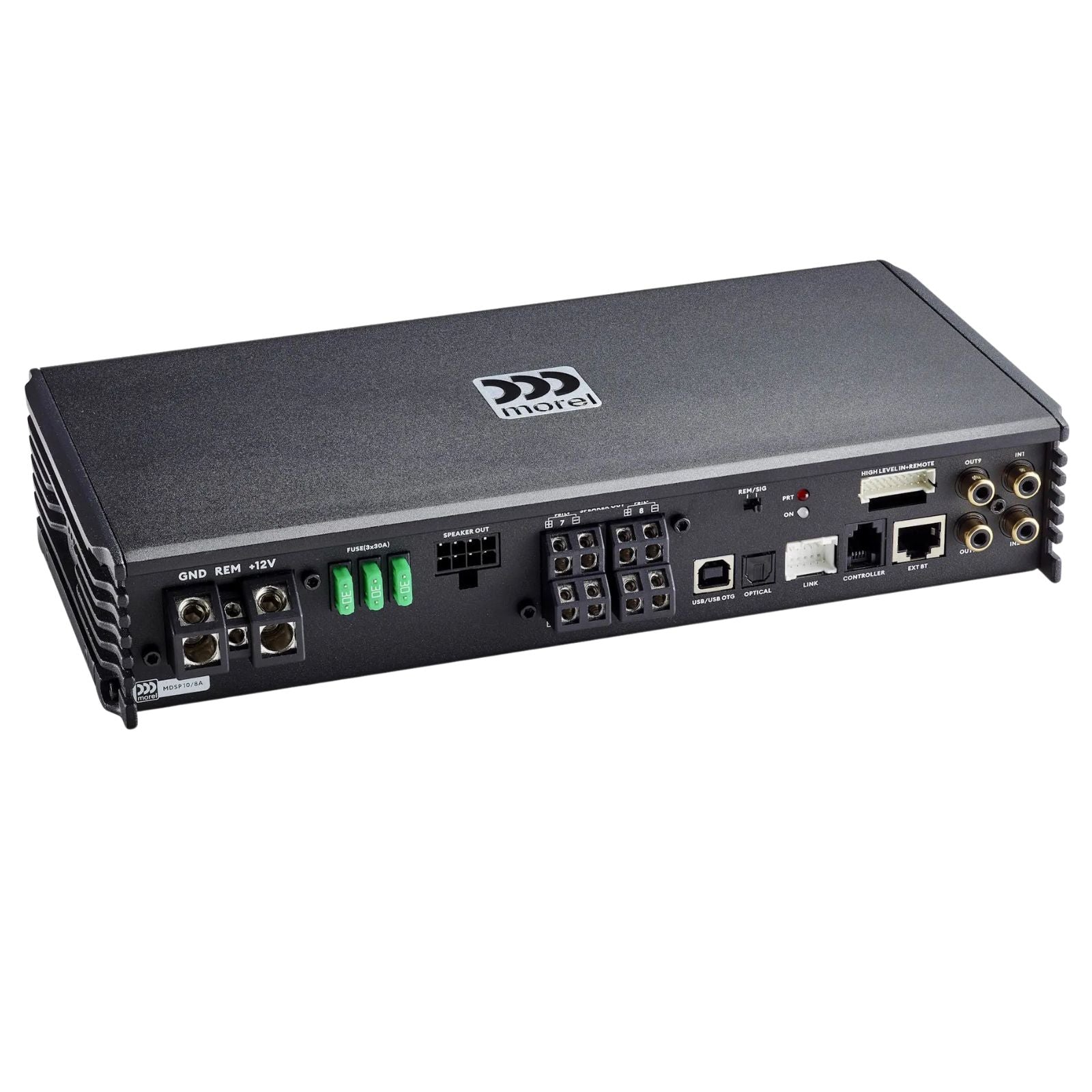

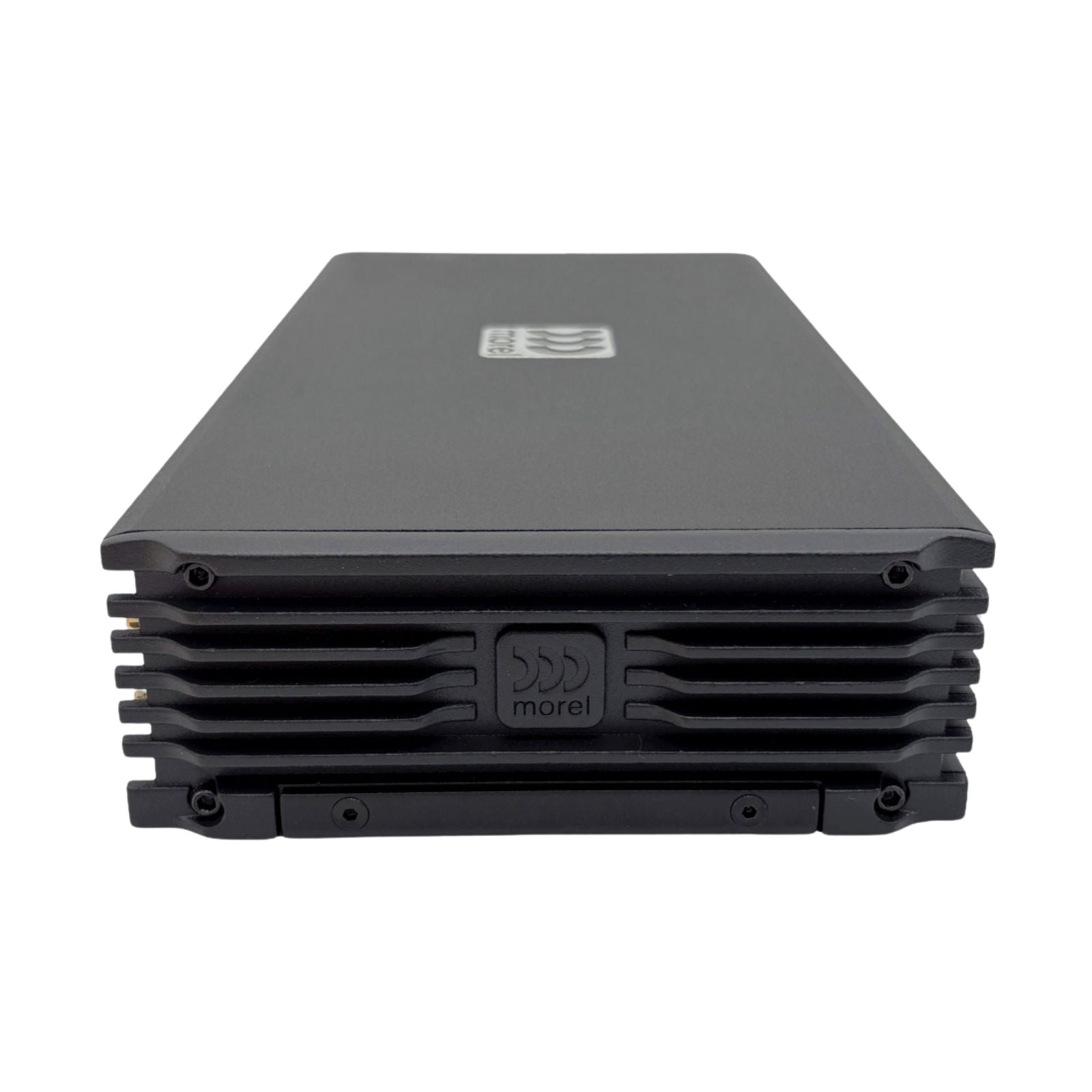

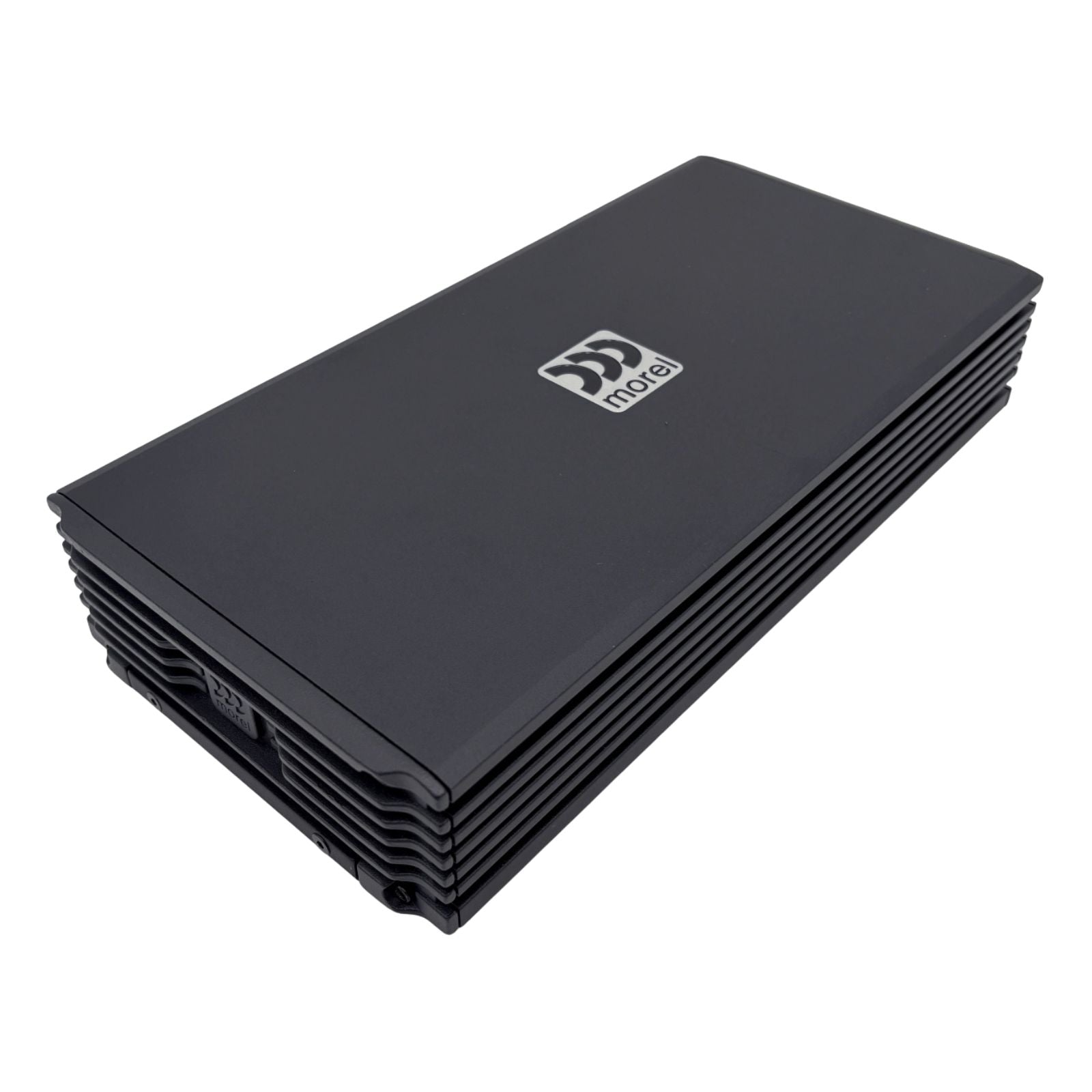

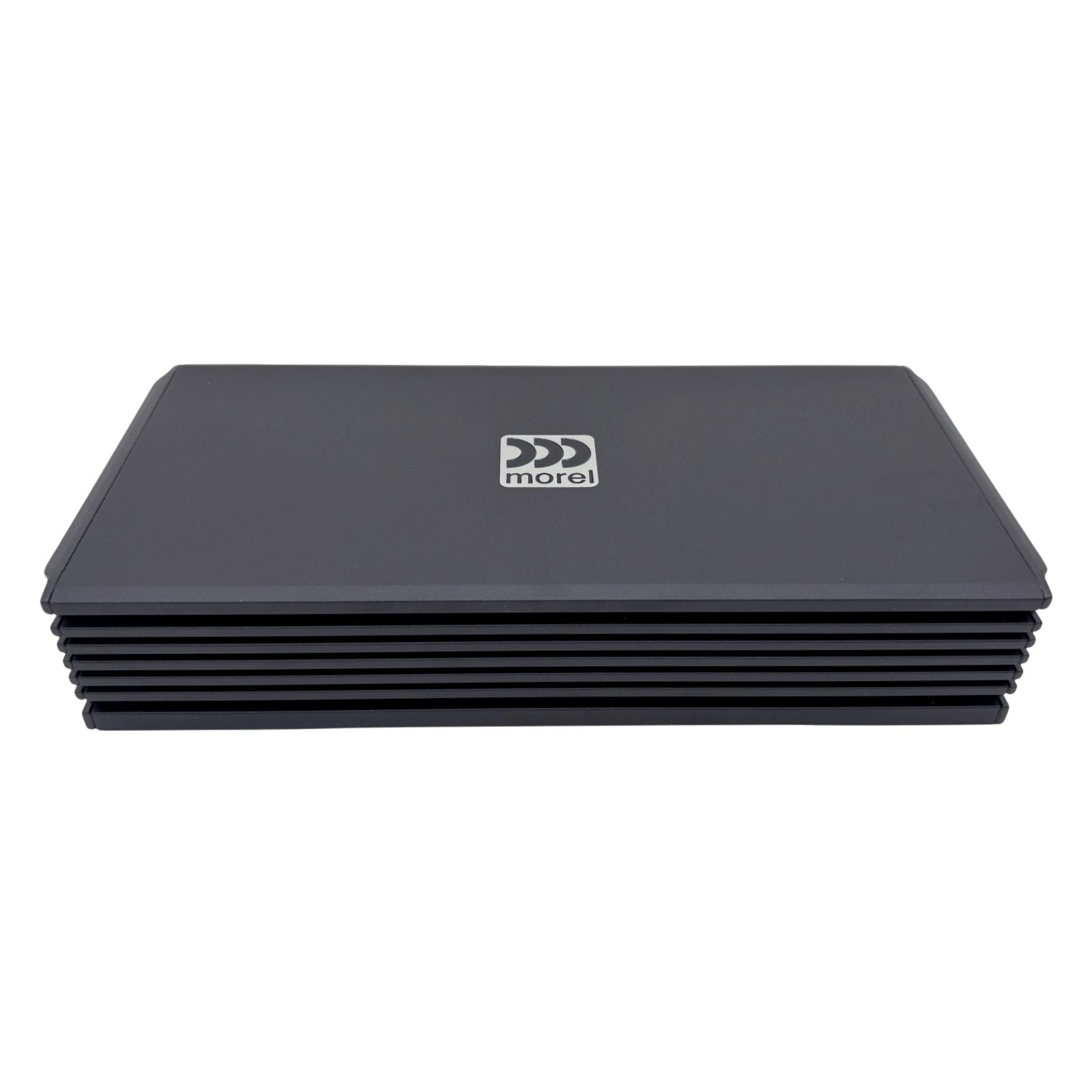

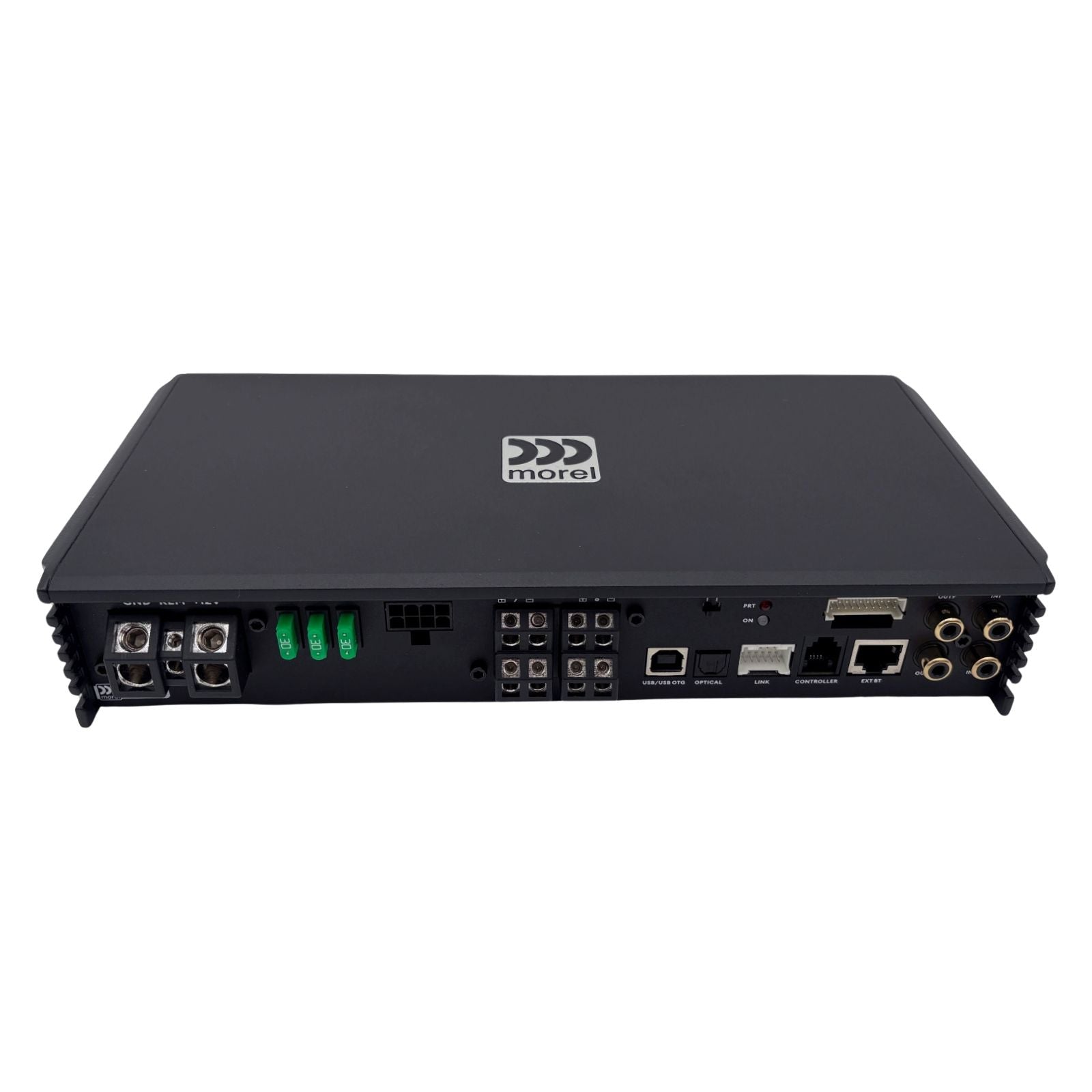

Morel MDSP 10/8A Class D 10 Channel DSP Amplifier 960w RMS

The Morel MDSP 10/8A is a compact 8-channel amplifier with a built-in DSP and up to 10 processed outputs, delivering 4 x 80W plus 4 x 160W RMS. Speaker-level inputs, SLAM and Bluetooth streaming make it suited to upgrading factory systems as well as custom builds.

Key specifications

• Channels: 8 amplified, up to 10 DSP-controlled outputs (incl. 2V RCA outputs)
• Power @ 4 ohms: CH1-4 4 x 80W RMS, CH5-8 4 x 160W RMS (960W RMS total)
• Bridged (CH5-8, PBTL): 2 x 320W RMS
• Inputs: 8-channel speaker-level (up to 30V), RCA, optical, Bluetooth, USB-DAC
• DSP: 96kHz/24-bit, 10-band parametric EQ per channel plus global
• Crossover: 6 - 48 dB/oct, Bessel, Butterworth or Linkwitz-Riley
• Time delay: 0 - 20 ms in 0.01 ms steps
• Power supply: 9 - 17V DC, 3 x 30A Mini ATC fuses
• Size: 275 x 136 x 50 mm, 0.41 kg

Morel MDSP 10/8A: precision, power and performance in one compact design

Developed to meet the demands of modern vehicle integration, the MDSP amplifier series delivers performance, flexibility and sound quality in a remarkably compact design. Whether you're upgrading an OEM system or building a high-end custom setup, MDSP amplifiers provide the tools and power to get the job done right.

Authentic Sound with Advanced MDSP Control

At the heart of every MDSP amplifier is Morel’s signature approach to sound: authentic, musical, and uncompromising. Engineered for high power output, models offer up to 80W x 4 + 160W x 4, delivering clean, powerful output to drive any system with confidence. Featuring high-resolution DSP with parametric EQ, fully adjustable crossovers, and input/output EQ per channel, the MDSP line ensures seamless, system-wide fine-tuning. Installation is streamlined with high-voltage speaker-level inputs, signal summing, and Morel’s Speaker Load Assurance Module (SLAM), which keeps factory amplifiers stable when integrating with OEM systems.

Installer-Focused Features, Listener-Focused Sound

Additional features like start/stop compatibility, automatic source switching, and TuneLink for multi-amp tuning from a single device make setup efficient and flexible. Bluetooth streaming and DRC compatibility provide users with complete control at their fingertips. Compact yet powerful, MDSP amplifiers are built for installers and music enthusiasts alike, with Morel’s sound quality and reliability.

Features

• Delivers up to 80W x 4 + 160W x 4 RMS power for dynamic, high-output performance
• Built with premium internal components, including WIMA and other high-grade parts, for enhanced audio performance and long-term reliability
• Accepts up to 8 channels of speaker-level input (up to 30V) for seamless OEM integration
• Provides up to 10 DSP-controlled output channels, including 2V RCA low-level outputs for system expansion
• SLAM (Speaker Load Assurance Module) intelligently engages the OEM amplifier to preserve factory audio functionality
• Features comprehensive tuning controls, including Input EQ, Output EQ, and Global EQ, for precise sound shaping
• Supports speaker-level, RCA, optical, Bluetooth (streaming-capable), and USB-DAC inputs with automatic source switching
