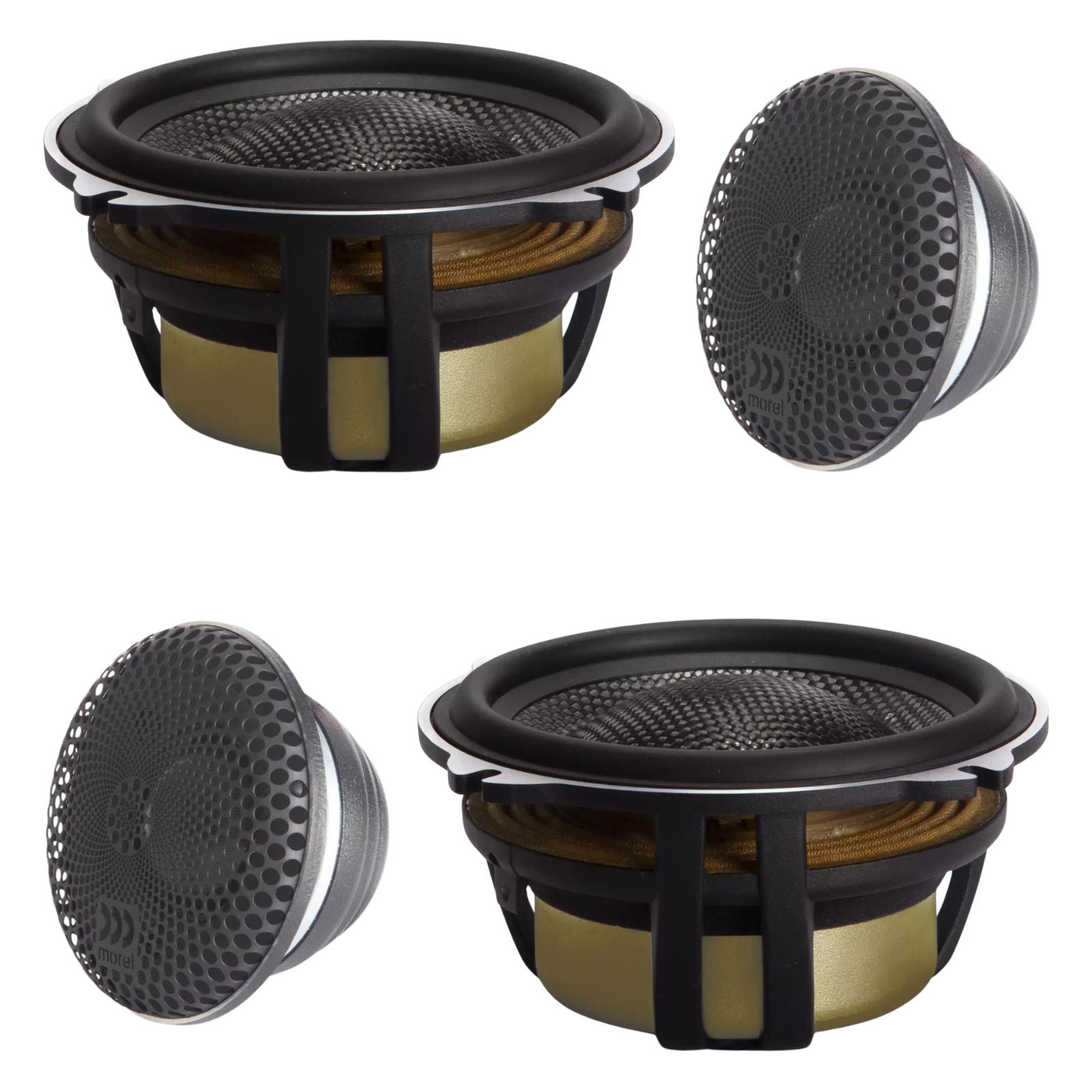

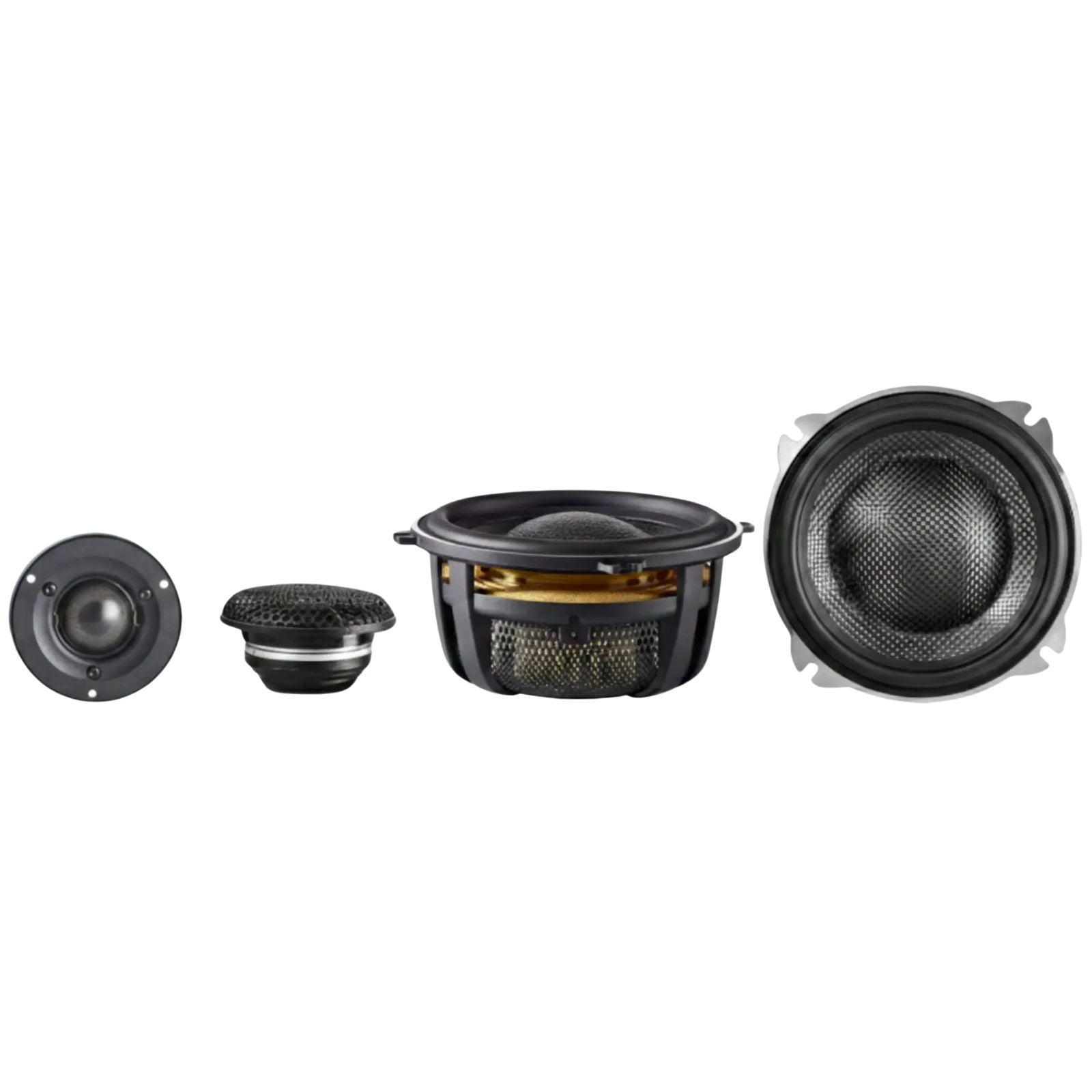

Morel Elate Carbon Pro 52A 2 Way Component Speaker System

The Morel Elate Carbon Pro 52A is a 5.25-inch 2-way active component speaker system from Morel's high-end Elate Carbon Pro range, pairing carbon fibre and Rohacell cone woofers with the Elate Alto silk dome tweeter. It is supplied without passive crossovers, designed for systems where each driver runs from its own amplifier or DSP channel.

For the passive version with MXT280C crossovers, see the Elate Carbon Pro 52. For the standard Elate Carbon version with the compact MT450 tweeter, see the Elate Carbon 52A.

Key specifications

• Configuration: 2-way component, active (no passive crossovers)
• Woofer: MW5 135mm (5.25") unit, 160W RMS, 1000W max transient, 85 dB, 40–5000 Hz
• Woofer cone: carbon fibre and Rohacell triple-layer cone (TLC)
• Woofer voice coil: 75mm (3") Hexatech aluminium, titanium former, 4 ohms
• Tweeter: Elate Alto 28mm Acuflex silk dome, 6 ohms, 220W RMS, 91 dB, 1400–25,000 Hz
• Grilles: included

Carbon and Rohacell Cones

The woofers use a carbon fibre and Rohacell triple-layer cone. Detail stays clean at extreme volume, with high power handling across the full range.

The Elate Alto Tweeter

The cavity-back Alto tweeter leads the Pro series, with its design derived from the Supremo Piccolo — Morel's flagship tweeter. It combines high resolution with high power handling.

DMM and EVC Motor Technology

Morel's DMM double-magnet motor generates more energy than a single-magnet design, improving efficiency and dynamic range whilst shielding stray magnetic flux. The large-diameter EVC voice coils focus all magnetic energy on the coil, keeping the motor compact, efficient and powerful.

Built for Active Systems

Each driver connects directly to an amplifier or DSP channel. With no passive crossovers in the signal path, you set the crossover points yourself for complete tuning freedom.
