ELATE CARBON 5.25 INCH ACTIVE 2-WAY
Elate Carbon 52A
The Elate Carbon shares most of its high-end componentry with its Pro siblings, yet takes a slightly more sensible approach. These 2-way systems were designed for those who want the ultimate performance but are looking for a discreet tweeter. The compact design of the MT450 tweeter allows users the option to place the speaker in most factory locations, or into space-limited areas using the supplied mounts.

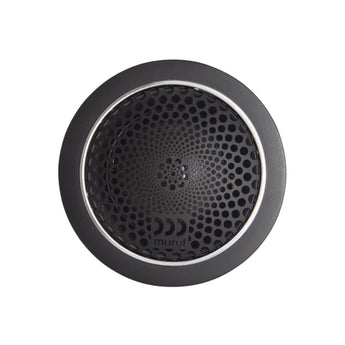

It may be small in size, but the MT450’s Acuflex coated silk dome, open cavity design and dual neodymium magnet motor give it amazing detail and a silky-smooth, flat frequency response.

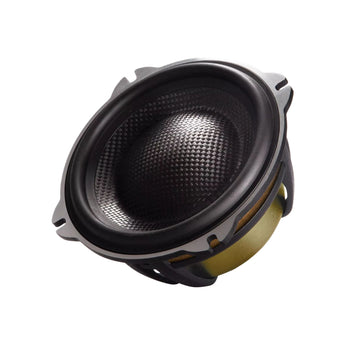

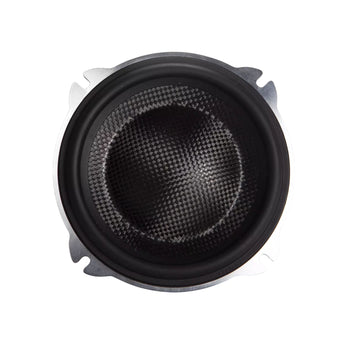

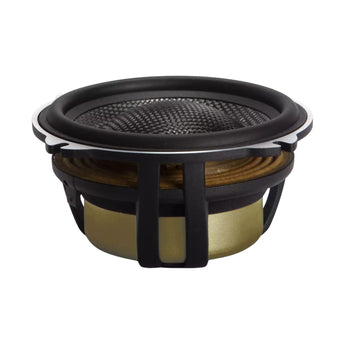

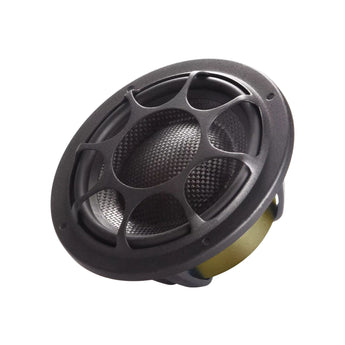

The Elate Carbon would not be complete without exercising their power. Whether using a 5.25”, 6.5” or 9-inch system, each of the woofers feature Klipple optimized EVC motors with large 3-inch diameter voice coils and carbon fiber/Rohacell sandwich cones for ultra-low distortion and high power handling levels.
Specification
| Nominal Impedance (Ohm) | 6 |
|---|---|
| Power Handling | Wrms 130 |
| Max Transient Power Handling Wrms | 350 |
| Sensitivity | (2.83 V/1M) dB 91 |
| Frequency Response | 1400 - 25000 |
| Resonant Frequency Fs Hz | 1000 |
| Voice Coil | Diameter mm (inch) 28 (1.125) |
| Voice Coil | Former Aluminium |
| Voice Coil | Wire Hexatech Aluminium |
| DC Resistance (ohm) | 5.2 |
| Magnet | System Neodymium Rear Vented |
| Dome Type | Acuflex Handcoated Soft Dome |
| Dome Material | Silk |
| Unit Diameter mm (inch) | 43.00 (1.69) |
| Net Weight Kg (lb) | 0.07 (0.15) |
| Nominal Impedance (Ohm) | 4 |
| Power Handling | Wrms 160 |
| Max Transient Power Handling Wrms | 1000 |
| Sensitivity | (2.83 V/1M) dB 85 |
| Frequency Response | 40 - 5000 |
| Resonant Frequency Fs Hz | 64.4 |
| Voice Coil | Diameter mm (inch) 75 (3) |
| Voice Coil | Height mm (inch) 14.50 (0.57) |
| Voice Coil | Type/Former Titanium |
| Voice Coil | Wire Hexatech Aluminium |
| DC Resistance (ohm) | 3.6 |
| Magnet | System Neodymium |
| Cone | Type Triple Layer Cone (TLC) |
| Cone | Material Carbon Fibre Composite |
| Unit Diameter mm (inch) | 135 (5.25) |
| Net Weight Kg (lb) | 1.05 (2.31) |
What's Included

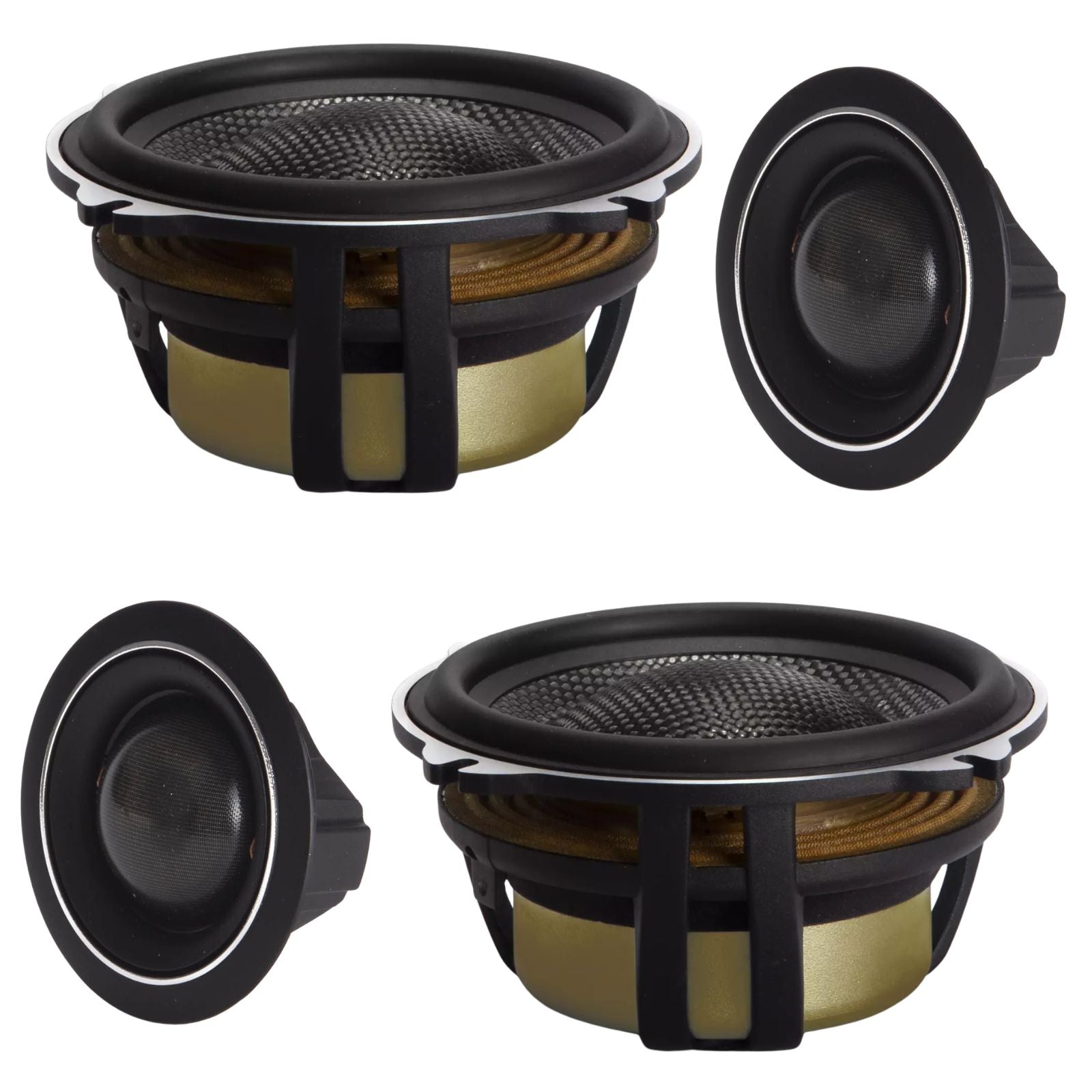

- 2 x MT450 Tweeters
- 2 x MW5 Woofers
