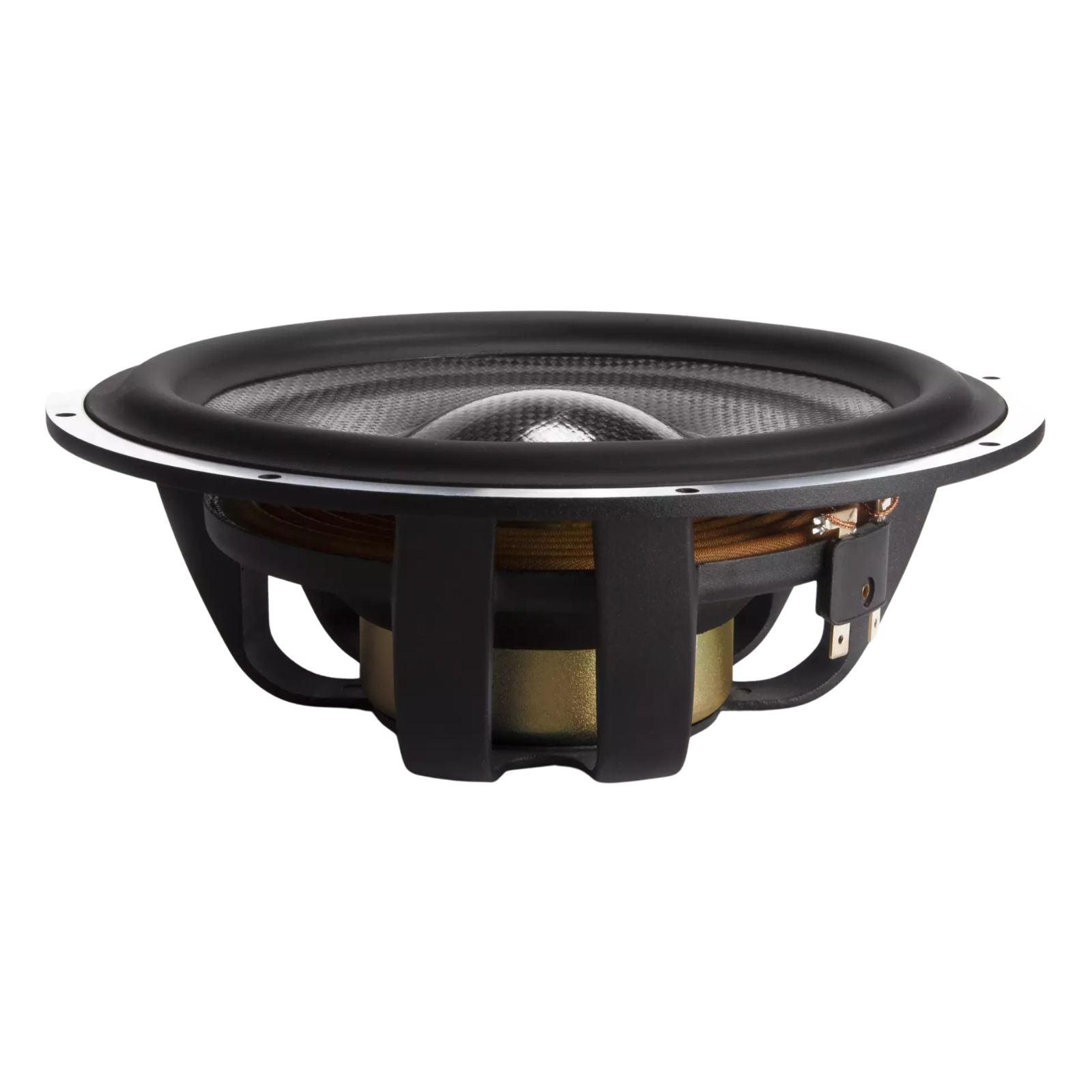

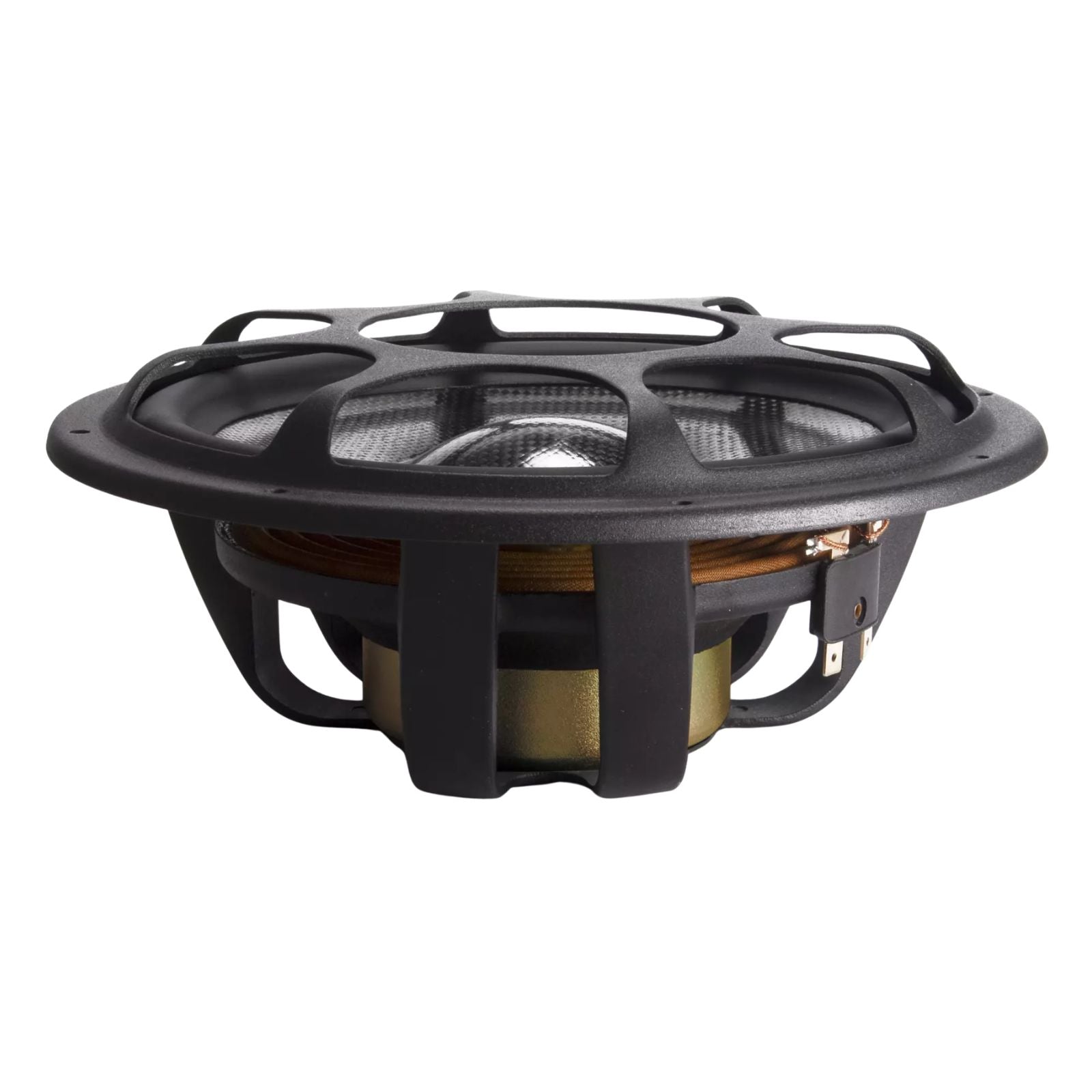

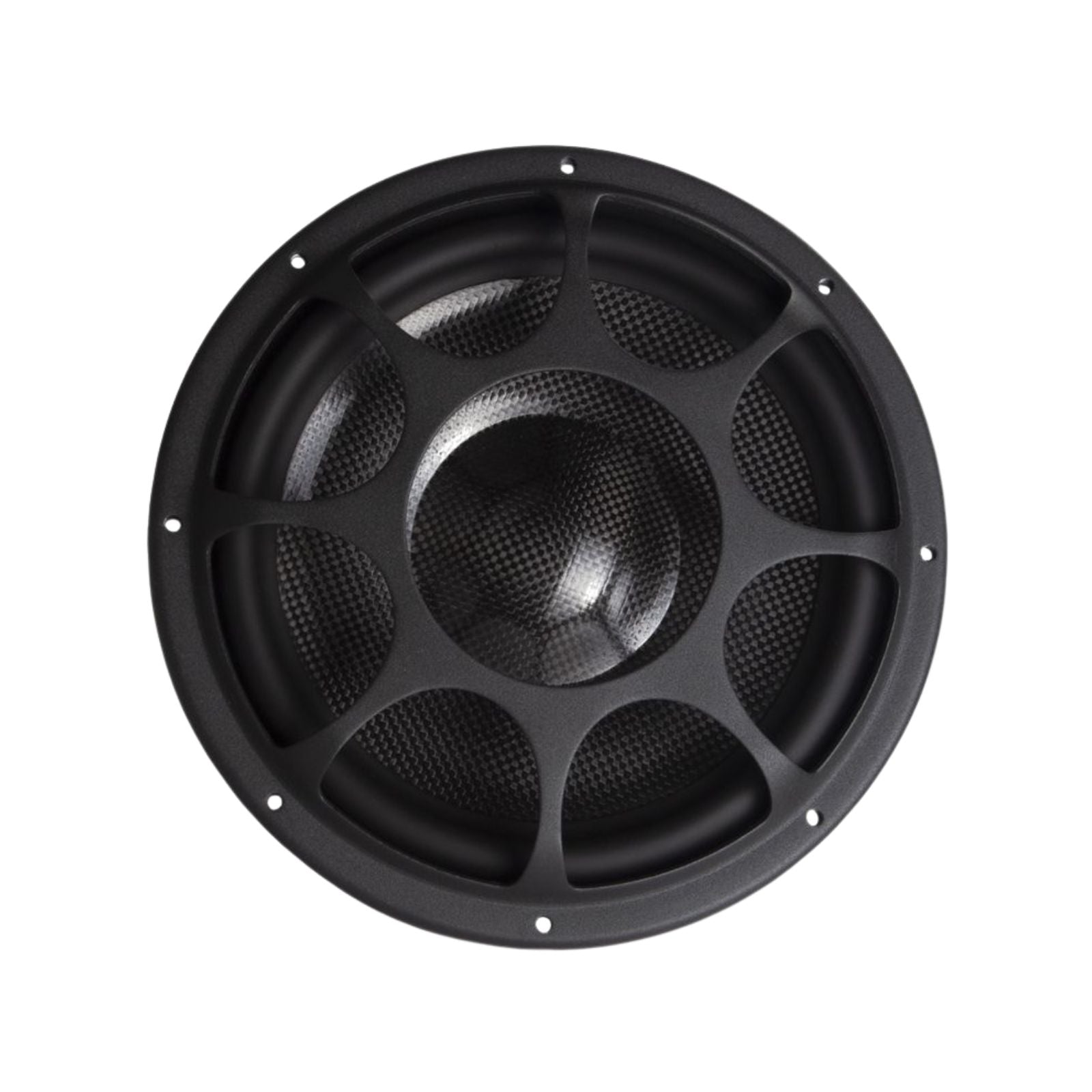

Morel Elate Carbon MW9 9 Inch Component Woofers 200w RMS
Couldn't Load Pickup availability
The Morel Elate Carbon MW9 is a pair of 9-inch component woofers, rated at 200W RMS, from Morel's premium Elate Carbon range. They feature a 75mm (3") Hexatech aluminium voice coil on a titanium former, a three-layer carbon fibre and Rohacell sandwich cone, and Morel's EVC motor technology.
The MW9 is the 9-inch woofer used in the Elate Carbon 93 and Elate Carbon Pro 93 3-way systems.
Key specifications
- Size: 222mm (8.75") unit diameter
- Mounting: 192mm cutout, 71mm depth
- Impedance: 4 ohms
- Power handling: 200W RMS, 1000W max transient
- Sensitivity: 89 dB (2.83V/1m)
- Frequency response: 25–3000 Hz
- Resonant frequency: 44 Hz
- Voice coil: 75mm (3") Hexatech aluminium, titanium former
- Xmax: +/- 4.75mm
- Cone: one-piece formed, 3-layer carbon fibre and Rohacell sandwich
Morel Elate Carbon MW9 Woofers
The Elate Carbon woofers are built for high-end component systems. Their triple-layer cones consist of two carbon fibre skins sandwiching a Rohacell foam core, delivering exceptional stiffness, high damping and low weight — the key qualities for accurate cone performance.
Combined with a 3-inch Hexatech aluminium voice coil, titanium former and Morel's EVC motor technology, the MW9 achieves low distortion and precise control for transparent, bass-rich sound reproduction.
Features
Carbon Fibre Cone
Two exterior carbon fibre skins sandwich a layer of Rohacell — a high-strength, lightweight foam — forming a cone that is stiff, light and well-damped for naturally uncoloured audio reproduction. This cone design is derived from Morel's award-winning fat lady speaker system.
EVC Motor
Morel's EVC™ technology uses large voice coils to improve heat dissipation, power handling and linearity. The magnetic motor system sits within the voice coil, eliminating stray magnetic flux by directing all magnetic energy to the voice coil. The result is a compact, efficient and magnetically shielded motor design.
Hexatech Aluminium Voice Coil
Made from 100% aluminium wire wound in a honeycomb shape, the Hexatech™ voice coil reduces air gaps in the windings, increasing efficiency by up to 20%. Its low mass is a key contributor to the fast transient response Morel drivers are known for.
Explore the full range in Morel Elate Carbon.
Specification
| Nominal Impendance (ohm) | 4 |
|---|---|
| Power Handling | Wrms 200 |
| Max. Trans. Pwr Handling Wrms | 1000 |
| Sensitivity | (2.83 V/1M) dB 89 |
| Frequency response | Hz 25 - 3000 |
| Resonant Freq. Fs Hz | 44 |
| Voice Coil | Diameter mm (inch) 75 (3) |
| Voice Coil | Height mm (inch) 14.50 (0.57) |
| Voice Coil | Type/Former Titanium |
| Voice Coil | Wire HexatechTM Aluminium |
| DC Resistance (ohm) | 3.6 |
| Voice Coil | Induct. @1 kHz (mH) 0.615 |

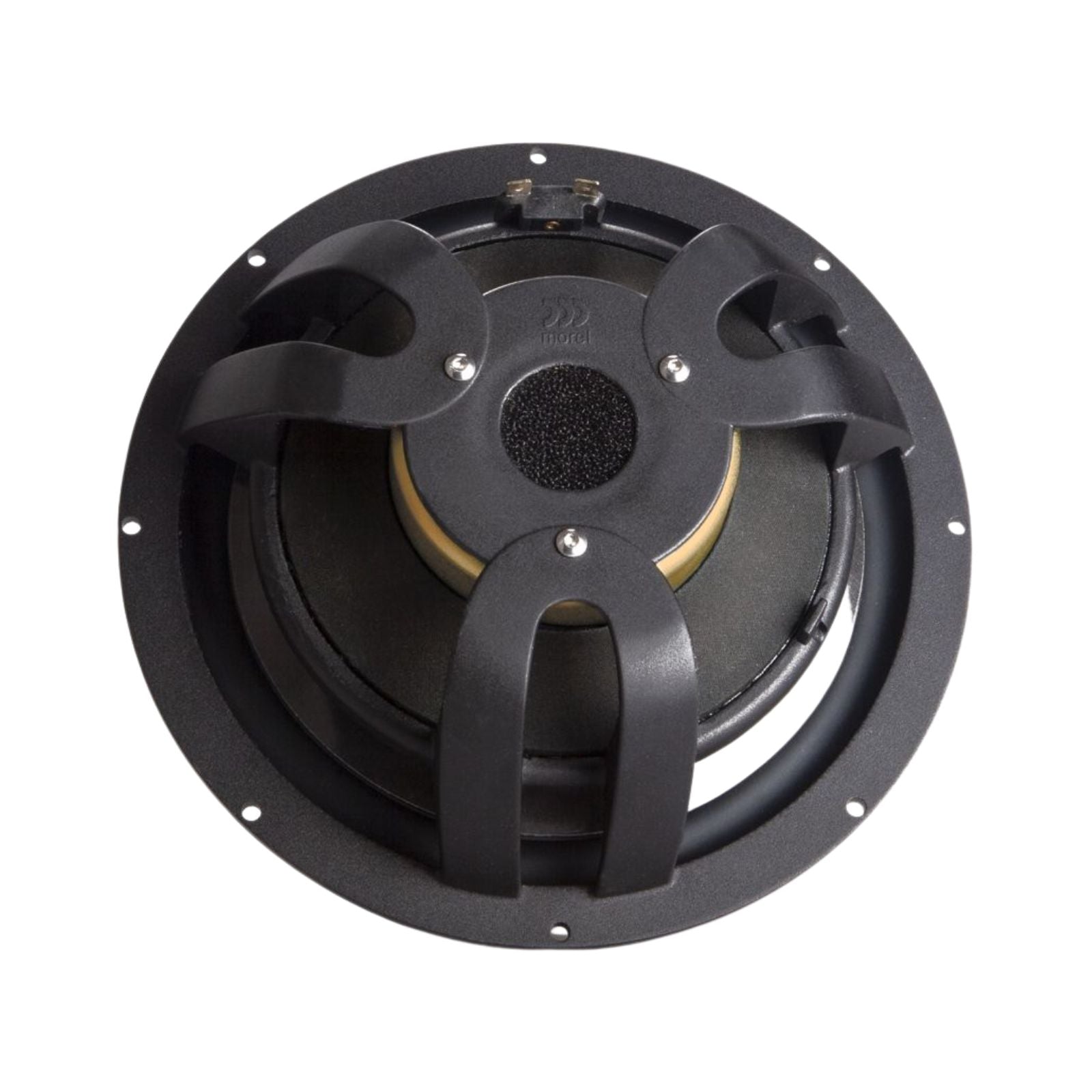

| Magnet | System Double magnet rear vented |
| HE-Magnetic Gap Height mm (inch) | 5 (0.20) |
| B-Flux Density (T) | 0.74 |
| BL Product/BXL | 5.15 |
| Max. Linear Ex./Xmax mm (inch) | ±4.75mm (0.18) |
| Suspension Compliance CMS - mm/N | 0.36 |
| Electrical Q Factor QES | 0.61 |
| QTS | 0.56 |
| QMS | 6 |
| Mech. Resistance RMS- N . S / M | 1.2 |
| Moving Mass MMS - gr/ounce | 30 (1.05) |
| Equiv. Can Air Load VAS - L (cu.ft3) | 30.9 (1.1) |
| Cone | Type One-piece formed |
| Cone | Material 3 Layer Sandwich Carbon + Rohacell |
| Unit Diameter mm(inch) | 222 (8.75) |
| Mounting Depth | mm (inch) 71 (2.80) |
| Mounting Cutout | 192 (7.56) |
| Net Weight Kg (lb) | 1.42 (3.13) |
More specs
| |
What's Included

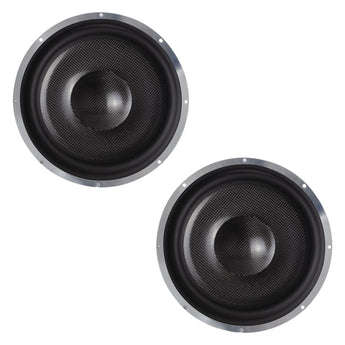

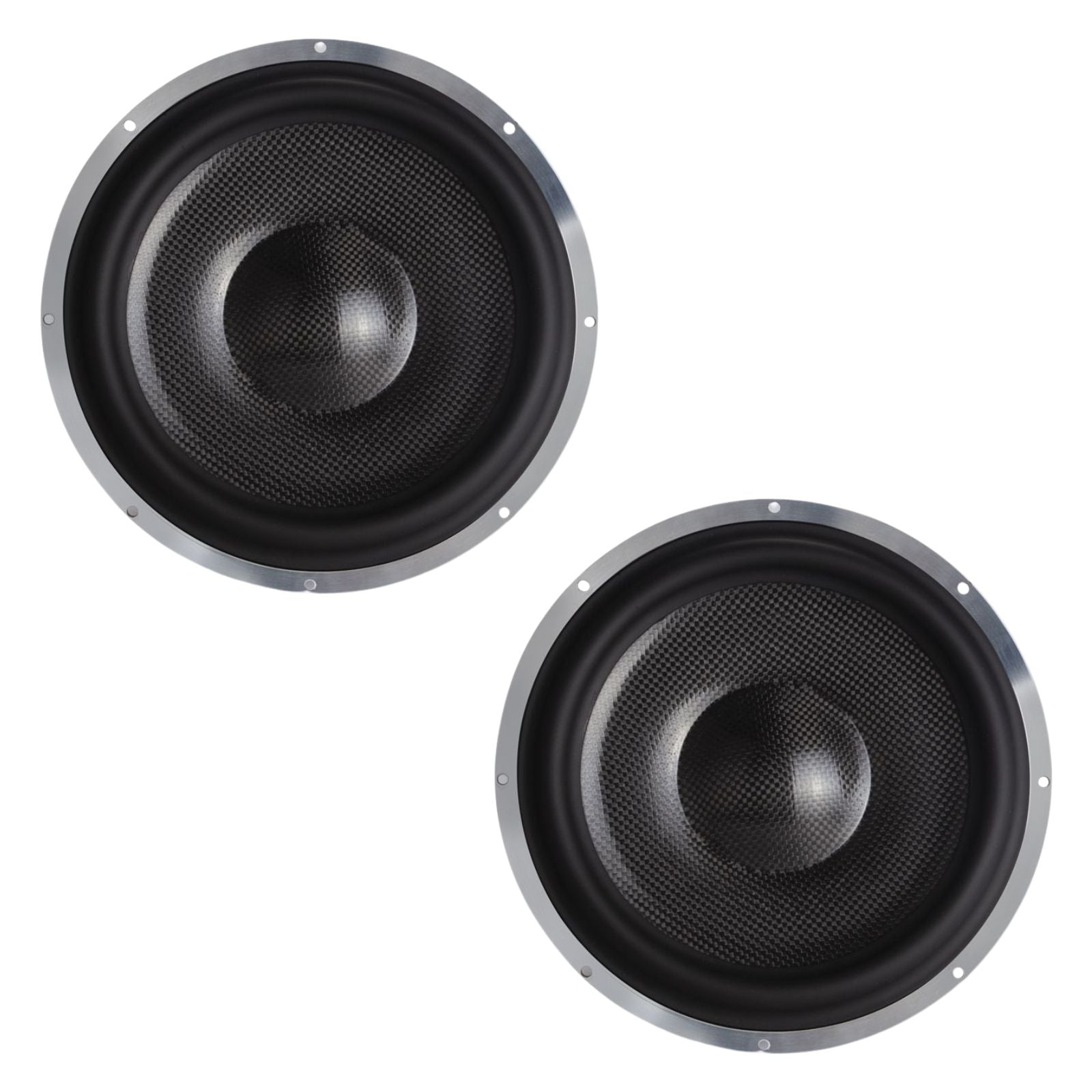

- 2 x Morel Elate Carbon MW9
Morel
About the Morel Elate Carbon MW9
From our tech experts at CEN
The Morel Elate Carbon MW9 is a pair of 9 inch component woofers rated at 200 W RMS and 1,000 W transient, with a 222 mm unit diameter. They have 75 mm Hexatech aluminium voice coils on titanium formers and carbon fibre and Rohacell cones, covering 25 Hz to 3 kHz.
Who it suits
Vehicles with large door or kick-panel locations where a 9 inch woofer gives real low-end weight, and owners replacing woofers in the Elate Carbon 93 or Elate Carbon Pro 93, which use this driver.
Our tech experts advise
They need a 192 mm cut-out and 71 mm of depth, so the mounting position needs planning, often with a custom baffle. Run them with a low-pass to a midrange in a three-way system. Sensitivity is 89 dB. Get in touch with your vehicle details.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Morel Elate Carbon
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Are the Elate Carbon MW9 woofers sold as a pair?
A: Yes. The box contains 2 x Morel Elate Carbon MW9 woofers.
Q: What cutout and mounting depth does the MW9 need?
A: A 192mm mounting cutout and 71mm mounting depth. The unit diameter is 222mm (8.75").
Q: Do the MW9 woofers include tweeters or crossovers?
A: No. The MW9 is supplied as a pair of woofers only, for use with your own tweeters and a crossover or DSP. For a complete set, see the Elate Carbon component systems.
