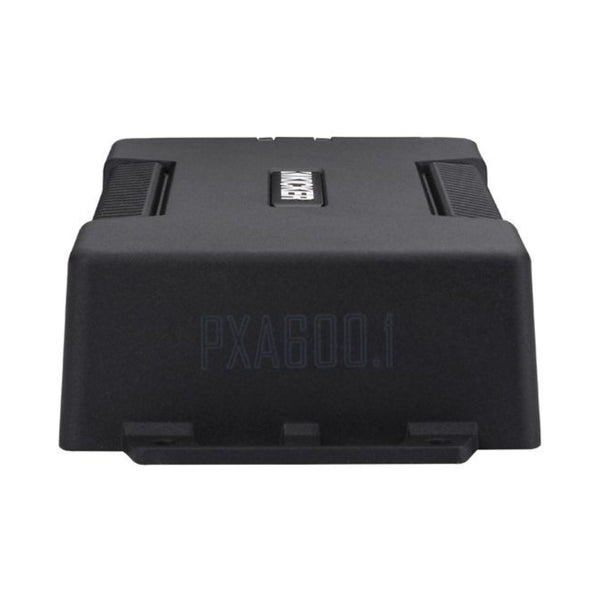

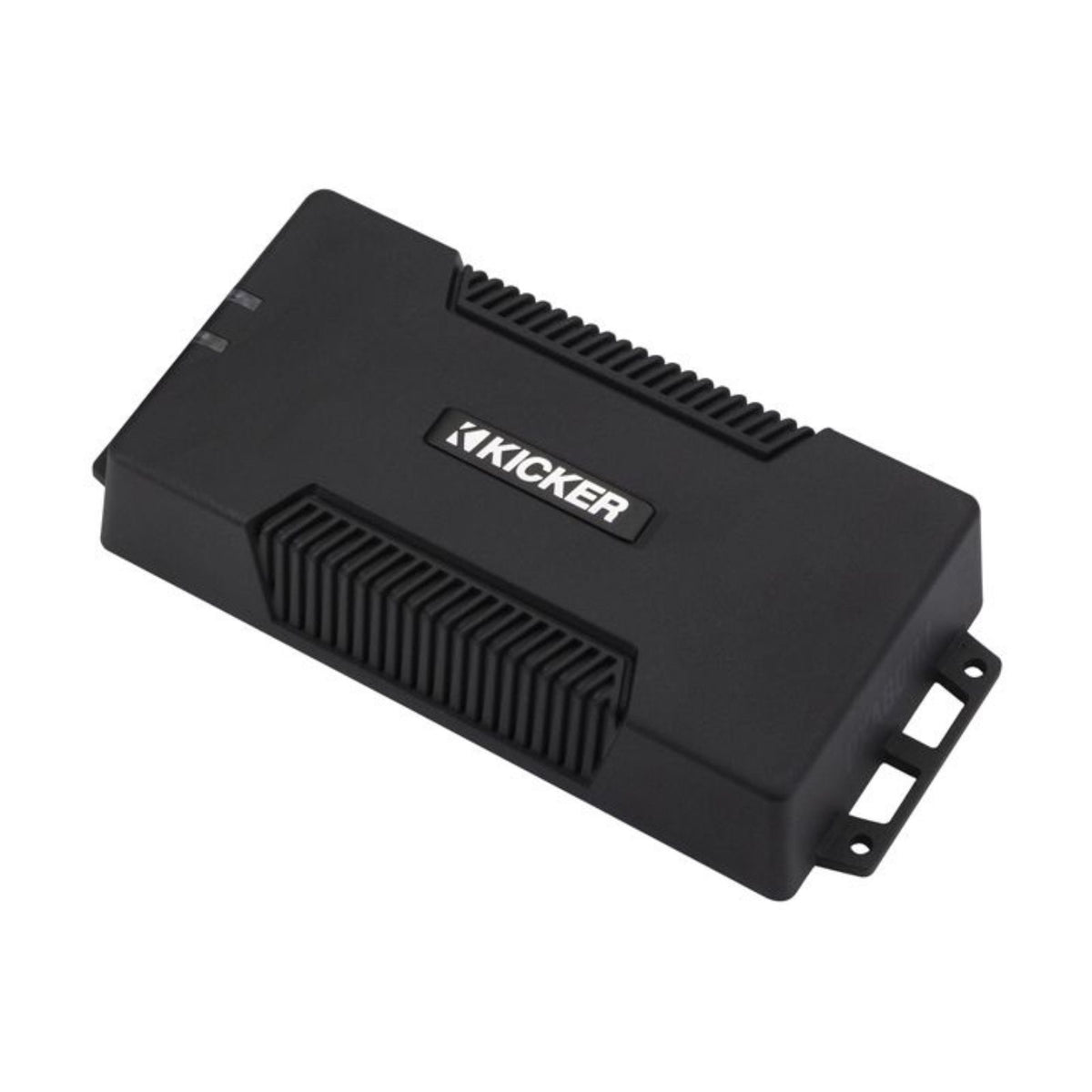

The Kicker 48PXA6001 is a 600W RMS mono Class D subwoofer amplifier from the Kicker PXA Series, rated IP66 and IP67 waterproof — designed for watercraft, off-road vehicles, classic cars and space-challenged installations.
This listing is the 600W mono. The PXA Series is also available as the 48PXA3001 300W mono, 48PXA4004 4-channel and 48PXA10005 5-channel.
Key specifications
- Channels: 1 (mono subwoofer amplifier)
- RMS power: 300W @ 4Ω, 500W @ 2Ω, 600W @ 1Ω
- Dynamic power: 850W
- Waterproofing: IP66 and IP67
- Amplifier class: D
- Low-pass filter: 60/80/100/120Hz, 12dB/octave, plus subsonic filter
- Bass boost: 0/+6dB centred at 40Hz
- Fuse rating: 80A, 4 AWG cable
- Dimensions: 24.8 x 11.5 x 4.7 cm
Anywhere. Any weather.
The entire PXA line is fully waterproof, with sealed bulkhead grommeting, gasketed joints and a sealed preamp control door. Both IP66 and IP67 certifications apply to the amplifier body — not the wire couplers.
What is IP66 and IP67?
IP66 means the amplifier is protected against heavy seas or powerful jets of water. IP67 means it is fully dust-sealed and can be submerged in one metre of water for 30 minutes without moisture ingress. Neither certification applies to the wire couplers.
Built for tough environments

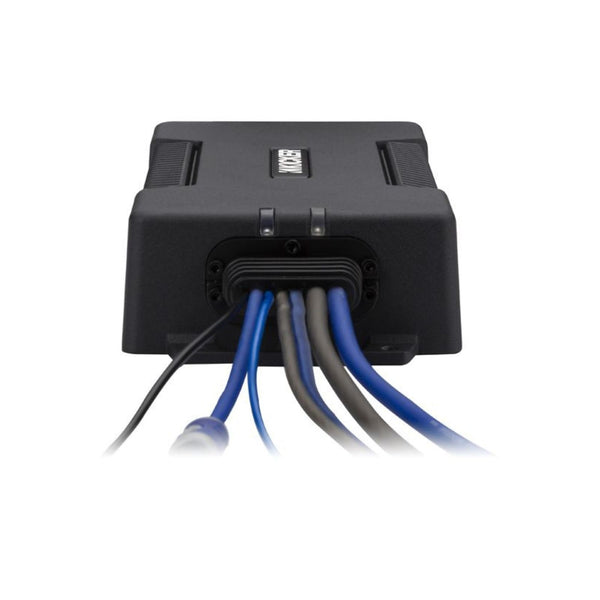

PXA amplifiers include stainless-steel mounting hardware and a pair of shielded inline couplers to extend power and ground connections — no soldering or crimping required.
- IP66 and IP67 waterproof amplifier
- Suited to watercraft, off-road vehicles and space-challenged installations
- High-efficiency Class D technology
- 850W dynamic power from a compact 24.8 x 11.5 x 4.7 cm footprint
- Dual turn-on modes: DC offset or 12V trigger
- Inline power and ground couplers included — no soldering or crimping needed
- Stainless-steel mounting hardware included
Explore the full range in Kicker Amplifiers.
Specification
| RMS Power @ 14.4V | 300W x 1 @ 4Ω / 500W x 1 @ 2Ω / 600W x 1 @ 1Ω |
|---|---|
| Voltage (V) | 12 |
| Class | D |
| Fuse Rating (A) | 80 |
| Cable Gauge (AWG) | 4 |
| Frequency Response | - 25-200 Hz |
| Amp Turn-On | +12V Remote / DC Offset |
| Filter | Low-Pass / Subsonic |
| Controller | CXARC (Sold Separately) |
| Input Type | High & Low Level |
| Height (cm) | 4.7 |
| Width (cm) | 24.8 |
| Depth (cm) | 11.5 |
More specs
| |
What's Included
- Kicker 48PXA6001
- 2 x DC power couplers
- Stainless-steel mounting hardware
- Customer information card
Kicker
About the Kicker 48PXA6001
From our tech experts at CEN
A monoblock amplifier for subwoofer duty, rated at 600w RMS. Everything it makes goes to the bass.
Who it suits
Anyone adding a subwoofer that needs real power behind it rather than a compact powered unit.
Our tech experts advise
Published power figures mean little until the amplifier is matched to the speakers and the gains are set with a meter rather than by ear. It needs a fused feed from the battery on the correct cable gauge, the part we most often see done badly. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Kicker range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Kicker
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Kicker Amplifiers
More options from the same range, in stock and ready to go

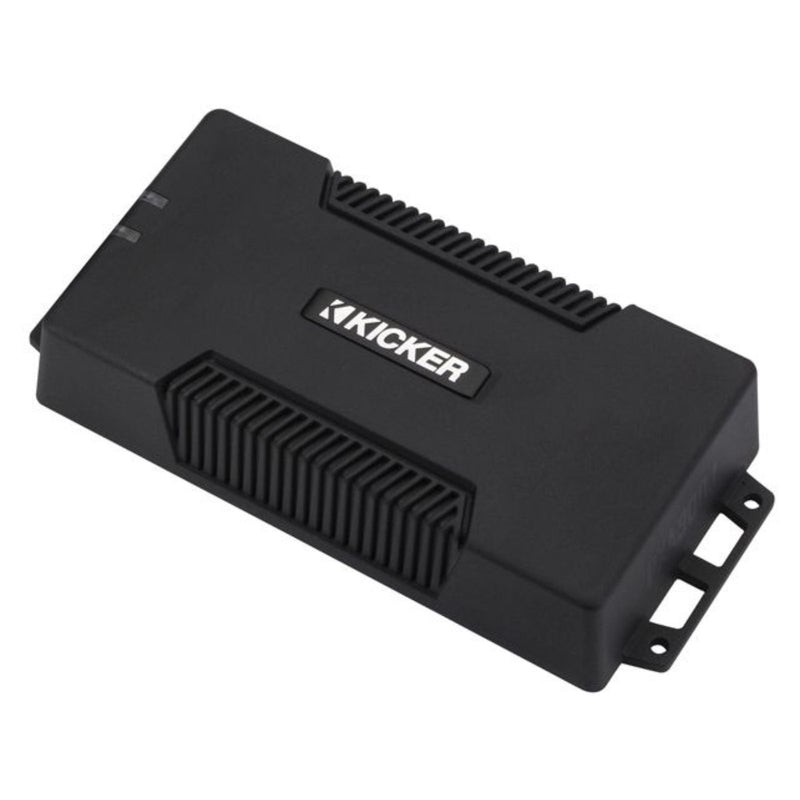

Kicker 48PXA3001 1 Channel Waterproof Amplifier 300w RMS
£379.95
View product
Kicker 49WXA36001 1 Channel Class D Amplifier 3600w RMS
£999.95
Kicker LX1300.7 Amp 7 Channel Car Amplifier with DSP Features & LX Controller
£949.95
Kicker LX850.1 Amp 1 Channel Mono Subwoofer Car Amplifier up to 850w RMS
£449.95
Kicker KEY200.4ISO Amp 4 Channel Full Range Car Smart Amplifier & DSP 4x50w
£299.99
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: How waterproof are the Kicker PXA amplifiers?
A: They are IP66 and IP67 certified: protected against powerful jets of water, dust-tight, and able to withstand submersion in 1 metre of water for 30 minutes. The certifications do not apply to the wire couplers.
Q: Can I add a remote level control to the 48PXA6001?
A: Yes. It works with the Kicker CXARC controller, which is sold separately.
Q: What impedance can the 48PXA6001 run at?
A: It is stable down to 1 ohm, delivering 300W RMS at 4 ohms, 500W at 2 ohms and 600W at 1 ohm.
