Kicker 48KMXL694 KM Marine 6x9" Coaxial Speakers 150w RMS
Couldn't Load Pickup availability
The Kicker 48KMXL694 is a pair of 6x9" horn-loaded marine coaxial speakers rated at 150W RMS (300W peak), from the Kicker KM Marine range. They carry IP66 protection, feature integrated RGB LED lighting, and are supplied with both white and charcoal UV-treated grilles.
Key specifications
- Size: 6x9"
- Type: Horn-loaded coaxial (marine)
- RMS power: 150W
- Peak power: 300W
- Impedance: 4 ohm
- Sensitivity: 92 dB (1W/1m)
- Frequency response: 70Hz to 20kHz
- Mounting cut-out: 14.8 x 21.8 cm, 8.5 cm depth
- Protection: IP66
KM Marine Horn-loaded Coaxial Speakers (48KMXL694)
The KMXL series builds on the technology used in Kicker Marine Audio's KMTC and KMFC Horn-Loaded Tower Systems, which use HLCD (horn-loaded compression driver) design. The KMXL brings that same technology to speakers shallow enough for traditional coaxial mounting locations, and robust enough for KM-Series Empty Enclosures.
A proprietary high-frequency horn design delivers smooth, clear performance that remains easy to listen to even at high volumes.

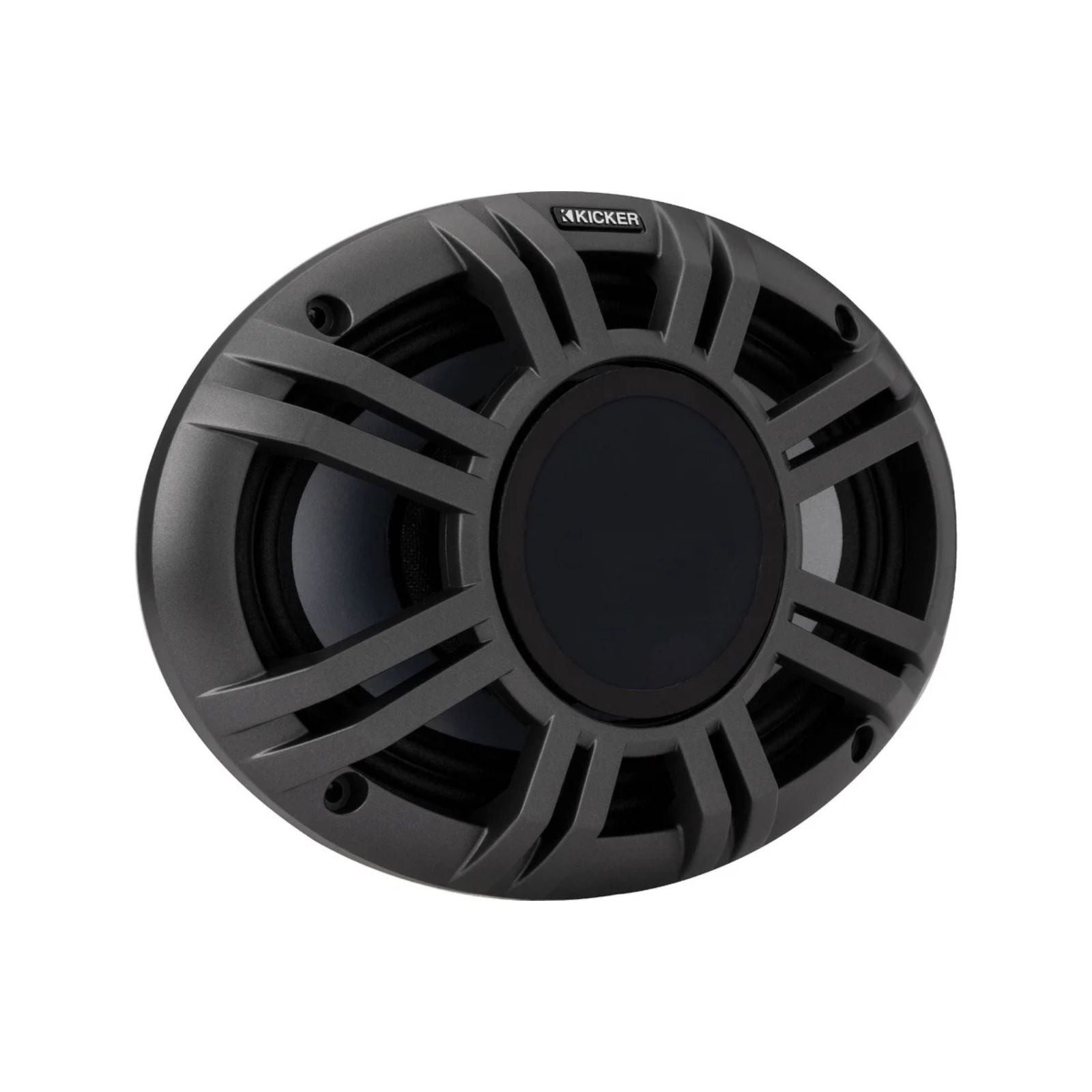

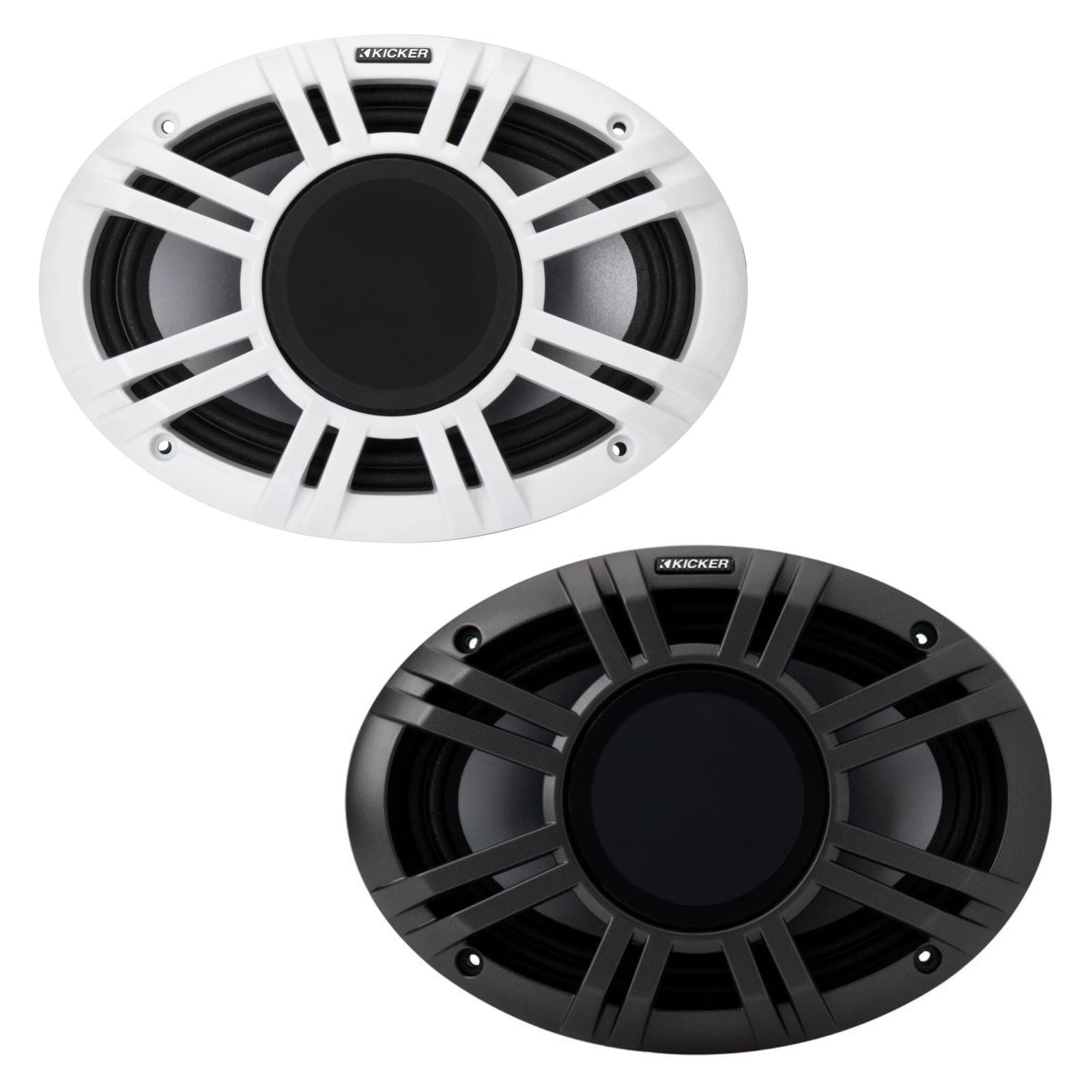

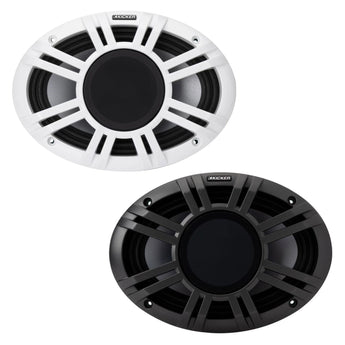

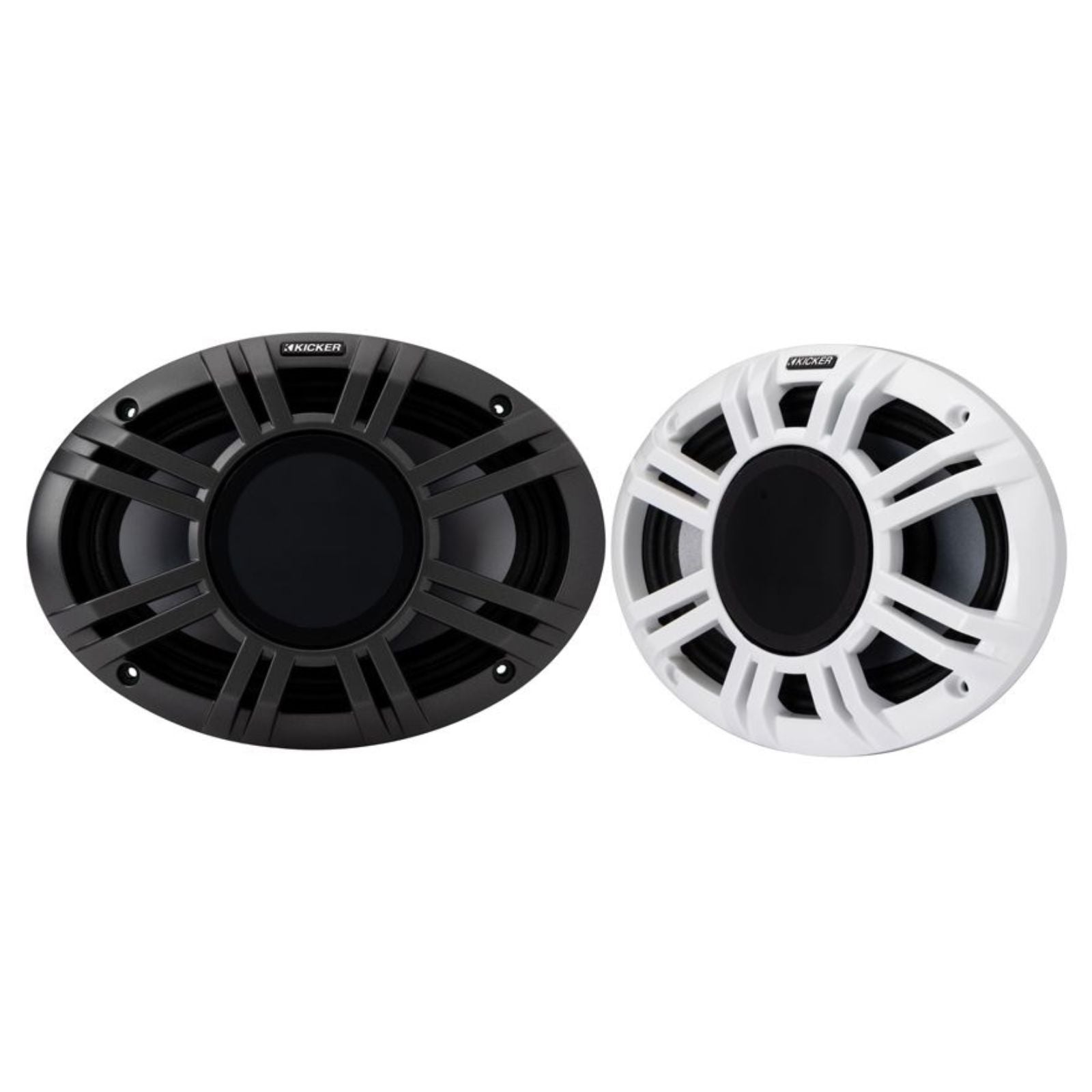

Both charcoal and white UV-treated grilles are included. The integrated RGB LED lighting supports up to 20 colours and 19 lighting modes, expandable by adding the KMLC LED remote.
Features
- IP66 certified — protected against dust and water jets
- Shallow profile fits traditional coaxial speaker cut-outs
- Marine-grade, horn-loaded compression speaker design
- Proprietary high-frequency horn for smooth, detailed treble
- Lightweight neodymium magnets and aluminium-dome tweeters
- UV-treated, waterproof poly/carbon-fibre woofer cones
- Includes both white and charcoal grilles
- Integrated multi-colour RGB LED lighting
- KICKER Real Marine™ grade construction for long-term boat use
Explore the full range in Kicker Marine.
Specification
| Speaker Size (in) | 6x9" |
|---|---|
| Tweeter Size (in) | 1.25" |
| Tweeter Dome Material | Aluminium |
| Style | Horn-loaded Coaxial |
| Colour | Black/White |
| Impedance | (Ohms) 4 |
| RMS Power (W) | 150 |
| Peak Power (W) | 300 |
| Sensitivity | (dB @ 1W/1m) 92 |
| Frequency Response | (Hz) 70-20k |
| Mounting Hole Diameter (cm) | 14.8 x 21.8 |
| Mounting Depth | (cm) 8.5 |
| Single Or Pair | Pair |
| Grills | Included |
| Grill Style | Sports |
| Grill Colour | Charcoal / White |
| Waterproof Rating | IP66 |
What's Included
- Kicker 48KMXL694
Kicker
About the Kicker 48KMXL694
From our tech experts at CEN
Marine-grade 6x9 inch speakers handling 150w RMS, with UV-stable cones and corrosion-resistant hardware so they survive sun, salt and damp.
Who it suits
Boats, ribs and open vehicles, plus campers and outdoor builds where speakers live in the weather. Worth considering for any open-topped vehicle that sits outside.
Our tech experts advise
Marine installs live or die on the wiring: corrosion protection at every joint and a properly fused feed. Mounting location does more for the sound than the speaker choice. get in touch and we will talk through the layout. See car audio installation.
Explore the full Kicker range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Kicker
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Kicker News & Guides
The latest Kicker product news, launches and guides from the CEN team in Nottingham.
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Kicker Marine
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What cut-out size does the Kicker 48KMXL694 need?
A: The 48KMXL694 needs a 14.8 x 21.8 cm mounting hole and 8.5 cm of mounting depth.
Q: Is the 48KMXL694 waterproof?
A: Yes. KMXL speakers are IP66 rated, which means they are protected from dust and from water jets and splashes. The woofer cones are UV-treated and waterproof.
Q: Does the 48KMXL694 have LED lighting?
A: Yes. KMXL speakers have integrated RGB LED lighting, which can be expanded to 20 colours and 19 lighting modes by adding the Kicker KMLC LED remote.
