Edge Street Series EDS15D2-E3 Car Sub 2 Ohms 15 Inch Subwoofer 1850w RMS
Couldn't Load Pickup availability

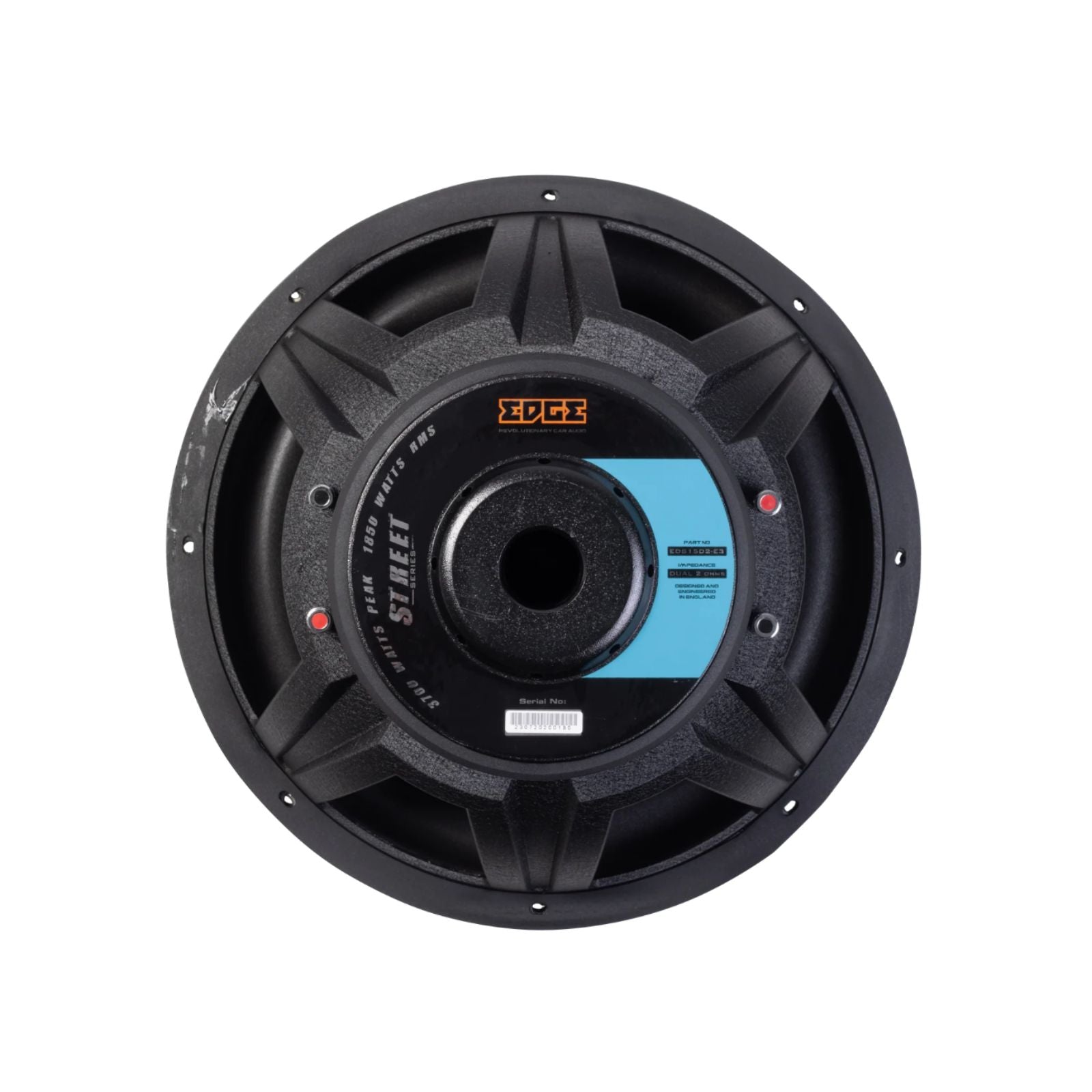

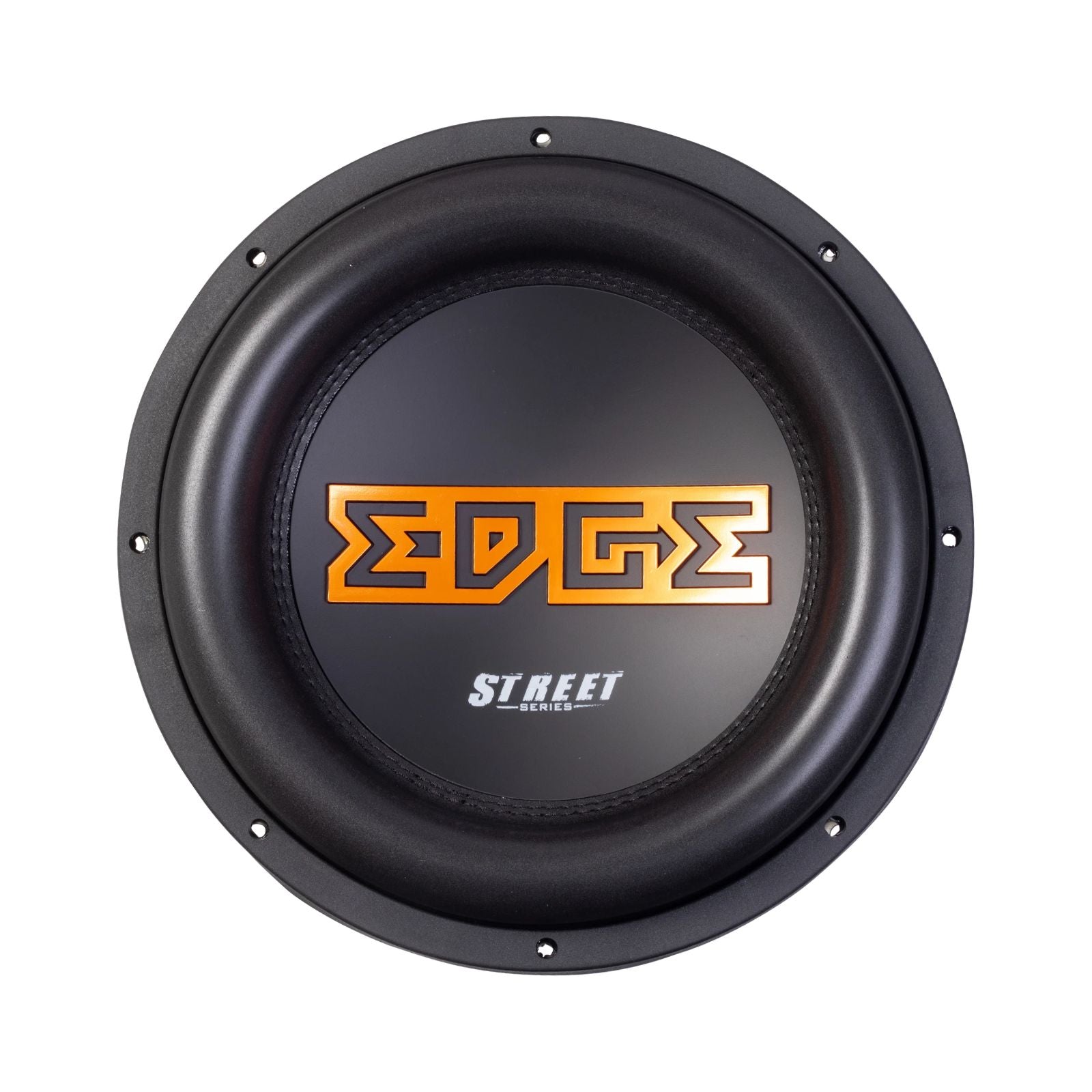

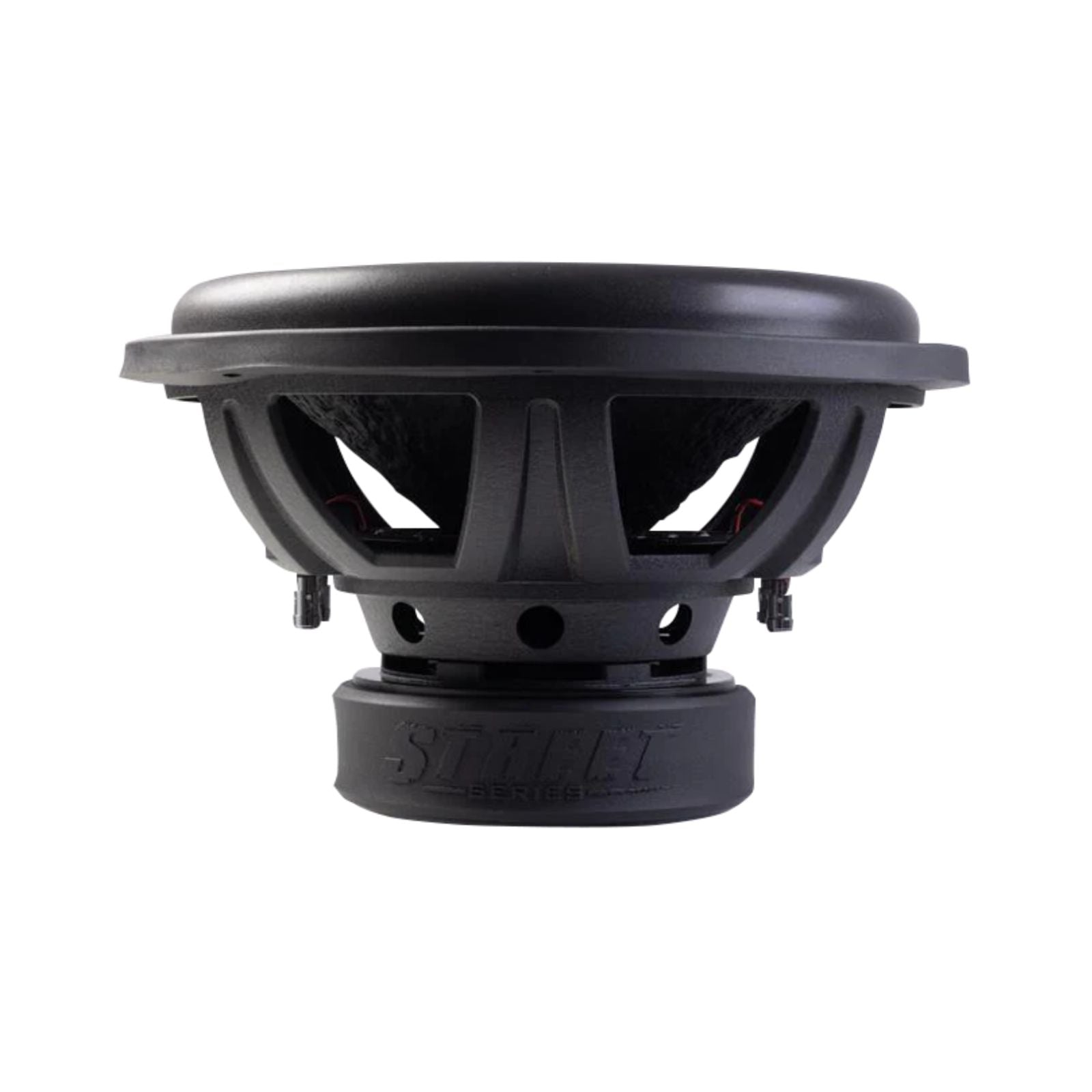

The Edge EDS15D2-E3 is a 15 inch car subwoofer from the Edge Street Series, rated at 1850W RMS (3700W peak) with dual 2 ohm voice coils.
Key specifications
- Model: EDS15D2-E3
- Size: 15 inch
- Power: 1850W RMS / 3700W peak
- Impedance: dual 2 ohms
- Magnets: dual Y35 ferrite, 190mm x 20mm, 150oz
- Cone: non pressed paper
- Surround: big roll foam, stitched
- Overall diameter: 357mm, mounting depth: 205mm
EDGE Street Series 15 inch 3700 watts Subwoofer
The Street Series subs are designed from the ground up for musical bass. Double stacked magnets generate a large magnetic force to control the driver with pinpoint accuracy, while maintaining high excursion and SPL.
Polycotton spiders, a non-pressed paper cone and stitched tinsel leads combine to produce accurate, loud bass.
Features
- Non pressed paper cone
- Wide roll foam surround
- Black polycotton spiders
- Dual Y35 ferrite magnets
- Black aluminium voice coil
Explore the full range in Edge Street Series.
Specification
| Cone | Non pressed paper |
|---|---|
| Surround | Big roll foam - stitched |
| Dustcap | Part IMPP |
| Voice Coil | 45mm Copper winding |
| Spider | 2pcs Black PC |
| Gasket | Rubber |
| Top Plate | 12mm Black anodized |
| T-Yoke | 10mm bumped |
| Terminal / Wire | Terminal |
| Impedance | Dual 2 Ohms |
| RMS Power | 1850 watts |
| Peak Power | 3700 watts |
| Magnet | Size 190mm x 20mm 2pcs |
| Magnet | Weight 150oz |
| Overall Diameter | 14.1" (357mm) |
| Mounting Depth | 8.1" (205mm) |
What's Included
- EDS15D2-E3
Edge
About the Edge EDS15D2-E3
From our tech experts at CEN
An Edge 15 inch subwoofer, dual voice coil, 2 ohm, handling 1850w RMS.
Who it suits
Drivers building a system where the bass does real work, and SPL builds where output is the point.
Our tech experts advise
Enclosure volume and tuning decide most of what you hear, and the dual coils give you wiring options. Bigger output builds also need the electrical side checked, because large amplifiers pull current the standard charging system was never designed for. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge
More options from the same range, in stock and ready to go
Staff PickEdge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3
£179.00
View product
Best SellerEdge DBX Series EDBX6-E1 3 Way Coaxial Speakers 6.5 Inch 90w RMS Pair
£39.99
Edge DBX Series EDBX150.4-E1 Amp Class AB 4 Channel Amplifier 600w RMS
£174.99
Edge DBX Series EDBXPB62.1-E5 6.5 Inch Full Range Ported Enclosure 1000w RMS
£249.99
Edge DBX Series EDBXPRO6-E2 Pro Audio Midrange Speakers 6.5 Inch 175w RMS Pair
£49.99
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: What impedance is the EDS15D2-E3?
A: It has dual 2 ohm voice coils. Wired in parallel it presents a 1 ohm load, or wired in series a 4 ohm load, so match the wiring to what your amplifier is stable at.
Q: How much power does the EDS15D2-E3 handle?
A: It is rated at 1850W RMS and 3700W peak, so look for an amplifier delivering around 1850W RMS at the final impedance, such as a high power monoblock.
Q: What is the mounting depth of the EDS15D2-E3?
A: The mounting depth is 8.1 inches (205mm) and the overall diameter is 14.1 inches (357mm).
