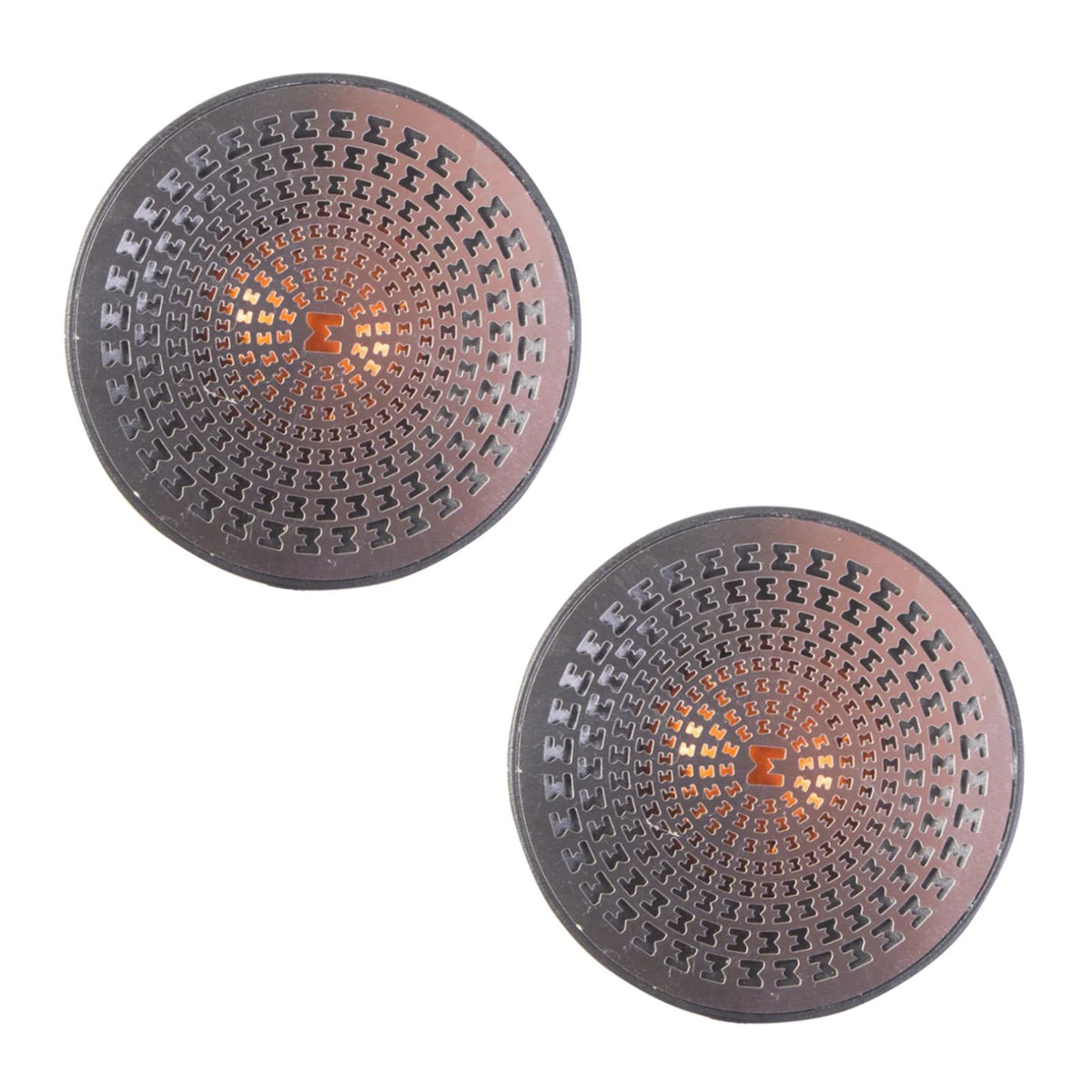

Edge DBX Series EDBX1PT-E4 High Performance Tweeters 2 Inch 100w RMS Pair
Couldn't Load Pickup availability
The Edge DBX Series EDBX1PT-E4 is a pair of 2 inch (50mm) high-performance tweeters rated at 100W RMS, featuring a hybrid piezoelectric crystal driver with a PEI dome. They are part of Edge's DBX Series, designed as an affordable upgrade for factory or aftermarket tweeter locations.
Key specifications
- Size: 2 inch (50mm)
- Configuration: 1 way
- RMS power: 100W
- Peak power: 200W
- Sensitivity: 98dB
- Frequency response: 3.5kHz - 20kHz
- Impedance: 4 ohms
- Mounting depth: 15mm
- Mounting diameter: 39mm
EDBX1PT-E4 high performance tweeters
The Edge DBX Series EDBX1PT-E4 tweeters offer a performance-focused upgrade at an accessible price point. Their slim design and multiple included mounting brackets make them compatible with factory tweeter locations or aftermarket setups. When fitted in exposed locations such as a door card, a custom acid-etched steel mesh grille provides protection.
The hybrid piezoelectric crystal driver and PEI dome eliminate the need for an external crossover, keeping installation straightforward. If you need a larger pro audio option, Edge also offer the EDBPRO37T-E0 3.7 inch pro audio tweeters.
Features
- High-performance 1 way tweeters designed for upgrade applications
- Slim, versatile design suitable for factory or aftermarket locations
- Hybrid piezoelectric crystal driver combined with a PEI dome
- No external crossover required for straightforward installation
- Custom acid-etched steel mesh grille for exposed mounting points
- Durable construction for long-lasting performance
- Technology: newly engineered PEI tweeter diaphragm for crisp, clear high-frequency reproduction.
- Aesthetics: custom tooled Edge steel mesh grille, orange accent tweeter diaphragm and all-black tweeter housing.
- Fully equipped: supplied with accessories needed for installation, including various mounting brackets and options.
- Value: respectable power handling and clear sound with efficient, dynamic performance.
Explore the full range in Edge DBX Series.
Specification
| Configuration | 1-Way |
|---|---|
| Speaker Size | 2″ (50mm) |
| RMS Power | 100W |
| Peak Power | 200W |
| Sensitivity | 98dB |
| Frequency Response | 3.5kHz – 20kHz |
| Impedance | 4Ω |
| Mounting Depth | 0.6″ (15mm) |
| Mounting Diameter | 1.5″ (39mm) |

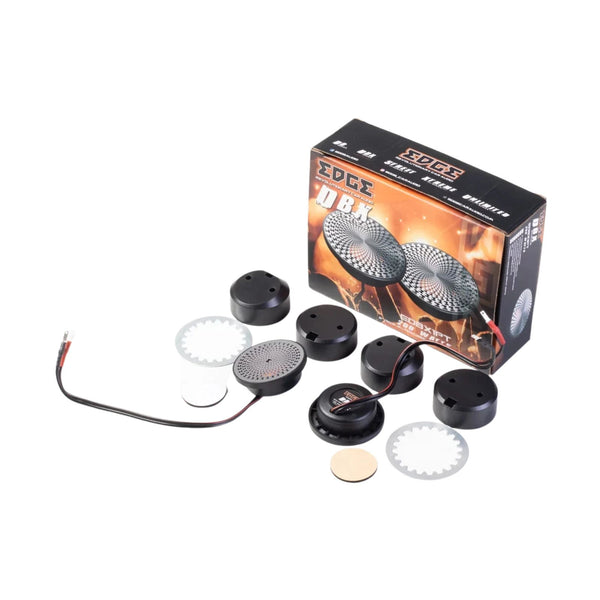

What's Included
- EDBX1PT-E4
Edge
About the Edge EDBX1PT-E4
From our tech experts at CEN
The Edge EDBX1PT-E4 is a pair of 2 inch (50mm) tweeters from the DBX Series, using a hybrid piezoelectric crystal driver with a PEI dome. They are rated at 100w RMS and 4 ohm, with 98 dB sensitivity and a 3.5 kHz to 20 kHz range.
Who it suits
Drivers looking for an affordable tweeter upgrade in a factory or aftermarket tweeter location. The shallow 15mm mounting depth and 39mm mounting diameter make them easy to fit in dash and pillar spots. For a louder pro audio horn, see the EDBXPRO38T-E0.
Our tech experts advise
The response starts at 3.5 kHz, so make sure whatever feeds them is filtered well above that. Their 98 dB sensitivity is high compared with typical door speakers, so expect to trim the tweeter level. Aim them towards the listening position for a clearer stage. Installation is priced per vehicle, so get in touch.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge DBX Series
More options from the same range, in stock and ready to go

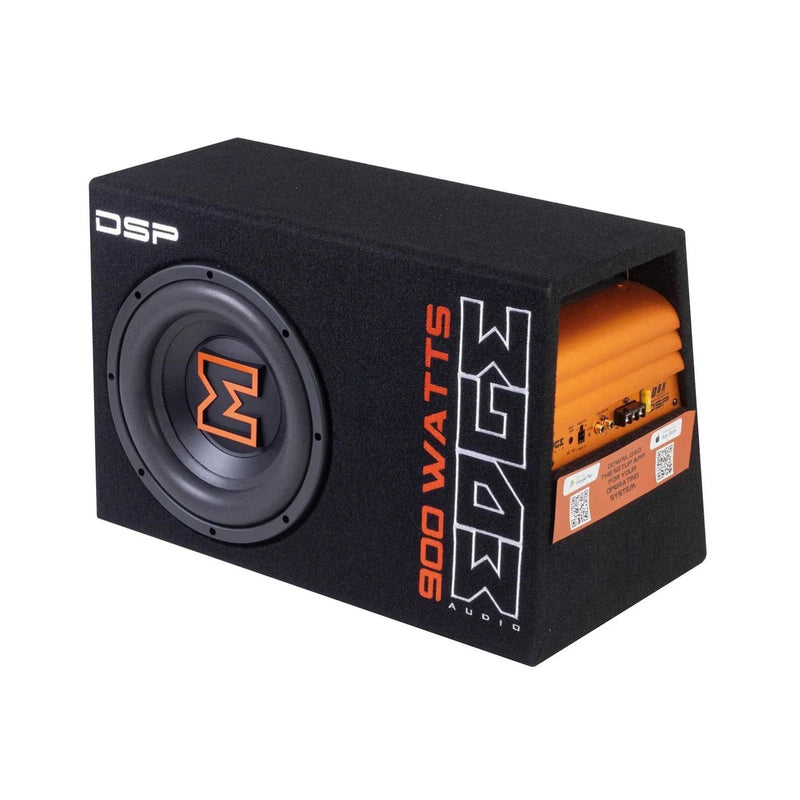

Best SellerEdge DBX Series EDBX12ADSP-E3 12 Inch Active Bass Enclosure DSP 400w RMS
£199.99
View product

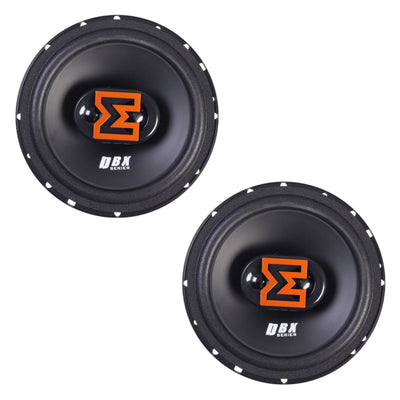

Best SellerEdge DBX Series EDBX6-E1 3 Way Coaxial Speakers 6.5 Inch 90w RMS Pair
£39.99

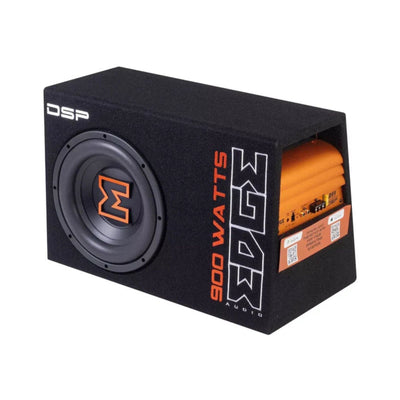

Edge DBX Series EDBX10ADSP-E3 10 Inch Active Bass Enclosure DSP 300w RMS
£179.99

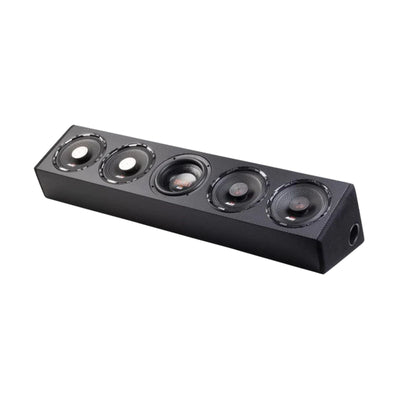

Edge DBX Series EDBXPB62.1-E5 6.5 Inch Full Range Ported Enclosure 1000w RMS
£249.99

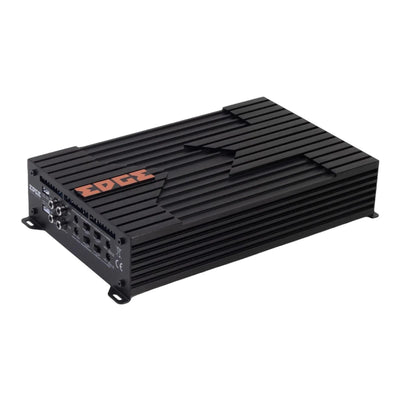

Edge DBX Series EDBX100.4-E1 Amp Class AB 4 Channel Amplifier 400w RMS
£159.99
Frequently Asked Questions
Q: Do the EDBX1PT-E4 tweeters need a crossover?
A: EDGE states that the hybrid piezoelectric driver eliminates the need for an external crossover, which keeps installation simple.
Q: Will the EDBX1PT-E4 fit my factory tweeter location?
A: They have a slim design with a 15mm mounting depth and 39mm mounting diameter, and come with multiple mounting brackets for factory or aftermarket locations. Contact CEN with your vehicle details if you are unsure.
Q: What frequency range do the EDBX1PT-E4 cover?
A: 3.5kHz to 20kHz, with 98dB sensitivity and 100W RMS power handling at 4 ohms.
Q: Can CEN fit these tweeters for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
