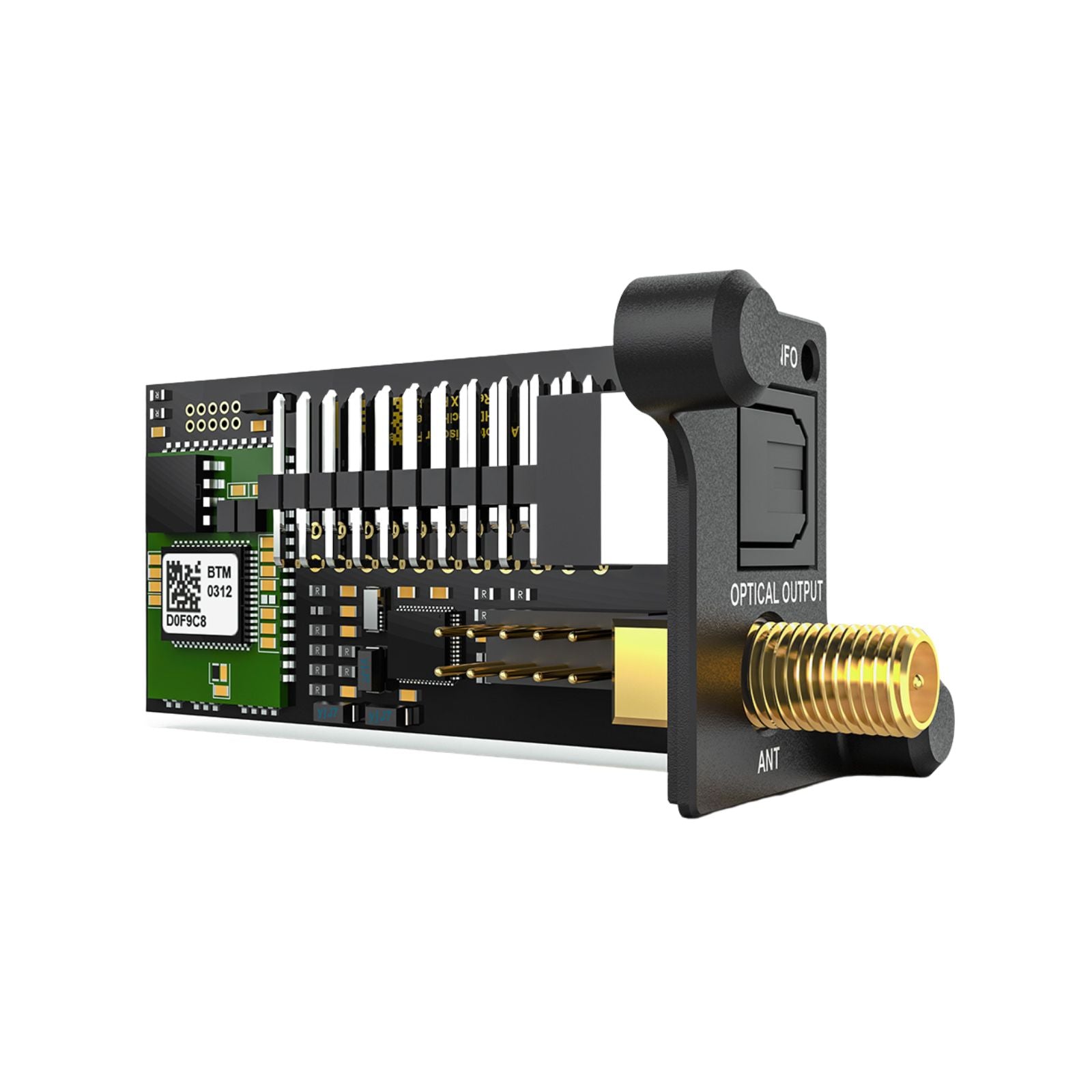

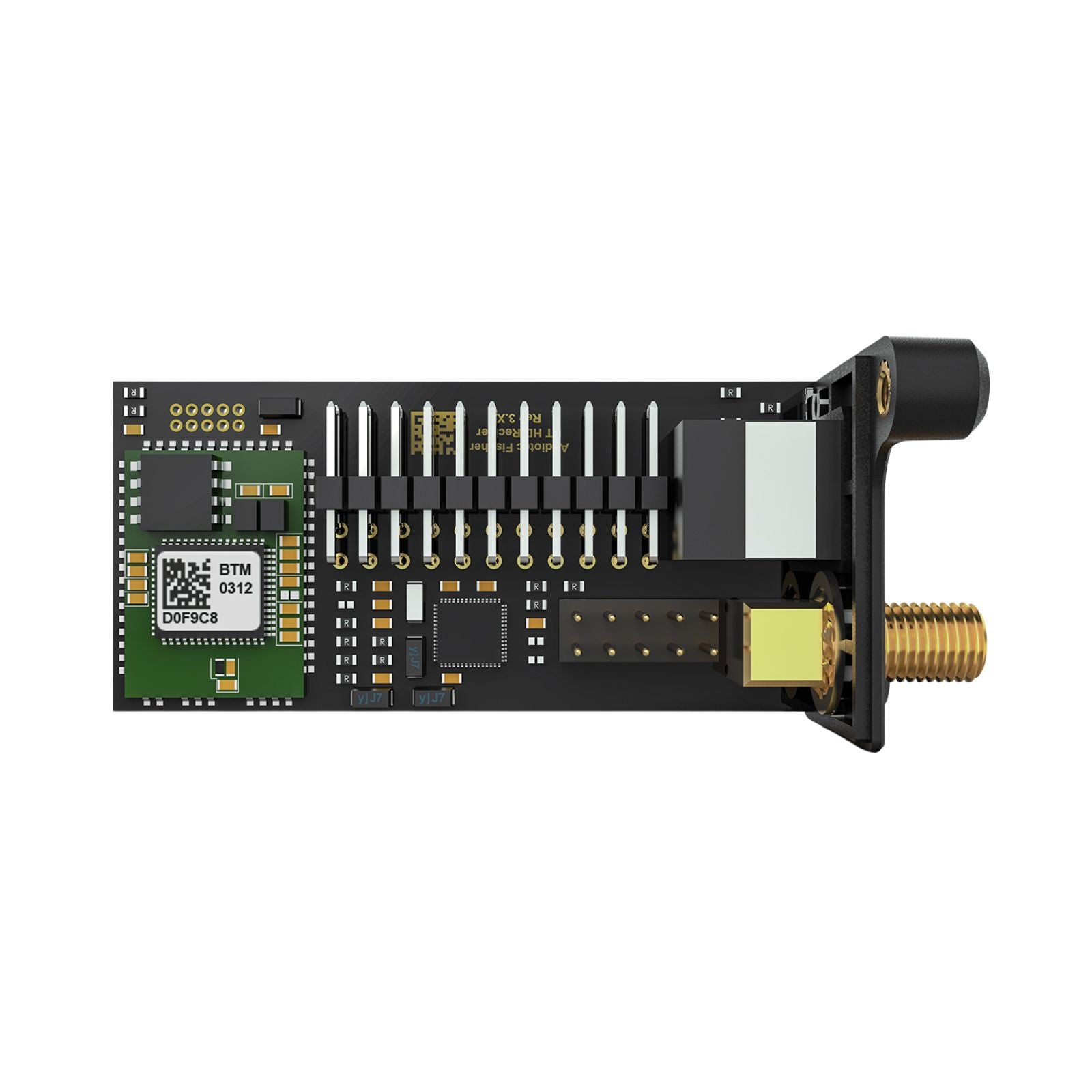

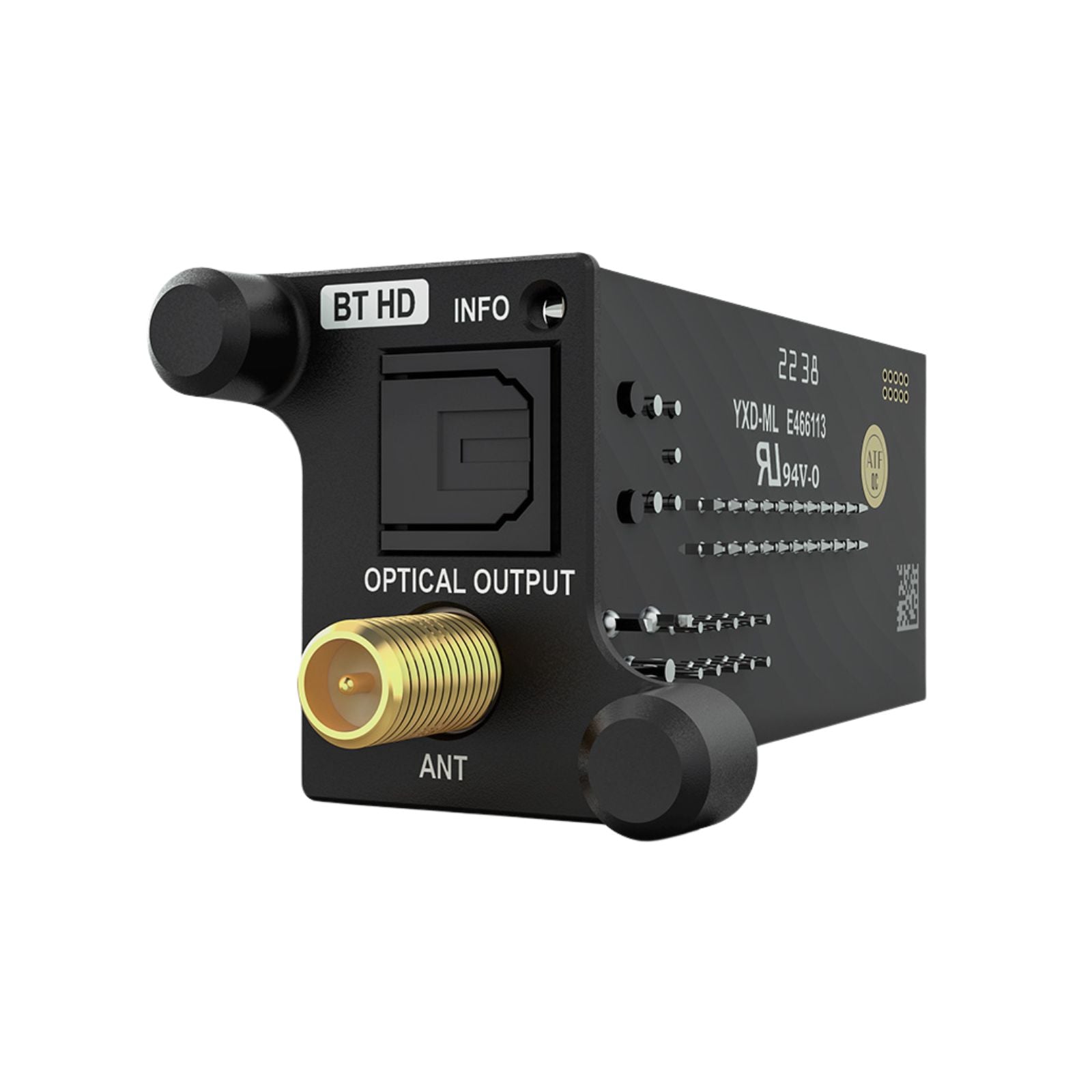

The Audiotec Fischer Extension Card 2.0 BT HD is a Bluetooth 5.0 audio streaming module with aptX HD and an optical SPDIF output, designed for HELIX and MATCH DSP devices fitted with an Extension Card 2.0 slot. It is part of the Audiotec Fischer Extension Card 2 accessory range.
This listing is for the BT HD (Bluetooth streaming) variant. The Extension Card 2 range is also available as the Analog Stereo Input Module.
Key specifications
- Compatibility: all HELIX and MATCH DSP devices with an Extension Card 2.0 slot
- Bluetooth: 5.0 + EDR, A2DP, AVRCP, SPP
- Codecs: SBC, AAC, aptX and aptX HD
- Audio quality: up to 576 kbps, 24 bit / 48 kHz
- Paired devices: 8
- Range: up to 10 m
- Optical output: SPDIF, 96 kHz or 48 kHz / 24 bit
- Wireless tuning: DSP PC-Tool 6 or higher, ACO platform devices
Extension Card 2.0 – BT HD
The Extension Card 2.0 – BT HD turns your HELIX or MATCH DSP or DSP amplifier into a Bluetooth audio streaming hub. Using the BT5.0 standard with aptX HD, AAC and SBC codec support, it delivers wireless playback at up to 576 kbps and 24 bit / 48 kHz. An optical digital SPDIF output provides an additional connection option.
High Definition Audio
The integrated Qualcomm aptX HD codec enables high-resolution wireless audio transmission. A direct digital signal path from the module to the DSP — with no additional AD/DA conversion — ensures lossless processing and full sound quality.
Full control
The BT HD module supports play/pause, track forward/backward, connect, pairing and disconnect via a connected DSP remote control such as the CONDUCTOR or DIRECTOR. The DIRECTOR's display shows the current artist, song title and active audio codec.
Wireless DSP tuning
BT5.0's increased data bandwidth, combined with DSP PC-Tool software (version 6 or higher) and a Bluetooth-equipped PC, enables wireless configuration of all DSP devices on the ACO platform. No USB cable required.
Seamless integration – maximum compatibility

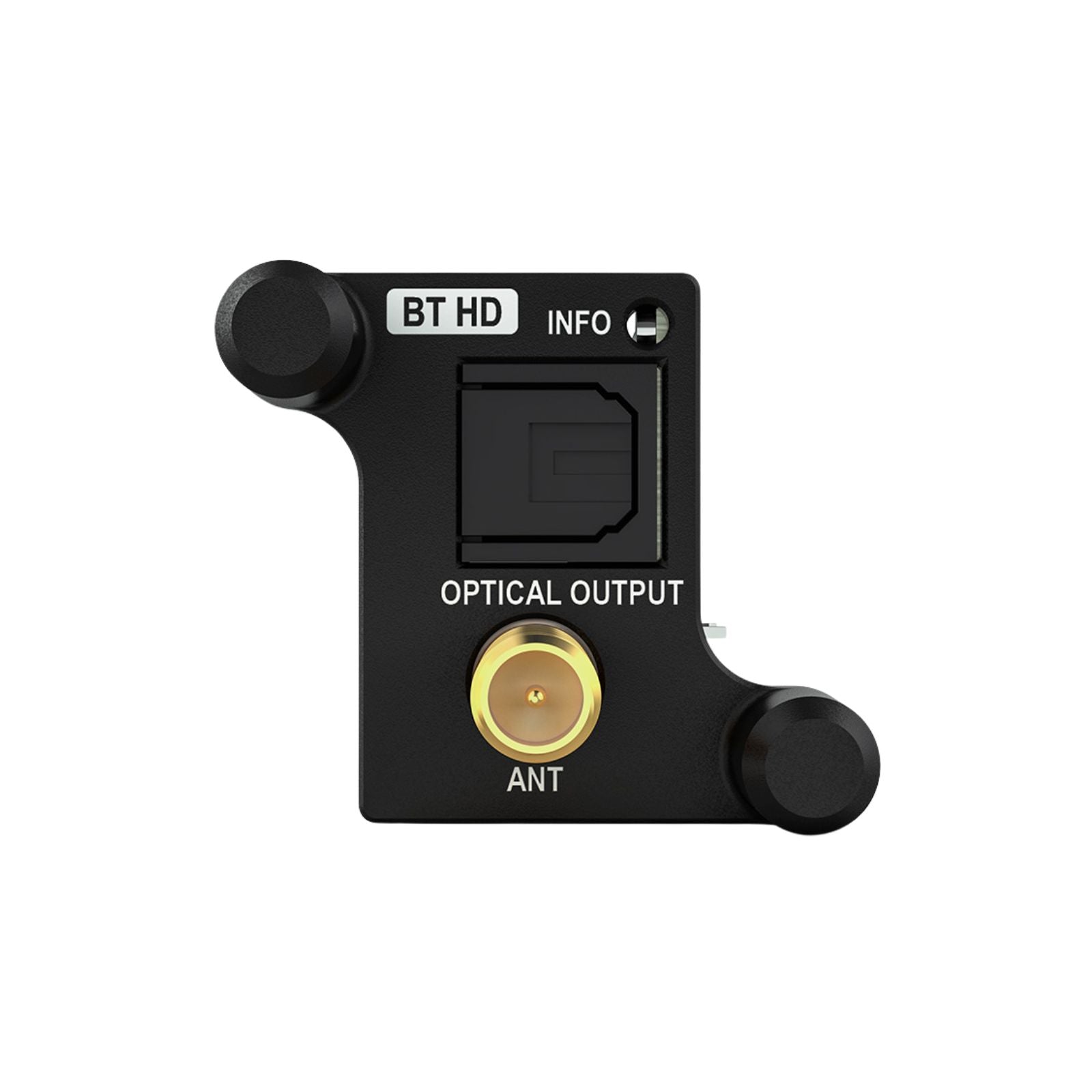

The Extension Card 2.0 – BT HD fits all HELIX and MATCH DSP products with an Extension Card 2.0 slot. A module-specific plastic cover panel is included for straightforward installation into the universal side-panel opening. A high-performance antenna is also included for reliable reception.
Features
- Adds Bluetooth audio streaming and an optical digital output to the DSP device
- Bluetooth audio streaming powered by Qualcomm aptX HD audio codec
- High Definition audio transmission up to 576 kbps and 24 bit / 48 kHz via BT5.0+EDR
- Supported audio codecs: SBC, AAC, aptX and aptX HD
- Direct digital signal transmission to DSP for lossless audio processing
- Enables wireless DSP tuning via DSP PC-Tool software for all ACO platform devices (DSP PC-Tool 6 or higher)
- Supports artist and title display on the DIRECTOR display remote control (ACO devices only, from DIRECTOR software version 2.10)
- Supports control commands — play/pause, track forward/back, connect, pairing and disconnect — via CONDUCTOR and DIRECTOR remote controls, with display of the active audio codec
- Optical output in SPDIF format
- Includes plastic cover panel with injected threaded inserts and high-performance antenna
Explore the full range in Audiotec Fischer.
Specification
| Bluetooth® standard | 5.0 + EDR |
|---|---|
| Bluetooth® profile | A2DP, AVRCP, SPP |
| Bluetooth® codec | SBC, AAC, Qualcomm® aptX™ and Qualcomm® aptX™ HD |
| Number of paired devices | 8 |
| Wireless frequency range | 2402 ~ 2480 MHz |
| Range | Up to 10 m |
| Digital optical output | SPDIF with either 96 kHz / 24 Bit or 48 kHz / 24 Bit depending on sampling rate of the device |
More specs
| |
What's Included
- 1 x BT HD module
- 1 x Module-specific cover panel
- 1 x Antenna
- 1 x Mounting screws
Audiotec Fischer
About the Audiotec Fischer EC20002
From our tech experts at CEN
The Audiotec Fischer Extension Card 2.0 BT HD EC20002 adds Bluetooth 5.0 streaming with aptX HD, aptX, AAC and SBC to HELIX and MATCH DSPs with an Extension Card 2.0 slot. It handles up to 24 bit/48 kHz, remembers eight devices, reaches about 10 m, and adds an optical S/PDIF output.
Who it suits
Owners who stream from a phone and want the signal to reach the DSP digitally, without extra conversion. On ACO-platform DSPs it also allows wireless tuning from a Bluetooth PC running DSP PC-Tool 6 or later. Playback can be controlled from a CONDUCTOR Pro or DIRECTOR remote. For wired sources instead, see the ANALOG IN card.
Our tech experts advise
It comes with a cover panel, antenna and screws. Mount the antenna away from metal where possible, especially if the DSP sits under the boot floor. Check for a free Extension Card 2.0 slot first. See car audio installation.
Explore the full Audiotec Fischer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Audiotec Fischer
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Frequently Asked Questions
Q: Does the BT HD card support aptX HD?
A: Yes. It supports SBC, AAC, aptX and aptX HD, with transmission of up to 576 kbps at 24 bit / 48 kHz over Bluetooth 5.0 + EDR.
Q: Can I tune my DSP wirelessly with the BT HD card?
A: Yes, on DSP devices with the ACO platform, using DSP PC-Tool version 6 or higher and a PC with Bluetooth.
Q: What's in the box with the BT HD card?
A: The BT HD module, a module-specific cover panel, an antenna and mounting screws.
