Audiotec Fischer AMI Audio Measurement Interface for Brax Helix Match DSP

£149.99 Best Seller
Black Friday
In stock
SKU: 93175MPN: H424519

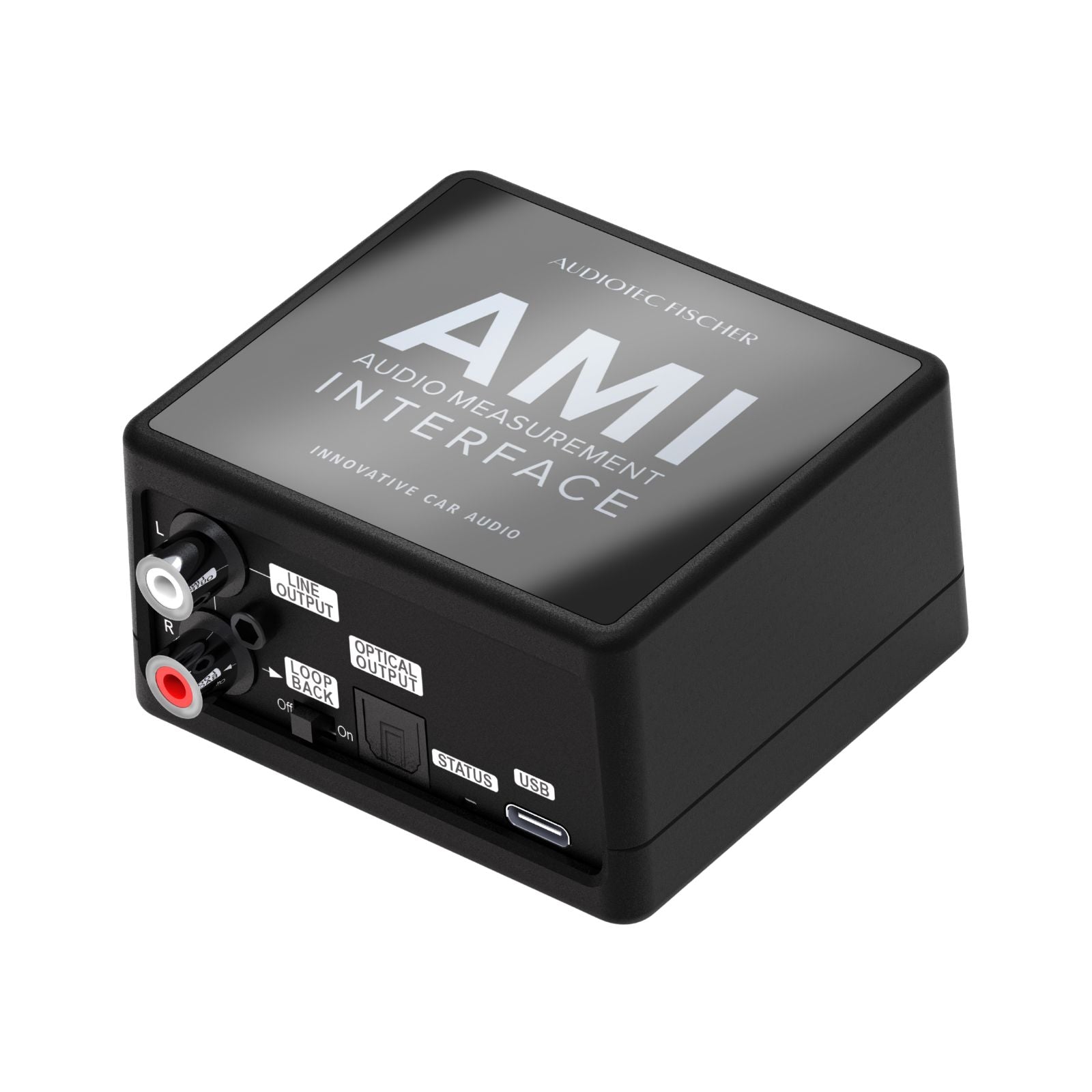

The Audiotec Fischer AMI is a USB-powered audio measurement interface for electrical and acoustic measurements on BRAX, HELIX and MATCH DSP systems, built around the DSP PC-Tool software. It is a DSP accessory from Audiotec Fischer.

This listing is the AMI interface only. The AMI is also available as the AMI Tuning Kit, which adds a calibrated Beyerdynamic MM-1 microphone, extra cables and a transport case.

Key specifications

  • Inputs: 1 x microphone, 1 x line
  • Microphone input: 5–200mV sensitivity, 24V phantom power
  • Line input: switchable max. 1V / 40V, 10 kOhms
  • Outputs: 2 x line, 1 x optical (SPDIF), loopback function
  • Sampling rate: 96kHz / 32 bit
  • USB power consumption: max. 250mA
  • Operating systems: Windows, macOS, iOS and Android

The AMI handles both electrical and acoustic measurements on BRAX, HELIX and MATCH DSP systems with accuracy you can rely on.

Every Signal, Measured Properly

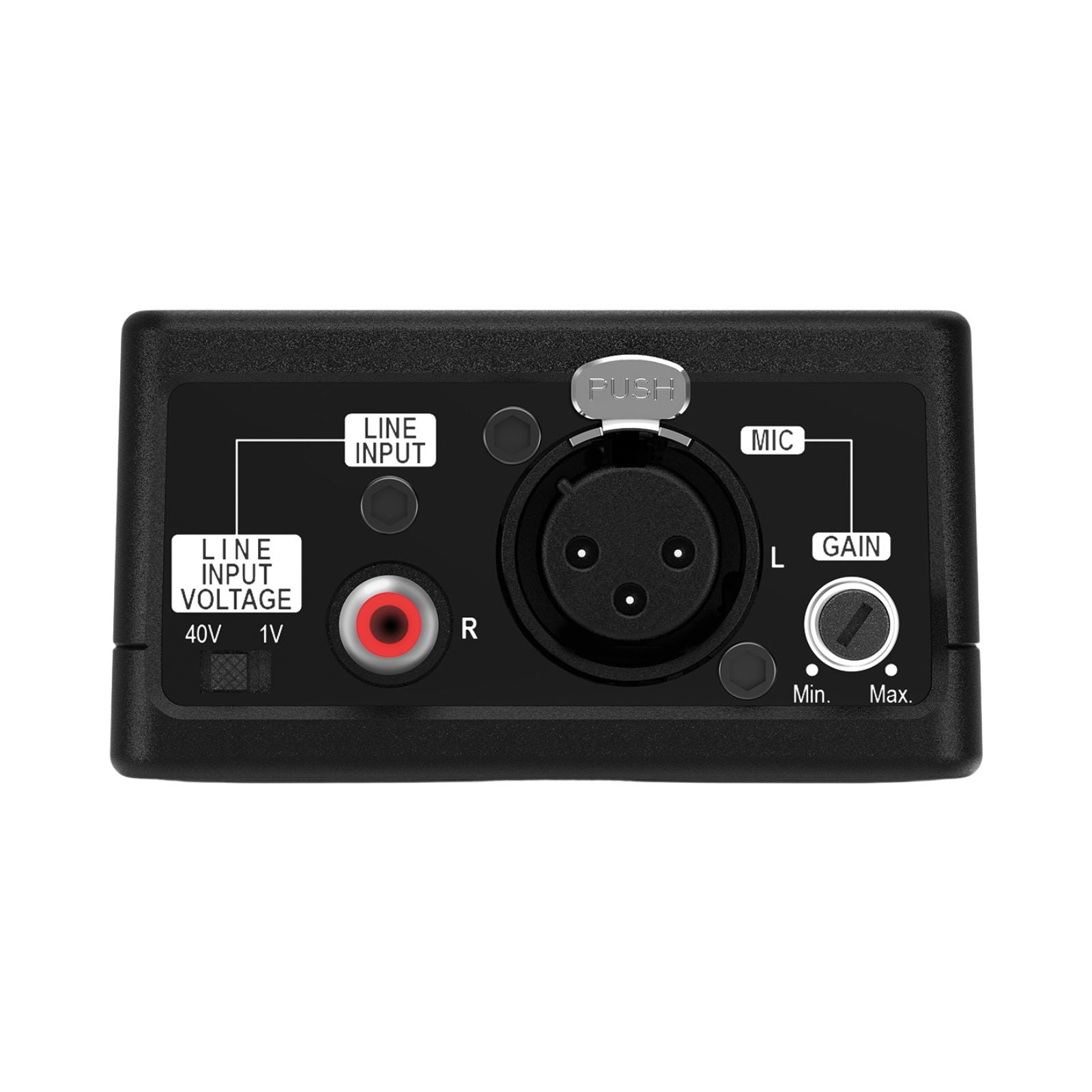

The mic input suits all condenser measurement mics. Gain is adjustable and phantom power switches on when needed. The line input switches between 1V and 40V, measuring low-level and high-level signals cleanly.

Straight Into Your DSP

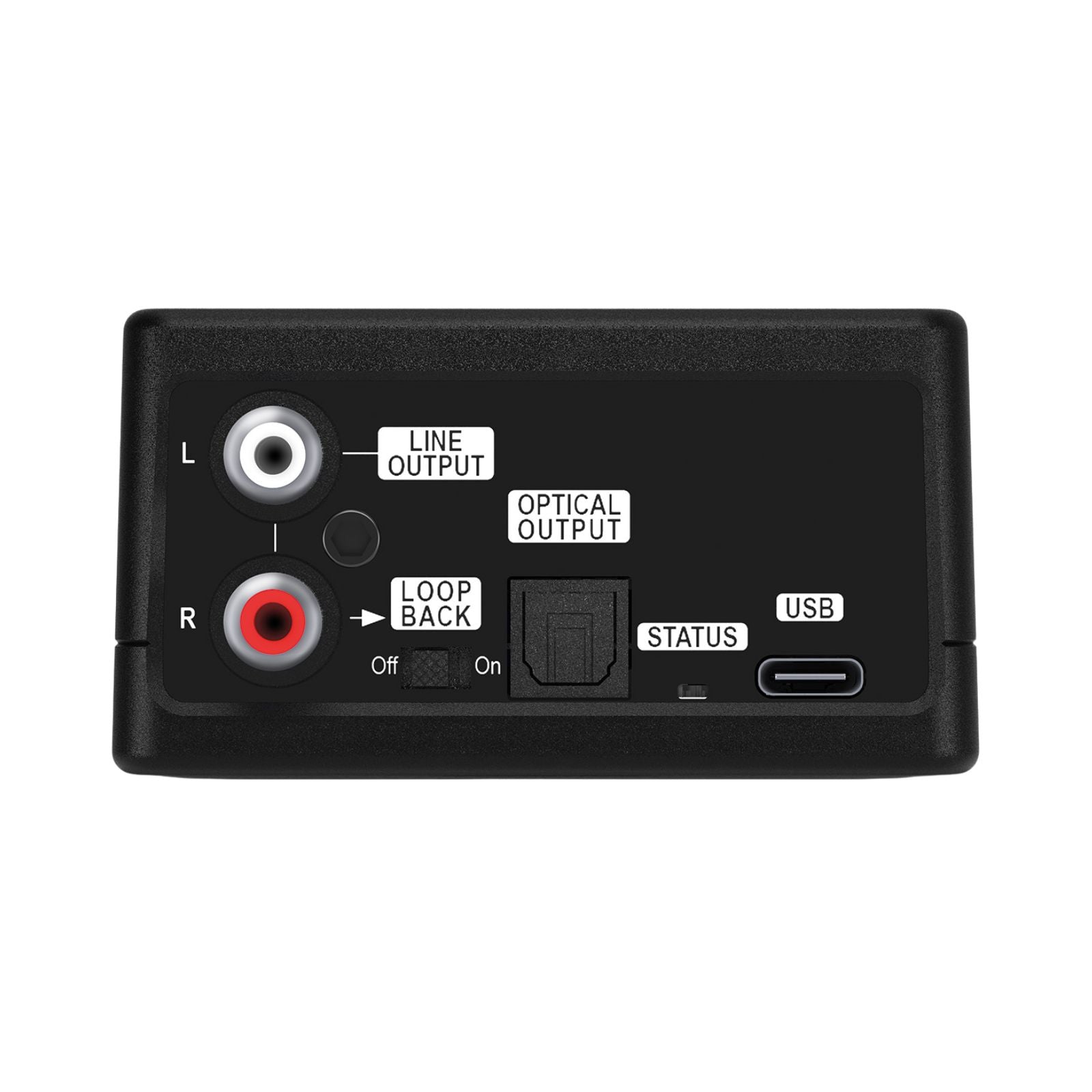

Stereo output runs over RCA or optical digital. Test signals feed directly into your DSP for repeatable results.

Made for the DSP PC-Tool

Every function is built around the DSP PC-Tool software. Measure, tune and optimise in one workflow.

Specification
Inputs1 x Microphone input 1 x Line input
Outputs2 x Line output 1 x Optical output (SPDIF)
Frequency response12 Hz - 44 kHz (+/-1 dB)
Dynamic range95 dB (A-weighted)
Input sensitivity5 - 200 mV
Phantom powerYes (24 Volts)
Frequency response8 Hz - 44 kHz (+/-1 dB)
Dynamic range101 dB (A-weighted)
Input sensitivitymax. 1 V / max. 40 V
Input impedance10 kOhms
Frequency response7 Hz - 44 kHz (+/-1 dB)
Dynamic range100 dB (A-weighted)
Maximum output voltage900 mV (RMS)
Minimum load5 kOhms
Loopback functionYes
Audiosampling rate 96 kHz / 32 Bit
USB power consumptionmax. 250 mA
Supported operating systemsWindows, macOS, iOS and Android

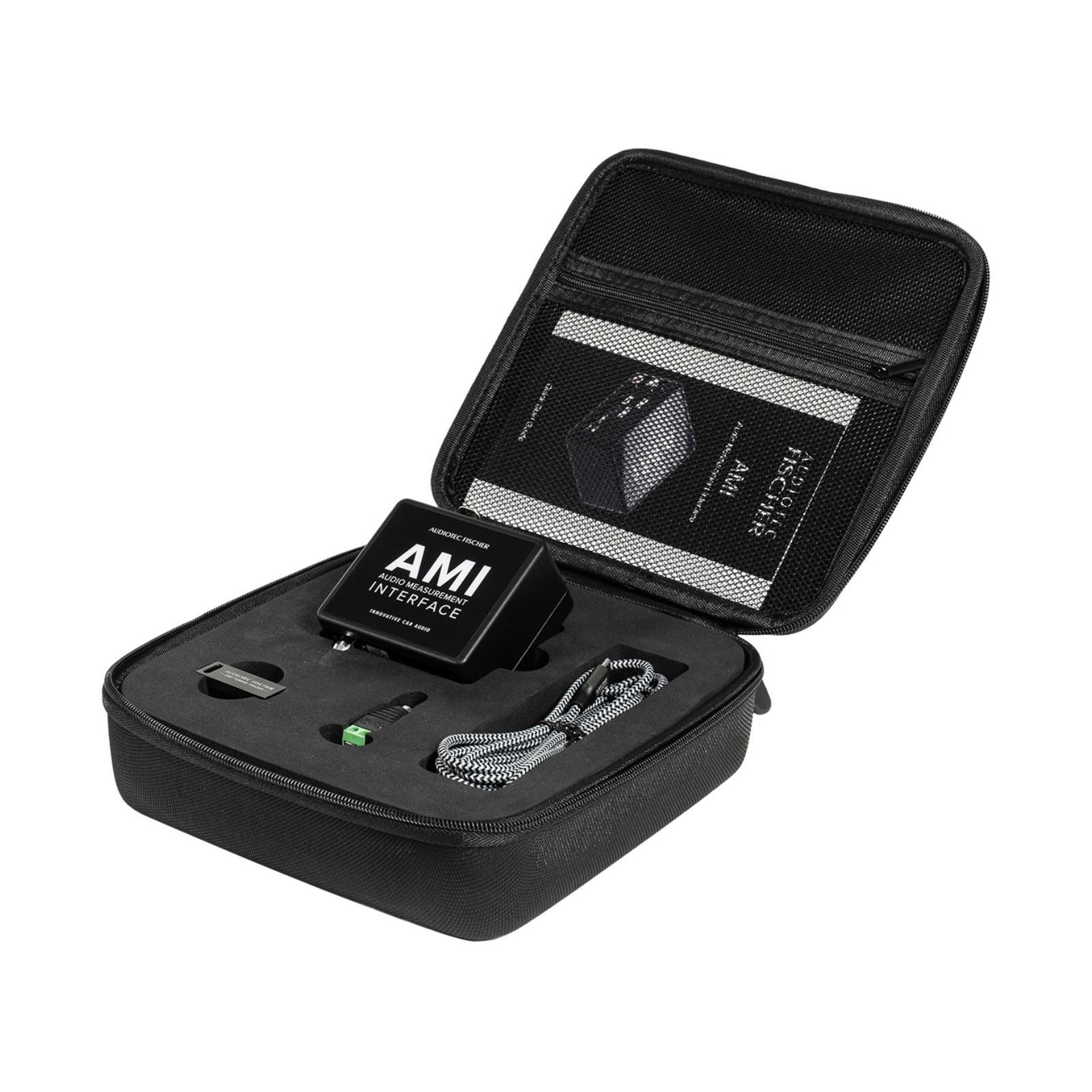

What's Included
  • 1 x AMI (Audio Measurement Interface)
  • 1 x 3.0 m / 9.85’ USB-C to USB-C cable with USB-A adaptor
  • 1 x RCA-to-Highlevel adaptor
  • 1 x 16 GB USB 3.0 flash drive with DSP tuning tracks
Product information

Audiotec Fischer

About the Audiotec Fischer H424519

From our tech experts at CEN

The Audiotec Fischer AMI H424519 is a USB-powered audio measurement interface for electrical and acoustic measurements on BRAX, HELIX and MATCH DSPs. It has a microphone input with 24 V phantom power, a line input switchable to 1 V or 40 V, two line outputs, an optical output and a loopback function, at 96 kHz/32 bit.

Who it suits

Installers and experienced enthusiasts who already own a measurement microphone and tune with DSP PC-Tool. If you do not have a calibrated microphone, the AMI Tuning Kit adds a Beyerdynamic MM-1, extra cables and a case.

Our tech experts advise

It comes with a 3 m USB-C cable with USB-A adaptor, an RCA-to-high-level adaptor and a 16 GB flash drive of tuning tracks, and works with Windows, macOS, iOS and Android. Measurements are only as good as the microphone position, so keep it consistent at the listening seat. See car audio installation.

Explore the full Audiotec Fischer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Audiotec Fischer

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

Frequently Asked Questions

Q: What's in the box with the AMI?

A: The AMI interface, a 3.0m USB-C to USB-C cable with USB-A adaptor, an RCA-to-highlevel adaptor and a 16GB USB 3.0 flash drive with DSP tuning tracks. A measurement microphone is not included.

Q: Can the AMI measure high-level speaker signals?

A: Yes. The line input switches between a maximum of 1V and 40V, so it can measure both low-level and high-level signals.

Q: Which microphones work with the AMI?

A: The microphone input suits all condenser measurement microphones, with adjustable gain and switchable 24V phantom power.
