Audiotec Fischer AMI Audio Measurement Interface Tuning Kit for Helix Match DSP

The Audiotec Fischer AMI Tuning Kit is a complete measurement suite that pairs the AMI Audio Measurement Interface with a calibrated Beyerdynamic MM-1 microphone, cables and a transport case. It is for installers and enthusiasts tuning BRAX, HELIX and MATCH DSP systems with the DSP PC-Tool.

Already have a measurement microphone? The AMI Audio Measurement Interface is also available on its own.

Key specifications

• Interface: AMI Audio Measurement Interface, USB powered
• Microphone: Beyerdynamic MM-1 calibrated condenser, omnidirectional
• Inputs: 1 x microphone (24V phantom power), 1 x line (max. 1V / 40V)
• Outputs: 2 x line (RCA), 1 x optical (SPDIF), loopback function
• Sampling rate: 96kHz / 32 bit
• Software: DSP PC-Tool (AISA, RTA with TuneEQ, ATM)
• Operating systems: Windows, macOS, iOS and Android
• Extras: 16GB USB 3.0 flash drive with DSP tuning tracks, transport case

Audiotec Fischer AMI Tuning Kit

Comprehensive measuring for precise electrical and acoustic measurements, seamlessly optimised for Audiotec Fischer’s DSP PC-Tool

The AMI Tuning Kit is a fully equipped measurement suite that combines the professional-grade AMI interface with a selection of premium accessories, offering everything required for precise signal and acoustic analysis in modern DSP-driven sound systems. Developed as a comprehensive, ready-to-use package, it’s the perfect solution for those who demand maximum accuracy, seamless integration, and flexible mobile use. At its heart: the AMI – engineered to work in perfect harmony with Audiotec Fischer’s DSP PC-Tool software, and enhanced by intelligent accessories for real-world measurement scenarios.

High-precision acoustic and signal measurement – anywhere you need it

The AMI serves as the central measurement hub, providing all relevant connections for a wide range of electrical and acoustic analysis tasks. Included in the kit is the renowned Beyerdynamic MM-1 – a precision-calibrated condenser measurement microphone "Made in Germany", optimised for in-car measurements with a linear frequency response at 90°. The dedicated line input with switchable sensitivity (max. 1 V or 40 V) ensures accurate analysis of both low- and highlevel signals. Stereo signal output is available via RCA or optical digital connection for direct playback into a DSP. The integrated loopback function opens up advanced measurement options, such as precise phase response and more complex signal path evaluations.

Made to match: Seamless integration with DSP PC-Tool

Developed for full compatibility with the Audiotec Fischer DSP PC-Tool, the AMI becomes a powerful measurement device that unlocks the full potential of the software’s tuning features. This includes the Advanced Input Signal Analyser (AISA) for the detection and correction of factory-applied EQ curves, time alignment and allpass filters, as well as Real-Time Analyser (RTA) support for precise frequency response measurements and automated tuning via the proprietary TuneEQ algorithm. The AMI also supports Automatic Time Measurement (ATM) for fully automated speaker delay calibration – delivering perfect timing and imaging across all channels.

The all-in-one measuring suite – with premium accessories

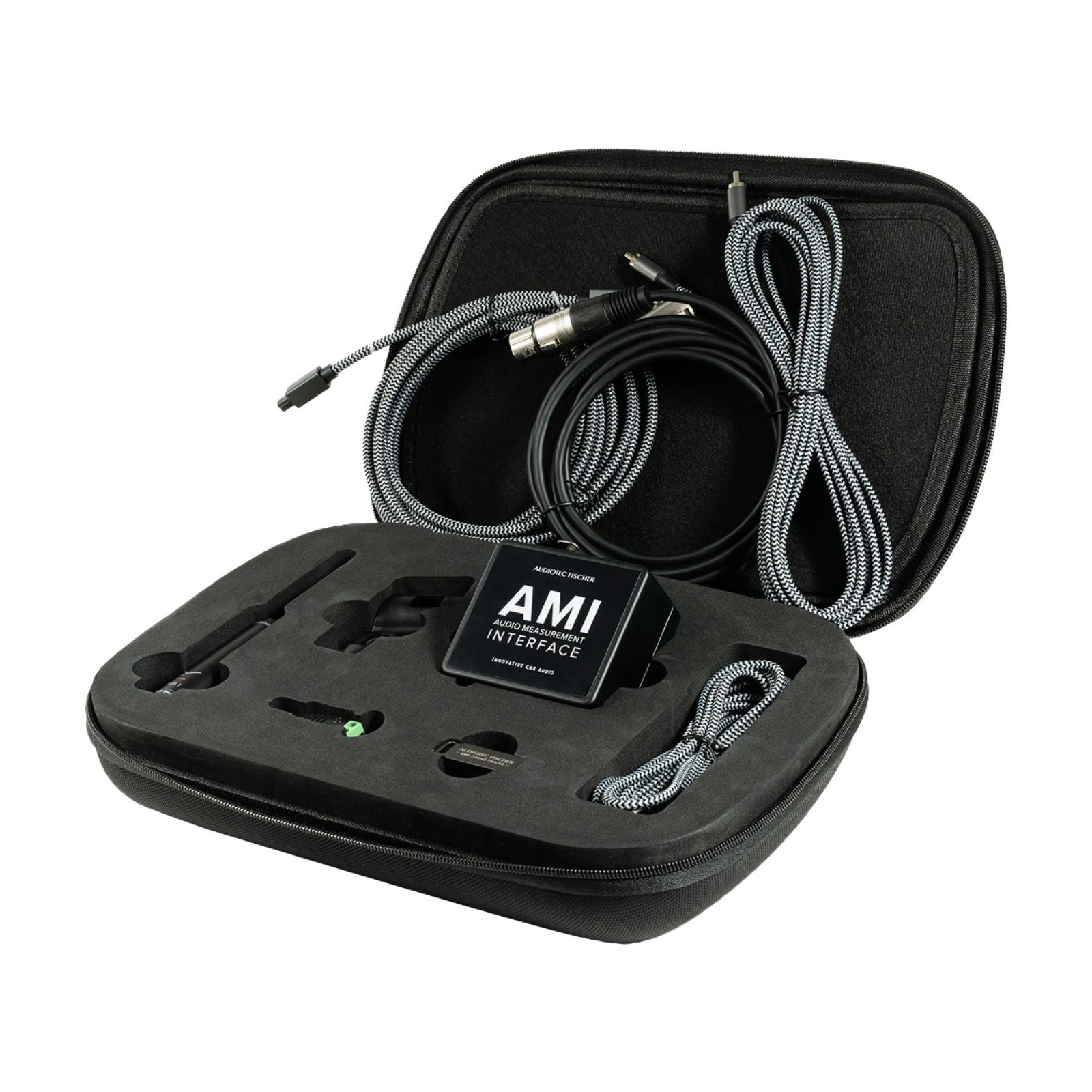

Alongside the AMI and the Beyerdynamic MM-1 microphone, the kit includes a full suite of high-quality accessories to ensure seamless operation in the field: a 3 m USB-C cable with USB-A adapter, an RCA cable with RCA-to-Highlevel adaptors, Toslink cable, and an XLR microphone cable. The 16 GB USB 3.0 flash drive preloaded with DSP tuning tracks rounds out the set. Powered via USB and packed in a durable, compact transport case, the AMI Tuning Kit offers maximum portability and convenience – whether in the workshop or directly inside the vehicle.

Features

Includes AMI (Audio Measurement Interface) – professional-grade interface for electrical and acoustic signal analysis

• Stereo signal input with microphone and line input for all-in-one measurements
• Microphone input supports all condenser microphones with adjustable gain and phantom power
• Line input with adjustable sensitivity for low- and high-level signals (max. 1 V or 40 V RMS)
• Stereo signal output with RCA and optical digital outputs for direct playback into DSP systems
• Loopback functionality for advanced measurements, such as phase response analysis
• USB-powered operation, no external power supply required

Includes Beyerdynamic MM-1 microphone – high-precision calibrated microphone, made in Germany

• Studio-grade condenser microphone with free-field calibration files for 0° and 90°
• Optimised linear frequency response at 90° for precise in-car measurements

Optimised for Audiotec Fischer’s DSP PC-Tool – seamless integration for advanced signal analysis and automated tuning tasks

• Compatible with AISA (Advanced Signal Input Analyser) for the analysis and correction of DSP input signals, including factory-installed allpass filters, time alignment, equalisation and the detection of highpass and lowpass filters
• Works with RTA (Real-Time Analyser) for acoustic frequency response measurements, automatic equalisation with the proprietary TuneEQ algorithm and detailed frequency and phase matching analysis
• Compatible with ATM (Automatic Time Measurement) for automated speaker time-delay calibration

Ready to use – complete suite with all essential components

• Includes all essential cables:
  • USB-C cable
  • USB-C to USB-A adaptor
  • RCA cable
  • RCA-to-Highlevel adaptor
  • Toslink cable and XLR microphone cable
• 16 GB USB 3.0 flash drive preloaded with DSP Tuning Tracks
• Compatible with Windows 10 & 11, macOS, Android and iOS
