Audiotec Fischer Director SCP Version Touch Screen Display Remote H424499

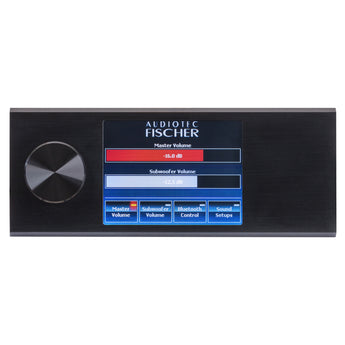

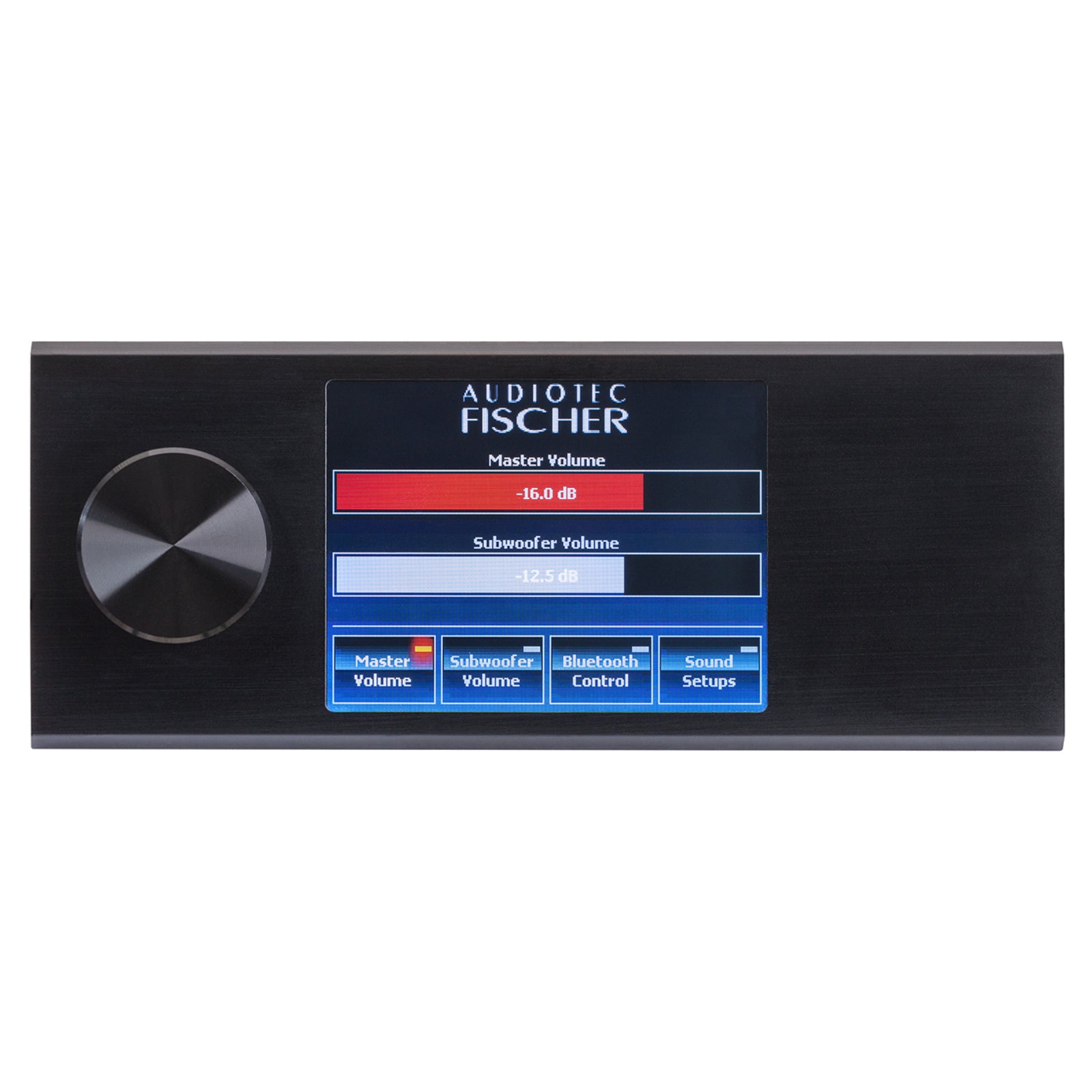

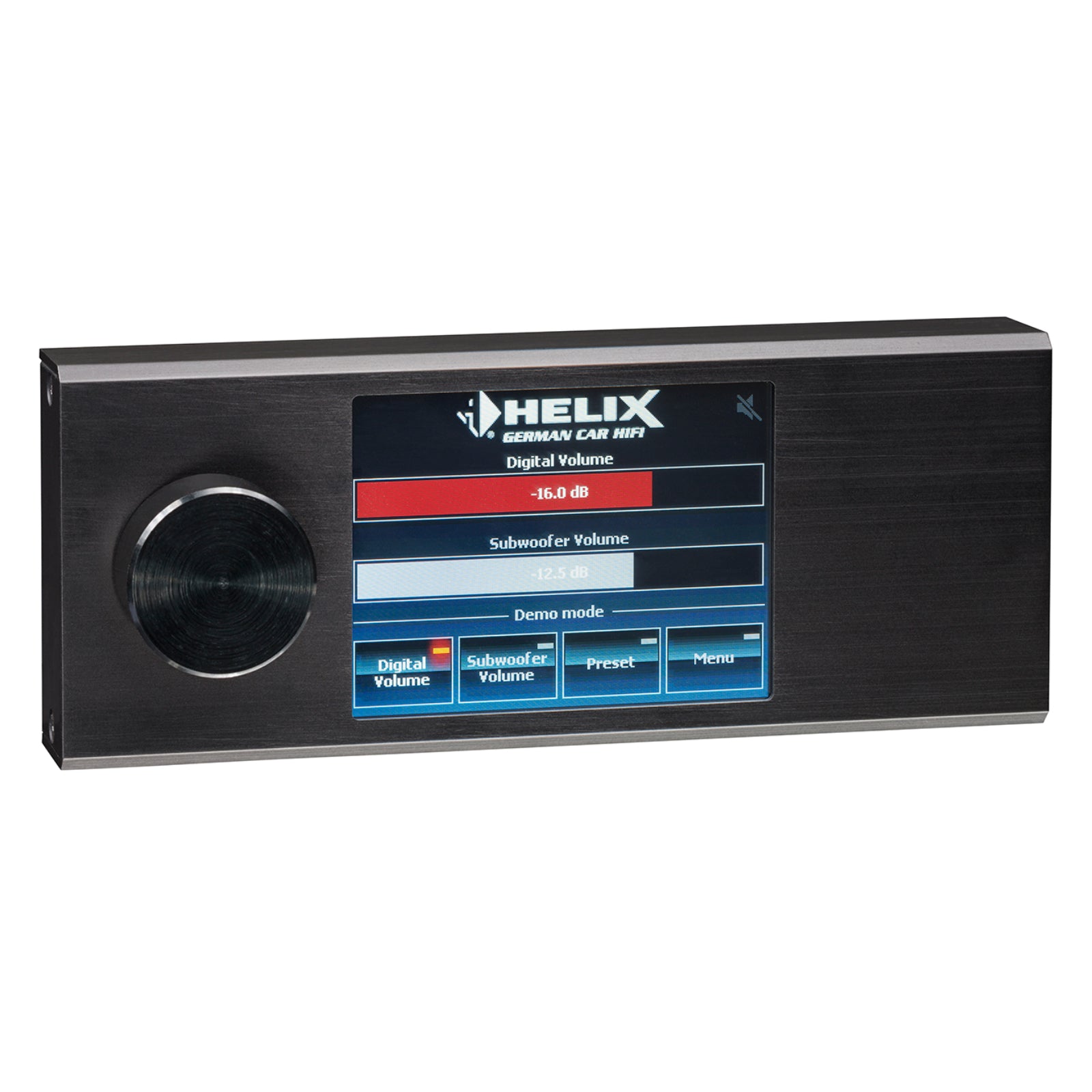

The Audiotec Fischer DIRECTOR (SCP version, H424499) is a touchscreen display remote control featuring a 2.8" (7cm) full colour display in a solid aluminium housing, designed for compatible BRAX, HELIX and MATCH DSP products. It is part of the Audiotec Fischer DIRECTOR range.

This listing is the DIRECTOR SCP version (H424499). The DIRECTOR range is also available as the DIRECTOR Control Input version (H424495).

Key specifications

• Display: 2.8" / 7cm full colour touchscreen
• Connection: Smart Control Port (SCP), 5.2m cable included
• Compatibility: DSP products supported by DSP PC-Tool version 3 and higher
• Sound setups: 20 additional memory locations (devices without ACO platform)
• Master volume range: -60dB to 0dB in 0.5dB steps
• Subwoofer volume range: -40dB to 0dB
• Soft keys: 4 configurable
• Housing: solid aluminium
• Dimensions (H x W x D): 53.5 x 135 x 18mm

DIRECTOR display remote control, SCP version

Universal remote control with touchscreen

The 2.8" / 7cm full colour touchscreen and intuitive menu navigation give easy access to:

• Source selection
• Volume control of all sources
• Volume control of the subwoofer
• Control and configuration of the HEC BT module
• Switching between sound setups

The DIRECTOR stores 20 additional sound setups and includes a USB connector for direct access to your DSP device — useful when your processor or amplifier is tucked away in the boot. The touchscreen display is housed in a solid aluminium block.

Compatible with all DSP products supported by DSP PC-Tool version 3 and higher.

Volume menus

Adjust master, subwoofer, HEC / MEC / AUX and digital volume from the driver's seat. Master, HEC / MEC / AUX and digital volume range from -60dB to 0dB; subwoofer volume ranges from -40dB to 0dB. All adjustments are made in 0.5dB increments.

Input Select menu

Switch between input sources — Main, HEC / MEC / AUX and Digital Optical, depending on the connected device. The volume of the selected source can also be set within this menu.

Bluetooth Control menu

Once a Bluetooth device is paired with the HEC / MEC module, the DIRECTOR can control playback (play/pause, track forward/back) and adjust the Bluetooth input source volume using the front rotary dial.

Tone Control menu

Set bass and treble levels and their transfer frequencies via the DIRECTOR's rotary knob.

Customisable soft key buttons

Four configurable soft key buttons can each be assigned to a frequently used function. Press and hold a button for a few seconds to open the assignment window. Available functions vary depending on the connected products and any extensions fitted, such as BRAX, HELIX or MATCH Extension Cards.
