AudioControl ACX-300.1 Mono All-Weather Amplifier 300w
Couldn't Load Pickup availability
The AudioControl ACX-300.1 is an IPX6-rated all-weather monoblock amplifier delivering 300 W RMS at 2 ohms, built for open-air sound systems in boats, UTVs, motorcycles and more. It is part of AudioControl's ACX all-weather amplifier range.
Key specifications
- Channels: 1 (monoblock)
- Power (RMS at 14.4V): 300 W x 1 at 2 ohms, 175 W x 1 at 4 ohms
- IP rating: IPX6
- Inputs: 2 preamp/speaker-level inputs, high and low input modes
- Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, bypass
- Frequency response: 26 Hz to 22 kHz
- Signal to noise: 102 dBA (ref 50 W at 4 ohms)
- THD+N: less than 0.05%

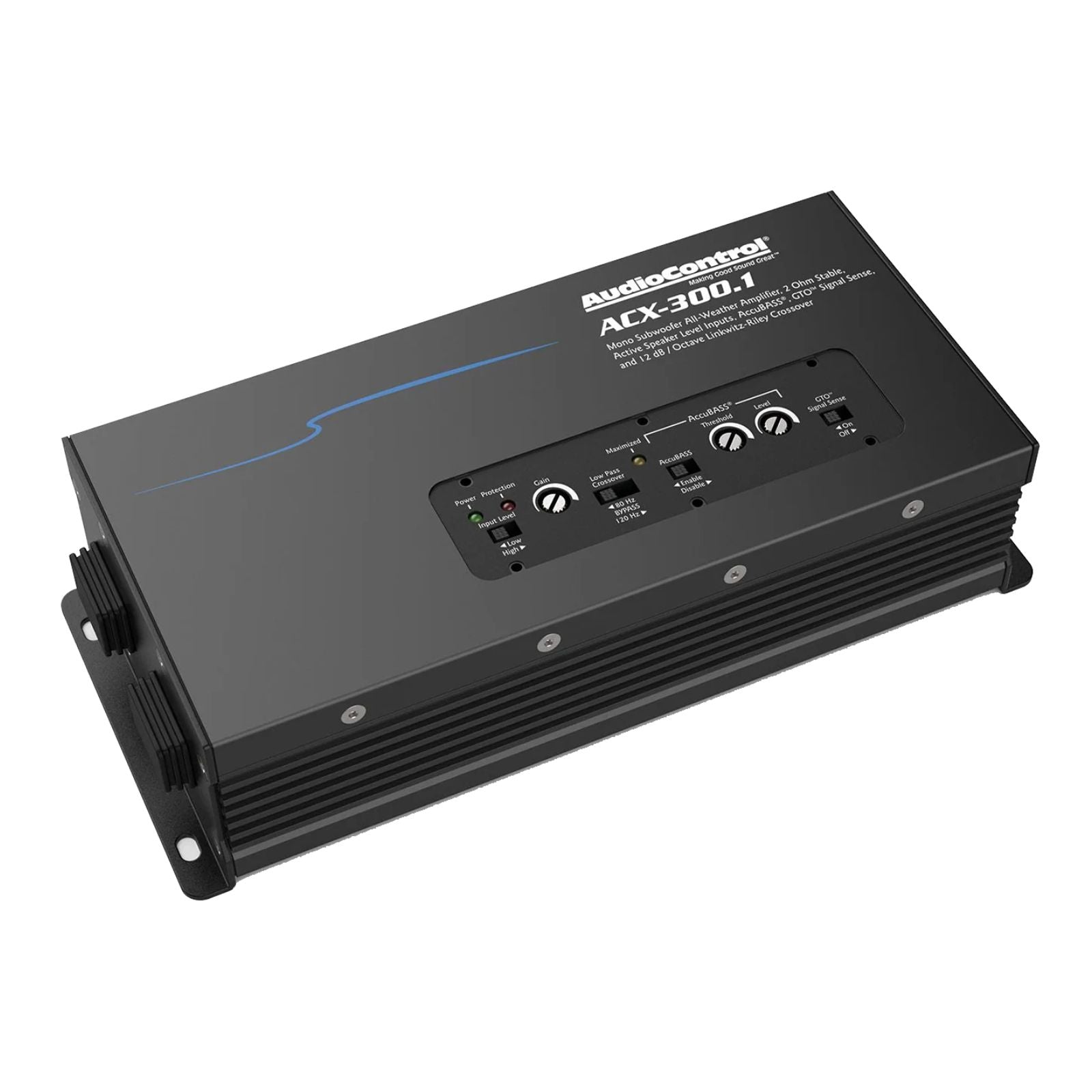

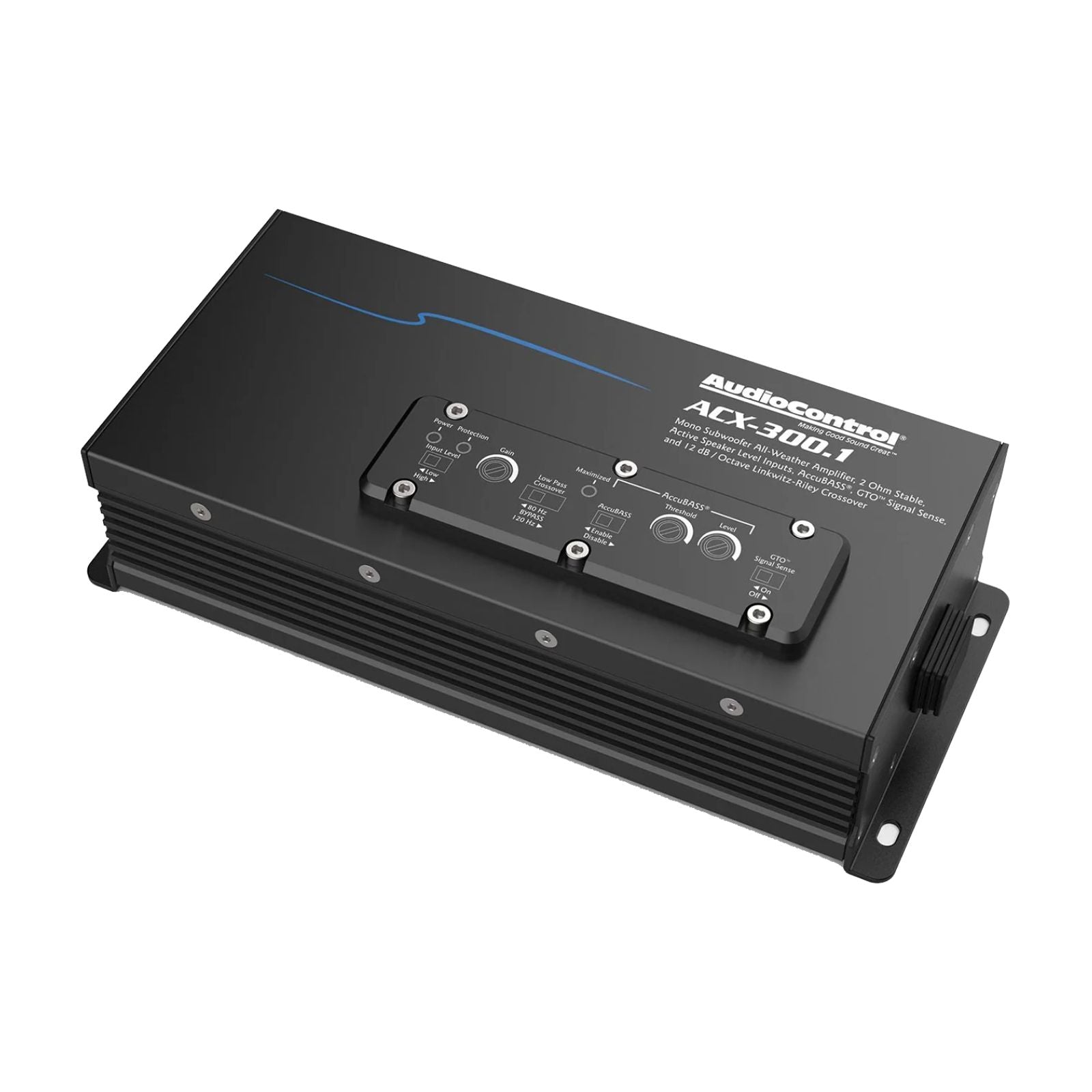

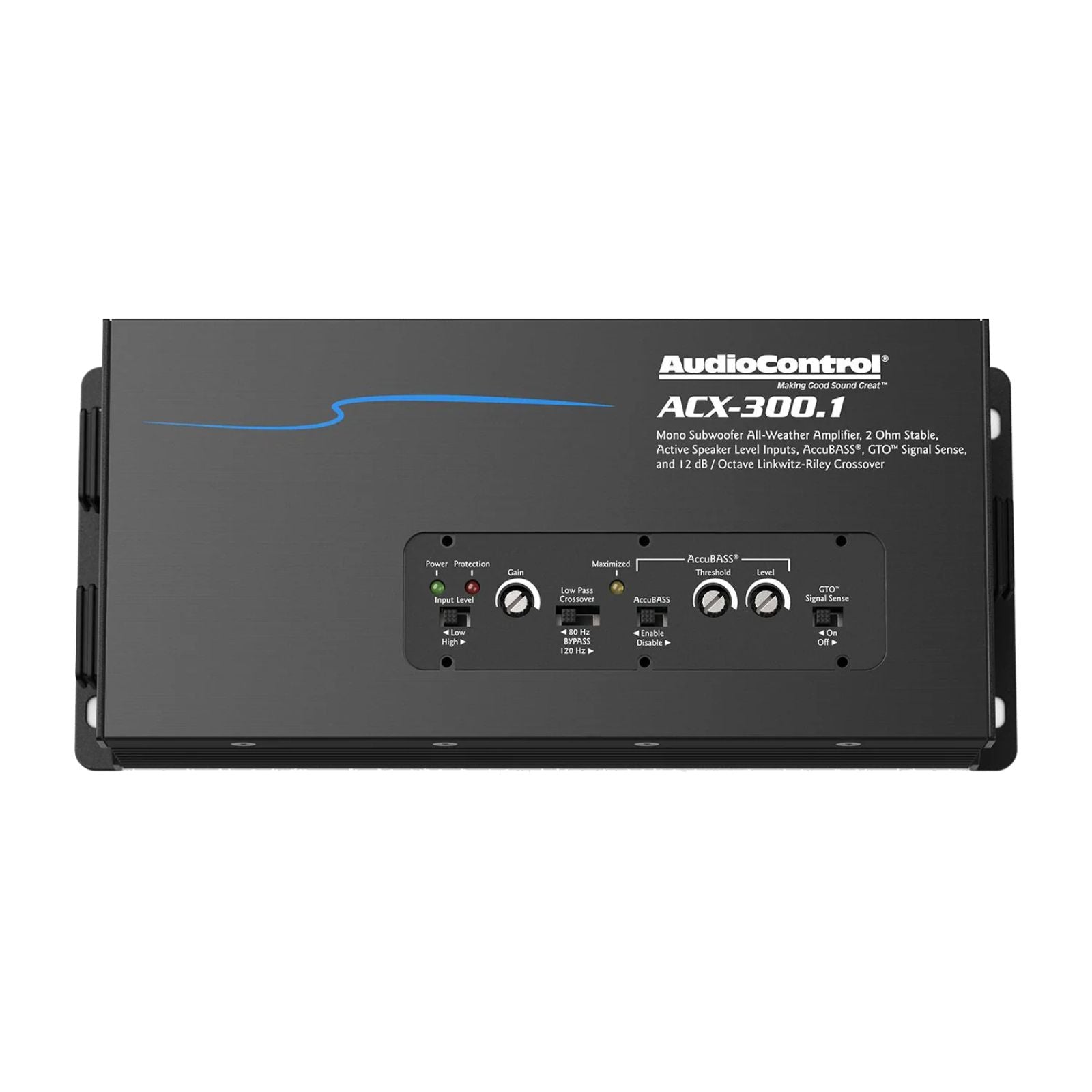

ACX-300.1 All-Weather Monoblock Amplifier
The ACX-300.1 delivers honest power to speakers and subwoofers in boats, UTVs, motorcycles and other open-air installations. AccuBASS bass management and GTO Signal Sense help maintain clarity and punch throughout the day. If you need to connect the ACX-300.1 to a factory head unit, the AudioControl LC2i provides a tidy high-to-low conversion solution.
Heavy-gauge quick-connect wiring keeps installation straightforward, making it a practical choice for installer and DIY fitments alike.
Features
- 1 x 300 watts at 2 ohms
- 1 x 175 watts at 4 ohms
- IPX6 rated
- AccuBASS bass management
- GTO Signal Sense
- High and low input modes
- Linkwitz-Riley crossover
- Bulletproof 5-year warranty (when installed by an authorised AudioControl dealer)
Explore the full range in AudioControl.
Specification
| Preamp/Speaker Level Inputs | 2 |
|---|---|
| Input Voltage Low | 500 mV – 6 Vrms |
| Input Voltage Range High | 1 Vrms – 12 Vrms |
| Frequency Response | 26 Hz – 22 kHz |
| Signal to Noise | 102 dBA, Ref 50 W @ 4 Ohm |
| THD+N | < 0.05% |
| Crossover | 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass |
| IP Rating | IPX6 |
More specs
| |
What's Included
- ACX-300.1
- Manual
- Warranty
AudioControl
About the AudioControl ACX-300.1
From our tech experts at CEN
A monoblock subwoofer amplifier from AudioControl, all-weather rated for powersports, marine and open builds, rated at 300w RMS.
Who it suits
Anyone adding a subwoofer that needs controlled power rather than a compact powered unit. The sealed, coated build suits boats, buggies and anything that gets wet. AudioControl built its name on signal processing, and that thinking runs through the amplifiers too.
Our tech experts advise
Matching matters more than headline watts, the gains want setting with a meter, and it needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from AudioControl
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Is the ACX-300.1 waterproof?
A: The ACX-300.1 is IPX6 rated, designed as an all-weather amplifier for boats, UTVs, motorcycles and other open-air systems.
Q: How much power does the ACX-300.1 produce?
A: It is rated at 300 W RMS x 1 at 2 ohms and 175 W RMS x 1 at 4 ohms, measured at 14.4V.
Q: Can the ACX-300.1 take speaker-level inputs?
A: Yes. It has two preamp/speaker-level inputs with high and low input modes, so it can be fed from an aftermarket head unit or a factory speaker output.
