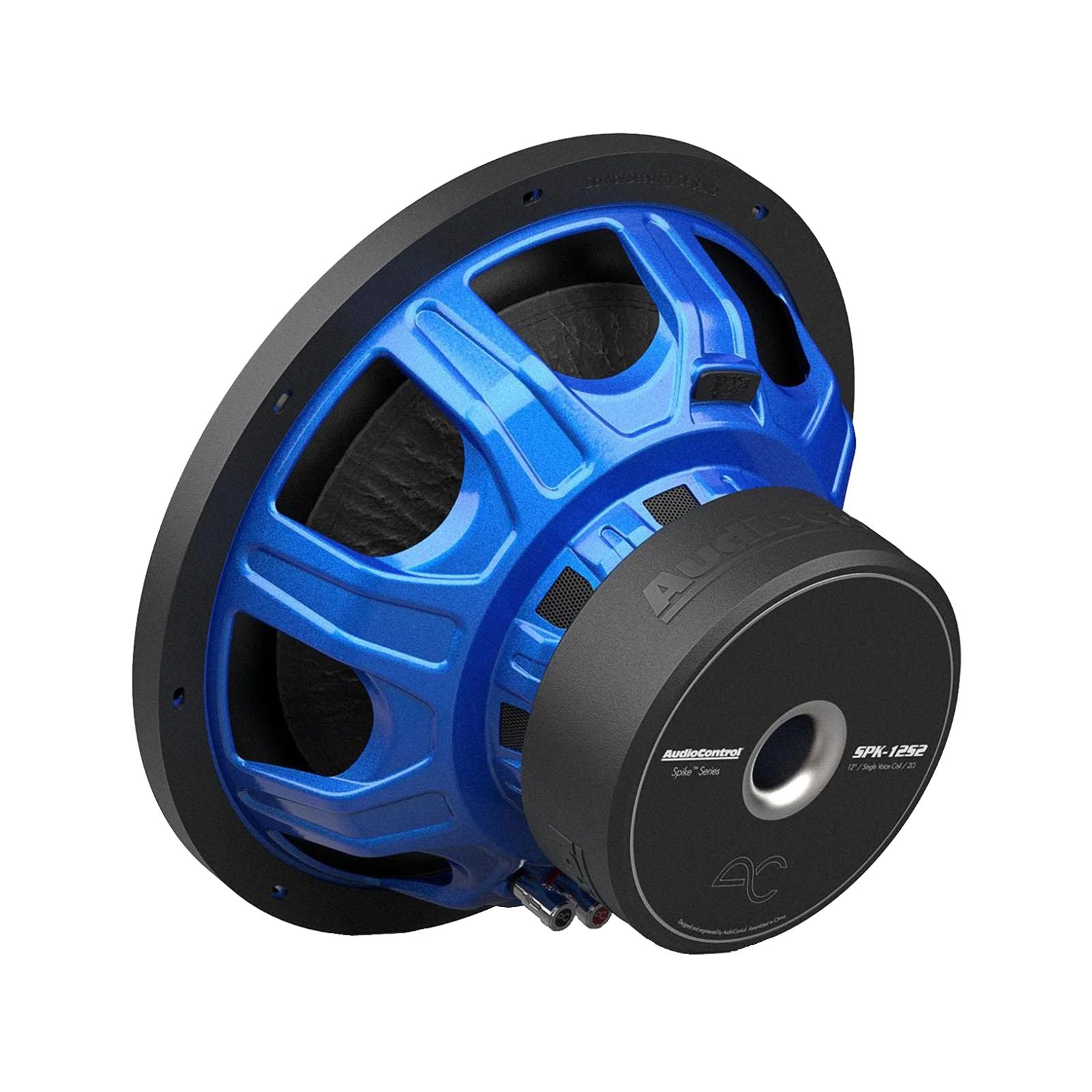

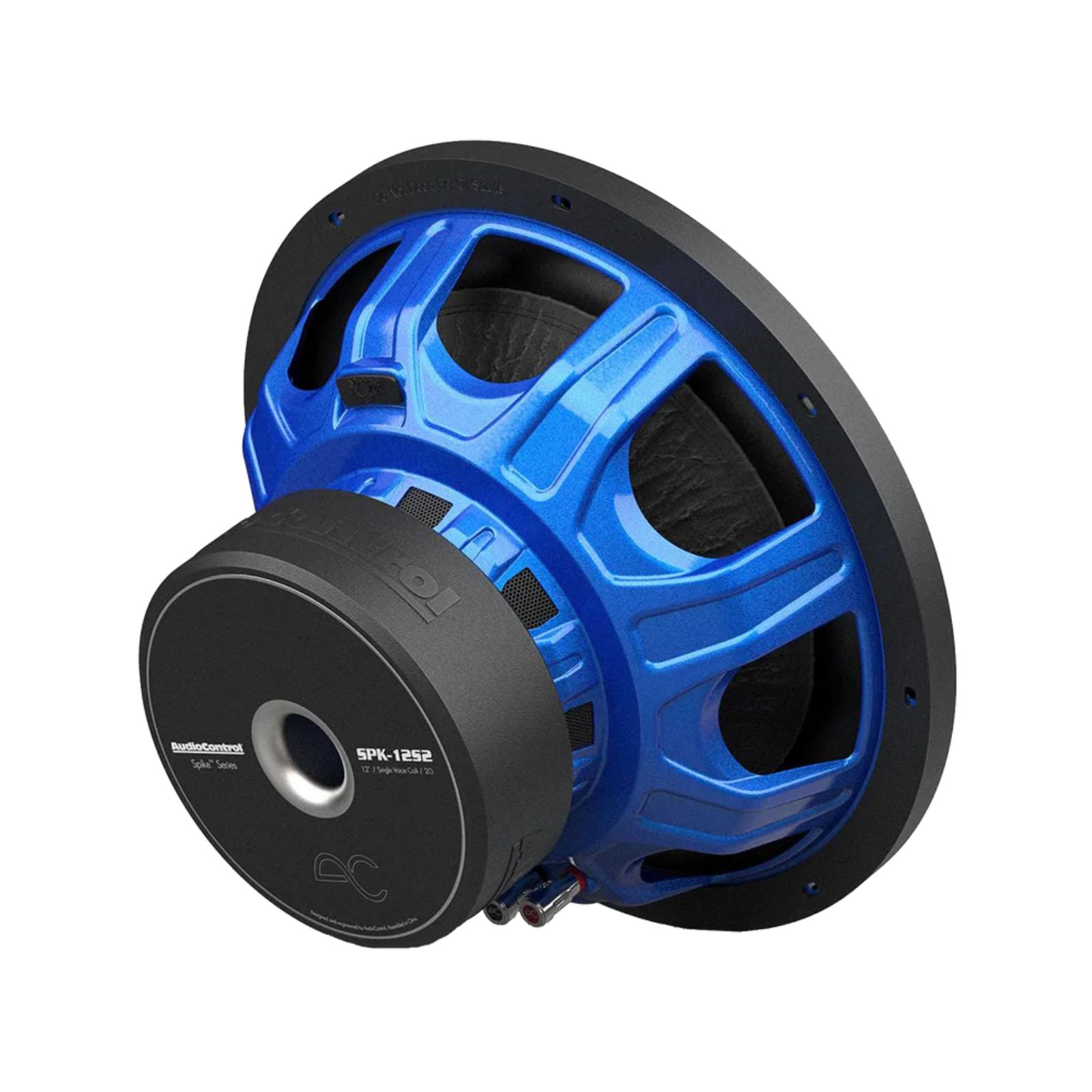

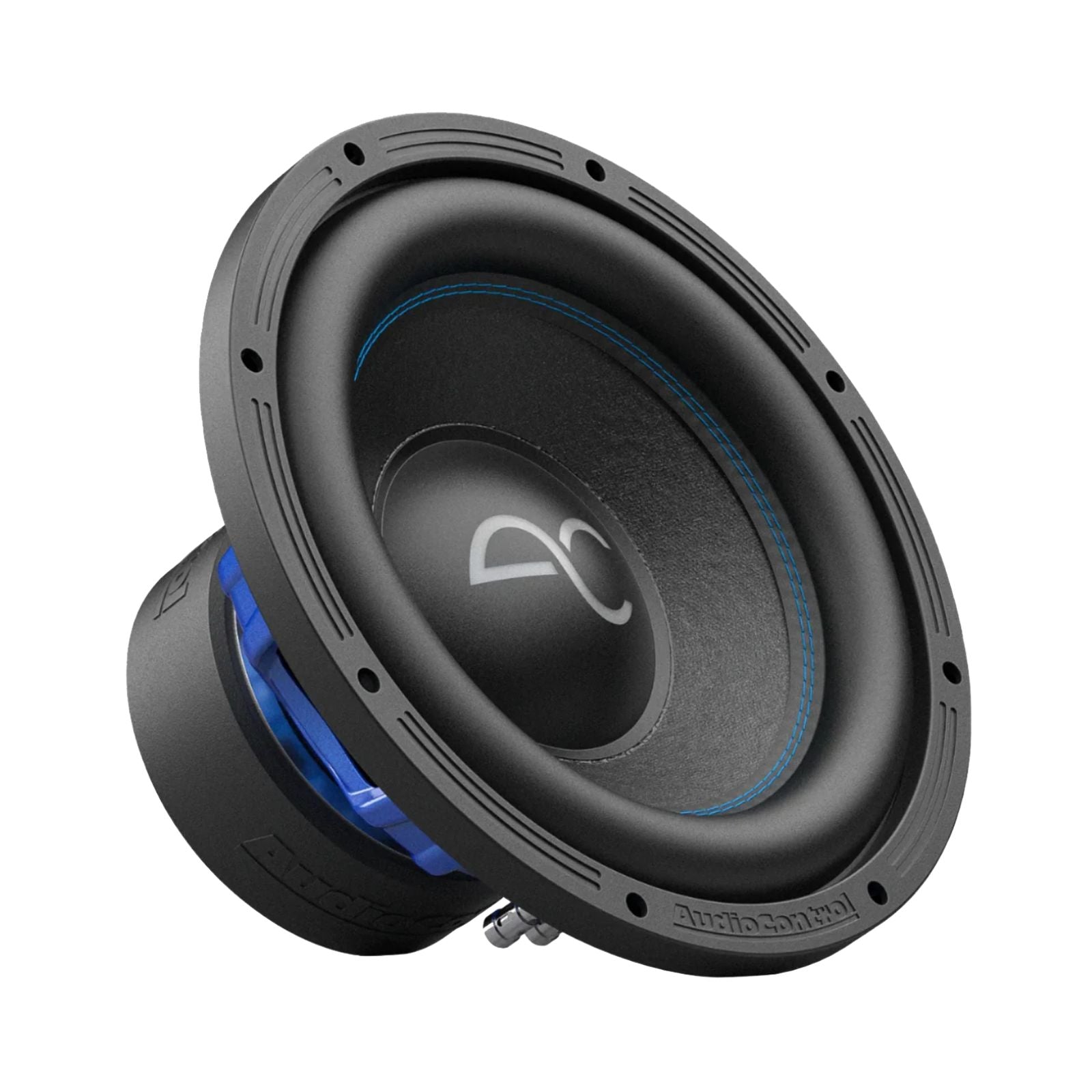

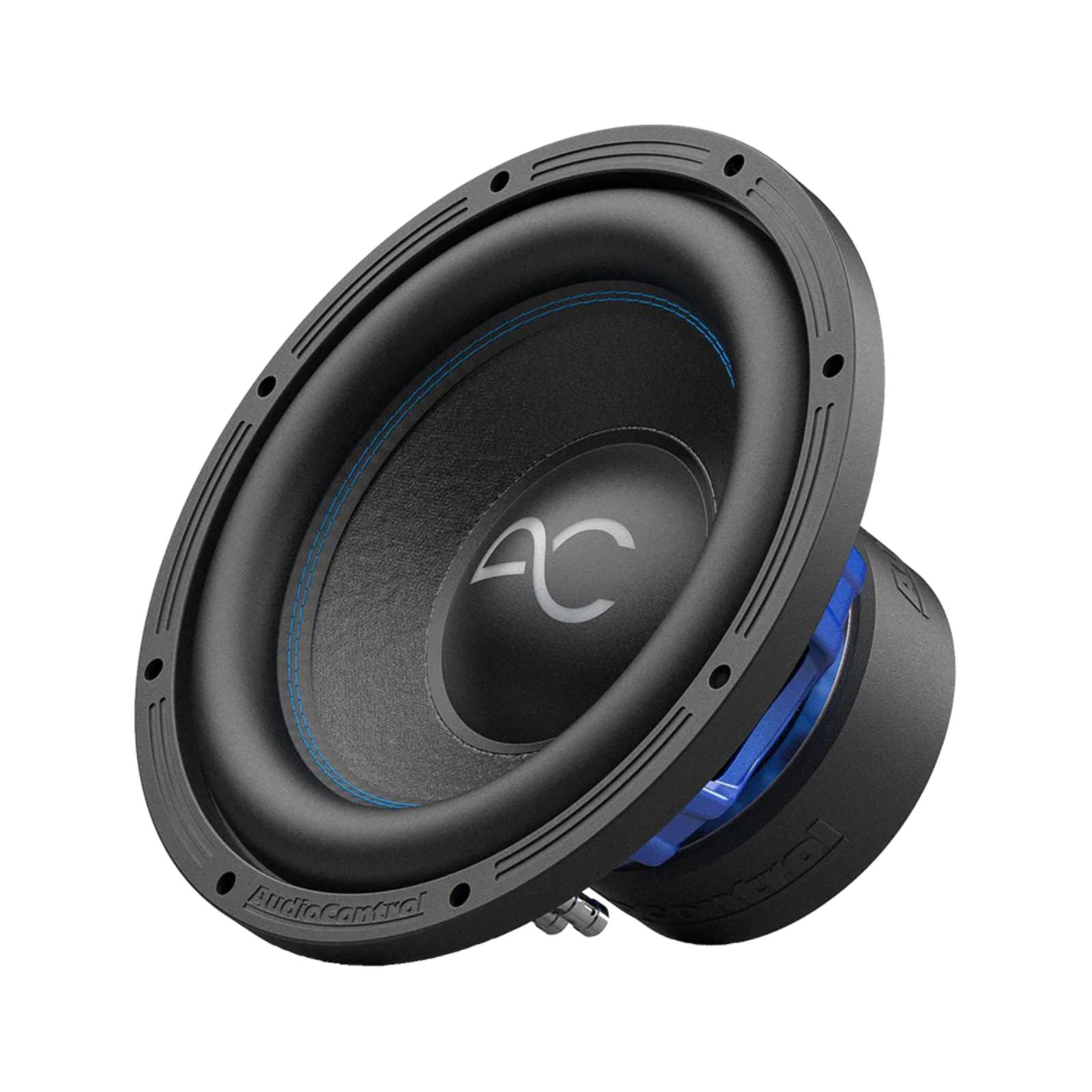

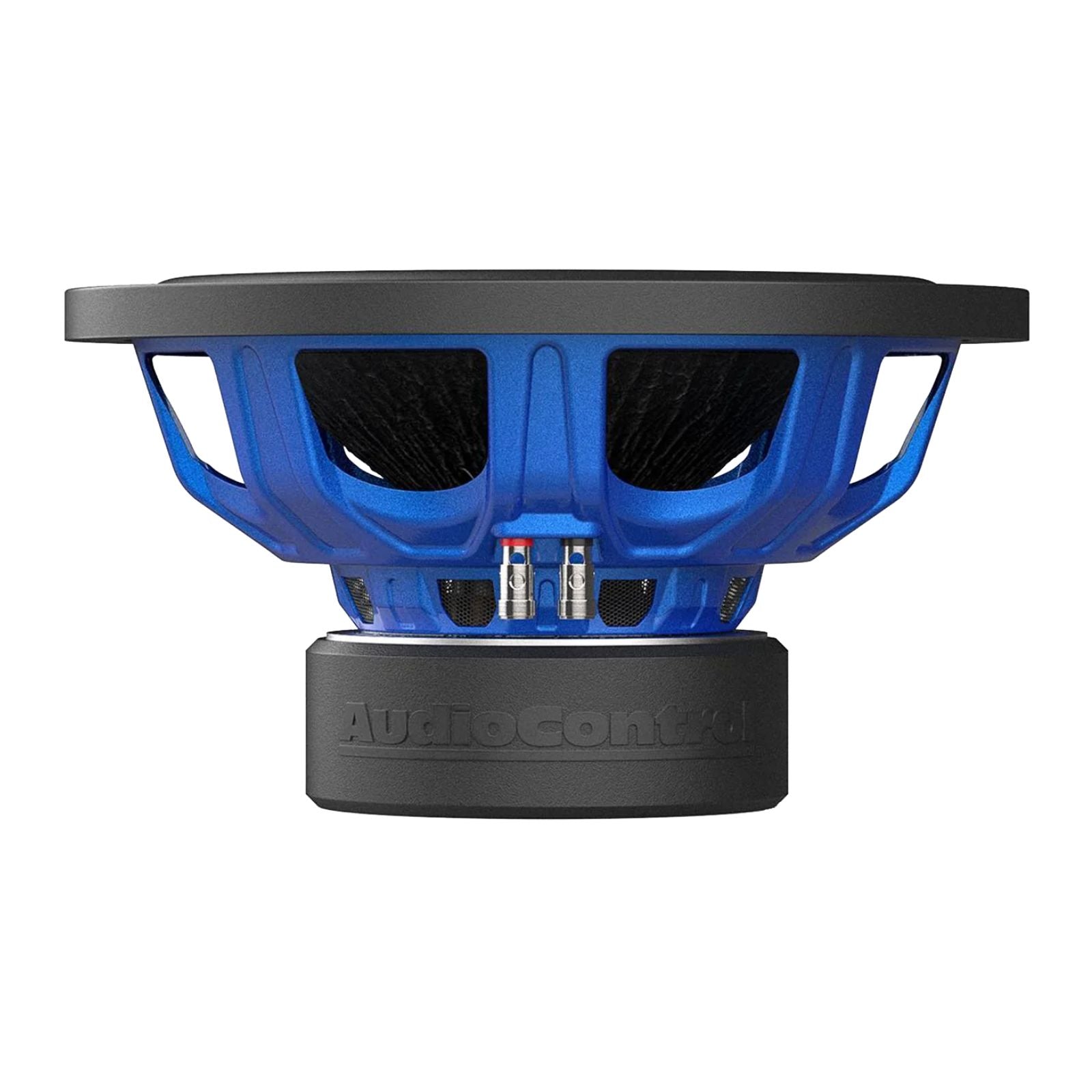

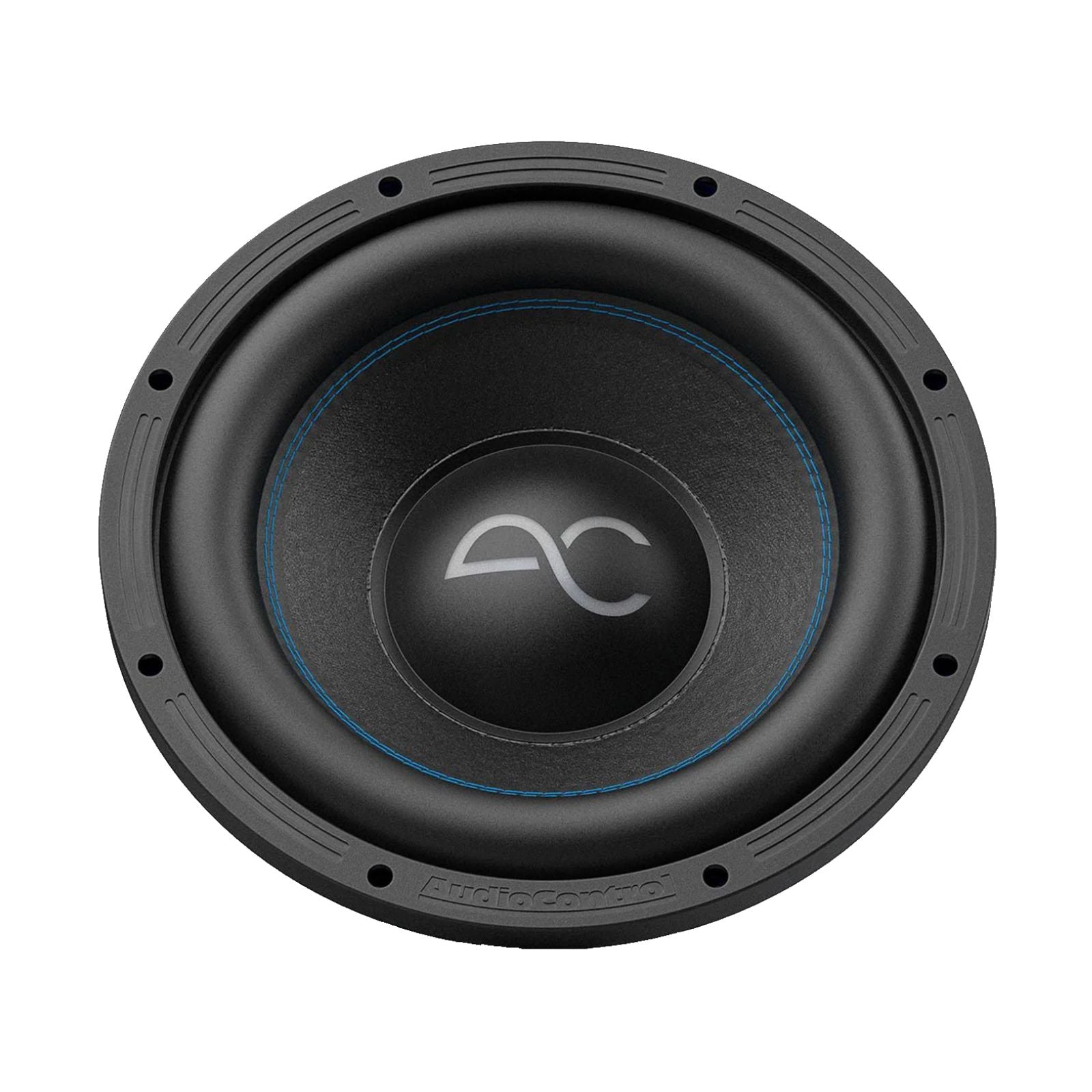

The AudioControl Spike Series SPK-12S2 is a 12-inch single 2-ohm subwoofer rated at 500W RMS / 700W max. It features a high-excursion design, mica-coated fibre matrix paper cone and 3-layer high-temperature voice coil former, and is part of AudioControl's Spike Series subwoofer range.
This listing is the 12-inch 2-ohm version. The Spike Series is also available as the 10-inch 4-ohm Spike Series subwoofer.
Key specifications
- Size: 12 inch
- Impedance: single 2-ohm voice coil
- Power: 500W RMS / 700W max
- Frequency response: 20Hz–200Hz
- Voice coil: 2.5in / 63.5mm
- Mounting depth: 156mm
- Cut-out diameter: 282mm
- Overall diameter: 324mm
- Displacement: 2.506 litres
SPK-12S2: Spike Series 12" Single 2 Ohm Subwoofer
The Spike Series subwoofers are built to deliver clear, precise, deep bass in a conventional enclosure. They come in a range of sizes and power ratings to suit different installations and listening preferences.
The 3-layer high-temperature voice coil former is designed to handle sustained high power, maintaining performance even at high volume levels.
Features
- High-excursion design for ultra-low bass
- Fibre matrix paper cone with mica coating
- 3-layer high-temperature voice coil former
- Dual damping system for linear bass reproduction
- Dual dust cap system for enclosure compression control
- Efficient heavy-duty motor design
- Removable subwoofer grille included
Explore the full range in AudioControl.
Specification
| Impedance | 2 Ohms |
|---|---|
| Power (Pe) | 500W RMS / 700 W Max |
| Frequency Response | 20-200 Hz |
| Voice Coil | Diameter 2.5 in/63.5 mm |
| Displacement | 0.0885 cu ft/ 2.506 Lt |
| Overall Dimensions | 12.76in/ 324mm |
| Cut Out Diameter | 11.125 in/ 282mm |
| Mounting Depth | 6.14 in/ 156 mm |
| Mounting Height (w/o Grille) | 0.68in / 17.3mm |
| Mounting Height (w/ Grille) | 1.437in / 36.5mm |
| Motor Diameter (w/ Cover) | 6.41in / 163mm |
What's Included
- SPK-12S2
- Manual
- Warranty
AudioControl
About the AudioControl SPK-12S2
From our tech experts at CEN
An AudioControl 12 inch subwoofer, 2 ohm, handling 500w RMS.
Who it suits
Drivers building a system where the bass does real work rather than filling in behind the speakers.
Our tech experts advise
A subwoofer is only as good as its enclosure and the amplifier behind it: box volume and tuning decide what you actually hear, and impedance decides how it should be wired. We build enclosures to suit both driver and vehicle at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from AudioControl
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: What mounting depth does the Spike Series SPK-12S2 need?
A: Mounting depth is 156mm, with a 282mm cut-out diameter and 324mm overall diameter.
Q: Is the SPK-12S2 2 ohm or 4 ohm?
A: The SPK-12S2 has a single 2 ohm voice coil. A 4 ohm version of the same 12 inch Spike Series subwoofer is also available.
Q: Is there a ready-made enclosure for this subwoofer?
A: Yes. AudioControl makes a Spike Series 12 inch vented enclosure, supplied loaded with a 2 ohm Spike Series subwoofer and rated at 500W RMS.
