The AudioControl SPK-V10 is a vented, loaded subwoofer enclosure housing a 10-inch Spike Series 2-ohm driver rated at 500W RMS. It is part of AudioControl's Spike Series enclosure range, designed as a ready-to-install bass upgrade.
This listing is the loaded enclosure version. The Spike Series 10-inch subwoofer is also available as a standalone driver.
Key specifications
- Subwoofer: 10-inch Spike Series, 2 ohm
- Enclosure type: ported, tuned to 38Hz
- Power handling: 500W RMS / 700W peak
- Frequency response: 20Hz–150Hz; F3 at 30Hz
- Sensitivity: 82.3dB
- Subsonic filter setting: 29Hz
- Dimensions: 17.91in W x 13.78in H
- Depth: 12.91in (top) / 19.46in (bottom)

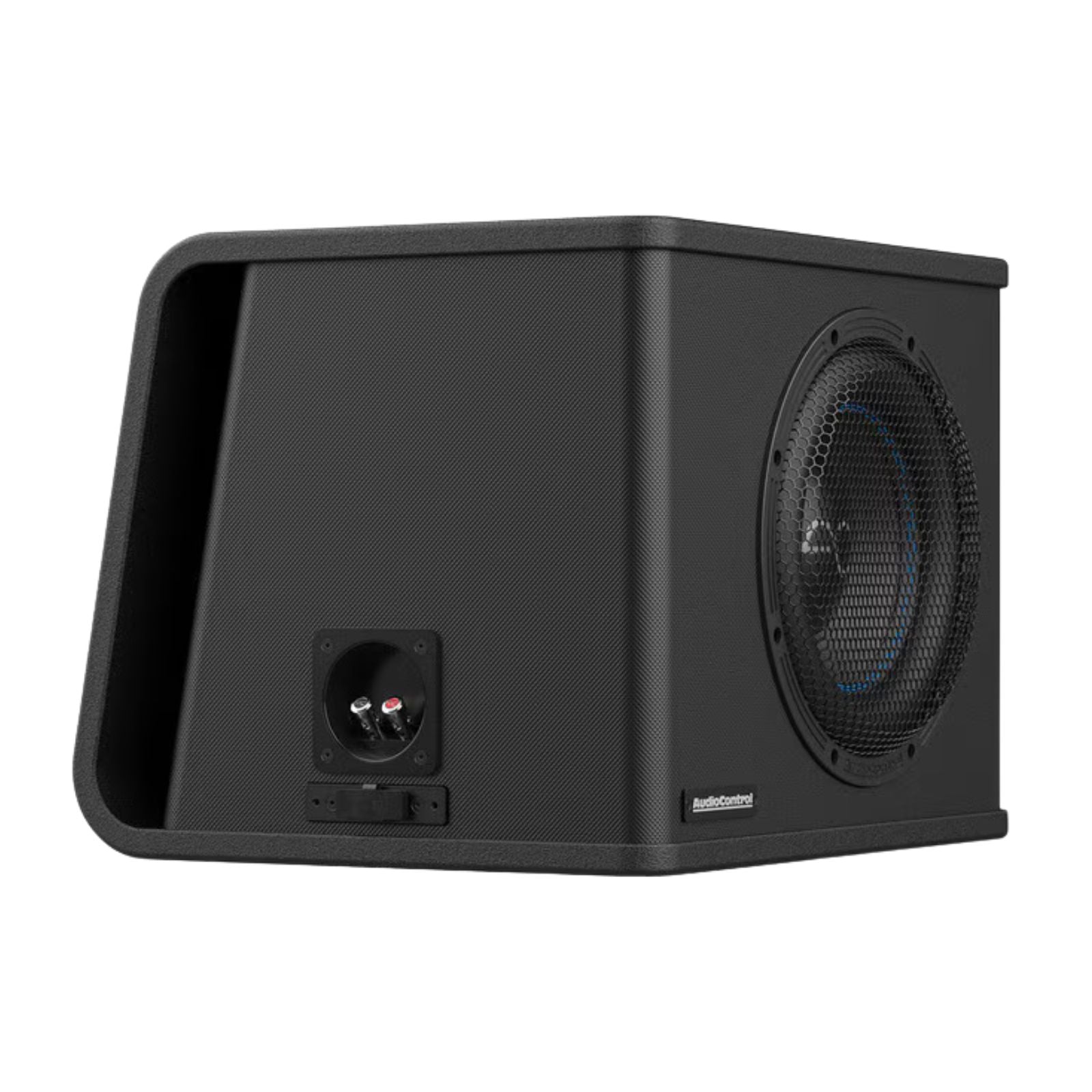

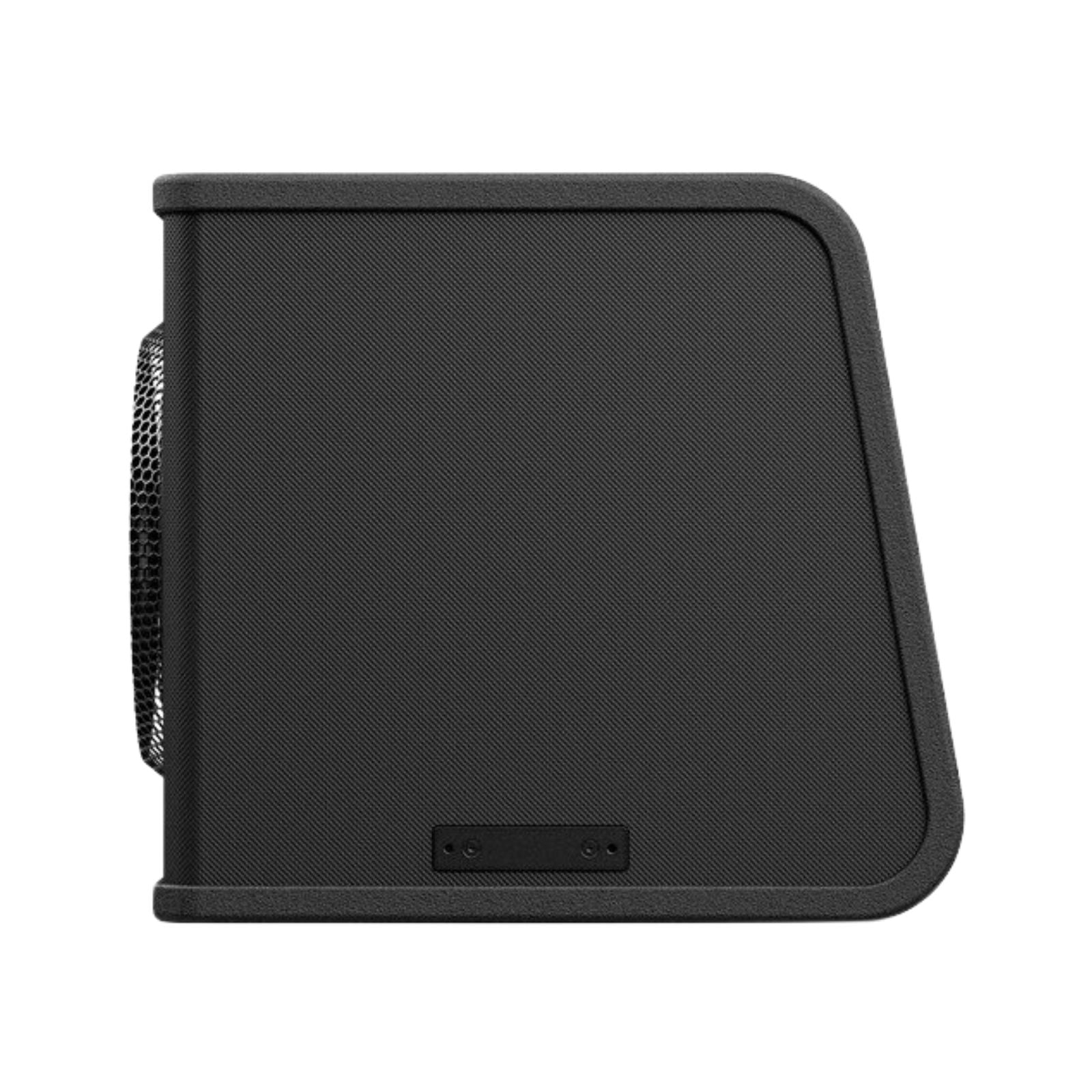

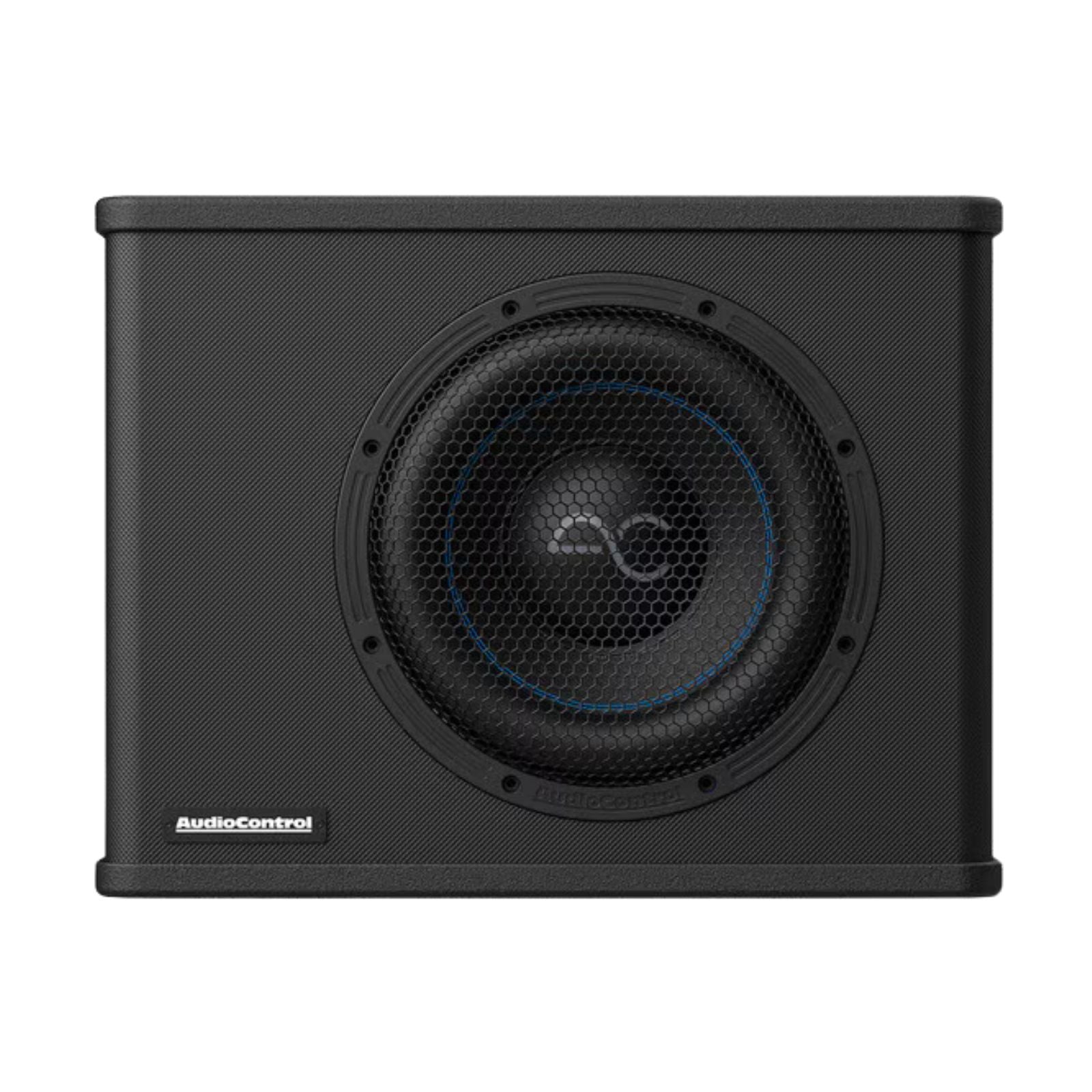

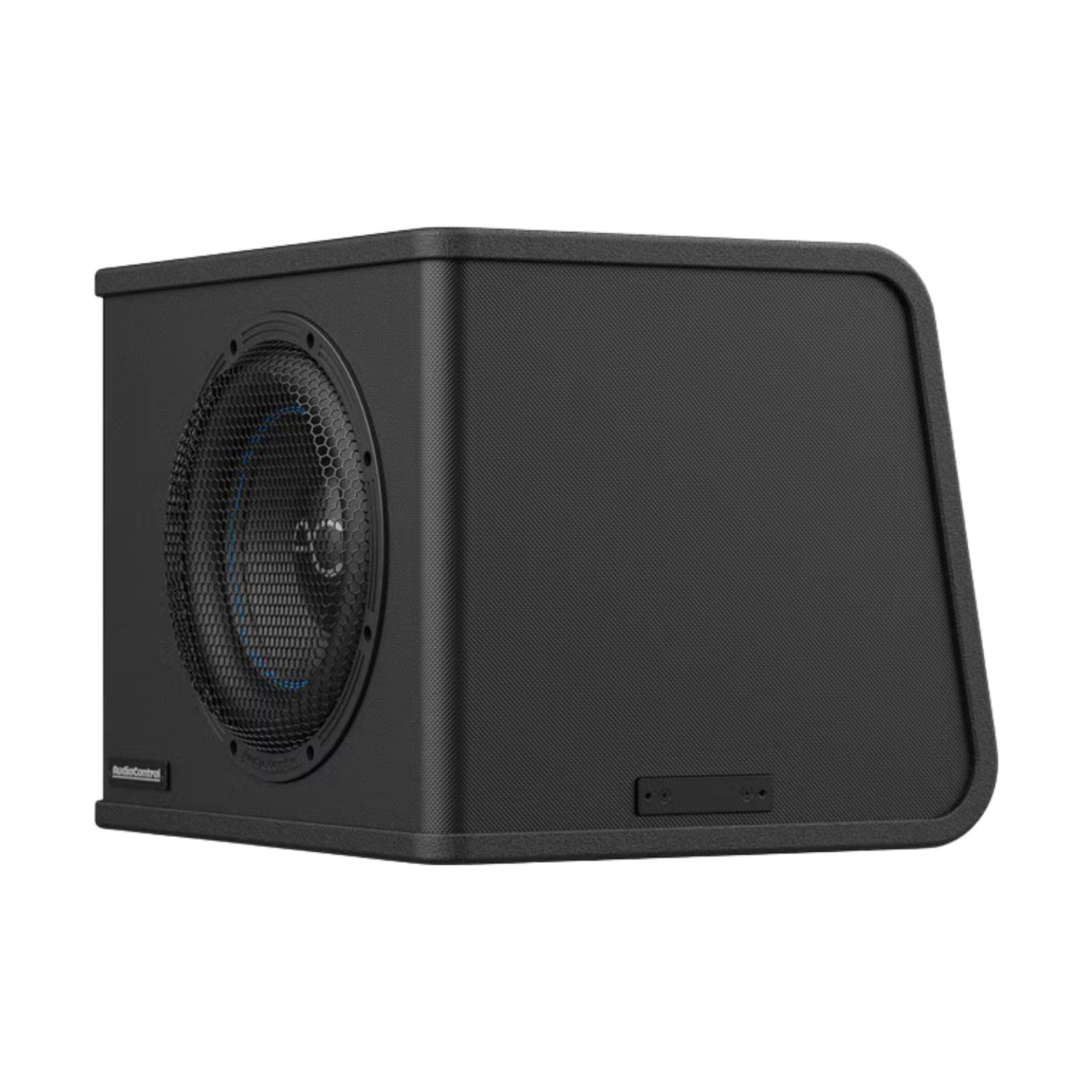

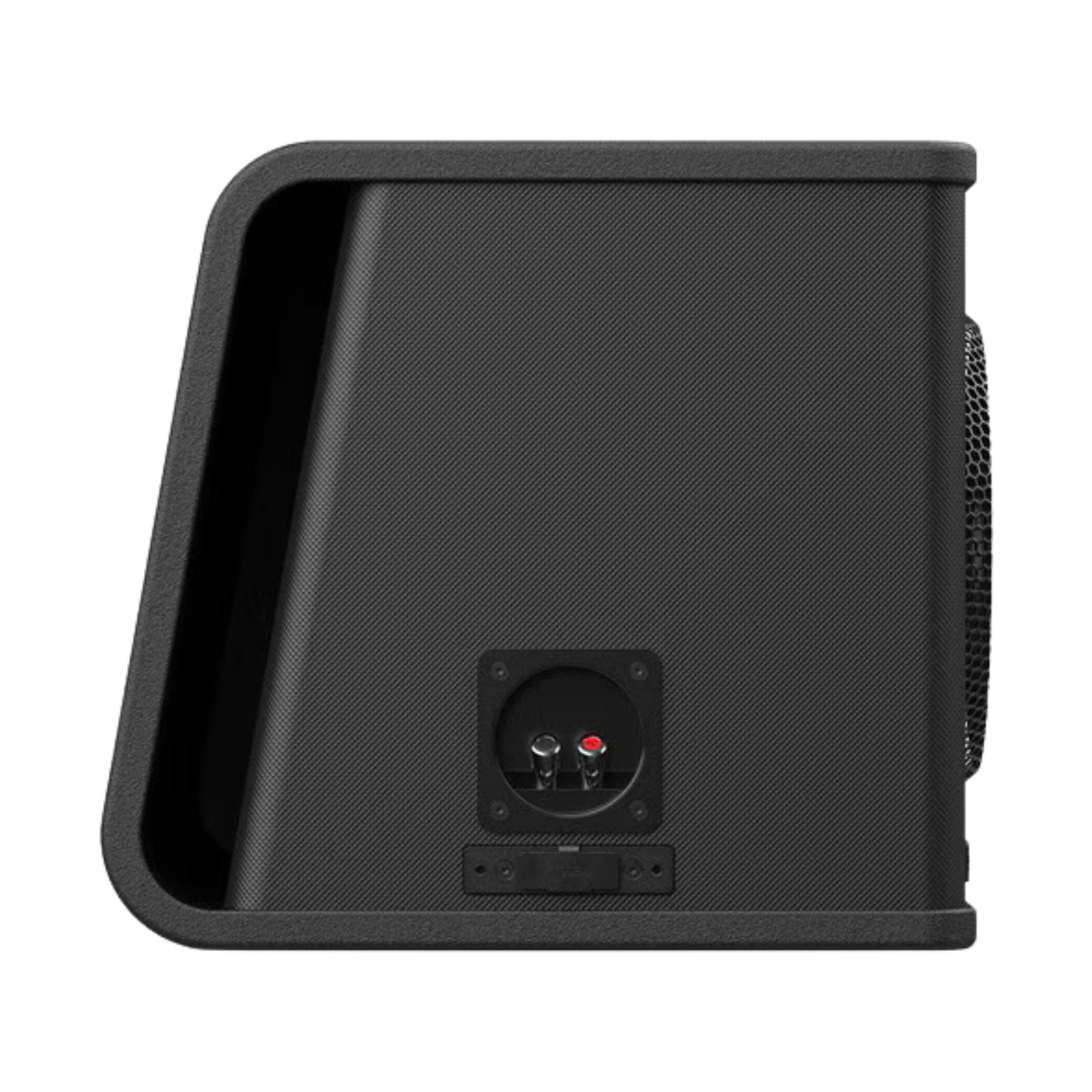

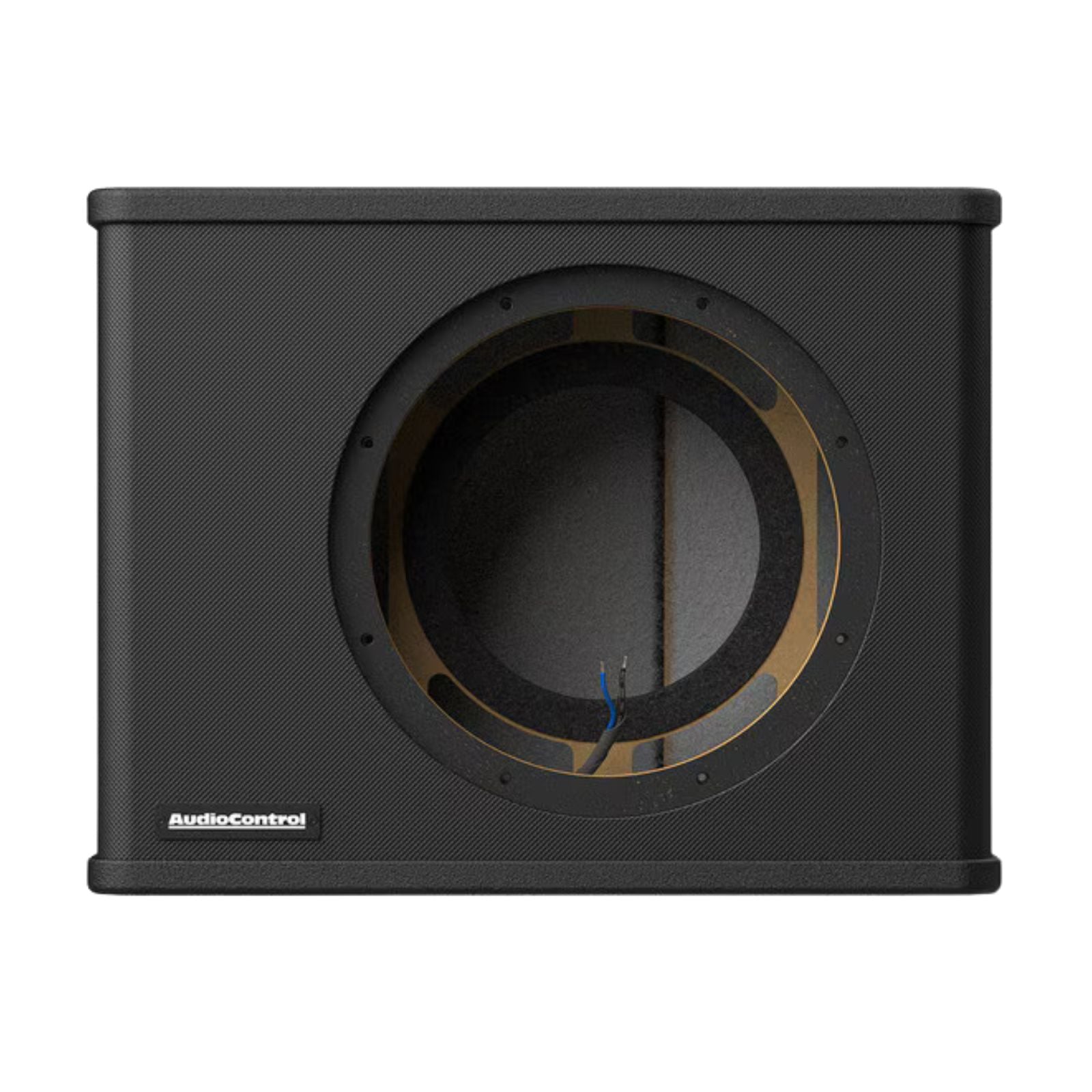

SPK-V10: Spike Series 10" Vented Enclosure
The SPK-V10 is a premium loaded subwoofer enclosure built from high-density wood fibreboard. It comes supplied with an AudioControl Spike Series subwoofer already fitted and ready to install.
Features
- High-quality vented enclosure
- Element-resistant enclosure design
- Optional quick-plug connector
- Designed for maximum bass output
- Spike Series enclosures available in 8", 10" and 12"
- Structurally rigid heavy-duty voice coil
- Fibre matrix paper cone with mica coating
- Grille included for added protection
The enclosure is coated with Roadkill Armor and wrapped in marine-grade vinyl. Internal support and bracing improve performance and longevity. A dual front mounting baffle optimises speaker placement, and poly-fibre fill material helps deliver controlled, accurate bass response.
A powder-coated steel grille and multi-secure mounting system are included. A quick-disconnect harness and connector provide a straightforward alternative connection option during installation.
The SPK-V10 pairs well with an AudioControl amplifier. If your vehicle lacks a dedicated pre-amp output, an AudioControl line output converter such as the AudioControl LC2i can be used to integrate the system cleanly.
Explore the full range in AudioControl.
Specification
| Woofer Size | 10in |
|---|---|
| Frequency Response | 20-150 Hz |
| Sensitivity | 82.3 dB |
| Subsonic Filter Setting | 29 Hz |
| Enclosure Type | Ported |
| Enclosure Tuning Frequency | 38 Hz |
| F3 Frequency @-3dB | 30 Hz |
| Terminal Wire Acceptance | 12-8 Gauge |
| RMS Power | 500 watt |
| Peak Power | 700 watt |
| Impedance | 2 ohm |
| Enclosure Width | 17.91in |
| Enclosure Height | 13.78in |
| Enclosure Depth (Top) | 12.91in |
| Enclosure Depth (Bottom) | 19.46in |
What's Included
- SPK-V10
- Manual
- Warranty
AudioControl
About the AudioControl SPK-V10
From our tech experts at CEN
An AudioControl 10 inch subwoofer.
Who it suits
Drivers building a system where the bass does real work rather than filling in behind the speakers.
Our tech experts advise
A subwoofer is only as good as its enclosure and the amplifier behind it: box volume and tuning decide what you actually hear. We build enclosures to suit both driver and vehicle at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from AudioControl
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: Is the subwoofer included with the SPK-V10?
A: Yes. The SPK-V10 is a loaded vented enclosure supplied with a 10-inch Spike Series 2 ohm subwoofer fitted.
Q: What is the SPK-V10 tuned to?
A: The port is tuned to 38Hz with an F3 of 30Hz. AudioControl recommends a subsonic filter setting of 29Hz.
