The AudioControl SPK-V12 is a 12-inch vented subwoofer enclosure from the Spike Series range, supplied loaded with a 12-inch, 2-ohm Spike Series subwoofer rated at 500W RMS. It is a ready-to-install, weather-resistant bass upgrade.
This listing is the 12-inch enclosure. The Spike Series loaded enclosure is also available as a 10-inch vented version.
Key specifications
- Subwoofer: 12-inch Spike Series, 2 ohm
- Enclosure type: ported, tuned to 34Hz
- Power handling: 500W RMS / 700W peak
- Frequency response: 20Hz–150Hz; F3 29Hz
- Sensitivity: 84.6dB
- Subsonic filter setting: 26Hz
- Dimensions: 19.88in W x 15.75in H
- Depth: 16.02in (top) / 18.43in (bottom)
SPK-V12: Spike Series 12" Vented Enclosure
The SPK-V12 is a premium loaded subwoofer enclosure built from high-density wood fibreboard. It comes ready to install with a Spike Series subwoofer already fitted.
Features
- High-quality vented enclosure
- Element-resistant enclosure design
- Optional quick-plug connector
- Designed for maximum bass output
- Spike Series enclosures available in 8", 10" and 12"
- Structurally rigid heavy-duty voice coil
- Fibre matrix paper cone with mica coating
- Grille included for added protection

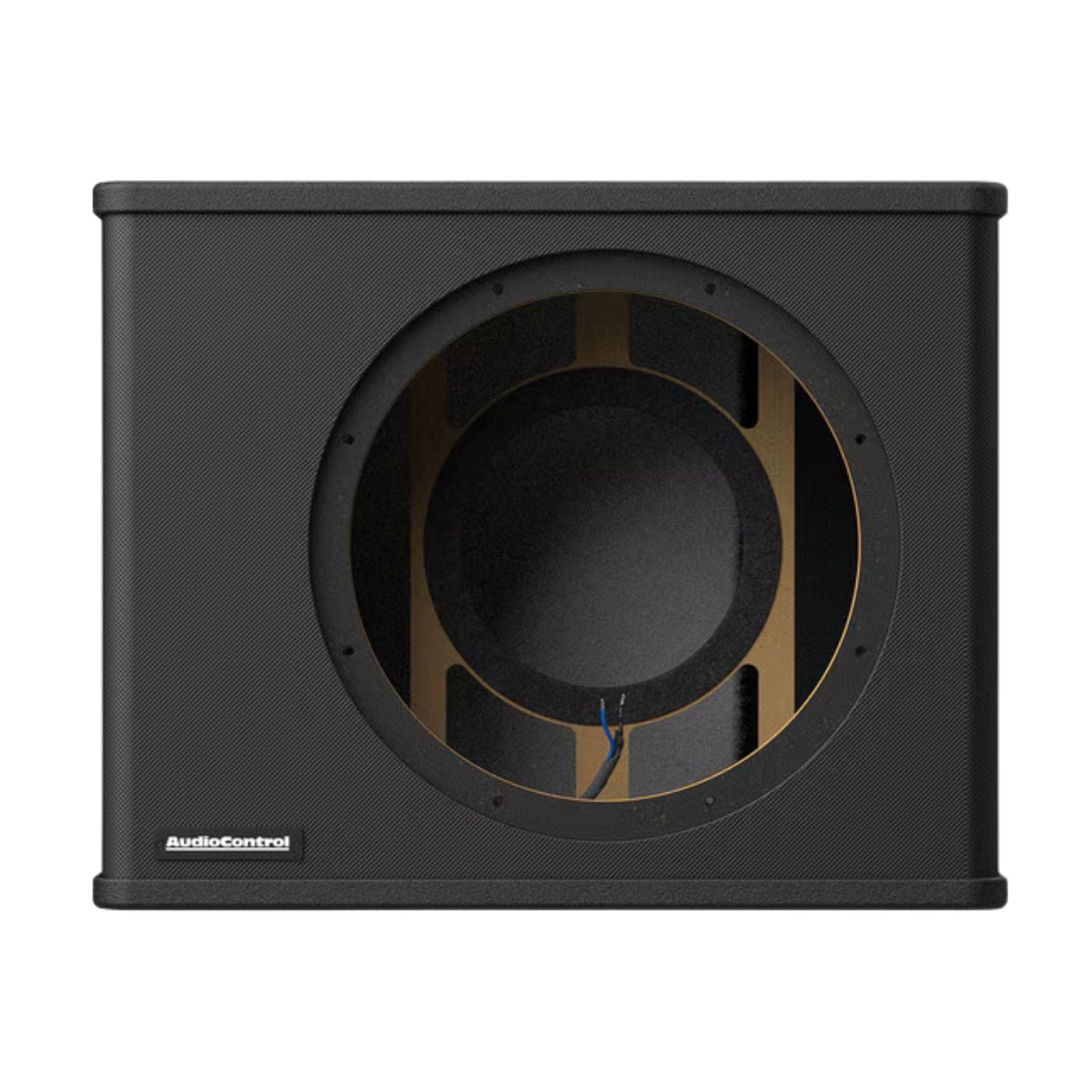

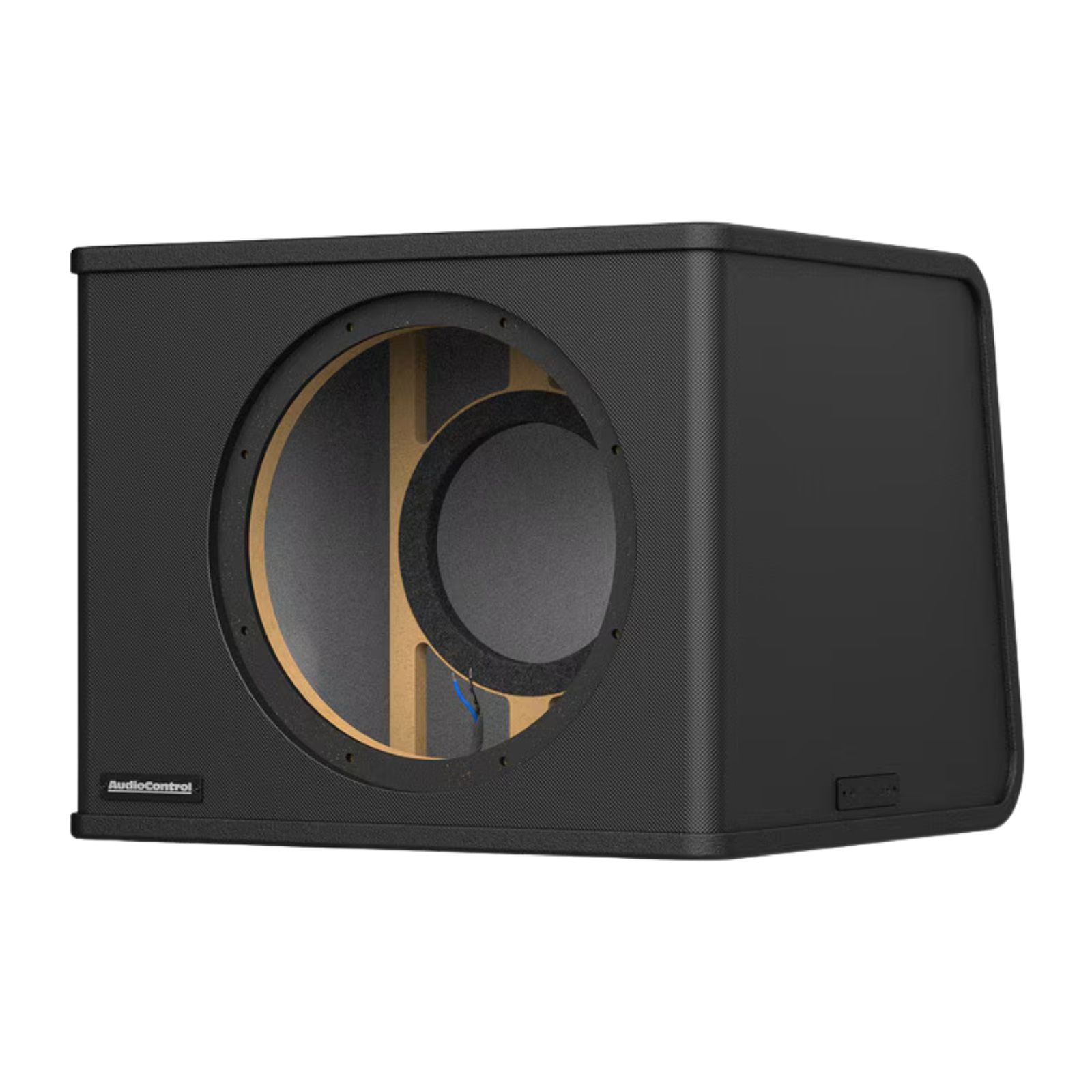

The enclosure is coated with Roadkill Armor and wrapped in marine-grade vinyl. Internal bracing and poly-fibre fill help control resonance and deliver tight, accurate bass. A dual front mounting baffle ensures optimal speaker placement.
A powder-coated steel grille is included, along with a multi-secure mounting system and quick-disconnect harness for straightforward installation.
For best results, pair the SPK-V12 with an AudioControl line output converter if you are integrating with a factory head unit, or with a compatible AudioControl amplifier.
Explore the full range in AudioControl.
Specification
| Woofer Size | 12in |
|---|---|
| Frequency Response | 20-150 Hz |
| Sensitivity | 84.6 dB |
| Subsonic Filter Setting | 26 Hz |
| Enclosure Type | Ported |
| Enclosure Tuning Frequency | 34 Hz |
| F3 Frequency @-3dB | 29 Hz |
| Terminal Wire Acceptance | 12-8 Gauge |
| RMS Power | 500 watt |
| Peak Power | 700 watt |
| Impedance | 2 ohm |
| Enclosure Width | 19.88in |
| Enclosure Height | 15.75in |
| Enclosure Depth (Top) | 16.02in |
| Enclosure Depth (Bottom) | 18.43in |
What's Included
- SPK-V12
- Manual
- Warranty
AudioControl
About the AudioControl SPK-V12
From our tech experts at CEN
An AudioControl 12 inch subwoofer.
Who it suits
Drivers building a system where the bass does real work rather than filling in behind the speakers.
Our tech experts advise
A subwoofer is only as good as its enclosure and the amplifier behind it: box volume and tuning decide what you actually hear. We build enclosures to suit both driver and vehicle at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from AudioControl
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: Is the subwoofer included with the SPK-V12?
A: Yes. The SPK-V12 is a loaded vented enclosure supplied with a 12-inch Spike Series 2 ohm subwoofer fitted.
Q: What is the SPK-V12 tuned to?
A: The port is tuned to 34Hz with an F3 of 29Hz. AudioControl recommends a subsonic filter setting of 26Hz.
