Alpine SWC-D84S Subwoofer Stealth Shallow Mount Sub for Fiat Ducato III 75w RMS
Couldn't Load Pickup availability
Alpine Adventure Audio – Your journey to a new sound experience
SWC-D84S the Custom Subwoofer System for Fiat Ducato 3
Alpine Adventure Audio - Sound Experience

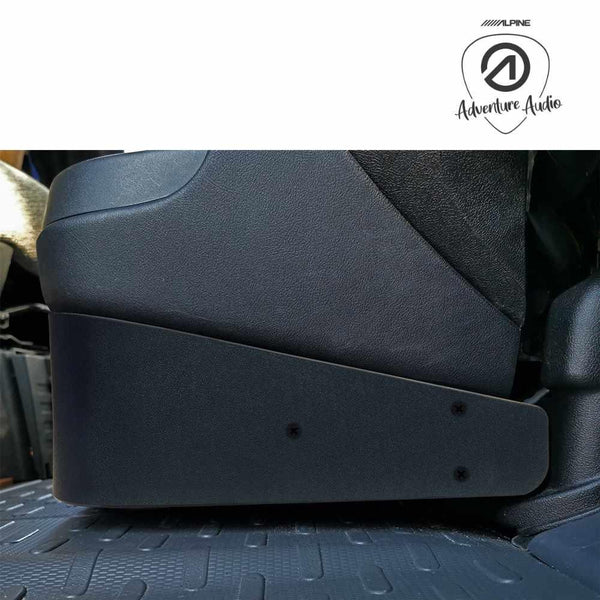

The subwoofer is integrated perfectly in the center console for a stealthy appearance.
Overcoming Limitations
The SWC-D84S is designed to overcome the audio limitations of the Fiat Ducato cabin. The vehicle’s doors have no internal sound-proofing, resulting in strong vibration noise of the inner door panel. Audio playback is also heard easily by neighboring motorhomes on a camping site, due to the missing sound-proofing. By adding this subwoofer to the center console, you can enjoy much deeper and cleaner bass and overcome the mentioned issues from the ground up.

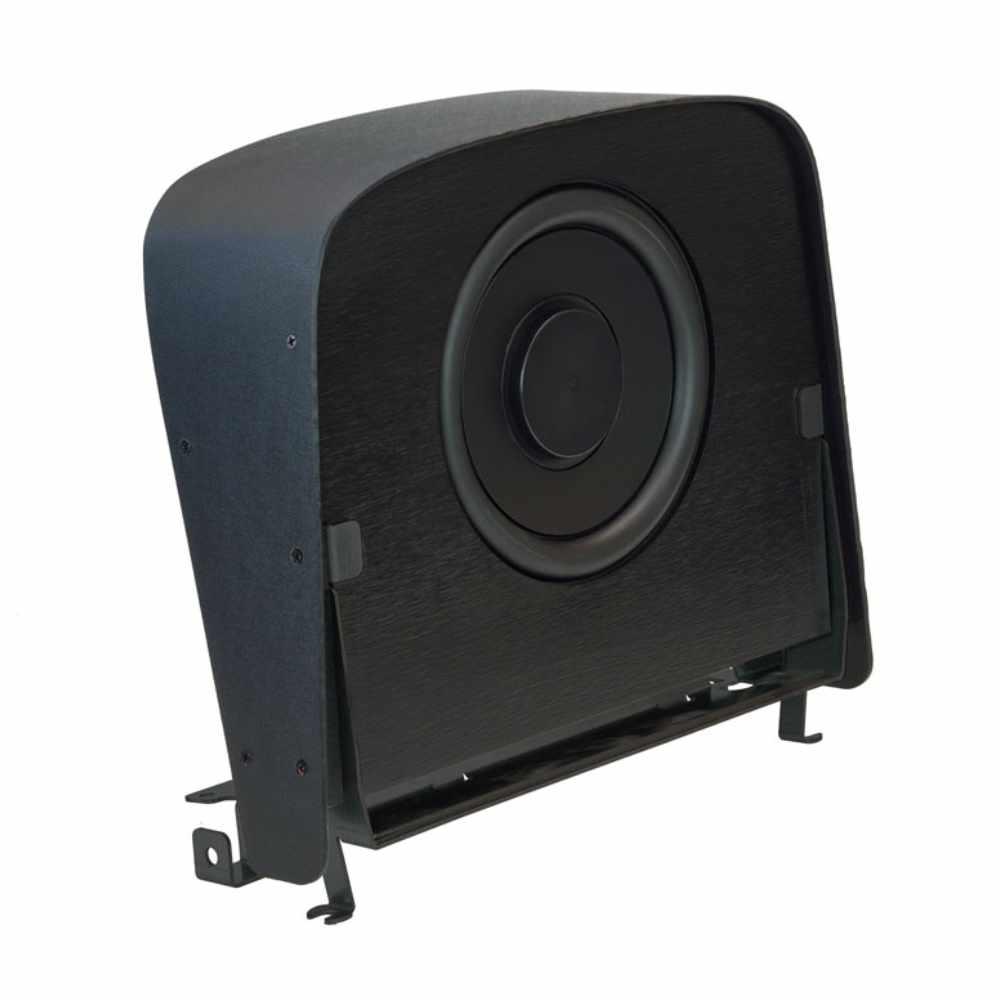

20 cm Shallow Subwoofer
The 20 cm shallow-type, dual-voice coil (2 Ohm + 2 Ohm) subwoofer features 250 Watts peak power handling and can be connected to the 2 rear channels of your original or aftermarket radio. If you have rear speakers connected to your radio, you can continue using them in parallel to the subwoofer. We recommend to use the SWA-150KIT Power Amplifier Kit for an even stronger bass output and dynamic.
Perfect Installation

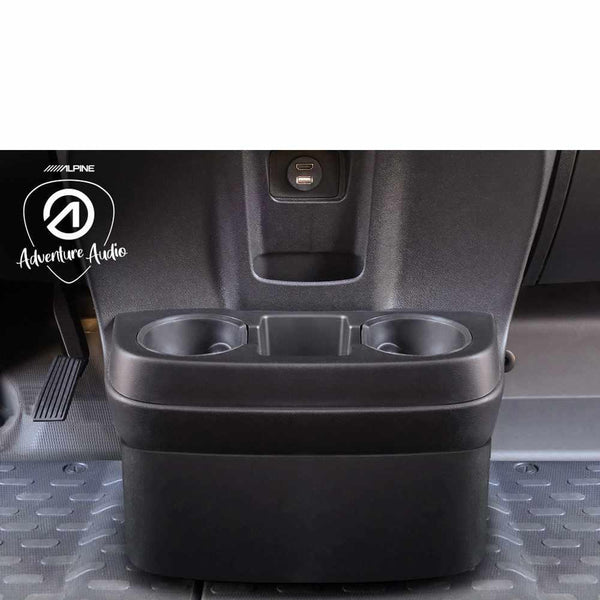

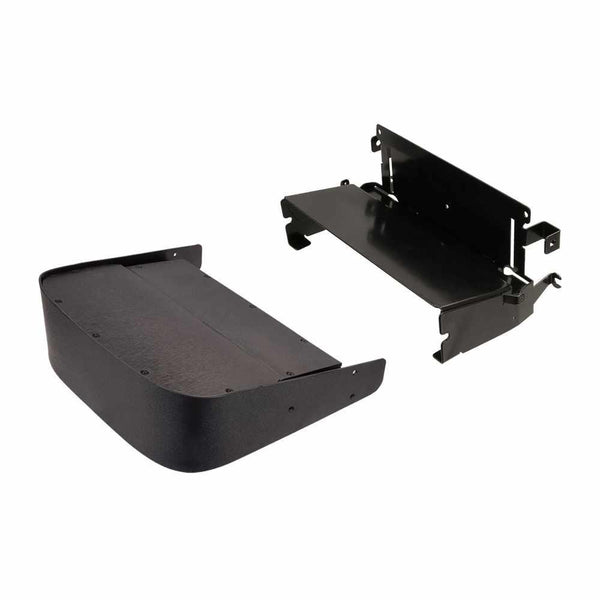

The included steel installation bracket gets mounted to the center console structure below the original cup-holder. The subwoofer enclosure then slides in from the front and perfectly blends into the center console. A cable harness for simple plug-and-play connection to the radio is included. Note that the original cup-holder is mandatory for this installation and needs to be installed as well, if not originally available.
Vehicle Compatibility
We designed the SWC-D84S to be compatible with Fiat Ducato 3, Citroën Jumper 2 and Peugeot Boxer 2 motorhomes and vans. Mandatory condition is the original cup-holder* in the center console. The cup-holder can be purchased separately from the vehicle manufacturer.

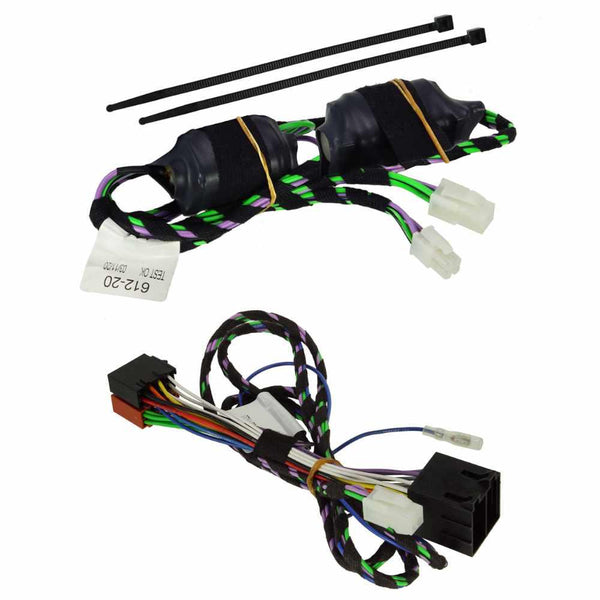

Included Plug-And-Play Wiring Kit
The SWC-D84S includes an ISO cable kit for head unit adaptation. It connects the two rear channels to drive the subwoofer. There is also a low-pass filter that gets connected in line to limit the bandwidth frequency for the subwoofer.
Specification
| Peak Power | 250 Watts |
|---|---|
| RMS Power | 75 Watts |
| Frequency response | 30Hz – 200Hz |
| Impedance | Dual 2 Ohm |
More specs
| |
What's Included
- Included steel mounting bracket for center console installation
- Included ISO adapter for adaption to the radio
- Includes low-pass filter cable
FAQs
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
