Alpine SPC-W84AS907-2 6 Channel DSP Amplifier & Subwoofer
Couldn't Load Pickup availability

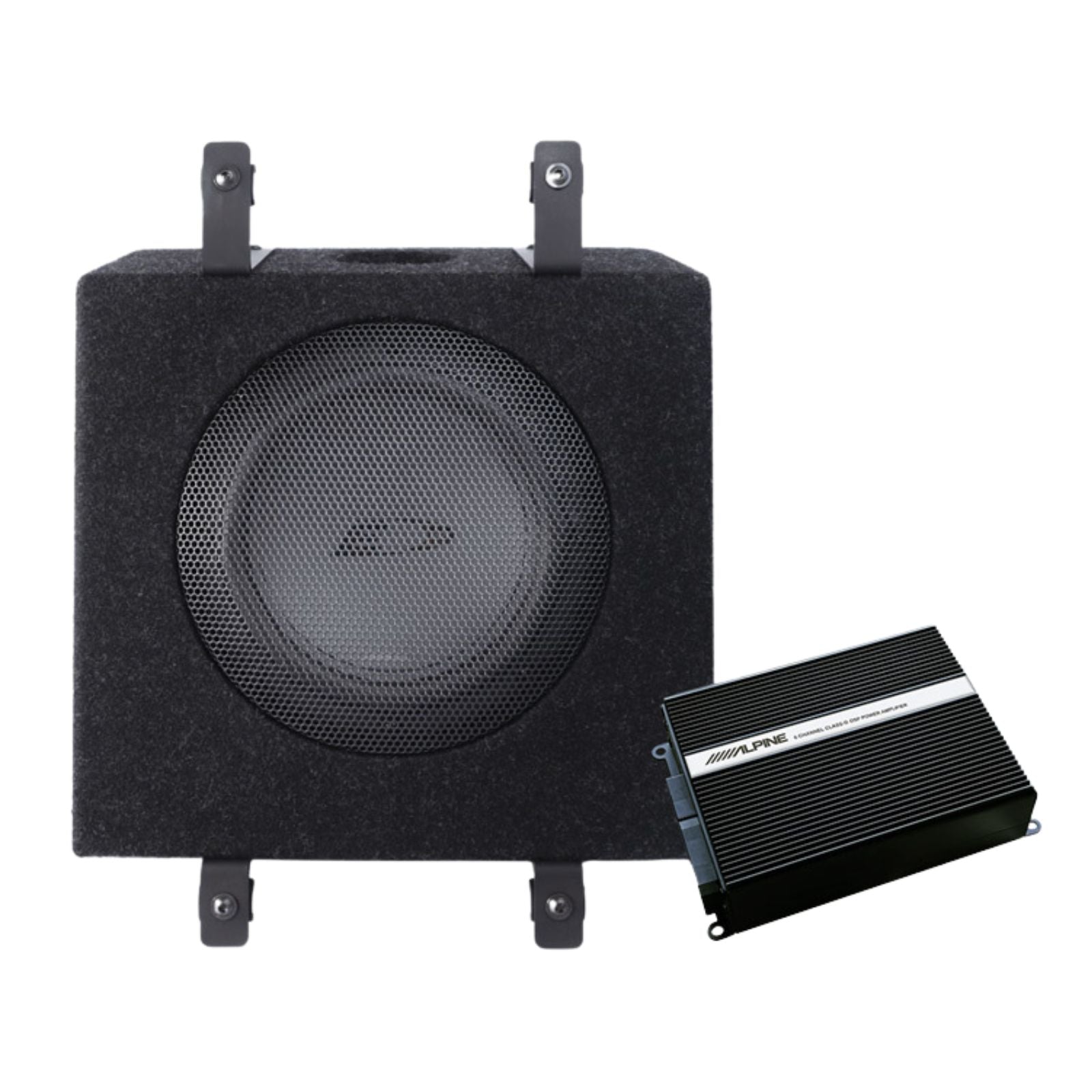

The Alpine SPC-W84AS907-2is a 6-channel DSP amplifier and 8" (20cm) underseat subwoofer system designed specifically for the Mercedes-Benz Sprinter 907 / 910 (2018 onwards), part of the Alpine Adventure Audio range.
This listing is for the Sprinter 907 / 910 version. The SPC-W84 system is also available for the VW Transporter T6.1 & T6.
Key specifications

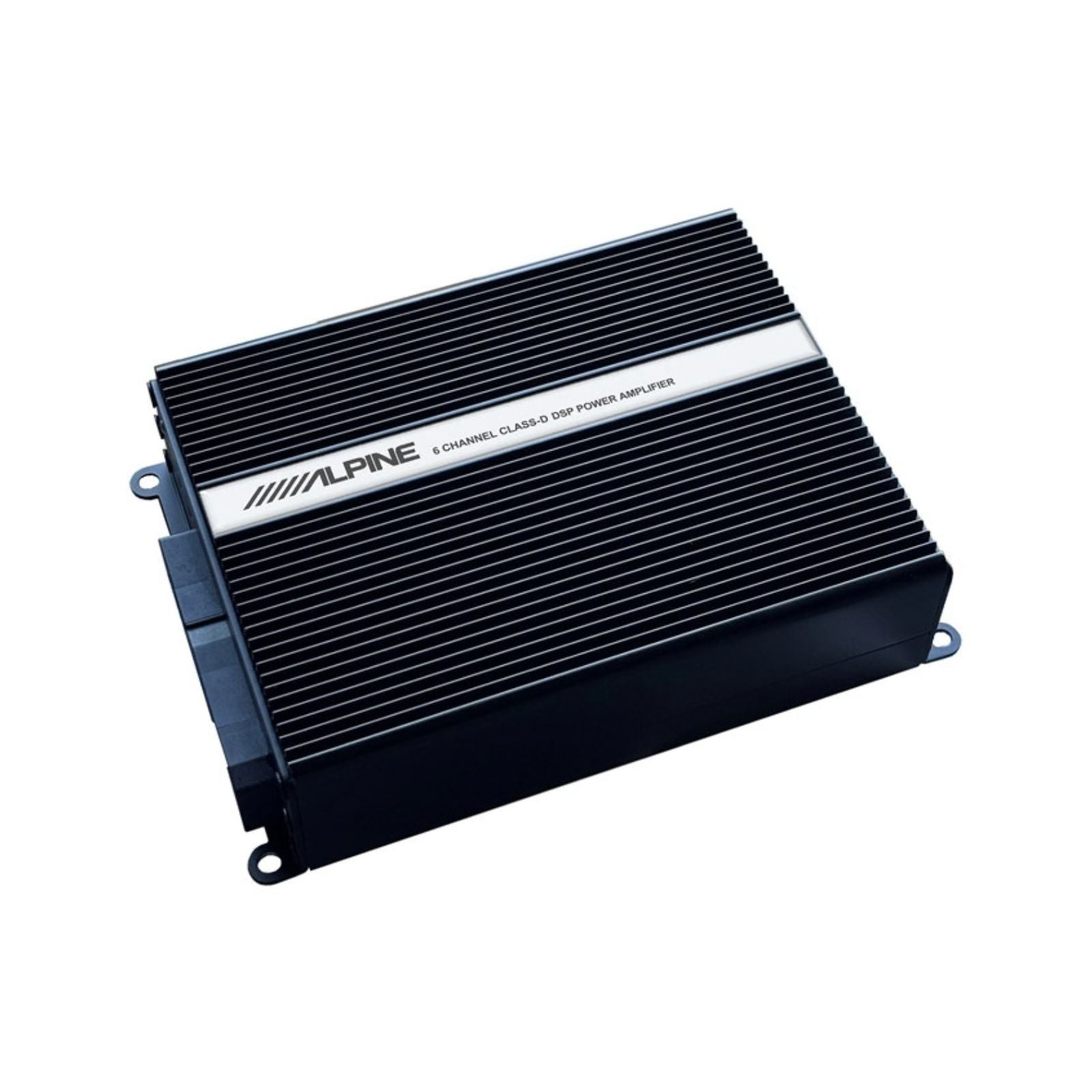

- Amplifier: 6-channel DSP, Class AB (ch 1–4) and Class D (ch 5–6)
- Amplifier power: 80W RMS x 4 (4 ohms) + 120W RMS x 2 (2 ohms), 1120W peak
- Subwoofer: 20cm (8") dual voice coil, 2 + 2 ohms
- Subwoofer power: 60W RMS / 180W peak
- Subwoofer frequency response: 34Hz – 1.5kHz
- Subwoofer dimensions: 355 x 330 x 170mm
- Amplifier dimensions: 142 x 40 x 122mm (176mm with connectors)
- Vehicle: Mercedes-Benz Sprinter 907 / 910, 2018 onwards
Alpine Adventure Audio – Concert Ensemble upgrade
The SPC-W84AS907-2 upgrades an existing Alpine Adventure Audio speaker system in the Mercedes-Benz Sprinter 907 / 910 to the Concert Ensemble level. It adds power, dynamics and bass to the existing speaker system.
The DSP amplifier is pre-programmed to match the acoustic characteristics of the Sprinter 907 / 910 cabin. It can be further adjusted for steering wheel configuration (left or right hand drive), radio type and other factors. A wiring harness for the original Mercedes radio or aftermarket radios with RCA pre-amp outputs is included for straightforward plug-and-play installation.
More Power, More Dynamic
The DSP amplifier delivers 1120W peak power across the full sound system, including the 180W dual voice coil subwoofer. It drives all channels simultaneously and is pre-configured for the Sprinter cabin without requiring manual tuning out of the box.
Powerful Bass Upgrade

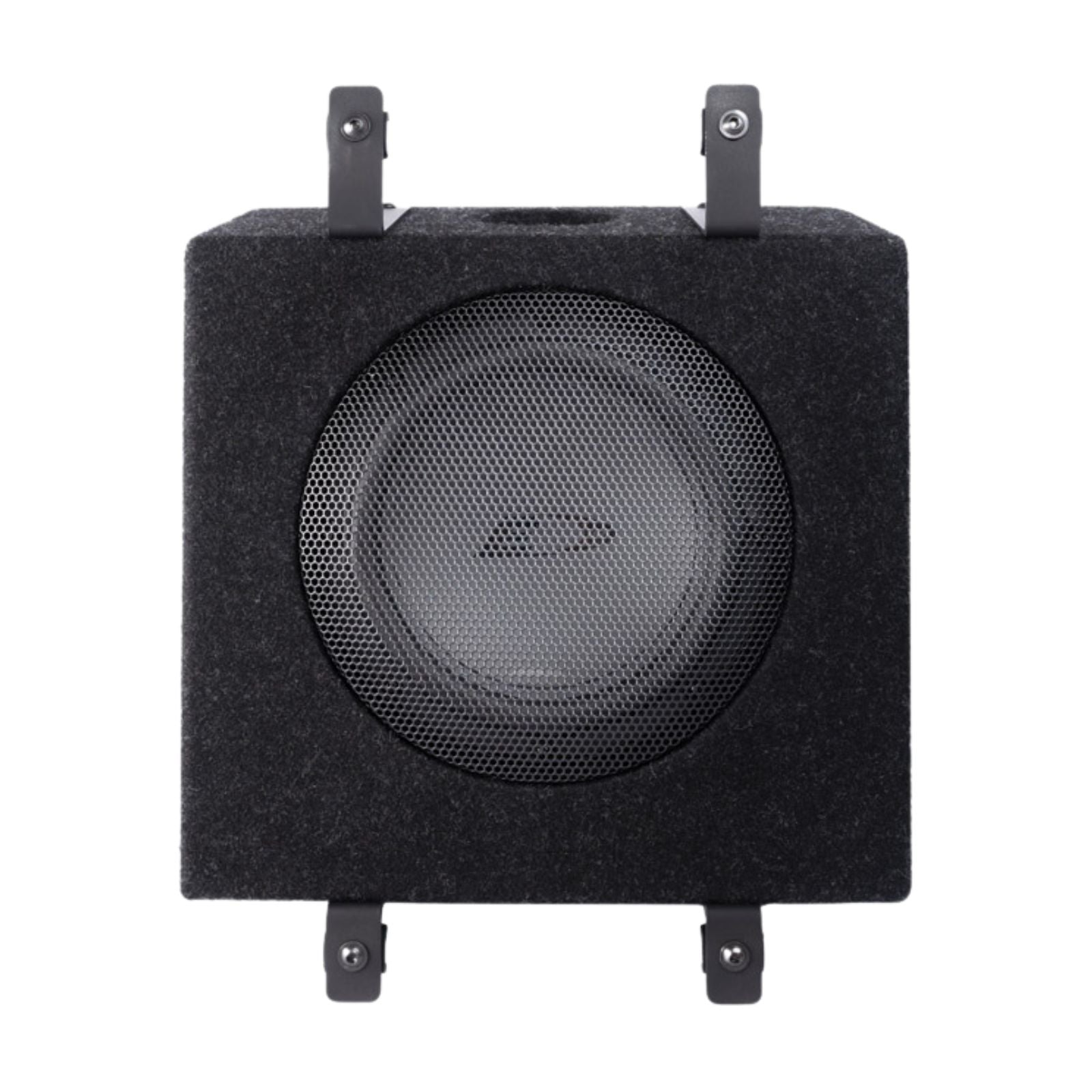

The 180W dual voice coil subwoofer comes pre-installed in a sealed wooden enclosure sized for installation under the Sprinter 907 / 910 passenger seat. It delivers strong bass without requiring additional enclosure work.
Fast & Easy Installation

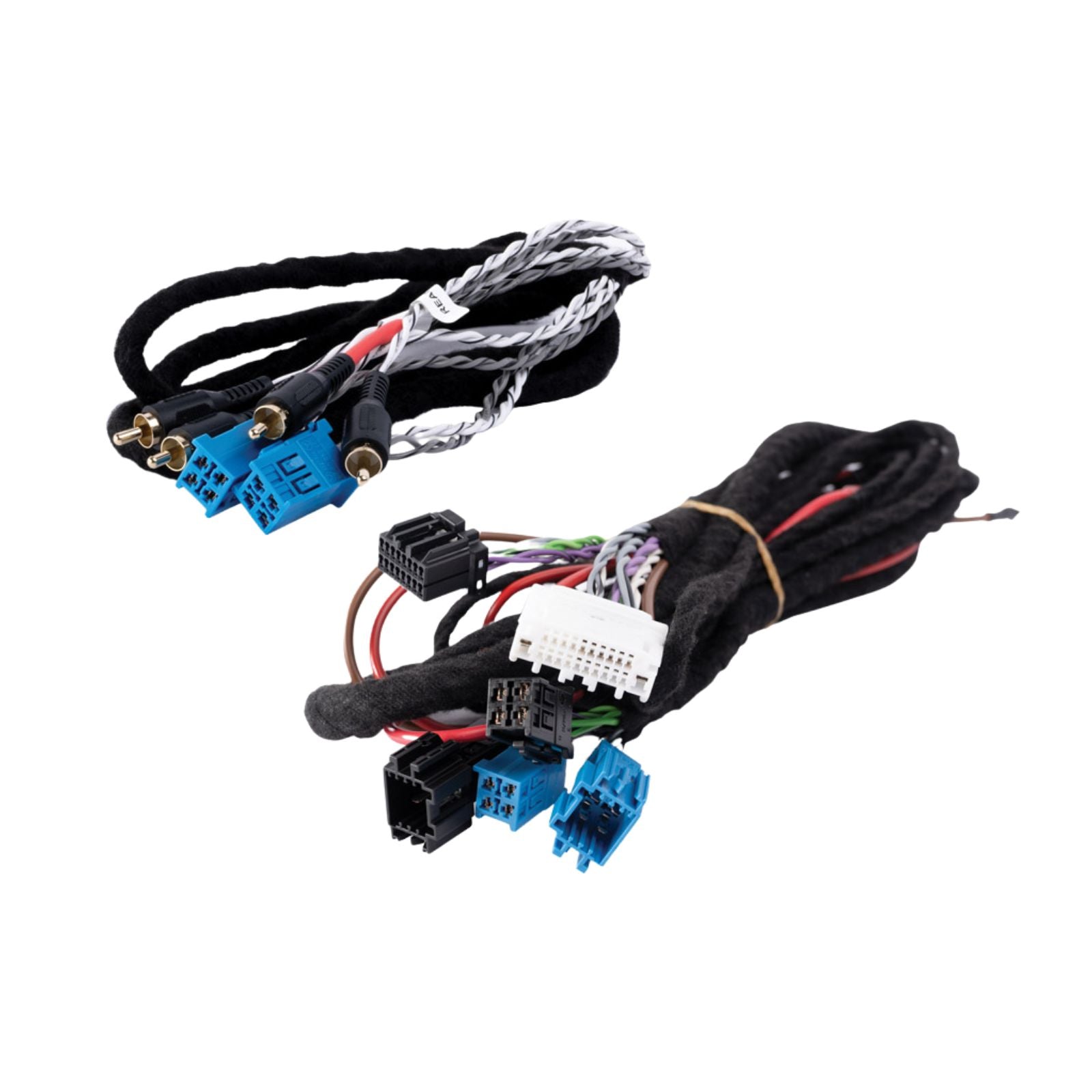

All installation brackets and cable harnesses are included in the SPC-W84AS907-2 kit. The plug-and-play wiring harness connects to the original Sprinter radio or any aftermarket radio with RCA pre-amp outputs. No additional wiring is required.
Explore the full range in Alpine Plug & Play.
Specification
| RMS Power Ratings CH 1-4 into 4 Ohms | 80W RMS x 4 (14.4V at 1% THD+N) |
|---|---|
| RMS Power Ratings CH 5-6 into 2 Ohms | 120W RMS x 2 (14.4V at 1% THD+N) |
| High Power Inputs | 4 |
| Power Requirement | 12 V |
| Measurements | 142mm x 40mm x 122mm (176mm with connectors plugged in) |
| Power Handling | (RMS) 60w |
| Power Handling | (Peak) 180w |
| Frequency response | 34Hz – 1,5kHz |
| Measurements | 355 mm x 330 mm x 170 mm |
| Sensitivity | 91dB 1W/1m |
| Subwoofer grille | Included |
| Compatibility | Mercedes-Benz Sprinter 907/910 - 2018 onwards |
More specs
| |
What's Included
- 8” Subwoofer
- Included subwoofer grill
- Installation brackets
- Wiring Kit
- 6 Channel DSP Class D Amplifier
Alpine
About the Alpine SPC-W84AS907-2
From our tech experts at CEN
The Alpine SPC-W84AS907-2 is a plug-and-play system upgrade for the Mercedes-Benz Sprinter 907 and 910 from 2018. It pairs a 6-channel DSP amplifier, giving 80w RMS x 4 at 4 ohm and 120w RMS x 2 at 2 ohm, with an 8 inch (20cm) dual voice coil subwoofer in a sealed enclosure that fits under the passenger seat.
Who it suits
Sprinter owners with Alpine Adventure Audio speakers who want more power and real bass without losing load space. It works with the original Mercedes radio or an aftermarket radio with RCA pre-outs. For matching front speakers, see the SPC-106S907-2 component set.
Our tech experts advise
The DSP arrives pre-programmed for the Sprinter cabin, with digital time correction and settings for left or right-hand drive and radio type. Brackets and harnesses are included. The subwoofer is rated at 60w RMS, so set the bass level with care. Installation is priced per vehicle, so get in touch with your make, model and year.
Explore the full Alpine range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Alpine
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Alpine Plug & Play
More options from the same range, in stock and ready to go
Alpine DP2-80WF-B Subs Plug & Play 8 Inch Underseat Subwoofers for BMW 100w RMS
£389.00
View product
Alpine DP2-45C-B 2 Way Plug & Play 4.5" 12cm Component Speakers for BMW 50w RMS
£269.00
Alpine DP2-40C-B 2 Way Plug & Play 4" 10cm Component Speaker Set for BMW 50w RMS
£269.00
Alpine SPC-W84ACRA2-2 6 Channel DSP Amplifier Subwoofer for VW Crafter 2 MAN TGE
£799.99
Alpine SPC-106CRA2 Plug & Play Front Component Speakers for VW Crafter & MAN TGE
RRP £429.99Save 2%£419.99
Frequently Asked Questions
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: Does the SPC-W84AS907-2 include the amplifier?
A: Yes. The kit includes the 6-channel DSP amplifier, the 8" subwoofer with grille, installation brackets and a wiring kit.
Q: Which Sprinter models does it fit?
A: The Mercedes-Benz Sprinter 907 / 910 from 2018 onwards. The subwoofer installs under the passenger seat.
Q: Does it work with the original Sprinter radio?
A: Yes. The plug-and-play wiring harness connects to an original Sprinter radio or to aftermarket radios with RCA pre-amp outputs.
