RetroSound Triax Deluxe Dual Voice Coil 4x8 Inch Single Stereo Speaker 60w RMS
Couldn't Load Pickup availability

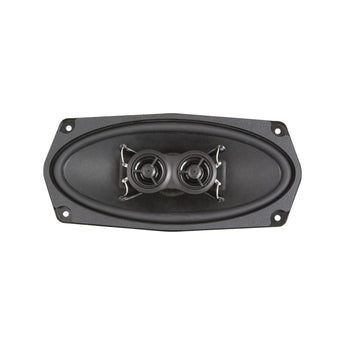

The RetroSound R-48N Triax Deluxe is a single 4x8-inch dual voice coil dash speaker, rated at 60W RMS and 120W peak, that produces a full stereo mix from one speaker location. It is part of the RetroSound Triax Deluxe range.
This listing is the 4x8 inch. The RetroSound dual voice coil speaker range is also available as a 5.25 inch single stereo dash speaker and a 4x10 inch single speaker with bracket.
Key specifications
- Model: R-48N
- Size: 4x8 inch
- Type: dual voice coil (stereo from a single speaker)
- Impedance: 4 + 4 ohms
- Power handling: 60W RMS / 120W peak
- Sensitivity: 87 dB
- Frequency response: 65 Hz - 21 kHz

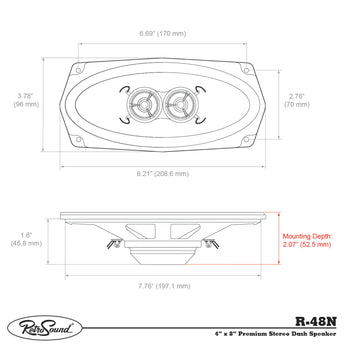

- Mounting depth: 52.5 mm (2.07 inch)
- Grille: not included
RetroSound R-48N Deluxe Speaker 4x8"
The Triax Deluxe dual voice coil design delivers a stereo mix from a single speaker location, making it well suited to classic vehicles with one factory dash speaker position.
A neodymium magnet structure with a dip-cut design keeps the mounting depth to just 52.5 mm while reducing distortion. Santoprene® surrounds provide accurate audio reproduction and silk tweeters deliver smooth, natural-sounding highs.
- 4x8-inch dash speaker
- Dual voice coils produce a stereo mix from a single speaker
- Neodymium magnet structure for ultra-thin design
- Santoprene® surrounds for accurate audio reproduction
- Silk tweeters produce smooth and natural highs
- Dip-cut magnet for enhanced sound
- TrueRating power handling: 60W RMS / 120W peak
Explore the full range in RetroSound Speakers.
Specification
| Frequency Response | (SPL@1w/1m) 65Hz-21kHz |
|---|---|
| Sensitivity | 87dB |
| Power Handling | (watts RMS/peak) 60/120 |
| Mounting Depth | (inch) 2.07 |
| Mounting Depth | (mm) 52.5 |
More specs
| |
What's Included
- 1x Speakers
- 1x Wire
- 4x Screws
RetroSound
About the RetroSound R-48N
From our tech experts at CEN
A single dash speaker with dual voice coils, so one speaker in a single factory aperture still carries both stereo channels, 4x8 inch, rated at 60w RMS, designed for classic cars rather than modern door cards.
Who it suits
Owners of classics with a single central dash speaker, where cutting extra holes is not an option and originality matters.
Our tech experts advise
In older cars the limiting factors are aperture size, mounting depth and the state of the wiring rather than the speaker itself. We check all three before ordering. get in touch. See car audio installation.
Explore the full RetroSound range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all RetroSound
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing

Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Is the RetroSound R-48N sold as a single speaker?
A: Yes. The R-48N is a single 4x8-inch speaker. Its dual voice coils produce a stereo mix from one speaker location. The box contains one speaker, a wire and four screws.
Q: How do I wire a dual voice coil speaker for stereo?
A: The R-48N has two 4-ohm voice coils. Connecting the left channel to one coil and the right channel to the other gives a stereo mix from a single dash speaker.
Q: How deep is the RetroSound R-48N?
A: The mounting depth is 52.5 mm (2.07 inch), thanks to its neodymium magnet structure, which helps it fit shallow classic car dashboards.
