The RetroSound R-507N is a single 5x7 inch Triax dual voice coil dash speaker rated at 40W RMS, part of the RetroSound speaker range. It produces a full stereo mix from one speaker location, making it ideal for classic cars with a single dash speaker position.
This listing is the 5x7 inch R-507N. The RetroSound dual voice coil stereo dash speaker range is also available as a 5.25 inch single stereo dash speaker at 25W RMS.
Key specifications
- Model: R-507N
- Size: 5x7 inch (single speaker)
- Type: dual voice coil, stereo from one speaker
- Impedance: 4+4 ohm
- Power handling: 40W RMS / 80W max
- Frequency response: 65Hz - 21kHz
- Sensitivity: 87dB

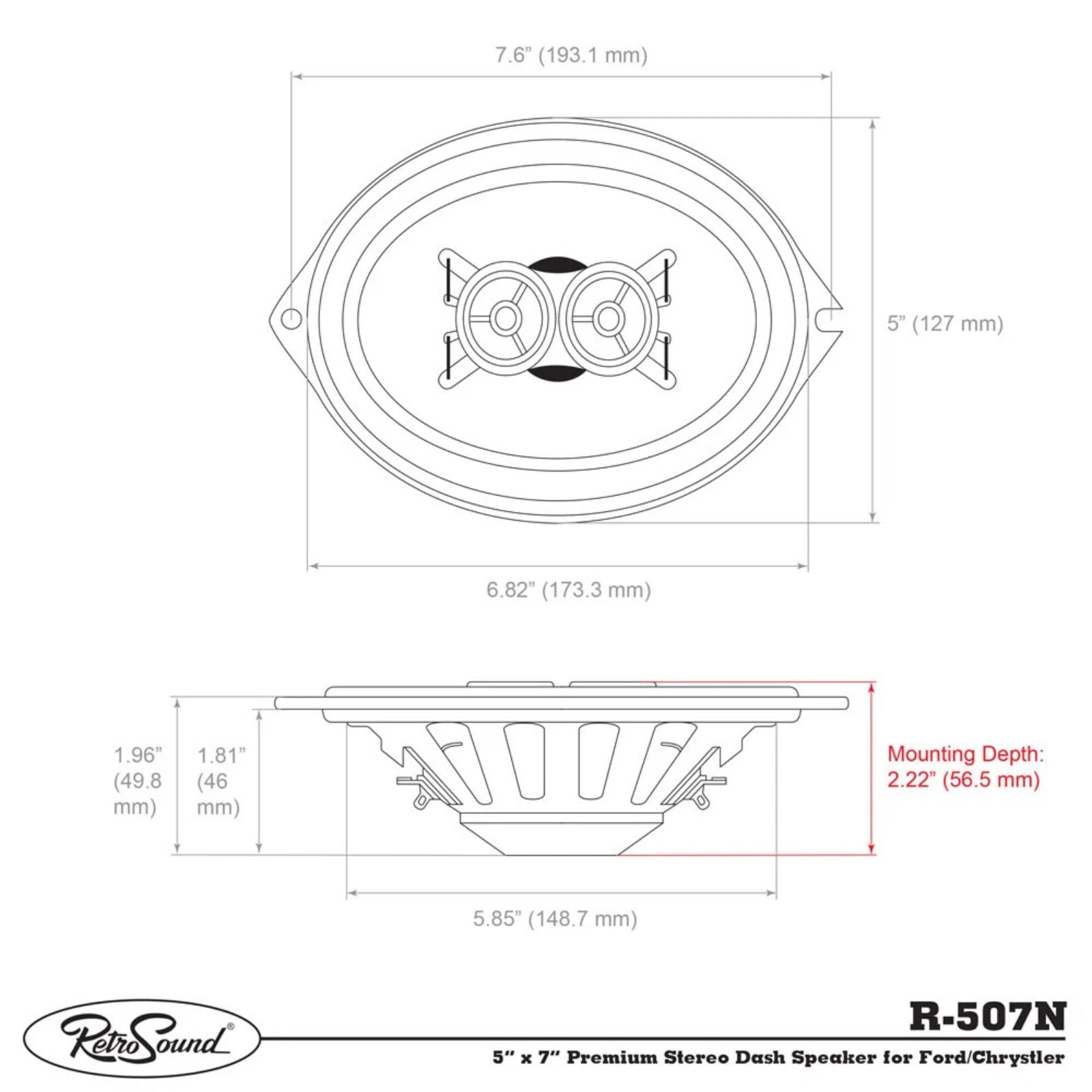

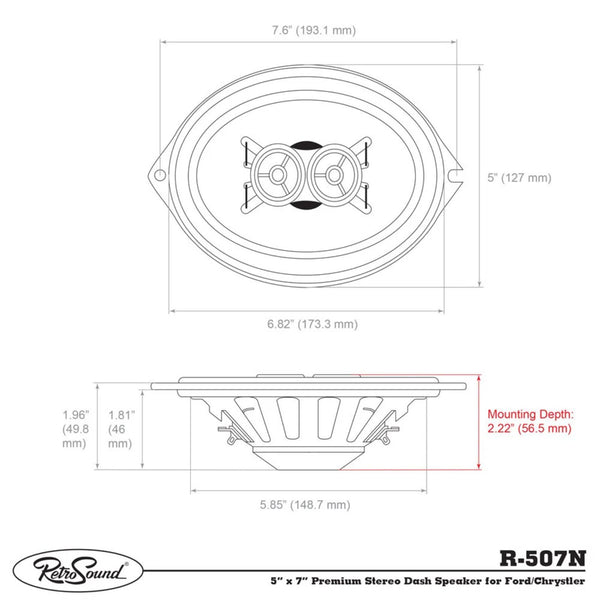

- Mounting depth: 56.5mm (2.22 inch)
- Install location: dash

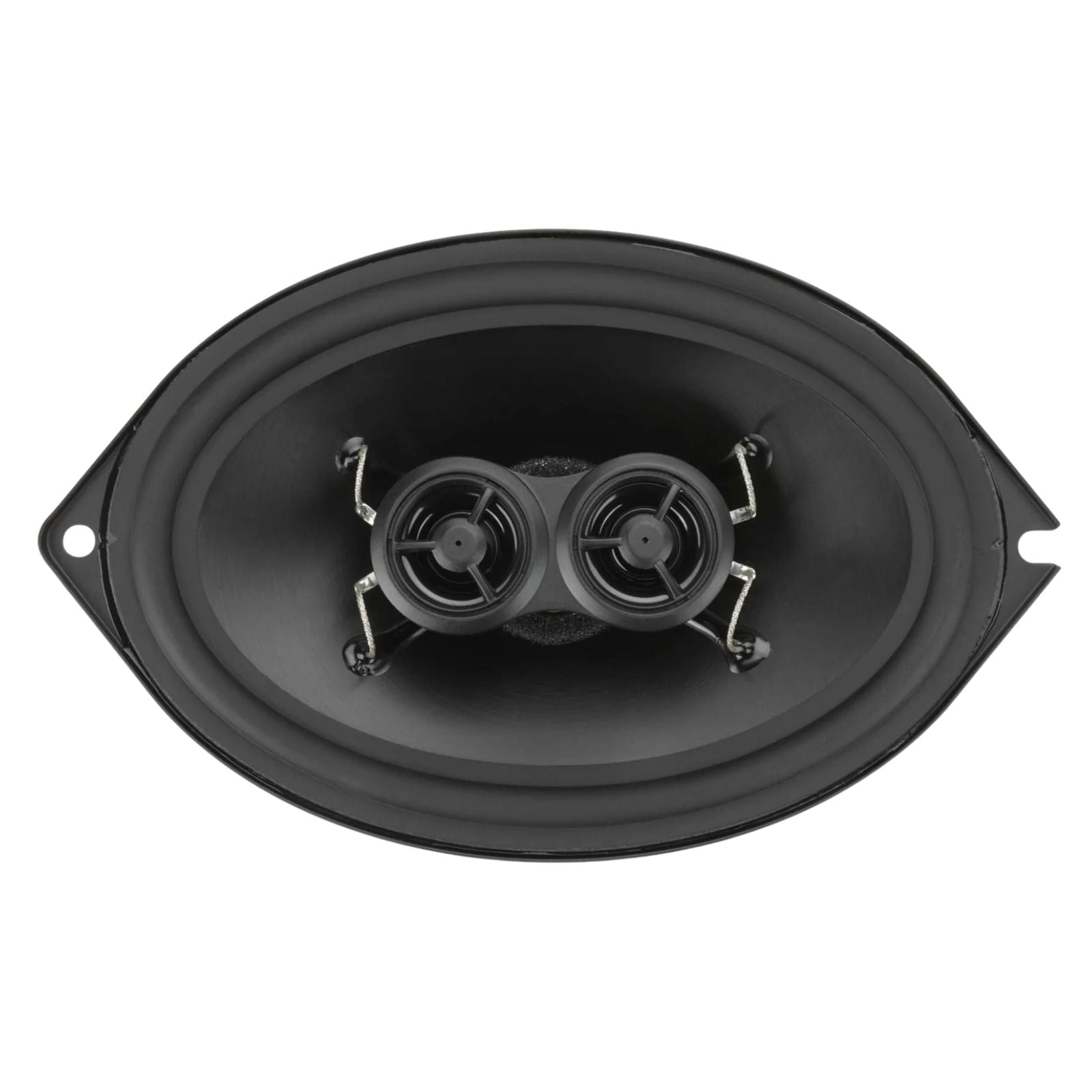

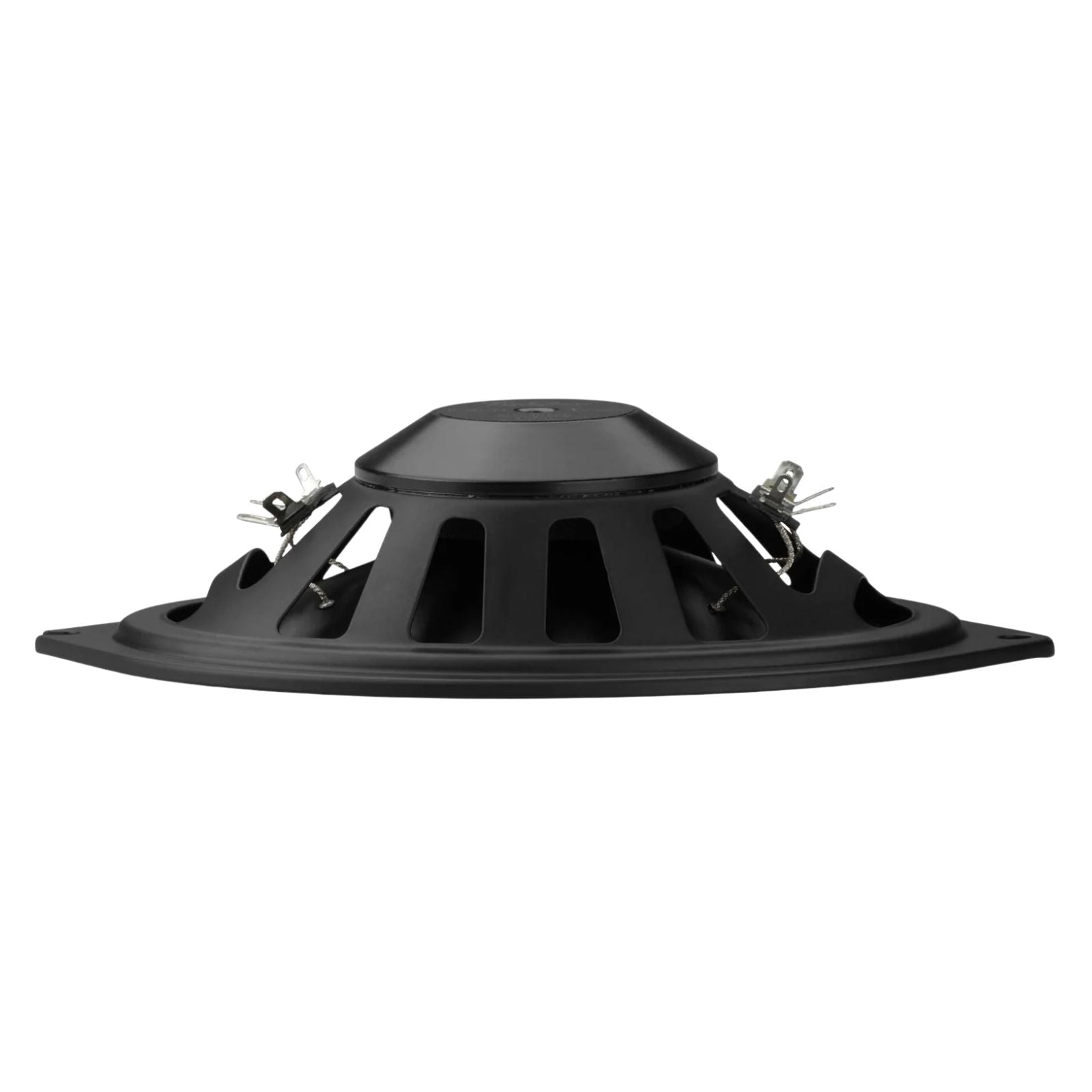

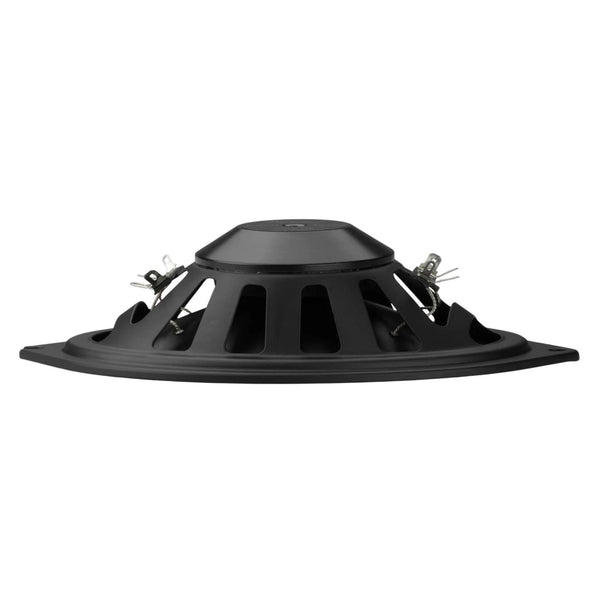

RetroSound R-507N
The R-507N uses dual voice coils to deliver a stereo mix from a single speaker location — designed for classic vehicles with one dash speaker position. A Neodymium magnet structure with a dip-cut design keeps the mounting depth to just 56.5mm while preventing distortion. Santoprene® surrounds ensure accurate audio reproduction, and silk tweeters provide smooth, natural high frequencies.
- 5x7 inch dash speaker
- Dual voice coils produce a stereo mix from a single speaker
- Neodymium magnet structure for ultra-thin design
- Santoprene® surrounds for accurate audio reproduction
- Silk tweeters produce smooth and natural highs
- Dip-cut magnet for enhanced sound
- TrueRating power handling: 40W RMS / 80W max
- Mounting depth: 2.22 inches (56.5mm)
- 8 ohm wiring kit included
- Universal Speaker Bracket (RS-UB1KT) included
Explore the full range in RetroSound Speakers.
Specification
| Model | R-507N |
|---|---|
| Nominal Diameter (inch) | 5x7 |
| Description | Dual Voice Coil |
| Nominal Impedance | 4+4ohm |
| Frequency Response | (SPL@1w/1m) 65Hz-21kHz |
| Sensitivity | 87dB |
| Power Handling | (watts RMS/peak) 40/80 |
| Speaker Grill | NO |
| Mounting Depth | (inch) 2.22 |
| Mounting Depth | (mm) 56.5 |
| Install Location | Dash |
What's Included
- 1x Speaker
- 1x Universal Speaker Bracket
- 1x Wire
- 4x Screws
RetroSound
About the RetroSound R-507N
From our tech experts at CEN
Triax speakers, with three drivers in one frame, 5x7 inch, rated at 40w RMS, designed for classic cars rather than modern door cards.
Who it suits
Classic car owners replacing tired or failed speakers with something that fits the original openings.
Our tech experts advise
In older cars the limiting factors are aperture size, mounting depth and the state of the wiring rather than the speaker itself. We check all three before ordering. get in touch. See car audio installation.
Explore the full RetroSound range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all RetroSound
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from RetroSound Speakers
More options from the same range, in stock and ready to go

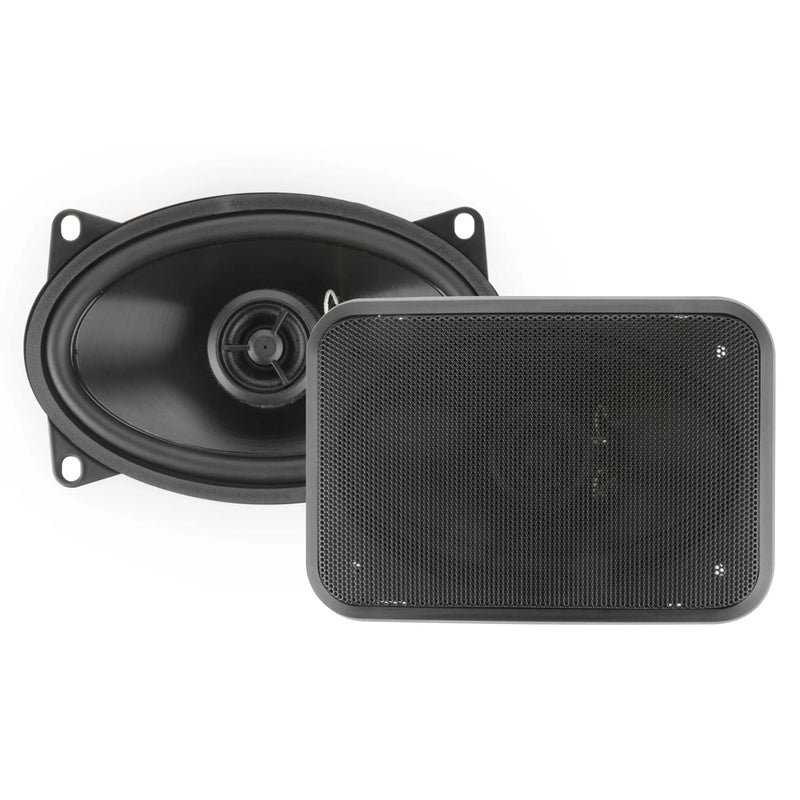

RetroSound Premium Stereo Speakers 4x6 Inch with Grills Sold as a Pair 25w RMS
£79.99
View product
RetroSound Premium Stereo Speakers 4 Inch with Grills Sold as a Pair 30w RMS
£99.99

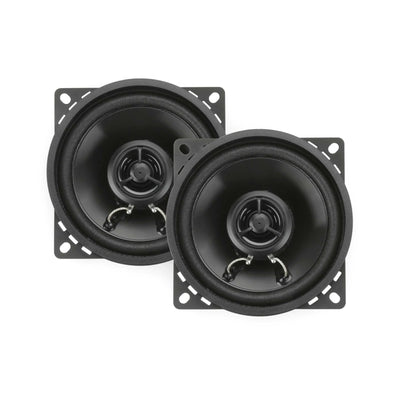

RetroSound Standard Stereo Speakers Mylar Tweeters Sold as a Pair 25w RMS
£59.99

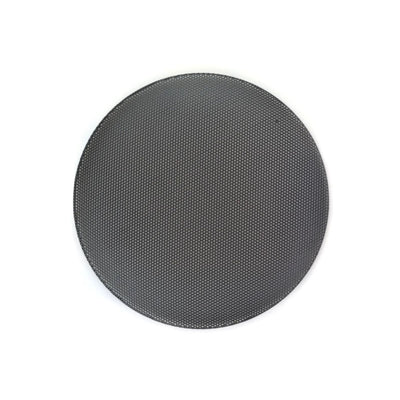

RetroSound RS-G03 5.25 Inch Black Speaker Grille Single
£19.99
RetroSound Premium Single 2-Way Speaker 4x10 Inch with Bracket RS-UB1KT 90w RMS
(1)£79.99
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Is the RetroSound R-507N sold as a pair?
A: No. The R-507N is sold as a single speaker. Its dual voice coils produce a stereo mix from one dash speaker location.
Q: What is included with the R-507N?
A: One speaker, one universal speaker bracket (RS-UB1KT), one wire and four screws.
Q: How deep is the R-507N?
A: The mounting depth is 56.5mm (2.22 inch).
