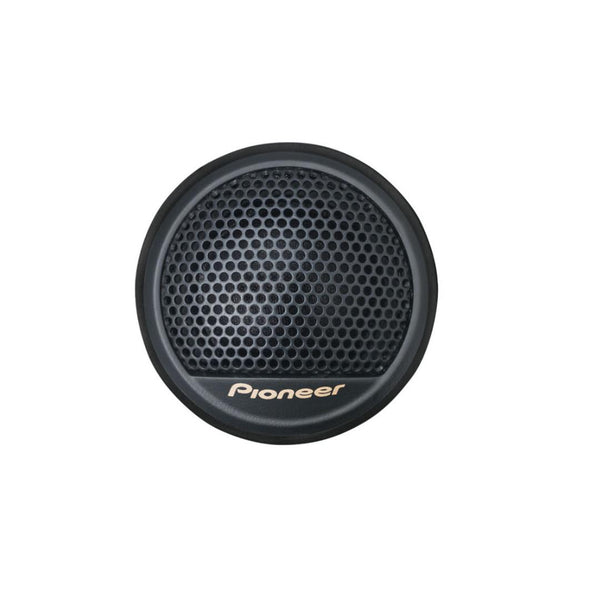

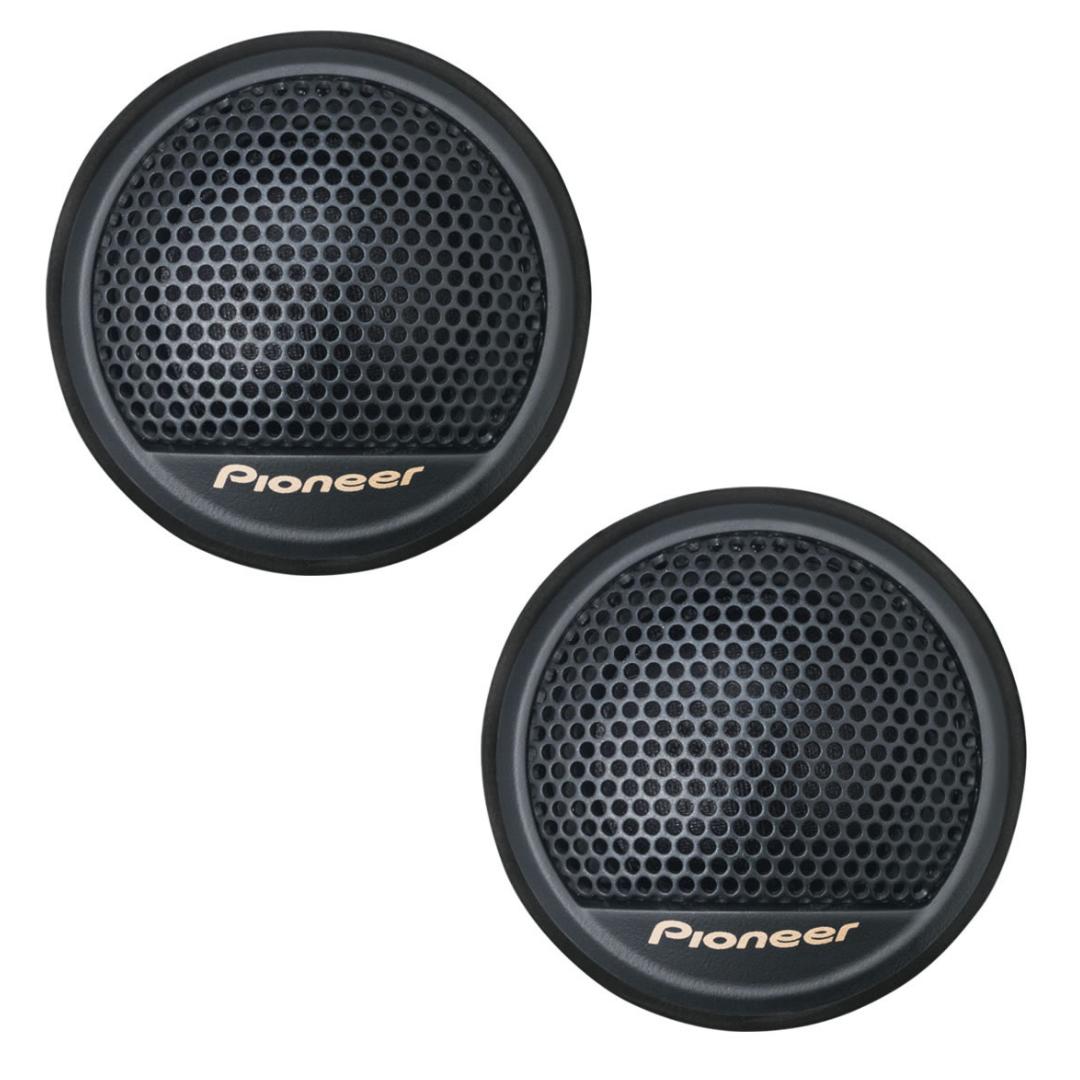

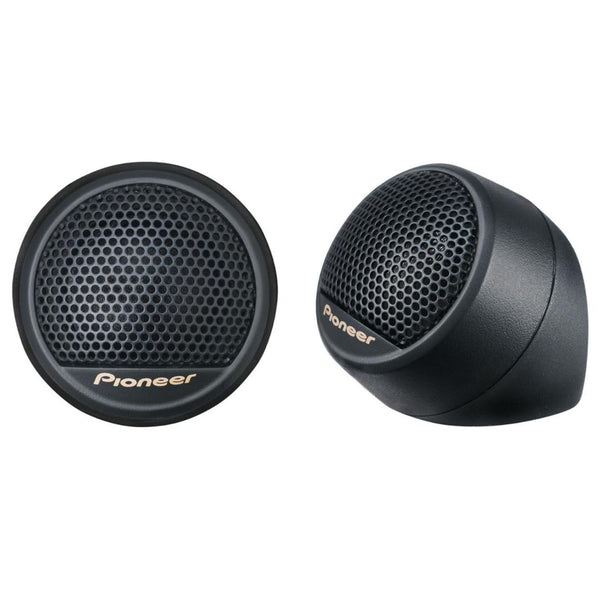

Pioneer TS-S15 Tweeters 20mm Soft Dome Styrene Rubber Coated Tweeter 40w RMS
Couldn't Load Pickup availability
The Pioneer TS-S15 is a 20mm soft dome tweeter with an ultra-slim neodymium magnet, rated at 40W RMS and 120W maximum, for adding clear high-frequency detail to a car audio system.
Key specifications
- Size: 20mm soft dome
- Power: 40W RMS, 120W maximum
- Frequency response: 2,500Hz – 30,000Hz
- Sensitivity: 90dB
- Impedance: 8Ω
- Magnet: ultra-slim neodymium
- Mounting: 3-way surface mount with slant spacer
- Crossover: in-line network included
TS-S15
A compact, easy-to-fit tweeter designed to add clear high-frequency detail to your car audio setup. Pairs well with Pioneer's component speaker range, such as the Pioneer TS-G170C 17cm 2-way component speakers.
20mm Soft Dome Styrene-Rubber Coated Polyester Tweeter
- 40W RMS power handling
- Ultra-slim neodymium magnet keeps the unit low-profile
- 3-way surface-mount options for flexible installation

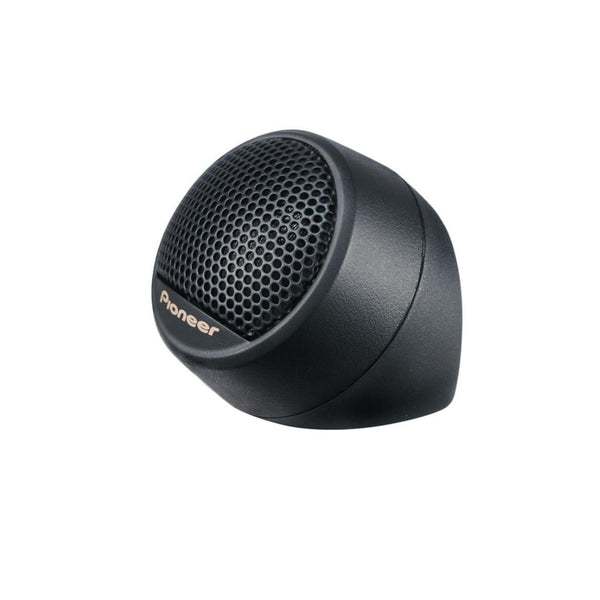

- Slant spacer included for angled installation
- In-line crossover network included for simple setup
Explore the full range in Tweeters.
Specification
| Impedance | 8 Ω |
|---|---|
| Frequency response | 2,500 - 30,000 |
| Sensitivity | 90 dB |
More specs
| |
What's Included
- TS-S15
Pioneer
About the Pioneer TS-S15
From our tech experts at CEN
The Pioneer TS-S15 is a pair of 20mm soft dome tweeters, not coaxial speakers. They handle 40w nominal and 120w maximum at 8 ohm, with 90 dB sensitivity and a 2.5 kHz to 30 kHz range. An ultra-slim neodymium magnet keeps them low-profile, and in-line crossover networks are included.
Who it suits
Drivers adding treble to a car that has no tweeters, or whose door speakers sound dull at the top. They also suit pairing with separate door woofers, such as the woofers from a TS-G170C component set.
Our tech experts advise
Always use the supplied crossovers so the tweeters never receive bass. The slant spacer lets you angle them towards the listening position on a dash or pillar. The 8 ohm impedance draws less power than 4 ohm speakers on the same channel. Installation is priced per vehicle, so get in touch with your make, model and year.
Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Pioneer
More options from the same range, in stock and ready to go
Staff PickPioneer SPH-DA160DAB Apple CarPlay Android Auto Bluetooth DAB Radio Car Stereo
RRP £399.00Save 35%£259.00
New ReleasePioneer SPH-OD880 On Dash Wireless CarPlay Android Auto
RRP £269.99Save 7%£249.99

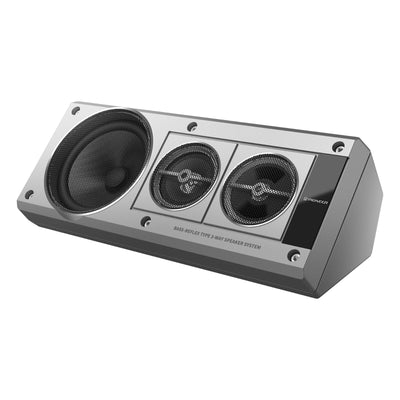

Best SellerPioneer TS-X40SXT Retro 3 Way Bass Reflex Speaker System
RRP £269.95Save 7%£249.95

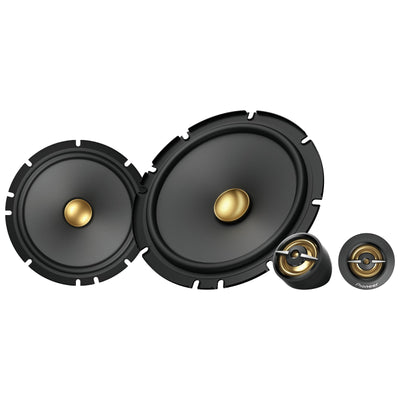

Best SellerPioneer TS-A1601C 2 Way 6.5 Inch 16.5cm Car Component Speakers 80w RMS
RRP £99.99Save 20%£79.99

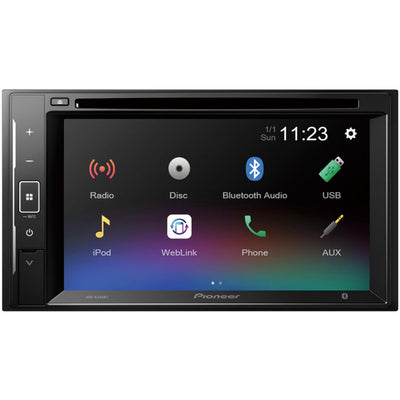

Pioneer AVH-A240BT 6.2" CD DVD Double Din Bluetooth USB Radio Car Stereo
RRP £219.00Save 9%£199.00
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Does the Pioneer TS-S15 include a crossover?
A: Yes. An in-line crossover network is included for simple setup.
Q: How can the TS-S15 tweeters be mounted?
A: They offer 3-way surface-mount options, and a slant spacer is included for angled installation.
Q: What impedance is the Pioneer TS-S15?
A: Pioneer rates the TS-S15 at 8 ohms, with a frequency response of 2,500Hz to 30,000Hz and 90dB sensitivity.
