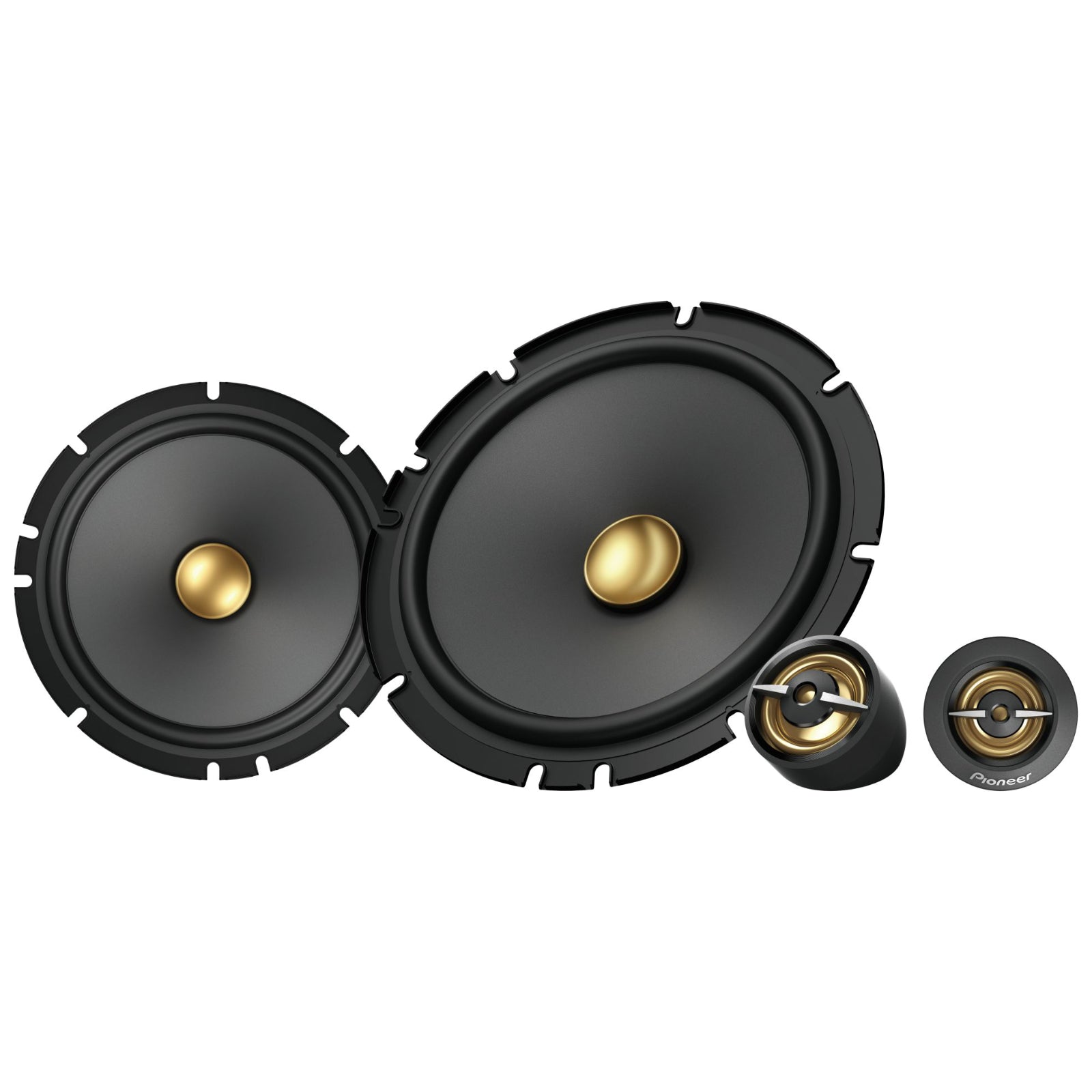

Pioneer TS-A1601C 2 Way 6.5 Inch 16.5cm Car Component Speakers 80w RMS
Couldn't Load Pickup availability
The Pioneer TS-A1601C is a 6.5 inch (16.5cm) 2-way component speaker set from Pioneer's TS-A series, rated at 80W RMS (350W max).
Key specifications
- Size: 6.5 inch / 16.5cm
- Type: 2-way component
- Power handling: 80W RMS / 350W max
- Frequency response: 33 Hz - 58,000 Hz
- Sensitivity: 90 dB
- Impedance: 4 Ω
- Tweeter: 20 mm PEI
- Cut-out hole: 144 mm
- Mounting depth: woofer 59 mm, tweeter 16 mm
Component Speakers
Component speakers reproduce audio more accurately than standard coaxial speakers and give you greater control over how your system sounds. If you're looking for a coaxial alternative in the same size, Pioneer also offer the Pioneer TS-G170C 17cm 2-way component speakers.
IMPP™ Cone
Pioneer's Injection Moulded Polypropylene Composite (IMPP™) cone is rigid and lightweight. This reduces distortion and improves overall clarity.
Multi-Fit Adaptor
A multi-fit installation adaptor is included, improving installation flexibility and enhancing damping and acoustic performance.
Open & Smooth™
Pioneer's OPEN & SMOOTH™ sound concept creates a seamless transition between the midrange driver and tweeter, producing a natural, expansive soundstage.
Explore the full range in Pioneer TS-A, TS-D & TS-Z Speakers.
Specification
| Frequency response | 33 Hz - 58,000 Hz |
|---|---|
| Impedance | 4 Ω |
| Maximum input power | 350 W |
| Nominal input power | 80 W |
| Sensitivity | 90 dB |
| Series | A-Series |
| Tweeter Diameter Size | 20 mm |
| Diameter Size | 16.5 cm |
| Dimensions | 165 mm x 65 mm |
| Magnets | Woofer: Ferrite. Tweeter: Neodymium |
| Tweeter material | Polyetherimide (PEI) |
| Woofer material | Carbon & Mica reinforced Injection Molded PolyPropylene |
| Cut-out Hole | 144 mm |
| Mounting Depth | Woofer: 59 mm. Tweeter: 16 mm |
| Speaker Grill | Not Included |
| Weight | 0.95 kg |
More specs
| |
What's Included
- Pioneer TS-A1601C
- Tweeters
Pioneer
About the Pioneer TS-A1601C
From our tech experts at CEN
A 6.5 inch component set, with separate tweeters that can be mounted higher where you will hear them, rated at 80w RMS.
Who it suits
Drivers who want a proper front stage and are happy for tweeters to be mounted separately, which usually means a professional fit.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Treating the door skin matters as much as the speaker. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Pioneer TS-A, TS-D & TS-Z Speakers
More options from the same range, in stock and ready to go

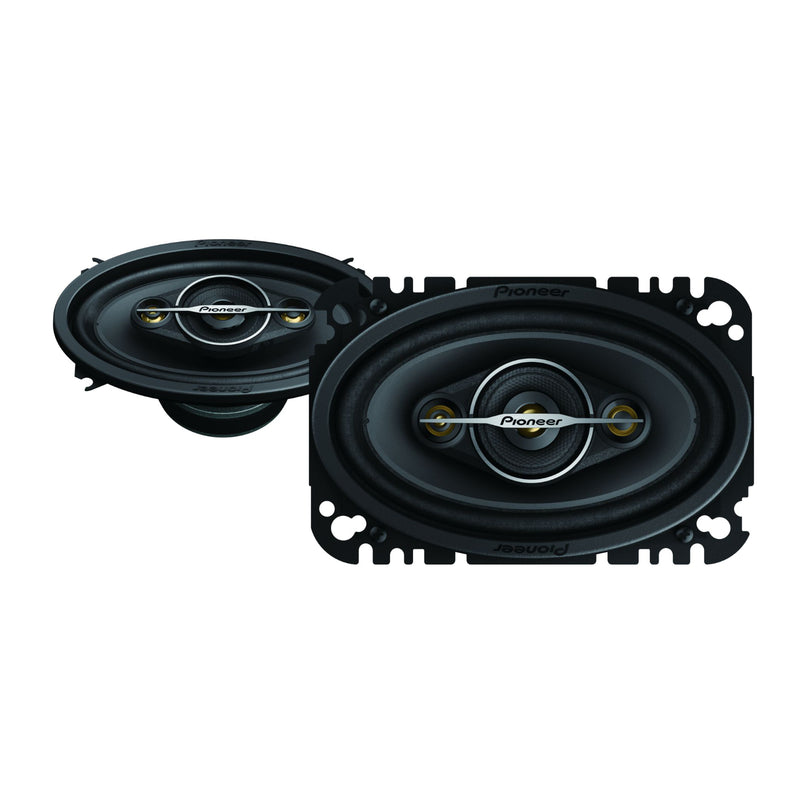

Staff PickPioneer TS-A4671F Speakers 4x6 Inch 4 Way Car Van Door Coaxial System 30w RMS
RRP £59.99Save 16%£49.90
Best SellerPioneer TS-A1081F 4 Inch 2 Way Coaxial Speakers 50w RMS
£49.99

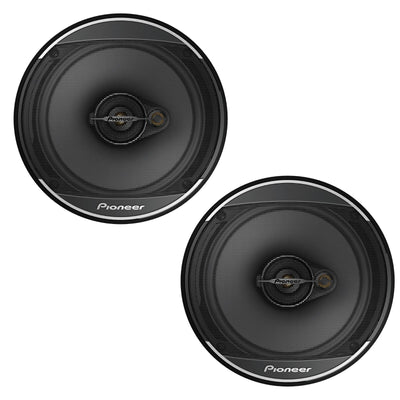

Pioneer TS-A1671F Speakers 6.5 Inch 16.5cm 3 Way Car Door Coaxial System
RRP £70.00Save 15%£59.00

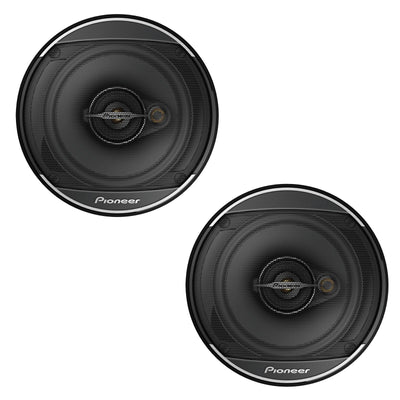

Pioneer TS-A1371F Speakers 13cm 3 Way Car Van Door Coaxial System 50w RMS
£55.00

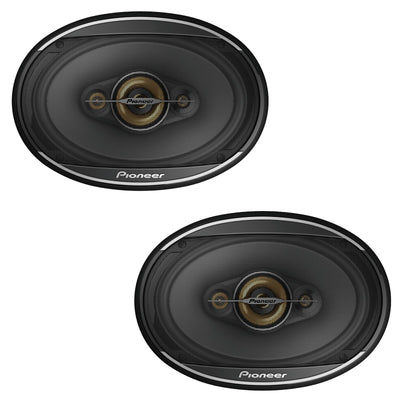

Pioneer TS-A6971F Speakers 6x9” 4 Way Car Parcel Shelf Coaxial System 100w RMS
£79.00
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What cut-out and mounting depth does the TS-A1601C need?
A: The woofer needs a 144 mm cut-out hole and 59 mm of mounting depth. The tweeter needs 16 mm of mounting depth.
Q: Are grilles included with the TS-A1601C?
A: No. Speaker grilles are not included. A multi-fit installation adaptor is included.
Q: What size tweeter does the TS-A1601C use?
A: It uses a 20 mm polyetherimide (PEI) tweeter with a neodymium magnet.
