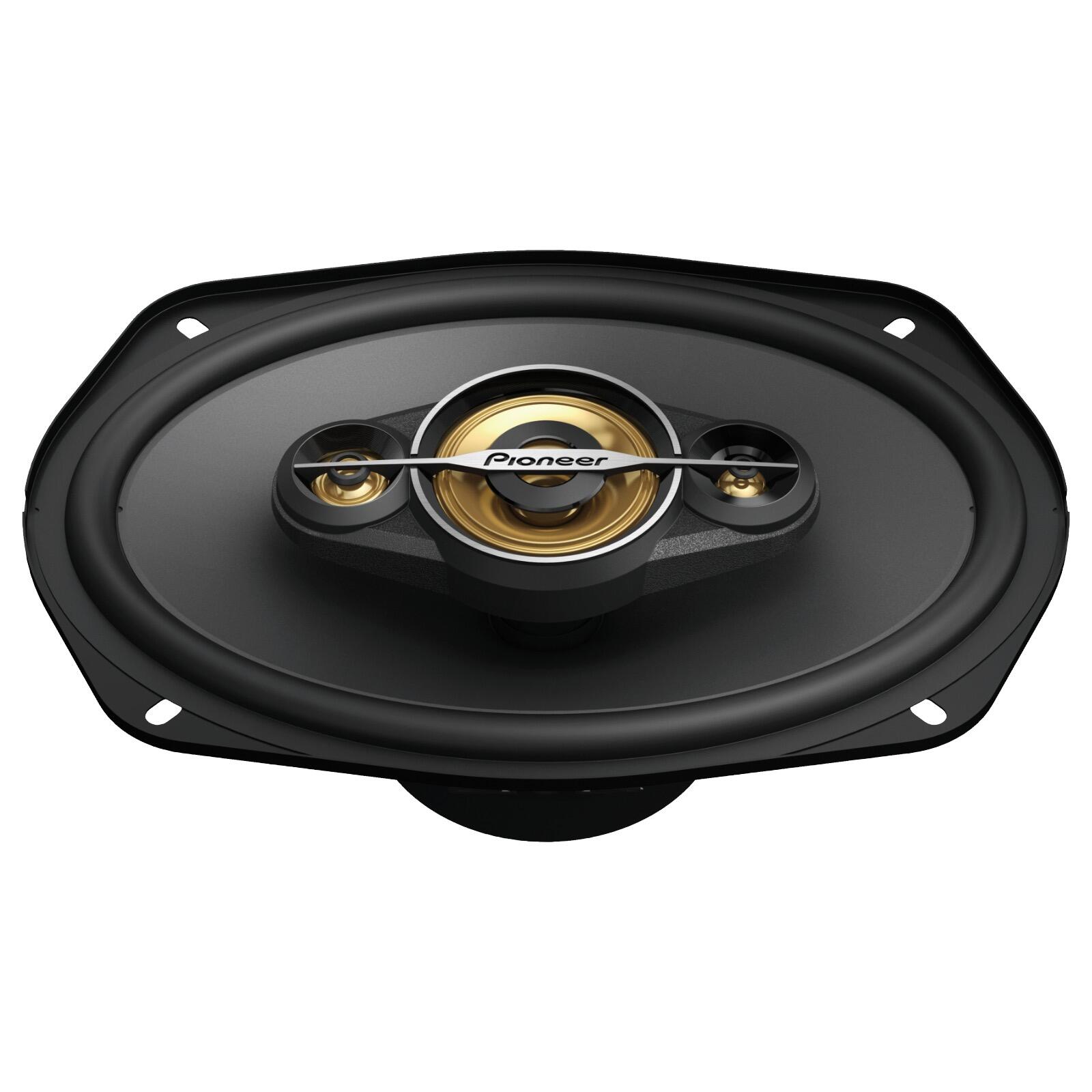

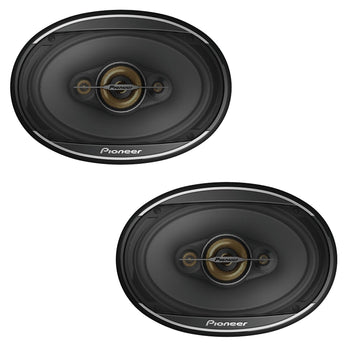

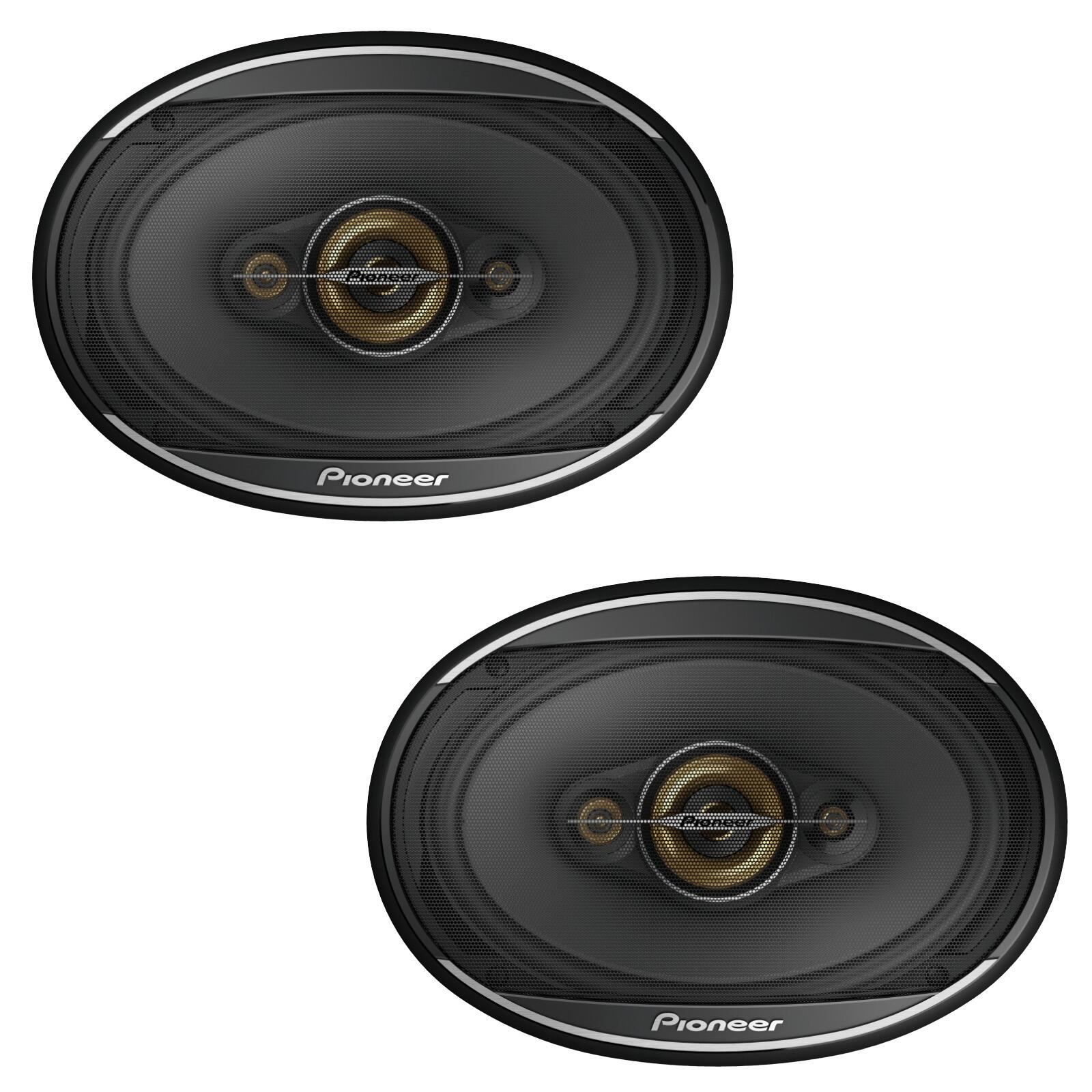

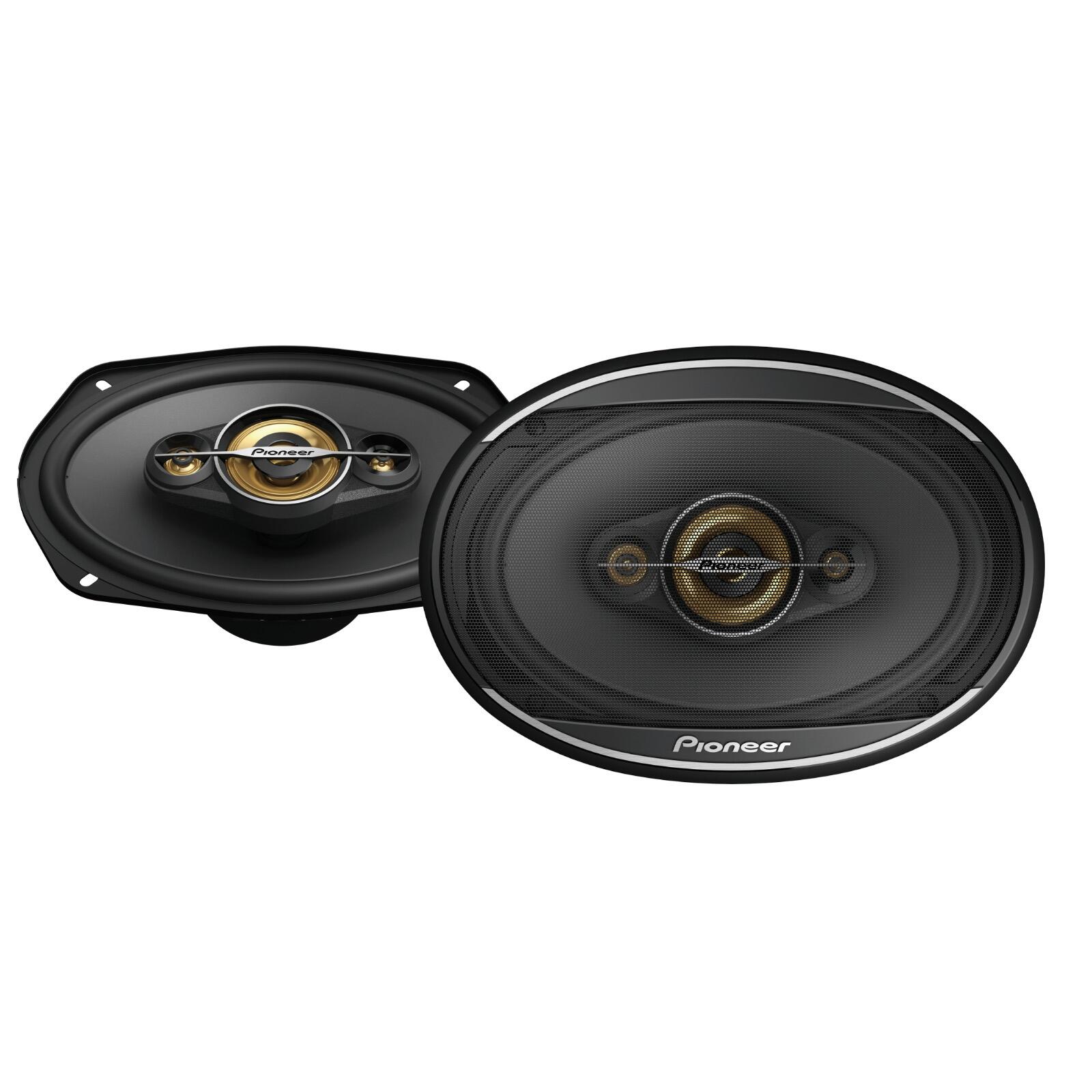

Pioneer TS-A6971F Speakers 6x9” 4 Way Car Parcel Shelf Coaxial System 100w RMS
Couldn't Load Pickup availability
The Pioneer TS-A6971F is a 6×9 inch 4-way coaxial speaker rated at 100W RMS (600W max), part of Pioneer's A Series parcel shelf speaker range. Pioneer's Multi-Fit installation adaptor is included.
This listing is the TS-A6971F (100W RMS). The TS-A 6×9 range is also available as the TS-A6961F at 90W RMS.
Key specifications
- Size: 6 × 9 inch
- Type: 4-way coaxial
- Power handling: 100W RMS / 600W max
- Frequency response: 29 Hz – 33 kHz
- Sensitivity: 92 dB
- Impedance: 4 Ω
- Cut-out hole: 153 × 222 mm
- Tweeter: piezo type
- Grilles: included
- Multi-Fit installation adaptor: included
TS-A6971F 6"×9" 4-Way Coaxial System (600W)
The A Series is Pioneer's straightforward OEM replacement and upgrade range. Carefully selected materials improve bass response and high frequencies, delivering Pioneer's Open & Smooth™ sound in an easy-to-install package.
Pioneer's free CarSoundFit app lets you hear what your car could sound like before and after upgrading with Pioneer speakers.

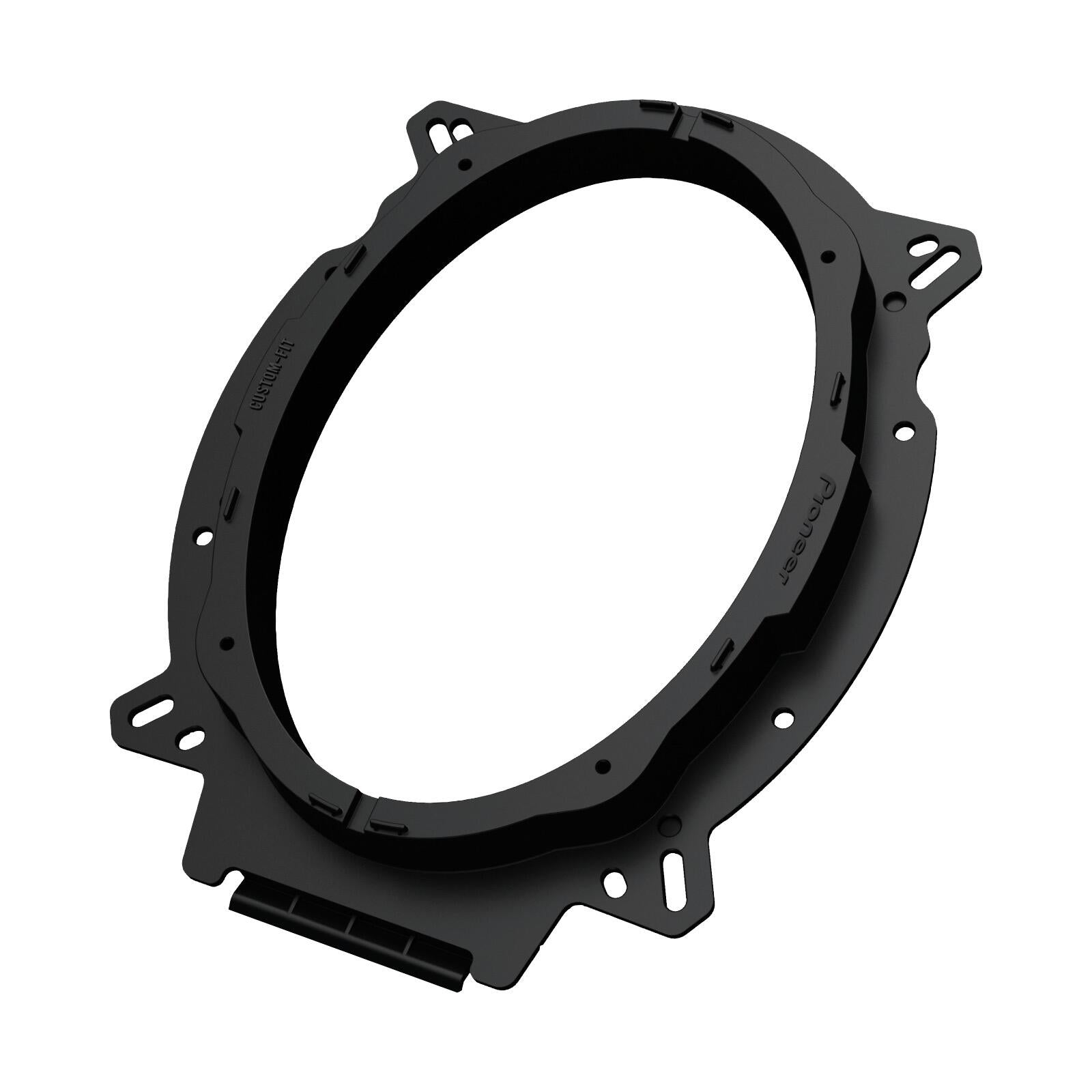

The included Multi-Fit installation adaptor is designed by Pioneer to expand installation flexibility and improve acoustic performance.
CarSoundFit App
Pioneer's CarSoundFit is a car sound simulator application that lets you preview an improved in-car sound experience before you buy.
Open & Smooth
Pioneer's Open & Smooth™ design delivers a smooth frequency response and an expansive soundstage.
IMPP

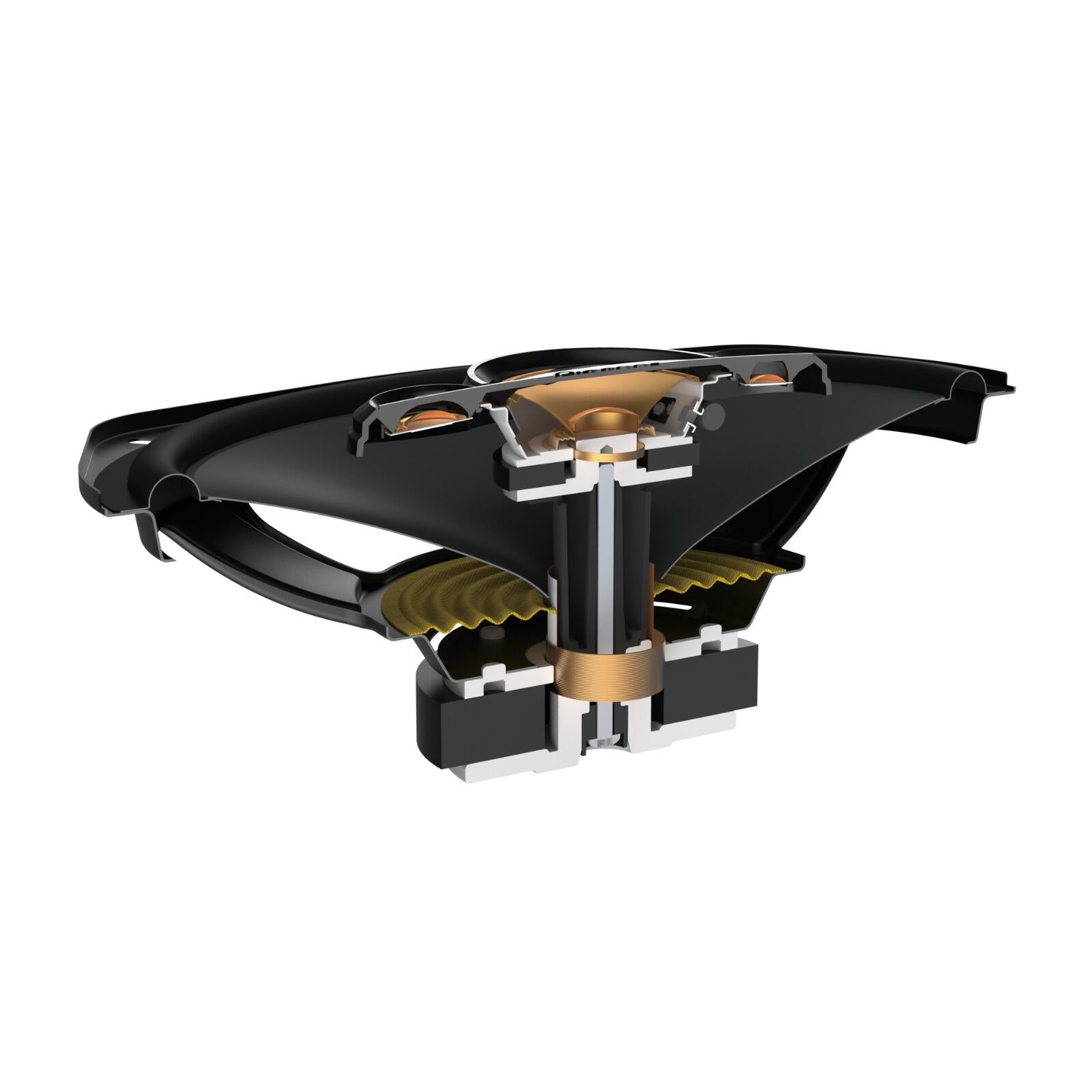

The Injection Moulded Polypropylene (IMPP) cone provides outstanding midbass response.
Explore the full range in Pioneer TS-A, TS-D & TS-Z Speakers.
Specification
| Frequency response | 29 Hz - 33 kHz |
|---|---|
| Sensitivity | 92 dB |
| Impedance | 4 Ω |
| Voice Coil | type Copper |
| Voice Coil | bobbin type GLASS IMIDE |
More specs
| |
What's Included
- Pioneer TS-A6971F
- Grills
- Screws
Pioneer
About the Pioneer TS-A6971F
From our tech experts at CEN
A 6x9 inch coaxial pair, with the tweeter in the centre of the woofer, rated at 100w RMS.
Who it suits
Drivers replacing tired factory speakers who want a clear improvement without complication. These go where the originals were and sound better immediately.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Treating the door skin matters as much as the speaker. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Pioneer TS-A, TS-D & TS-Z Speakers
More options from the same range, in stock and ready to go
Best SellerPioneer TS-A1601C 2 Way 6.5 Inch 16.5cm Car Component Speakers 80w RMS
RRP £99.99Save 20%£79.99
Pioneer TS-D65F Speakers D Series 6.5 Inch 17cm Car Door Coaxial 90w RMS
RRP £109.00Save 3%£105.00
Best SellerPioneer TS-A4671F Speakers 4x6 Inch 4 Way Car Van Door Coaxial System 30w RMS
RRP £59.99Save 16%£49.90
Best SellerPioneer TS-A1371F Speakers 13cm 3 Way Car Van Door Coaxial System 50w RMS
£55.00
Pioneer TS-A1671F Speakers 6.5 Inch 16.5cm 3 Way Car Door Coaxial System
RRP £70.00Save 15%£59.00
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What cut-out does the TS-A6971F need?
A: It needs a 153 x 222 mm cut-out. Pioneer's Multi-Fit installation adaptor is included to expand installation flexibility.
Q: How much power can the TS-A6971F handle?
A: It is rated at 100W continuous power output, with a maximum power of 600W.
Q: What is in the box with the TS-A6971F?
A: The Pioneer TS-A6971F speakers, grilles and screws.
