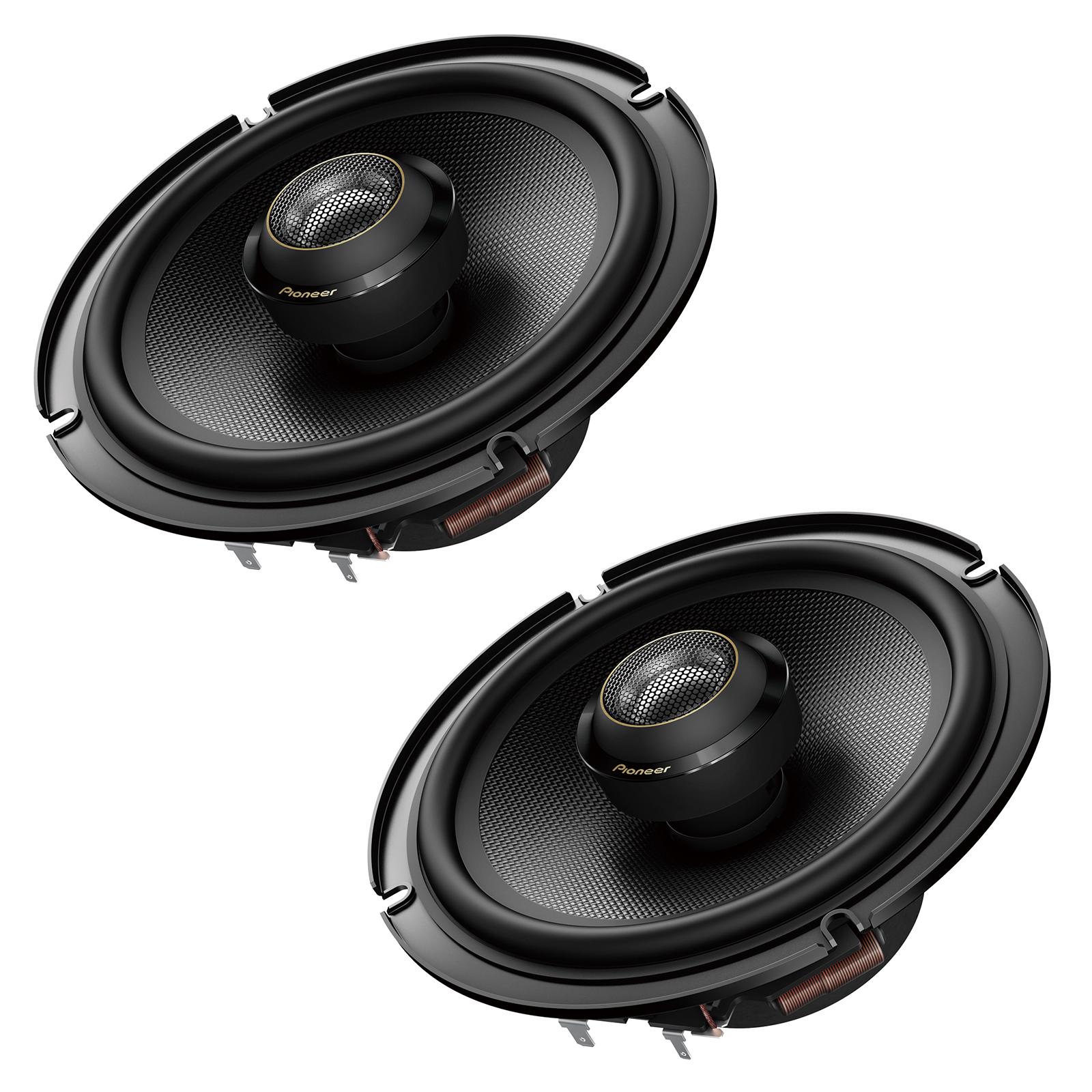

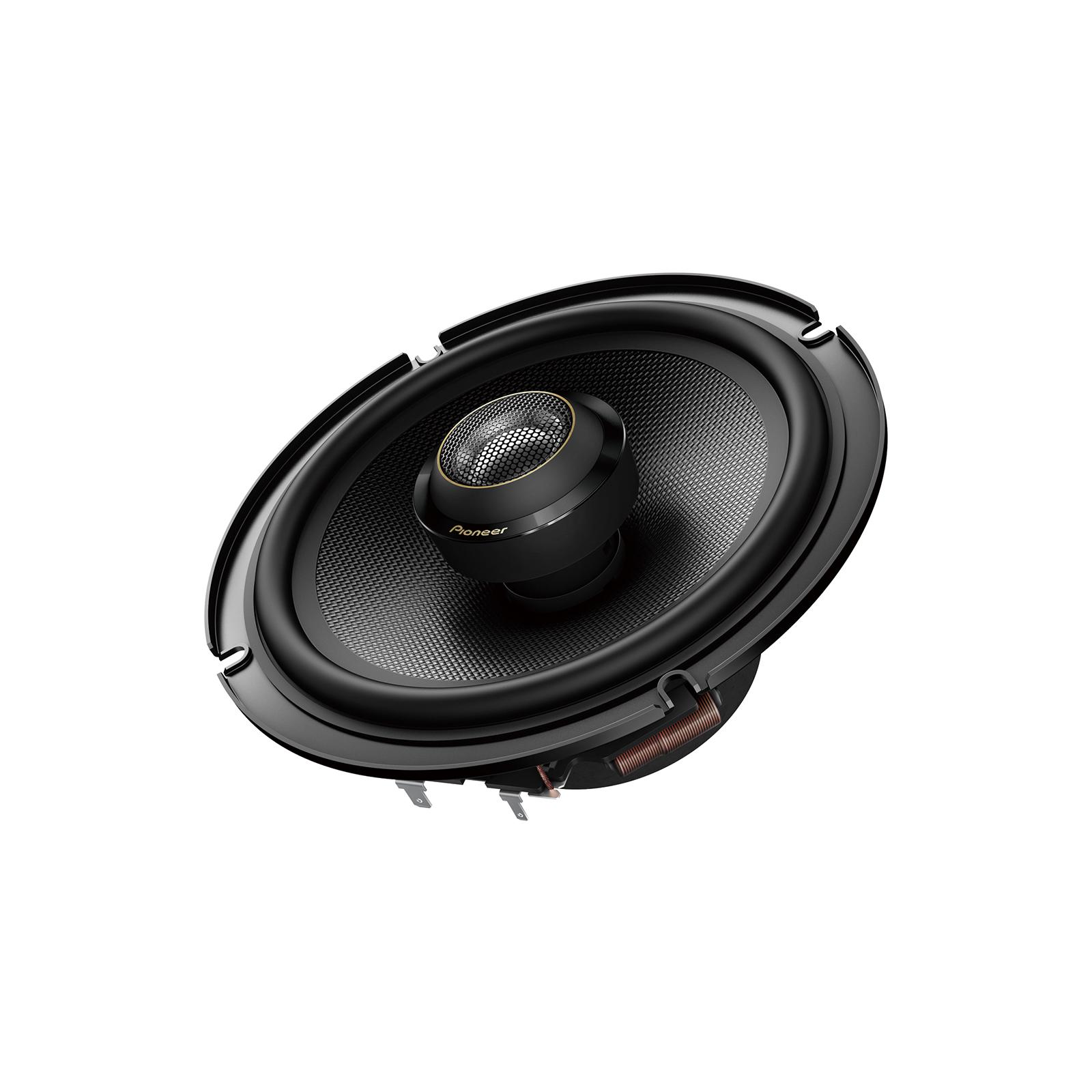

Pioneer TS-Z65F Speakers Z Series 6.5 Inch 16.5cm Car Door Coaxial 110w RMS
Couldn't Load Pickup availability
The Pioneer TS-Z65F is a 17cm (6.5 inch) 2-way coaxial car door speaker from Pioneer's Z Series, rated at 110W nominal and 330W maximum, with High Resolution Audio capability.
Want separate tweeters for better imaging? The Pioneer TS-Z65C is the component version in the same Z Series.
Key specifications
- Size: 17cm (6.5 inch) 2-way coaxial
- Power: 110W nominal / 330W max
- Frequency response: 32Hz – 96kHz
- Sensitivity: 85dB
- Impedance: 4Ω
- Mounting depth: 65mm
- Cut-out hole: 144mm
- Tweeter: 29mm aluminium hard dome, swivelling
- Weight: 0.89kg
TS-Z65F 17cm 2-Way Coaxial Speakers (330W)
The TS-Z65F is built around Pioneer's 'Open & Smooth' sound concept. It offers a wider frequency range and wider dynamic range than any other Pioneer speaker, enabling High Resolution Audio reproduction and reduced distortion at high volume levels.
The tweeter on the TS-Z Series is designed to swivel on the coaxial mount, giving you the best possible sound direction and straightforward installation in the vehicle.
Every element of the TS-Z65F is engineered to deliver a natural, immersive, high-quality sound experience with exceptional detail.
This 17cm 2-way coaxial speaker system delivers up to 330W maximum power and 110W nominal power.
During Pioneer's 80-year history, loudspeaker technology has been developed to push the limits of quality sound reproduction. Pioneer designs, engineers and manufactures each loudspeaker in-house to exact performance and quality standards. The Z and D series are designated 'High Performance' automotive loudspeakers. Pioneer has a team of expert professionals across Europe with the knowledge, experience and passion to install the Z and D series to the highest standard in your specific vehicle. These Pioneer partners can sell and install the Z and D series. Don't just listen to your music — HEAR MORE.
Open & Smooth
Open & Smooth delivers smooth frequency response and an expansive soundstage.
PERI Pioneer European Reference Installer
Pioneer has a team of expert professionals across Europe with the knowledge, experience and passion to sell and install the Pioneer Z and D series.
Explore the full range in Pioneer.
Specification
| Frequency response | 32 Hz - 96,000 Hz |
|---|---|
| Sensitivity | 85 dB |
| Impedance | 4 Ω |
| Mounting Depth | 65 mm |
| Voice Coil | type Copper Round Wire 2-Layer |
| Voice Coil | bobbin type Glass Imide |
| Magnets Woofer | Ferrite |
| Tweeter | Neodymium |
| Weight | 0.89 kg |
More specs
| |
What's Included
- Pioneer TS-Z65F
- Screws
Pioneer
About the Pioneer TS-Z65F
From our tech experts at CEN
A 6.5 inch coaxial pair, with the tweeter in the centre of the woofer, rated at 110w RMS.
Who it suits
Drivers replacing tired factory speakers who want a clear improvement without complication. These go where the originals were and sound better immediately.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Treating the door skin matters as much as the speaker. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Pioneer News & Guides
The latest Pioneer product news, launches and guides from the CEN team in Nottingham.
Apple CarPlay Stereo Buying Guide: Single DIN, Double DIN, Wired vs Wireless
The short answer: almost any car with a standard stereo aperture can have wireless Apple CarPlay and Android Auto for...
Embrace the Past with the Pioneer SXT-C10PS Retro Style Car Radio
In the ever-evolving world of car audio, there's a growing appreciation for the timeless charm of classic designs. The Pioneer...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Pioneer
More options from the same range, in stock and ready to go
Staff Pick Pioneer SXT-C10PS Retro Car Stereo Bluetooth DAB+ USB Aux Classic Radio OEM Look £349.99 /In stock
Save 19% Popular Pioneer SPH-DA77DAB Wireless Apple CarPlay Bluetooth DAB Radio Car Stereo RRP£429.00£349.00 / Save 19%In stock
Save 21% Best Seller Pioneer SPH-DA360DAB Wireless Apple CarPlay Bluetooth DAB Radio 6.8" Car Stereo RRP£469.00£369.00 / Save 21%In stock
Save 26% Popular Pioneer GM-D8701 Mono Amp 1 Channel Class FD Car Amplifier and Bass Boost Remote RRP£199.99£147.99 / Save 26%In stock
Save 34% Popular Pioneer TS-WX1010LA Powered Active Subwoofer Shallow Sub Bass Remote 300w RMS RRP£319.00£209.99 / Save 34%In stock
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What power can the Pioneer TS-Z65F handle?
A: The TS-Z65F is rated at 110W nominal input power and 330W maximum, with 85dB sensitivity and 4 ohm impedance.
Q: What mounting depth and cut-out does the TS-Z65F need?
A: It needs a mounting depth of 65mm and a 144mm cut-out hole.
Q: Is the TS-Z65F High Resolution Audio capable?
A: Yes. Its 32Hz to 96kHz frequency response allows it to reproduce High Resolution Audio, and the tweeter swivels on the coaxial to aim the sound.
