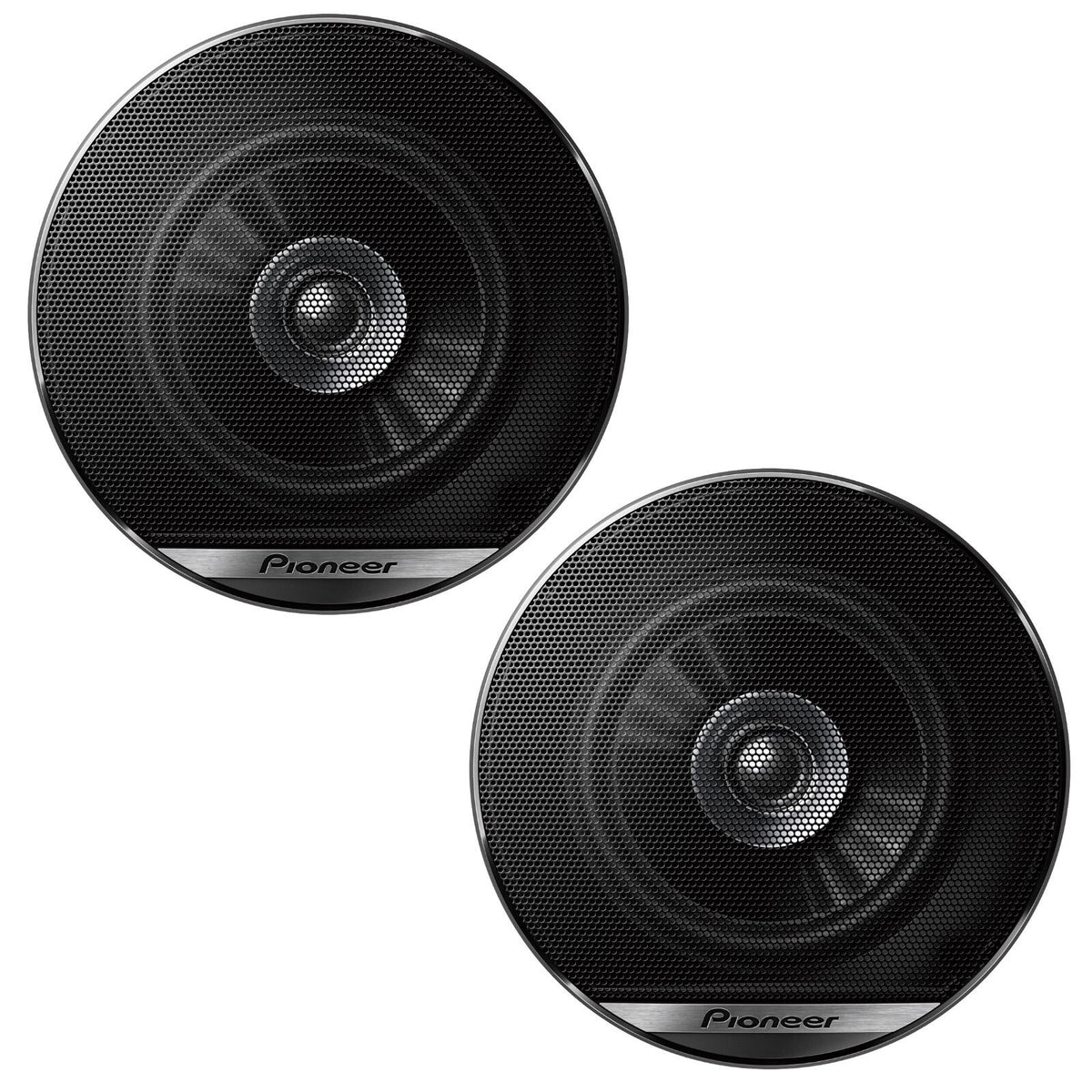

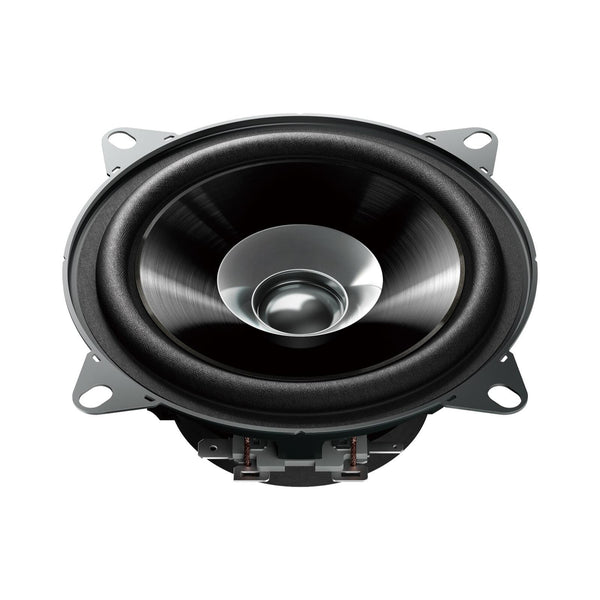

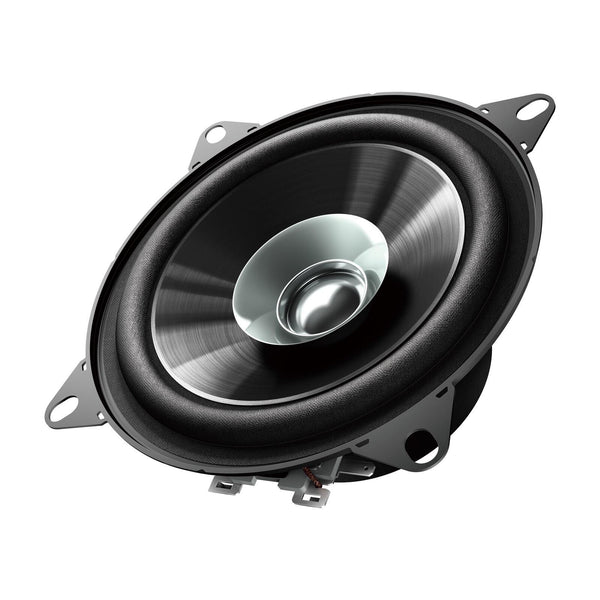

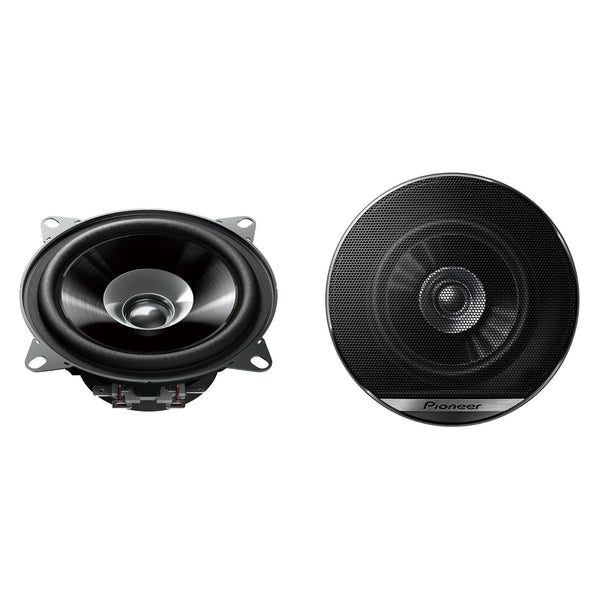

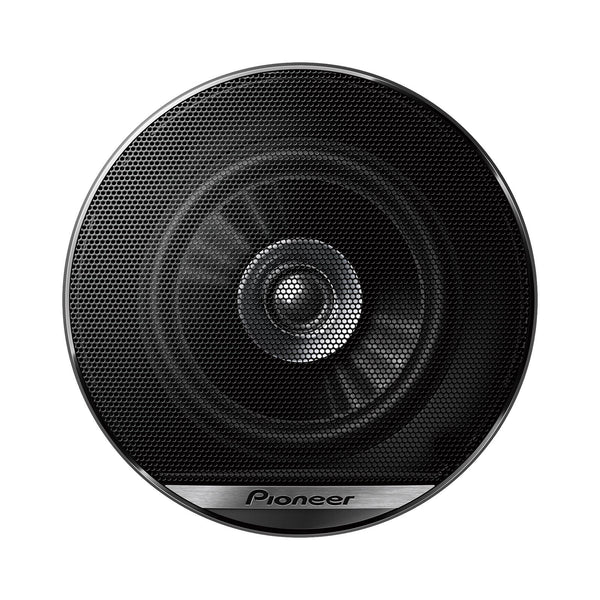

Pioneer TS-G1010F 10cm 4 Inch Dual Cone Car Coaxial Door Shelf Dash Speakers 30w
Couldn't Load Pickup availability
The Pioneer TS-G1010F is a 10cm (4 inch) dual cone coaxial speaker rated at 30W nominal and 190W maximum power, part of Pioneer's G-series. It's a straightforward replacement for factory door, shelf or dash speakers.
This listing is the TS-G1010F dual cone. The 10cm G-series is also available as a 3-way coaxial in the Pioneer TS-G1030F.
Key specifications
- Size: 10cm (4 inch)
- Type: dual cone coaxial
- Power: 30W nominal, 190W maximum
- Frequency response: 44Hz – 25,000Hz
- Sensitivity: 89dB
- Impedance: 4Ω
- Cut-out hole: 106mm
- Mounting depth: 43mm
10cm Dual Cone Speakers (190W)
A straightforward upgrade for factory-fitted speakers, the TS-G1010F delivers more power and better sound without a complicated install.
For better-sounding drives
The G-series range is built for powerful audio at good value. A rigid design with multi-bolt patterns keeps fitting simple across a range of vehicles. Increased power handling and high sensitivity deliver deep bass and clear highs, even at volume.
TS-G1010F
- Size: 10cm (4 inch)
- Configuration: dual cone coaxial
- Peak power handling: 190W
- Continuous power handling: 30W
- Suitable for door, shelf and dash installations
- Multi-bolt pattern for easy fitting
- High sensitivity for strong output at low power
Explore the full range in Pioneer TS-G Speakers.
Specification
| Impedance | 4 Ω |
|---|---|
| Frequency response | 44 - 25,000 |
| Sensitivity | 89 dB |
| Voice Coil | type Copper |
| Voice Coil | bobbin type KAPTON |
| Weight | 0.34 kg |
| Mounting Depth | 43 mm |
More specs
| |
What's Included
- Pioneer TS-G1010F
- Grills
- Speaker Cable and connectors 20cm
- Screws
Pioneer
About the Pioneer TS-G1010F
From our tech experts at CEN
A 4 inch coaxial pair, with the tweeter in the centre of the woofer.
Who it suits
Drivers replacing tired factory speakers who want a clear improvement without complication. These go where the originals were and sound better immediately.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Treating the door skin matters as much as the speaker. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Pioneer TS-G Speakers
More options from the same range, in stock and ready to go
PopularPioneer TS-G1710F 17cm 6.5 Inch Dual Cone Car Van Coaxial Door Speakers 40w RMS
£25.00
View product
Best SellerPioneer TS-G130C 13cm 5 Inch 2 Way Car Van Component Door Speakers 40w RMS
RRP £50.00Save 30%£34.99
Pioneer TS-G6930F Speakers 6x9” 3 Way Car Parcel Shelf Coaxial System 45w RMS
RRP £54.99Save 18%£44.99
Pioneer TS-G1730F 17cm 6.5 Inch 3 Way Car Van Coaxial Door Speakers 40w RMS
RRP £40.00Save 12%£34.95
Pioneer TS-R1750S 17cm 6.5 Inch 3 Way Car Van Coaxial Door Speakers 40w RMS
£49.99
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Is the Pioneer TS-G1010F a 2-way speaker?
A: No. The TS-G1010F is a dual cone speaker, so bass and high frequencies come from a single driver rather than a separate tweeter.
Q: What cut-out size and mounting depth does the TS-G1010F need?
A: It needs a 106mm cut-out hole and 43mm of mounting depth.
Q: What's in the box with the TS-G1010F?
A: The speakers, grilles, 20cm speaker cables with connectors, and screws.
