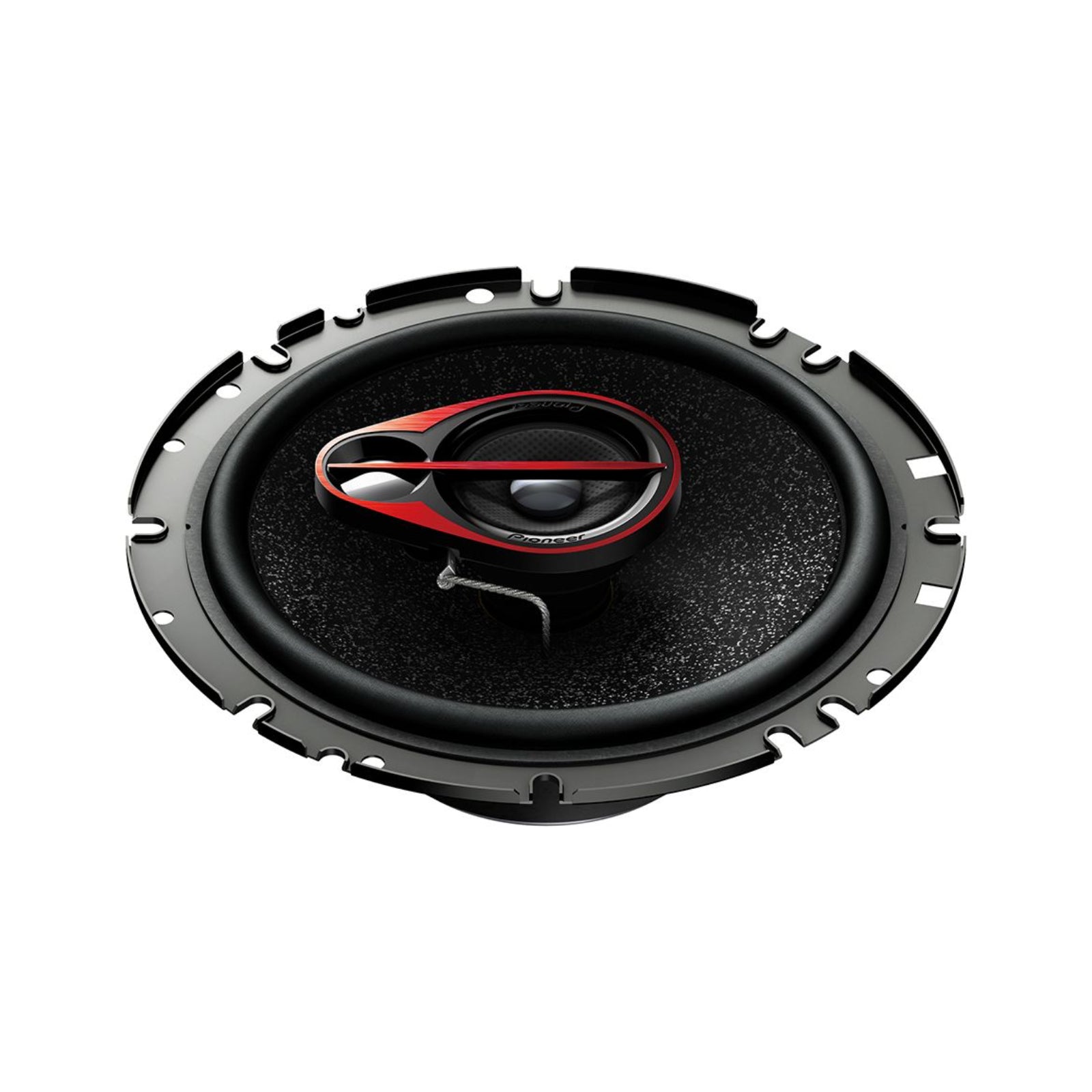

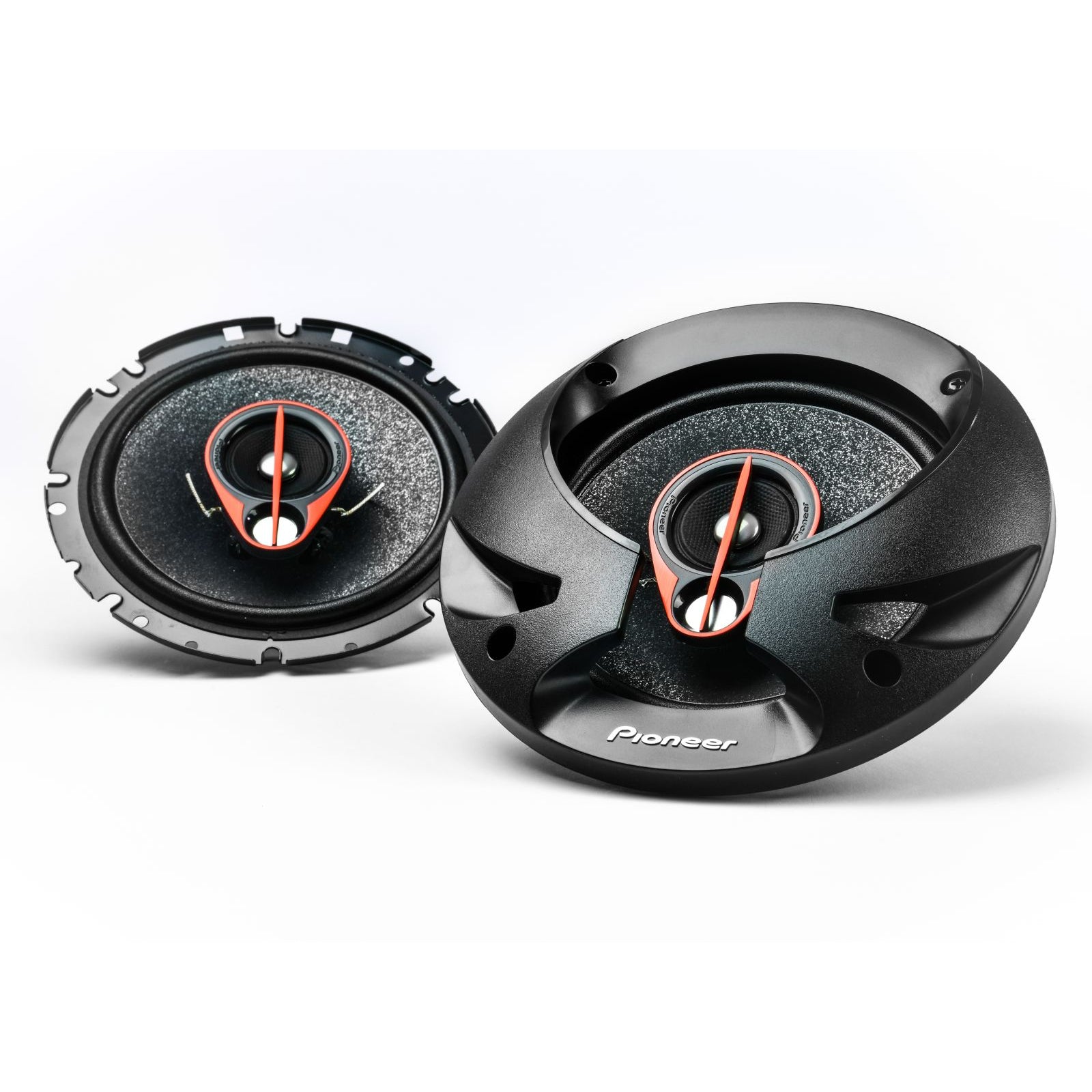

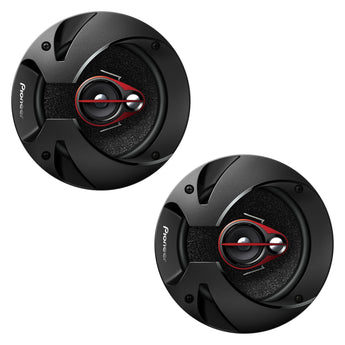

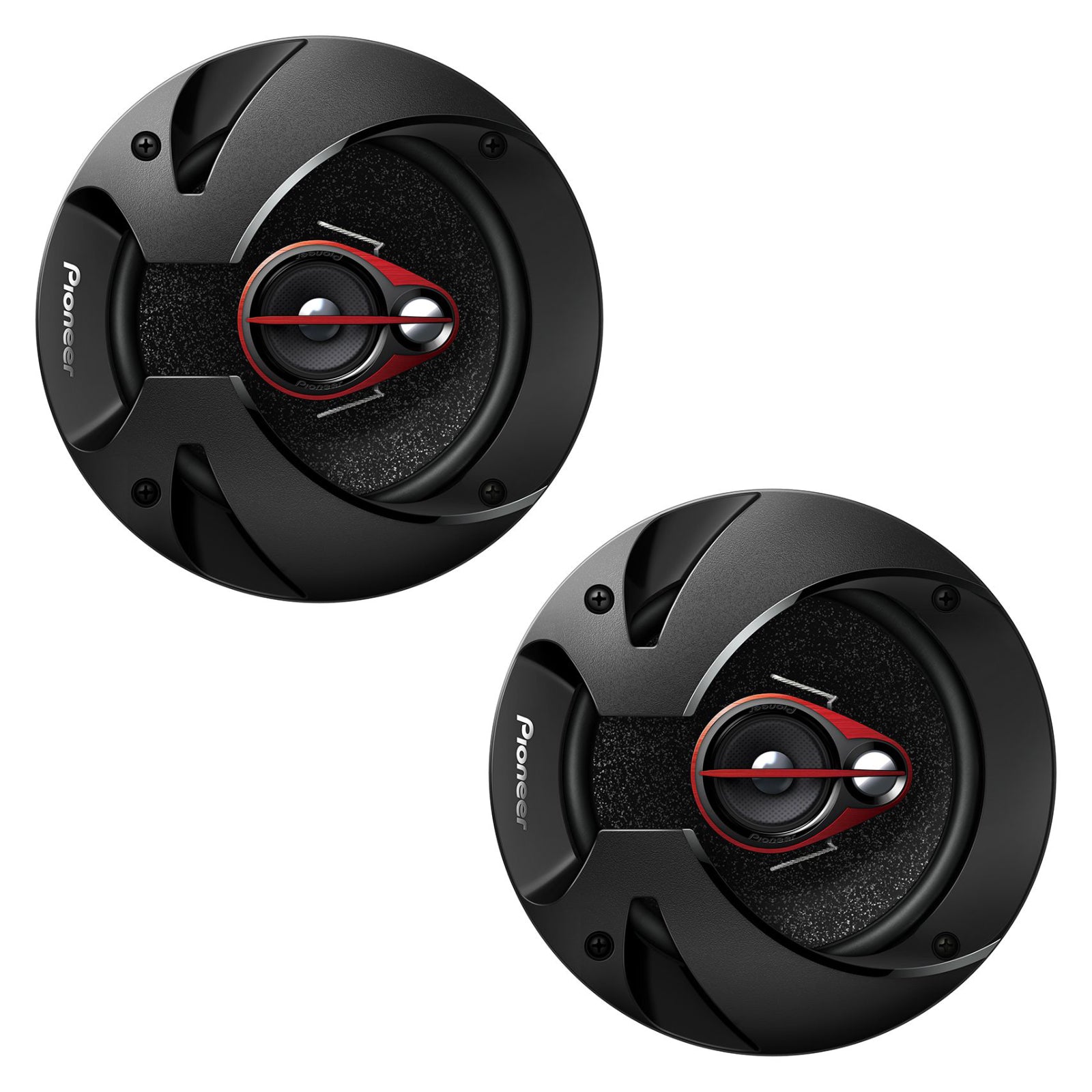

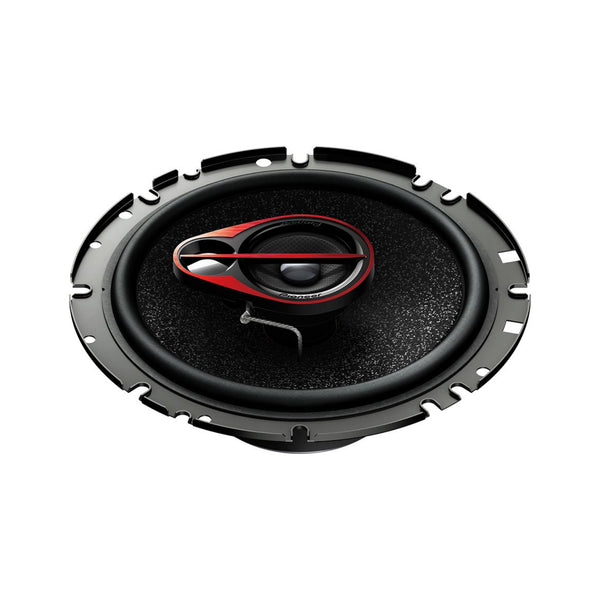

Pioneer TS-R1750S 17cm 6.5 Inch 3 Way Car Van Coaxial Door Speakers 40w RMS
Couldn't Load Pickup availability
The Pioneer TS-R1750S is a 17cm (6.5 inch) 3-way coaxial car and van door speaker, rated at 40W RMS and 250W peak, from Pioneer's TS-R speaker range.
This listing is the TS-R1750S. If you're looking for an alternative 17cm 3-way coaxial option, Pioneer also offer the TS-G1730F.
Key specifications
- Size: 17cm (6.5 inch)
- Type: 3-way coaxial
- Power: 40W RMS, 250W peak
- Frequency response: 36Hz – 31,000Hz
- Sensitivity: 90dB
- Impedance: 4Ω
- Cut-out hole: 137mm
- Mounting depth: 47mm
17cm 3-way Coaxial Speakers (250W)
A straightforward factory speaker upgrade, the TS-R1750S delivers clear, balanced sound from a compact 17cm driver with a Multi-Layer Mica Matrix cone.
- 3-way coaxial design with built-in tweeter and mid bass driver
- Well-balanced reproduction of vocals and bass
- 40W RMS power handling
- 250W peak power
- Suitable for car and van door installations
Explore the full range in Pioneer TS-G Speakers.
Specification
| Frequency response | 36 Hz - 31,000 Hz |
|---|---|
| Impedance | 4 Ω |
| Maximum input power | 250 W |
| Nominal input power | 40 W |
| Sensitivity | 90 dB |
| Series | R-Series |
| Diameter Size | 17 cm |
| Dimensions | 183 mm x 77 mm |
| Magnets | Ferrite |
| Woofer material | Multi-Layer Mica Matrix cone |
| Cut-out Hole | 137 mm |
| Mounting Depth | 47 mm |
| Speaker Grill | Included |
| Weight | 0.70 kg |
What's Included
- TS-R1750S
- Grills
Pioneer
About the Pioneer TS-R1750S
From our tech experts at CEN
The Pioneer TS-R1750S is a 17cm (6.5 inch) 3-way coaxial car and van door speaker, rated at 40W RMS and 250W peak power. It uses a Multi-Layer Mica Matrix cone, with 4Ω impedance, 90dB sensitivity, and a frequency response of 36Hz to 31,000Hz. Mounting depth is 47mm and the cut-out requirement is 137mm.
Who it suits
These suit drivers wanting a clean factory speaker upgrade without separate crossovers or additional wiring. The 3-way coaxial design handles vocals and bass in a single unit, making it a practical choice for cars and vans. For a step up with independent tweeter placement, consider the Pioneer TS-G170C component speakers.
Our tech experts advise
Before ordering, confirm your door has at least 137mm cut-out diameter and 47mm mounting depth. Grills are included in the box. These are compatible with most standard head units, though an amplifier will make better use of the 250W peak handling. Installation is priced per vehicle — contact our Nottingham team to arrange fitting.
Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Pioneer TS-G Speakers
More options from the same range, in stock and ready to go
PopularPioneer TS-G1710F 17cm 6.5 Inch Dual Cone Car Van Coaxial Door Speakers 40w RMS
£25.00
View product
Pioneer TS-G170C 17cm 6.5 Inch 2 Way Car Van Component Door Speakers 45w RMS
RRP £60.00Save 16%£49.99
Pioneer TS-G1030F 10cm 4 Inch 3 Way Car Coaxial Door Shelf Dash Speakers 30w RMS
RRP £39.00Save 25%£29.00
Pioneer TS-G1010F 10cm 4 Inch Dual Cone Car Coaxial Door Shelf Dash Speakers 30w
£19.99
Best SellerPioneer TS-G130C 13cm 5 Inch 2 Way Car Van Component Door Speakers 40w RMS
RRP £50.00Save 30%£34.99
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What cut-out size and mounting depth does the TS-R1750S need?
A: It needs a 137mm cut-out hole and 47mm of mounting depth. Overall dimensions are 183mm x 77mm.
Q: What is the TS-R1750S cone made from?
A: The woofer uses a Multi-Layer Mica Matrix cone with a ferrite magnet.
