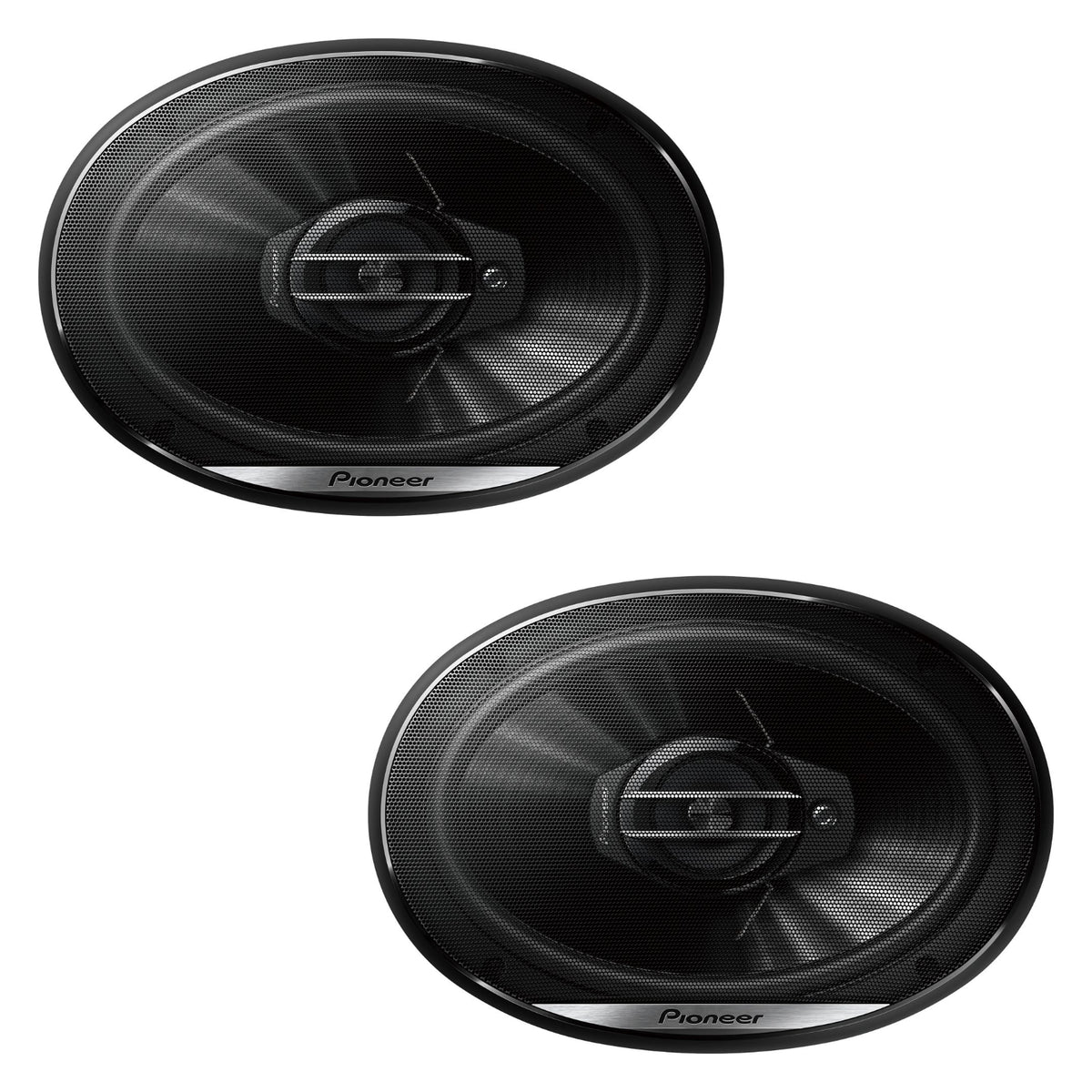

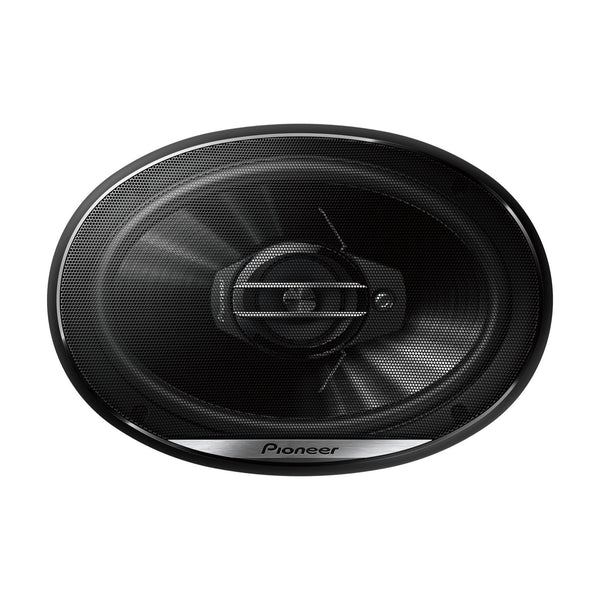

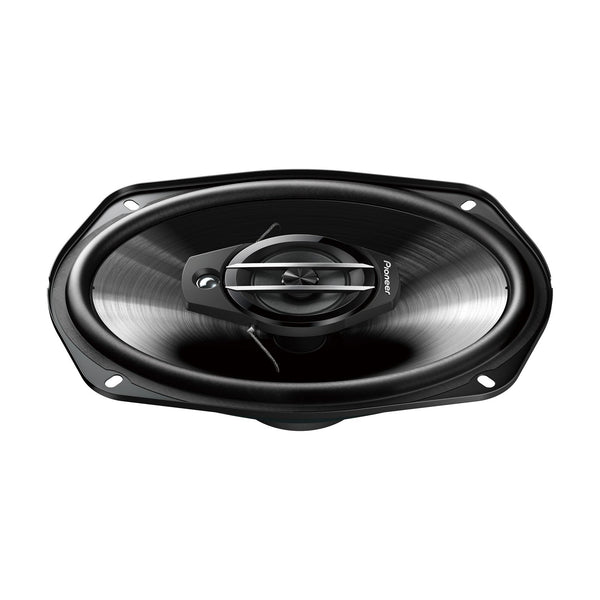

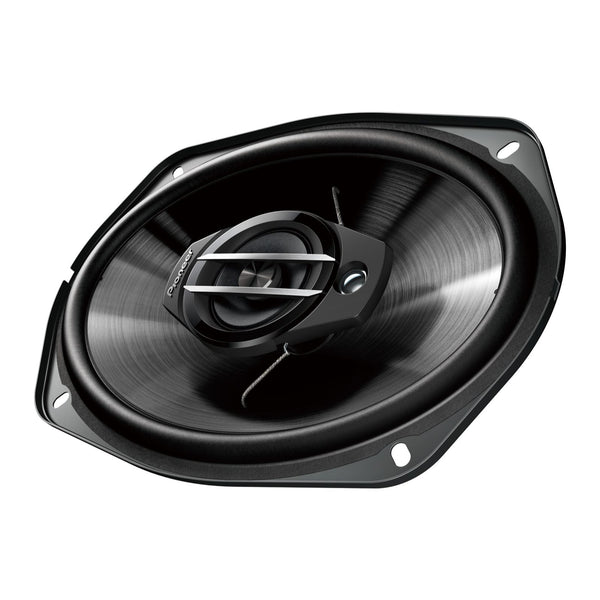

Pioneer TS-G6930F Speakers 6x9” 3 Way Car Parcel Shelf Coaxial System 45w RMS
Couldn't Load Pickup availability
The Pioneer TS-G6930F is a 6x9 inch 3-way coaxial speaker rated at 45W RMS and 400W peak, made for standard parcel shelf mounting. It is part of Pioneer's TS-G speaker range.
Key specifications
- Size: 6 x 9 inch
- Type: 3-way coaxial
- Power: 45W RMS, 400W peak
- Frequency response: 32Hz – 32,000Hz
- Sensitivity: 90dB
- Impedance: 4Ω
- Cut-out hole: 153 x 222mm
- Mounting depth: 70mm
TS-G6930F — 6x9 inch 3-way coaxial speakers
A straightforward parcel shelf upgrade. The TS-G6930F handles 45W RMS and fits standard 6x9 inch cut-outs without modification. If you need a smaller fitting, the Pioneer TS-G1730F offers a 17cm 3-way coaxial option at 40W RMS.
Key features
- 3-way coaxial design with built-in tweeter and mid-bass driver for a balanced mix of vocals and bass
- Pioneer IMPP™ cone: Injection Moulded Polypropylene Composite construction for improved clarity and reduced distortion
- 45W RMS power handling
- 400W peak power handling
- 6x9 inch fitment, designed for standard parcel shelf mounting
Explore the full range in Pioneer TS-G Speakers.
Specification
| Frequency response | 32 Hz- 32,000 Hz |
|---|---|
| Impedance | 4 Ω |
| Maximum input power | 400 W |
| Nominal input power | 45 W |
| Sensitivity | 90 dB |
| Series | G-Series |
| Diameter Size | 6 x 9 inch |
| Dimensions | 264 mm x 97 mm x 184 mm |
| Magnets | Ferrite |
| Woofer material | Polypropylene (PP) |
| Cut-out Hole | 153 x 222 mm |
| Mounting Depth | 70 mm |
| Speaker Grill | Included |
| Weight | 0.72 kg |
More specs
| |
What's Included
- TS-G6930F
- Grills
Pioneer
About the Pioneer TS-G6930F
From our tech experts at CEN
A 6x9 inch coaxial pair, with the tweeter in the centre of the woofer, rated at 45w RMS.
Who it suits
Drivers replacing tired factory speakers who want a clear improvement without complication. These go where the originals were and sound better immediately.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Treating the door skin matters as much as the speaker. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Pioneer TS-G Speakers
More options from the same range, in stock and ready to go

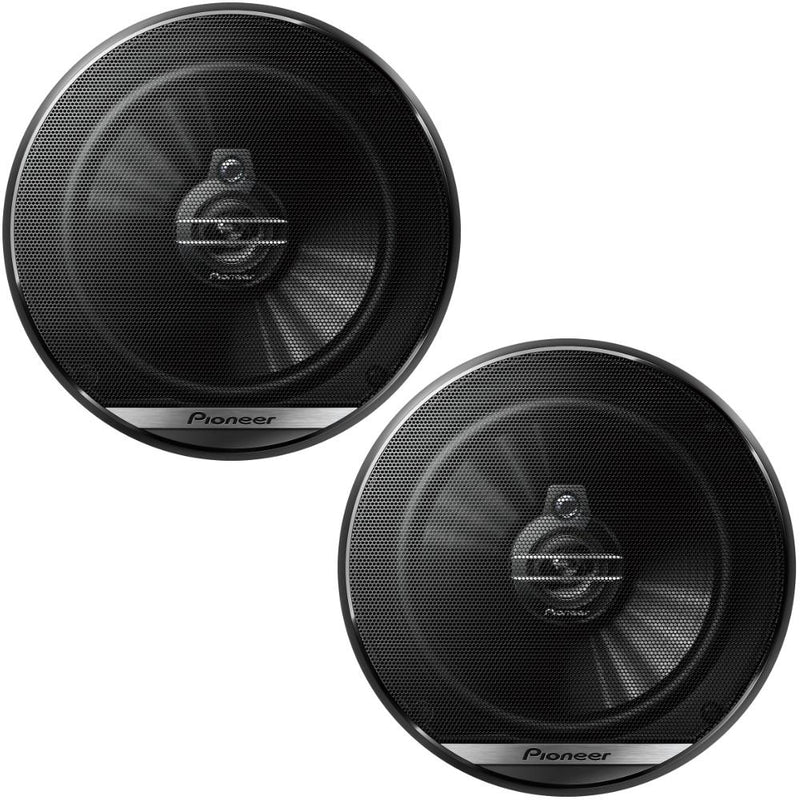

Pioneer TS-G1730F 17cm 6.5 Inch 3 Way Car Van Coaxial Door Speakers 40w RMS
RRP £40.00Save 12%£34.95

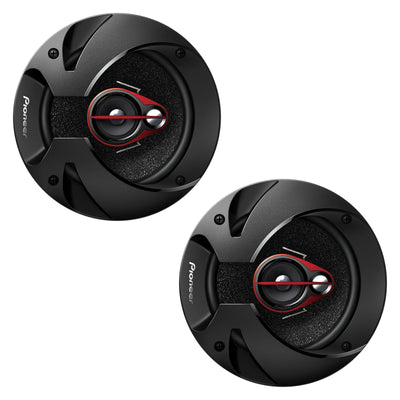

Pioneer TS-R1750S 17cm 6.5 Inch 3 Way Car Van Coaxial Door Speakers 40w RMS
£49.99
Pioneer TS-G170C 17cm 6.5 Inch 2 Way Car Van Component Door Speakers 45w RMS
RRP £60.00Save 16%£49.99
Pioneer TS-G1030F 10cm 4 Inch 3 Way Car Coaxial Door Shelf Dash Speakers 30w RMS
RRP £39.00Save 25%£29.00
Pioneer TS-G1010F 10cm 4 Inch Dual Cone Car Coaxial Door Shelf Dash Speakers 30w
£19.99
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What cut-out size does the Pioneer TS-G6930F need?
A: A 153 x 222mm cut-out, with 70mm of mounting depth. Overall dimensions are 264 x 97 x 184mm.
Q: Are grilles included with the TS-G6930F?
A: Yes, grilles are included with the speakers.
