Pioneer TS-WX140DA Under Seat Subwoofer Amplifier Space Saving Car Bass Box Sub
Couldn't Load Pickup availability
The Pioneer TS-WX140DA is a compact active under-seat subwoofer with a built-in Class-D amplifier, a 20 cm aluminium cone driver, and 170 W maximum power. It belongs to Pioneer's space-saving DIGITAL BASS CONTROL subwoofer range.
This listing is the TS-WX140DA. The Pioneer under-seat subwoofer range is also available as the Pioneer TS-WX130EA.
Key specifications
- Driver size: 20 cm, aluminium cone
- Power: 170 W maximum, 50 W continuous (nominal)
- Amplifier: built-in Class-D
- Bass modes: DIGITAL BASS CONTROL with DEEP, NATURAL and DYNAMIC
- Frequency response: 20 – 200 Hz (DEEP mode)
- Inputs: high level (speaker line) and low level (RCA line)
- Control: supplied wired remote, CarSoundFit App
- Enclosure: sealed
- Dimensions (W x H x D): 280 x 200 x 70 mm
- Weight: 3.1 kg

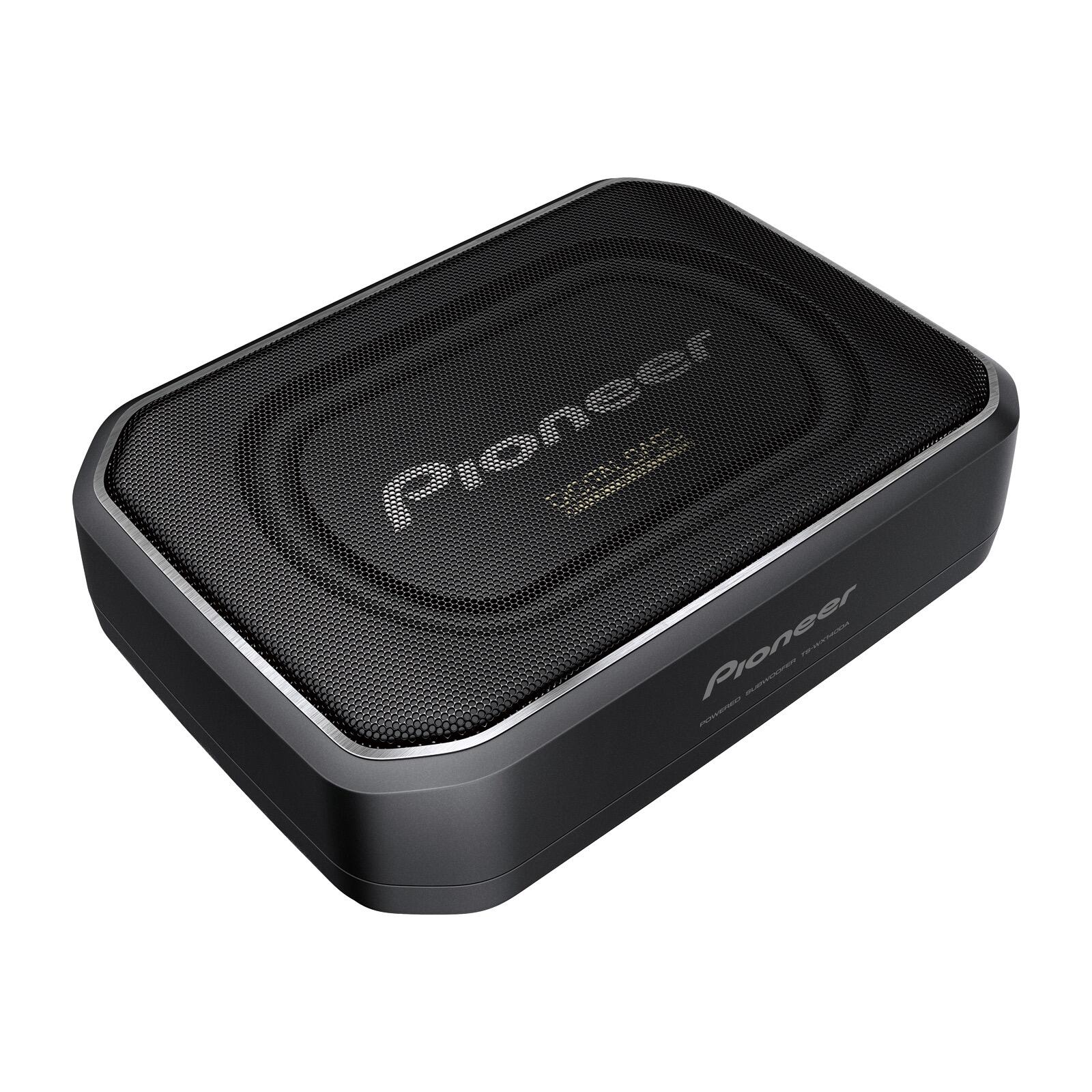

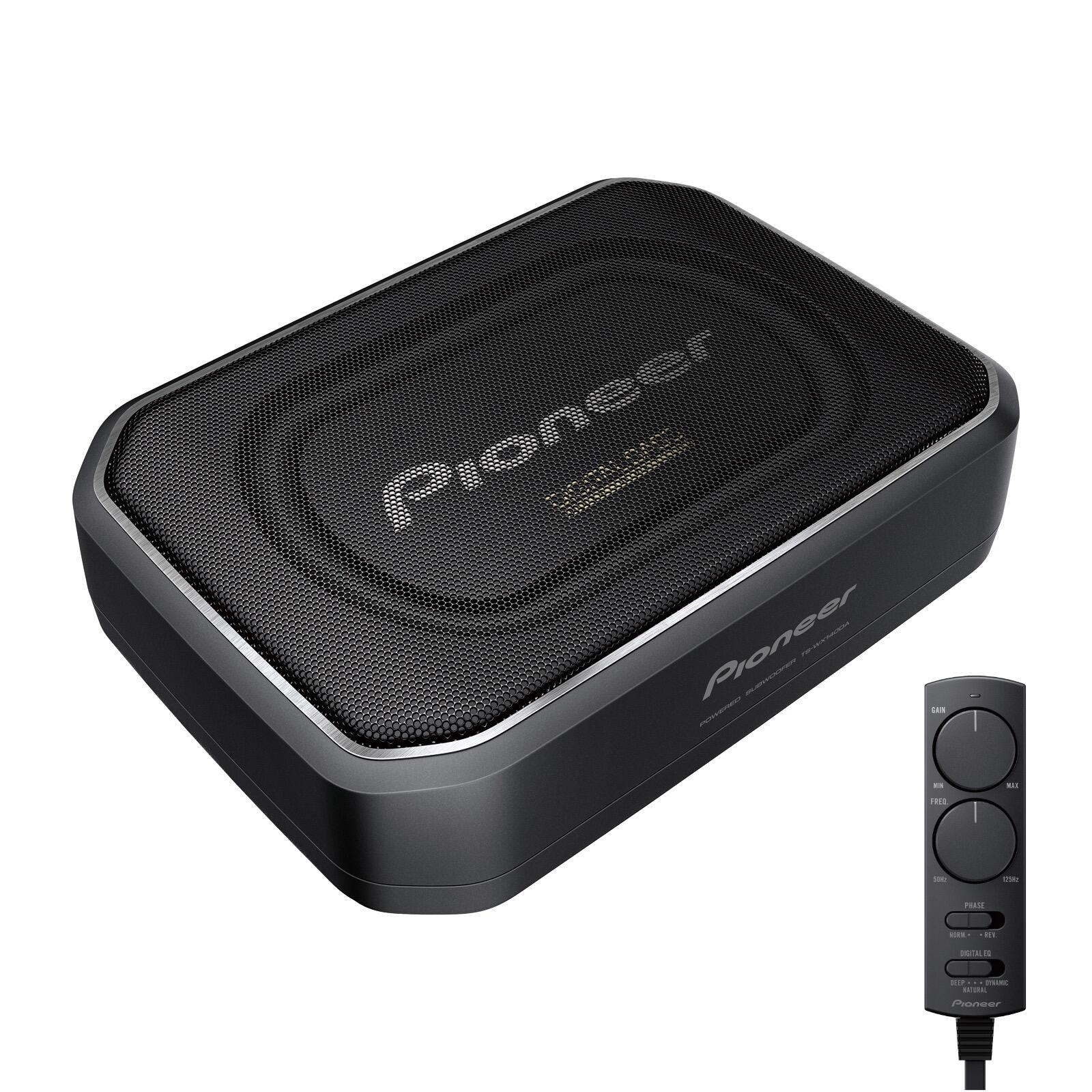

Pioneer TS-WX140DA Space Saving Active Subwoofer

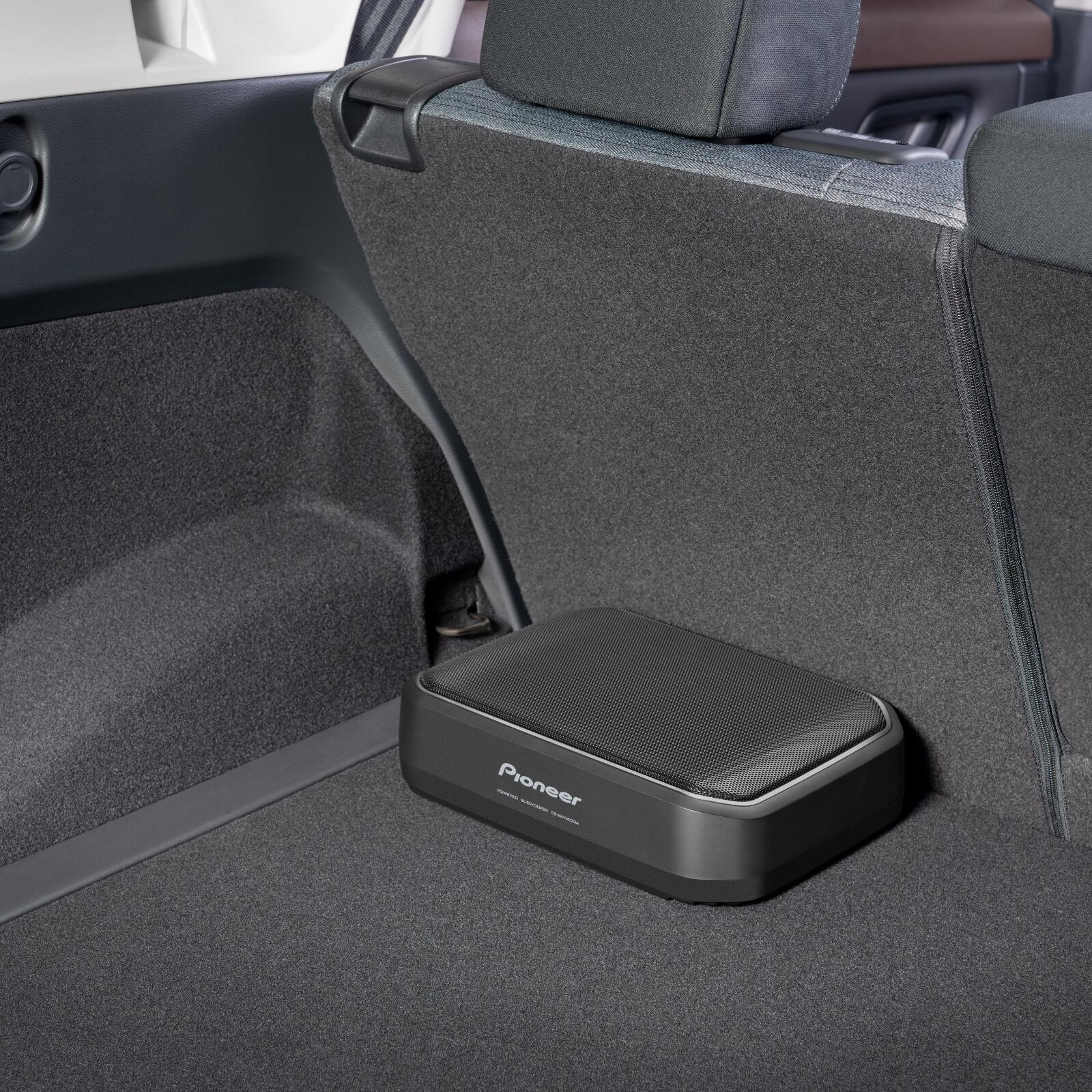

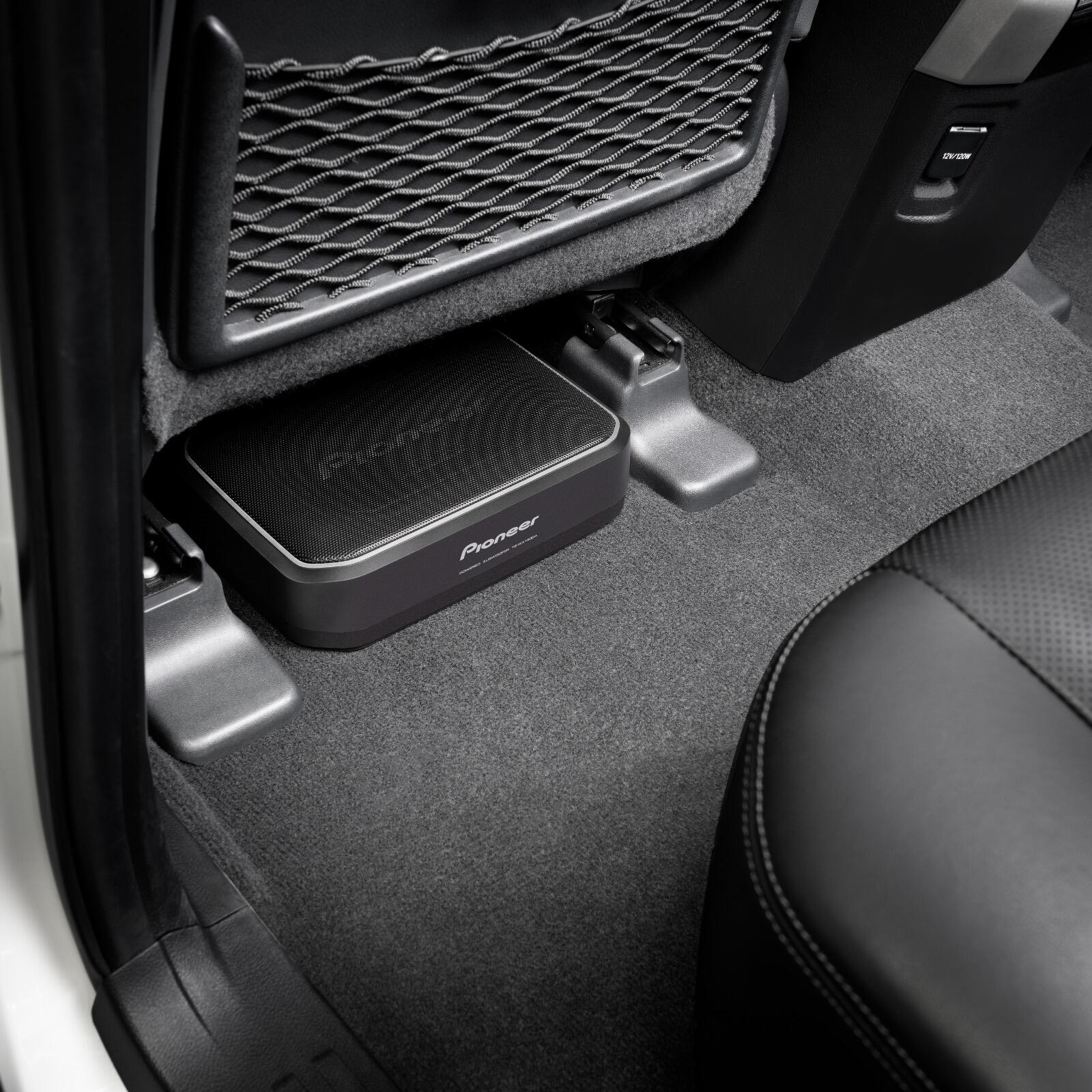

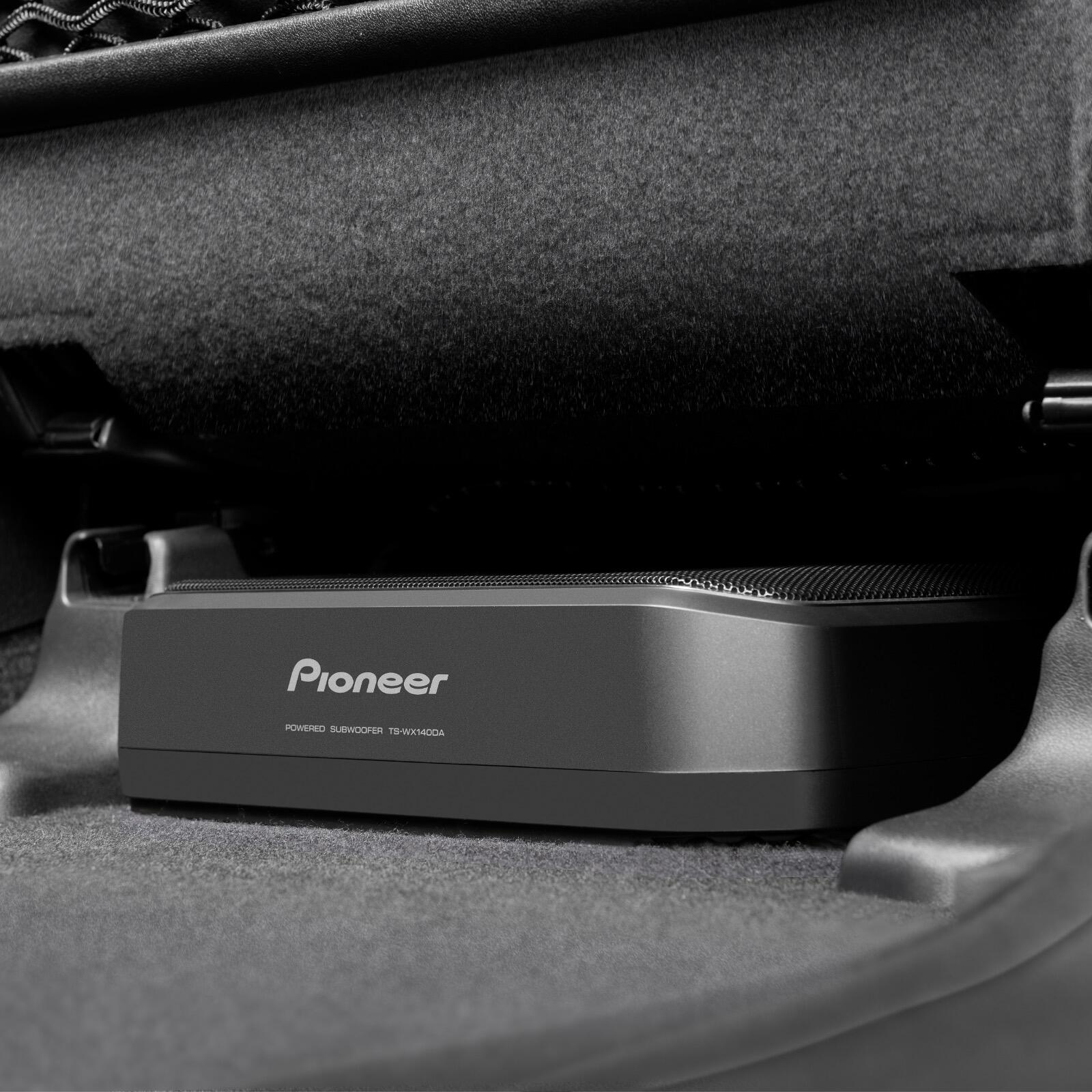

Compact active subwoofer with a built-in Class-D amplifier and DIGITAL BASS CONTROL, offering DEEP, NATURAL and DYNAMIC bass modes. Its small footprint makes it easy to mount under a front seat or in the boot.
Powerful Bass, Without Losing Space

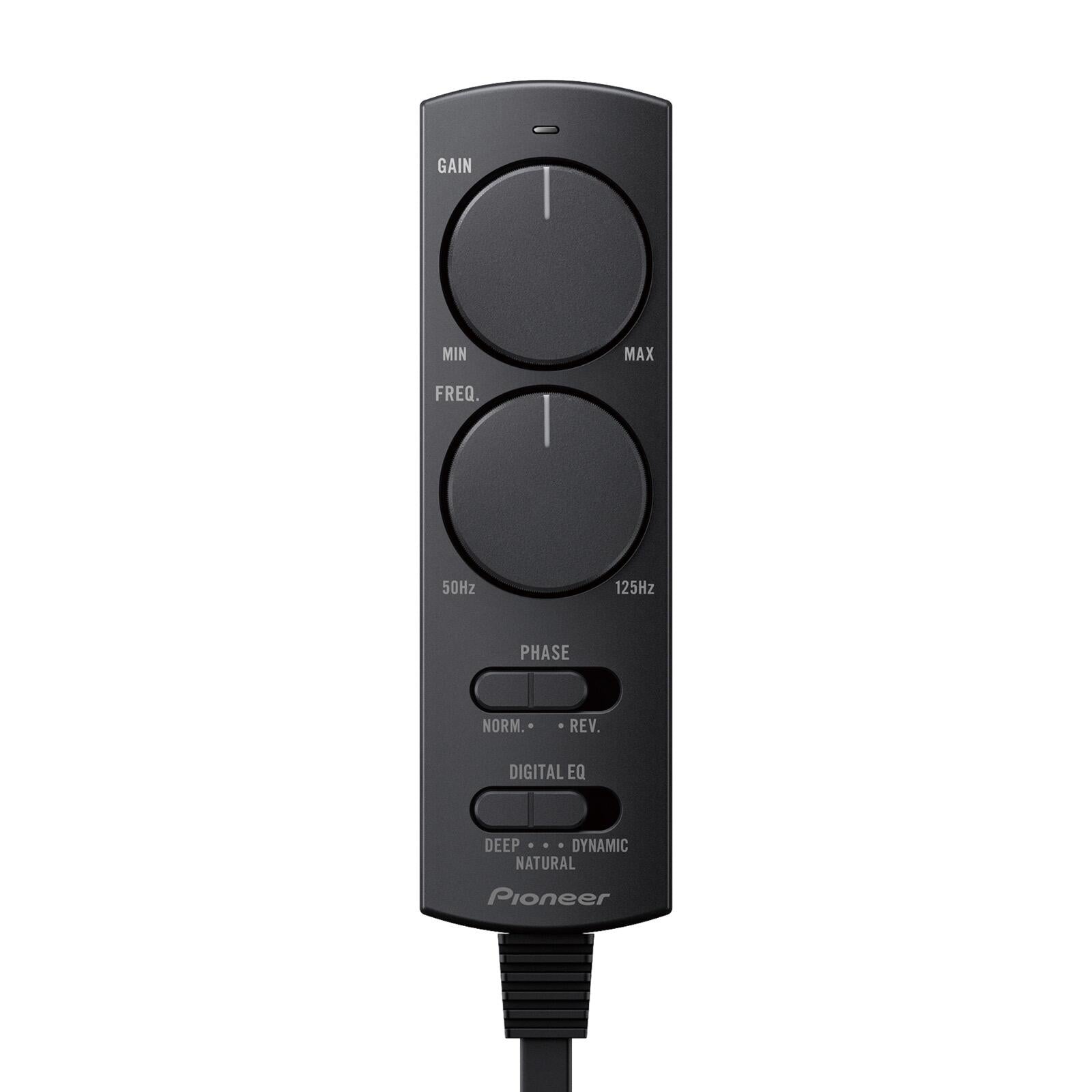

DIGITAL BASS CONTROL gives you three selectable bass modes — DEEP, NATURAL and DYNAMIC — delivering 170 W of strong, deep bass without sacrificing interior space. The supplied wired remote lets you switch between modes quickly and easily.
Connects to Factory or Aftermarket Stereos
The TS-WX140DA accepts both high-level (speaker line) and low-level (RCA line) inputs, so it connects directly to a factory-fitted or aftermarket stereo with no additional hardware needed. If you need a larger self-powered option, Pioneer also offer the Pioneer TS-WX300A 12" active subwoofer.
Explore the full range in Popular Products.
Specification
| Frequency response | DEEP Bass Mode 20 - 200 Hz |
|---|---|
| NATURAL Bass Mode | 40 - 200 Hz |
| DYNAMIC Bass Mode | 40 - 160 Hz |
| Sensitivity | DEEP Bass Mode 95 dB |
| NATURAL Bass Mode | 98 dB |
| DYNAMIC Bass Mode | 100 dB |
| Surround | Urethane |
| Voice Coil | type Copper Round Wire 4-Layer |
| Voice Coil | bobbin type Glass Imide |
| Weight | 3,1 kg |
| Dimensions | (W x H x D) 280 x 200 x 70 |
More specs
| |
What's Included
- Powered subwoofer
- 10.5" RCA input harness (4-pin Molex plug/2 female RCAs)
- Power harness with 16.5' power and remote turn-on leads and 6' ground wire (3-pin Molex plug)
- 10A ATO fuse in fuse holder (installed on power wire)
- Wired Digital Bass Control with attached 16.25' cable (RJ-45 plug)
- 2 Mounting feet
- Cable clamp
- 2 Self-tapping screws (M5 x 18mm)
- 2 Machine screws (M5 x 14mm)
- 2 Machine screws (M3 x 8mm)
- Adhesive backed hook-and-loop pad
- Instruction Manual
Pioneer
About the Pioneer TS-WX140DA
From our tech experts at CEN
A subwoofer supplied in its enclosure.
Who it suits
Drivers who want bass without commissioning a custom build, where the box is already matched to the driver.
Our tech experts advise
A subwoofer is only as good as its enclosure and the amplifier behind it. We build enclosures and match amplification at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Pioneer News & Guides
The latest Pioneer product news, launches and guides from the CEN team in Nottingham.
Apple CarPlay Stereo Buying Guide: Single DIN, Double DIN, Wired vs Wireless
The short answer: almost any car with a standard stereo aperture can have wireless Apple CarPlay and Android Auto for...
Embrace the Past with the Pioneer SXT-C10PS Retro Style Car Radio
In the ever-evolving world of car audio, there's a growing appreciation for the timeless charm of classic designs. The Pioneer...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Popular Products
More options from the same range, in stock and ready to go
Save 19% Popular Pioneer SPH-DA77DAB Wireless Apple CarPlay Bluetooth DAB Radio Car Stereo RRP£429.00£349.00 / Save 19%In stock
Save 15% Popular NOCO Boost X GBX75 2500A UltraSafe Jump Starter Power Pack 12V Battery Booster RRP£259.95£219.95 / Save 15%In stock
Popular Helix Amplify 206 DSP 6 Channel Amplifier with 8 Channel Digital Sound Processor £499.99 /In stock
Save 19% Popular Blaupunkt Bremen SQR 46 Retro Car Stereo 80's Classic Bluetooth DAB+ USB SD AUX RRP£479.99£389.99 / Save 19%In stock
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: Will the Pioneer TS-WX140DA fit under my seat?
A: It is designed to mount under the front seats or in the boot, and measures 280 x 200 x 70 mm (W x H x D). Check the space under your seat against these dimensions, or contact CEN with your vehicle details.
Q: Can the TS-WX140DA connect to a factory stereo?
A: Yes. It accepts both high level (speaker line) and low level (RCA line) input signals, so it can be connected to an original factory fitted stereo or an aftermarket head unit.
Q: What are the DEEP, NATURAL and DYNAMIC bass modes?
A: They are the three DIGITAL BASS CONTROL modes, selected from the supplied wired remote. DEEP covers 20 to 200 Hz, NATURAL 40 to 200 Hz and DYNAMIC 40 to 160 Hz, with sensitivity of 95 dB, 98 dB and 100 dB respectively.
