Pioneer TS-WX130EA Under Seat Subwoofer Amplifier Space Saving Car Bass Box Sub
Couldn't Load Pickup availability

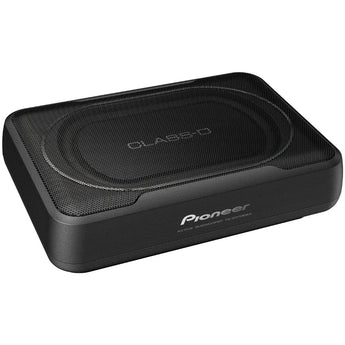

The Pioneer TS-WX130EA is a compact active subwoofer with a built-in Class D amplifier, producing 160W maximum (50W nominal) power from a sealed enclosure measuring 280 x 200 x 70mm — small enough to fit under a front seat or in the boot. It is part of Pioneer's Class D amplified subwoofer range.
Key specifications
- Type: active subwoofer with built-in Class D amplifier
- Maximum power: 160W
- Nominal power: 50W
- Driver: 20cm, aluminium cone
- Frequency response: 40 – 200Hz
- Sensitivity: 98dB
- Inputs: high level (speaker) and low level (RCA)
- Dimensions (W x H x D): 280 x 200 x 70mm
- Weight: 3.0kg
Powerful bass, without losing space
The TS-WX130EA delivers 160W of deep, rich bass without taking up significant space. Amplifier adjustments are made directly on the unit itself, so you can control and customise bass output easily. It mounts under a front seat or in the boot. If you need more output or a larger driver, Pioneer also offer the TS-WX1010LA shallow active subwoofer with 300W RMS.
Simple installation with any stereo
Thanks to Class D technology, the TS-WX130EA accepts both high-level (speaker line) and low-level (RCA) inputs, so it connects to aftermarket or original factory-fitted stereos without additional components. This makes it a straightforward upgrade to your existing in-car audio setup.
Explore the full range in Pioneer.
Specification
| Frequency response | 40 - 200 Hz |
|---|---|
| Sensitivity | 98 dB |
| Voice Coil | type Copper Round Wire 4-Layers |
| Voice Coil | bobbin type Glass Imide |
| Weight | 3.0 kg |
| Dimensions | (W x H x D) 280 x 200 x 70 mm |
More specs
| |
What's Included
- Powered subwoofer
- 10.5" RCA input harness (4-pin Molex plug/2 female RCAs)
- Power harness with 16.5' power and remote turn-on leads and 6' ground wire (3-pin Molex plug)
- 10A ATO fuse in fuse holder (installed on power wire)
- 2 Mounting feet
- Cable clamp
- 2 Self-tapping screws (M5 x 18mm)
- 2 Machine screws (M5 x 14mm)
- 2 Machine screws (M3 x 8mm)
- Adhesive backed hook-and-loop pad
- Instruction Manual
Pioneer
About the Pioneer TS-WX130EA
From our tech experts at CEN
A subwoofer supplied in its enclosure.
Who it suits
Drivers who want bass without commissioning a custom build, where the box is already matched to the driver.
Our tech experts advise
A subwoofer is only as good as its enclosure and the amplifier behind it. We build enclosures and match amplification at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Pioneer News & Guides
The latest Pioneer product news, launches and guides from the CEN team in Nottingham.
Apple CarPlay Stereo Buying Guide: Single DIN, Double DIN, Wired vs Wireless
The short answer: almost any car with a standard stereo aperture can have wireless Apple CarPlay and Android Auto for...
Embrace the Past with the Pioneer SXT-C10PS Retro Style Car Radio
In the ever-evolving world of car audio, there's a growing appreciation for the timeless charm of classic designs. The Pioneer...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Pioneer
More options from the same range, in stock and ready to go
Staff Pick Pioneer SXT-C10PS Retro Car Stereo Bluetooth DAB+ USB Aux Classic Radio OEM Look £349.99 /Low stock
Save 19% Popular Pioneer SPH-DA77DAB Wireless Apple CarPlay Bluetooth DAB Radio Car Stereo RRP£429.00£349.00 / Save 19%In stock
Save 11% Popular Pioneer TS-WX140DA Under Seat Subwoofer Amplifier Space Saving Car Bass Box Sub RRP£179.00£159.00 / Save 11%In stock
Save 19% Staff Pick Pioneer AVH-Z7200DAB 7" Flip Out Motorised Apple CarPlay Bluetooth Car Stereo RRP£719.00£579.99 / Save 19%In stock
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: Will the TS-WX130EA work with my factory stereo?
A: Yes. It accepts both high-level (speaker line) and low-level (RCA) inputs, so it can connect to an aftermarket or original factory fitted stereo.
Q: Where can the TS-WX130EA be mounted?

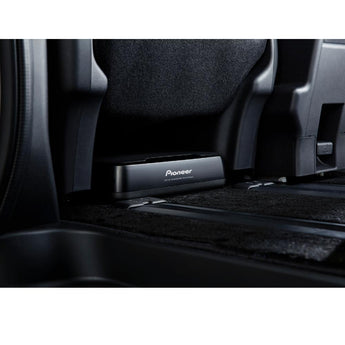

A: Its 280 x 200 x 70mm sealed enclosure is designed to fit under the front seats or in the boot.
Q: How powerful is the TS-WX130EA?
A: Its built-in Class D amplifier delivers 160W maximum and 50W nominal power.
