Pioneer TS-A300S4 Sub 12" 30cm Single Voice Coil Subwoofer 500w RMS

RRP £90.00 £79.00 Save 12% Best Seller
In stock
SKU: 91391MPN: TS-A300S4
Part of the range · 21 productsPart of the Pioneer Subwoofers range · 21 products See the range →

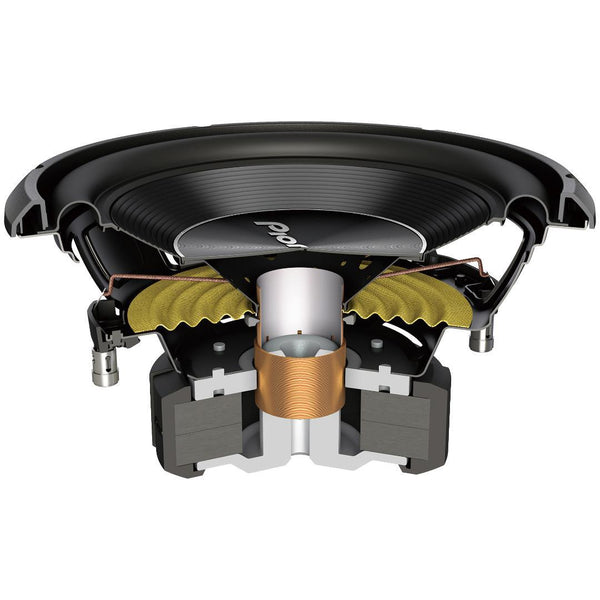

The Pioneer TS-A300S4 is a 30cm (12-inch) single voice coil, 4-ohm subwoofer from Pioneer's A-Series, rated at 500W RMS continuous and 1500W maximum. It is a passive driver requiring an enclosure and external amplifier.

Key specifications

  • Size: 30cm (12-inch)
  • Power: 500W continuous, 1500W maximum
  • Impedance: 4 ohms, single voice coil
  • Cone: injection moulded polypropylene (IMPP™)
  • Terminals: push type
  • Type: subwoofer driver for use in an enclosure

TS-A300S4: 30cm 4 ohm enclosure-type single voice coil subwoofer (1500W)

The TS-A300S4 is designed to complement Pioneer's A-Series speakers, giving your car's sound system a significant bass upgrade. A-Series subwoofers combine quality materials and engineering to improve bass response over factory-fitted drivers.

For best results, pair it with a Pioneer GM-A series amplifier for powerful, controlled bass at any volume level. If you'd prefer a self-contained solution, the Pioneer TS-WX300A is a 12-inch powered subwoofer with a built-in amplifier.

  • Outstanding midbass response with the injection moulded polypropylene (IMPP™) cone

Explore the full range in Pioneer Subwoofers.

Specification
ConeIMPP™
Impedance4 Ω
More specs
  • Woofer Size 30 cm
  • Type S4 / Single Voice Coil
  • Max Power 1500 Watt
  • Continuous power output 500 W
  • Terminals Push Type
  • 30cm / 12"
What's Included
  • Pioneer TS-A300S4
Download User Manual(PDF)
Product information

Pioneer

About the Pioneer TS-A300S4

From our tech experts at CEN

The Pioneer TS-A300S4 is a 12" (30cm) single voice coil passive subwoofer from Pioneer's A-Series, rated at 500W RMS continuous and 1500W maximum. It uses an injection moulded polypropylene (IMPP™) cone, push-type terminals and a 4-ohm impedance. An enclosure and external amplifier are required and are not included.

Who it suits

This sub suits anyone building a custom car audio setup who wants to choose their own enclosure and amplifier separately. If you prefer a self-contained solution, the Pioneer TS-WX300A is a powered 12" option with a built-in amplifier. For dual voice coil wiring flexibility, consider the Pioneer TS-A300D4.

Our tech experts advise

Match the TS-A300S4 to a sealed or ported enclosure designed for a 12" driver and an amplifier capable of 500W RMS at 4 ohms. Pioneer recommend pairing it with a GM-A series amplifier for controlled bass at any volume. Fitting cost varies by vehicle; visit our Nottingham installation page for details.

Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

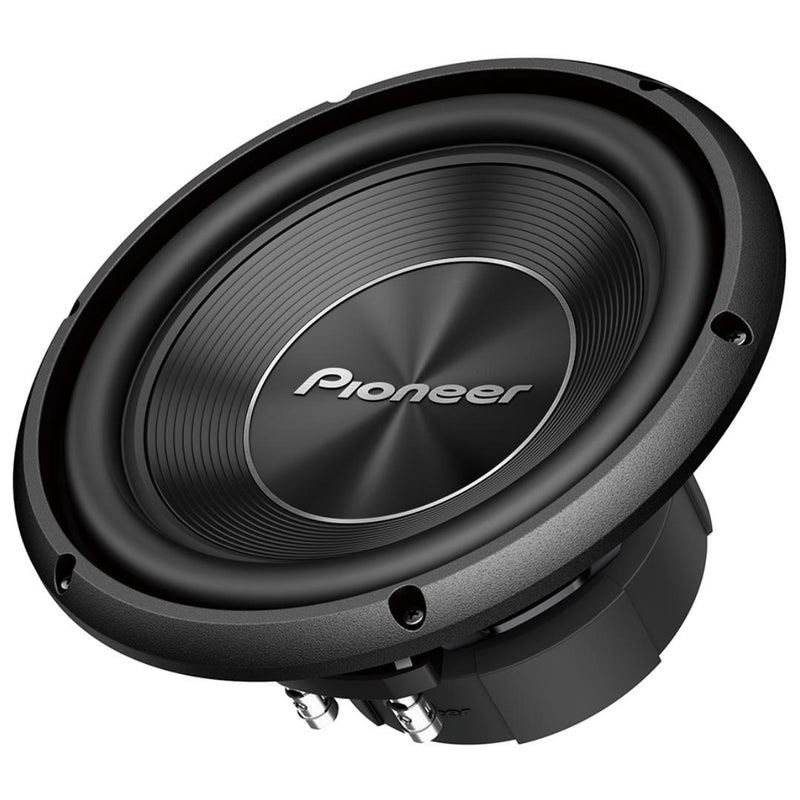

Pioneer TS-A250S4 Sub 10" 25cm Singal Voice Coil Subwoofer 400w RMS - CEN
Save 10% Best Seller Pioneer TS-A250S4 Sub 10" 25cm Single Voice Coil Subwoofer 400w RMS RRP £77.00 £69.00 Save 10%
In stock

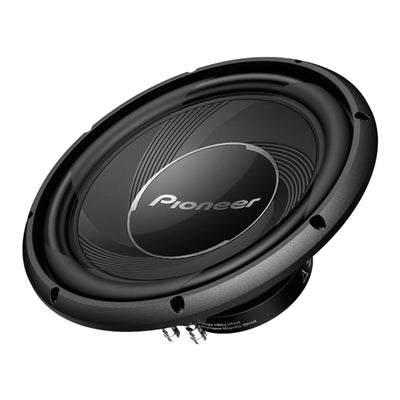

Pioneer TS-A30S4 Sub 12" 30cm A Series Component Car Subwoofer 4ohms 400w RMS - CEN
Save 1% Pioneer TS-A30S4 Sub 12" 30cm A Series Component Car Subwoofer 4ohms 400w RMS RRP £79.00 £78.00 Save 1%
In stock
Pioneer TS-A250S4 Sub 10" 25cm Singal Voice Coil Subwoofer 400w RMS - CEN
Save 10% Best Seller Pioneer TS-A250S4 Sub 10" 25cm Single Voice Coil Subwoofer 400w RMS RRP £77.00 £69.00 Save 10%
In stock
Pioneer TS-D10D4 Sub D Series 10" 25cm Dual 4ohm Voice Coil Subwoofer 500w RMS - CEN
Save 12% Pioneer TS-D10D4 Sub D Series 10" 25cm Dual 4ohm Voice Coil Subwoofer 500w RMS RRP £169.00 £149.00 Save 12%
In stock
Pioneer TS-A30S4 Sub 12" 30cm A Series Component Car Subwoofer 4ohms 400w RMS - CEN
Save 1% Pioneer TS-A30S4 Sub 12" 30cm A Series Component Car Subwoofer 4ohms 400w RMS RRP £79.00 £78.00 Save 1%
In stock
Pioneer TS-WX140DA Under Seat Subwoofer Amplifier Space Saving Car Bass Box Sub - CEN
Save 11% Popular Pioneer TS-WX140DA Under Seat Subwoofer Amplifier Space Saving Car Bass Box Sub RRP £179.00 £159.00 Save 11%
In stock

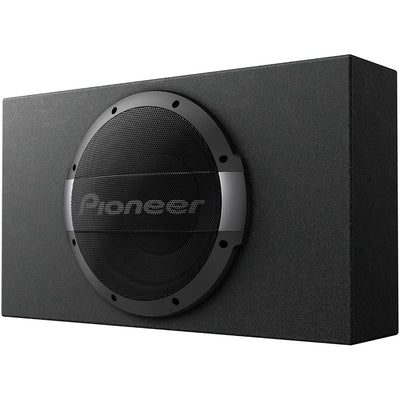

Pioneer TS-WX1010LA Powered Active Subwoofer Shallow Sub Bass Remote 300w RMS - CEN
Save 34% Popular Pioneer TS-WX1010LA Powered Active Subwoofer Shallow Sub Bass Remote 300w RMS RRP £319.00 £209.99 Save 34%
In stock
Pioneer TS-WX300A Sub Active Powered 12" Subwoofer Built in Amplifier 350w RMS - CEN
Best Seller Pioneer TS-WX300A Sub Active Powered 12" Subwoofer Built in Amplifier 350w RMS £199.00
In stock
Pioneer TS-WX400DA Under Seat Subwoofer Amplifier Space Saving Car Bass Box Sub - CEN
Save 9% Best Seller Pioneer TS-WX400DA Under Seat Subwoofer Amplifier Space Saving Car Bass Box Sub RRP £219.99 £199.99 Save 9%
In stock
Pioneer TS-X40SXT Retro 3 Way Bass Reflex Speaker System
Save 7% Best Seller Pioneer TS-X40SXT Retro 3 Way Bass Reflex Speaker System RRP £269.95 £249.95 Save 7%
In stock
Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Get a Quote Our Services

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

More from Pioneer Subwoofers

More options from the same range, in stock and ready to go

View all Pioneer Subwoofers ›
Pioneer TS-A250S4 Sub 10" 25cm Single Voice Coil Subwoofer 400w RMS Best Seller

Pioneer TS-A250S4 Sub 10" 25cm Single Voice Coil Subwoofer 400w RMS

RRP £77.00Save 10%£69.00

View product

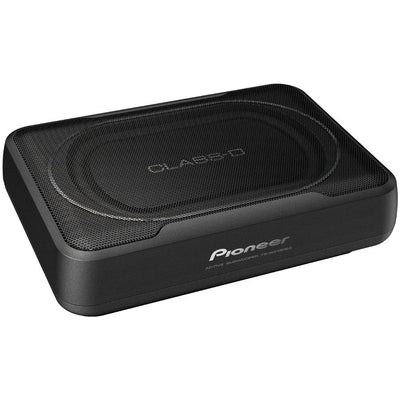

Pioneer TS-WX130EA Under Seat Subwoofer Amplifier Space Saving Car Bass Box Sub

Pioneer TS-WX130EA Under Seat Subwoofer Amplifier Space Saving Car Bass Box Sub

RRP £179.99Save 22%£139.99

 Pioneer TS-A30S4 Sub 12" 30cm A Series Component Car Subwoofer 4ohms 400w RMS

Pioneer TS-A30S4 Sub 12" 30cm A Series Component Car Subwoofer 4ohms 400w RMS

RRP £79.00Save 1%£78.00

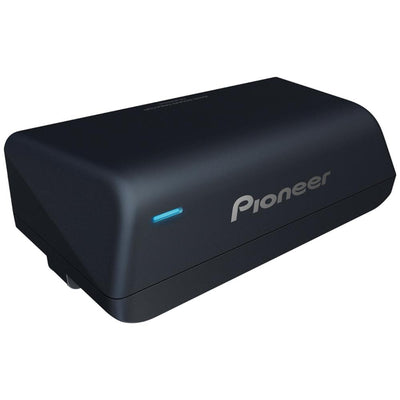

 Pioneer TS-WX010A Under Seat Subwoofer Amplifier Ultra Compact Active Sub

Pioneer TS-WX010A Under Seat Subwoofer Amplifier Ultra Compact Active Sub

RRP £179.00Save 11%£159.00

 Pioneer TS-WX1010LA Powered Active Subwoofer Shallow Sub Bass Remote 300w RMS Popular

Pioneer TS-WX1010LA Powered Active Subwoofer Shallow Sub Bass Remote 300w RMS

RRP £319.00Save 34%£209.99

Frequently Asked Questions

Q: Do I need an amplifier for this subwoofer?

A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.

Q: What size enclosure does this subwoofer need?

A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.

Q: What does RMS power mean?

A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.

Q: Sealed or ported enclosure - which should I choose?

A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.

Q: Can CEN build or supply an enclosure and fit everything?

A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.

Q: Is the Pioneer TS-A300S4 single or dual voice coil?

A: It has a single 4 ohm voice coil, so it connects directly to a mono amplifier or a bridged pair of channels rated for a 4 ohm load.

Q: What amplifier suits the TS-A300S4?

A: Choose an amplifier delivering up to 500W RMS at 4 ohms to match its continuous rating. Pioneer designs it to pair with its GM-A series amplifiers.

Q: Does the TS-A300S4 come in a box?

A: No. It is supplied as a subwoofer driver only and needs to be fitted in a suitable enclosure. CEN can supply enclosures and fit the complete system.
