Phoenix Gold ZQ5004 Amp Class A B High End 4 Channel Amplifier 4x85w RMS

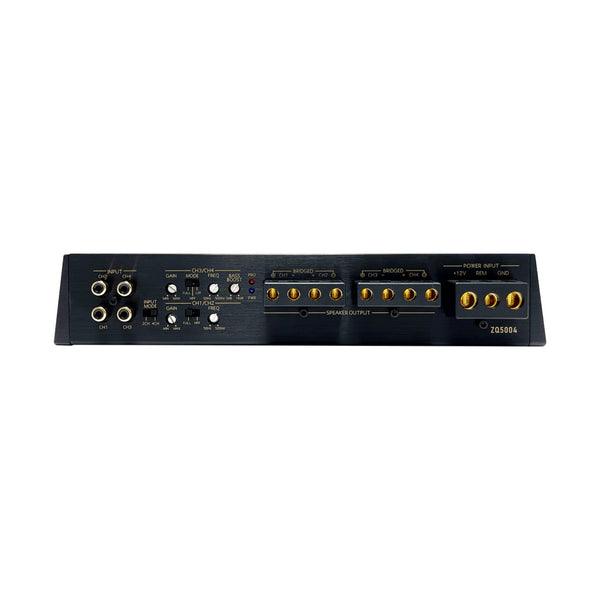

ZQ5004 Class A/B High End Amplifier

The ZQ5004 is an impressive Class A/B high end amplifier which gives the user almost limitless possibilities when it comes to power and sound options. This 4-channel product comes in a compact yet attractive casing suitable for use in a variety of applications. Measuring just 280mm x 200mm the ZQ5004 can easily be hidden away or you could make it the highlight of the installation thanks to its quality black and gold finish.

Key Features

• Pure Class A/B Technology

• Power Ratings (RMS)

• 85W x 4 @ 4Ohm

• 130W x 4 @ 2Ohm

• 250W x 2 @ 4Ohm (bridged)

• Frequency Response: 10Hz 55kHz

• Signal to Noise Ratio: >100dB

• Crossover range: 50Hz 500Hz

• Bass Boost: @ 45Hz 0 to +18dB

• Input Impedance: 22K Ohm

• Supply Voltage: 11 – 15V

• Dimensions (LxWxH) 280 x 200 x 56mm

The ZQ5004 is an impressive 4-Channel Class A/B high end amplifier which gives the user almost limitless possibilities when it comes to power and sound options. This 4-channel product comes in a compact yet attractive casing suitable for use in a variety of applications. Measuring just 280mm x 200mm the ZQ5004 can easily be hidden away or you could make it the highlight of the installation thanks to its quality black and gold finish.

The ZQ Series of amplifiers feature award winning technology that not only offers a natural uncompromised sound but also a design that represents Phoenix Golds past, present, and future all in one. Highly sought after by PG enthusiasts and audiophiles alike, the ZQ Series is a rebirth of PGs original core values offering premium high-end technology that brings the purest audio sound to the masses.

The Gold Treated PCBs of the ZQ5004 feature a unique two layered, gold immersion treatment along with 24K gold plated terminals offering superior connectivity. The dual power supply has been optimised to proficiently feed the amp and only the best Nichicon (Japan) & Wima (Germany) capacitors are used to provide the best possible uninterrupted power supply.

High end polymer gain potentiometers are used to aid amplification and the shielded transformer cores which are manufactured in Germany ensure a pure feed of power throughout the amp. The dual colour extrusion heatsink with heat transfer optimisation ensures that the amp stays cool even when under the highest most strenuous usage.

A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.
