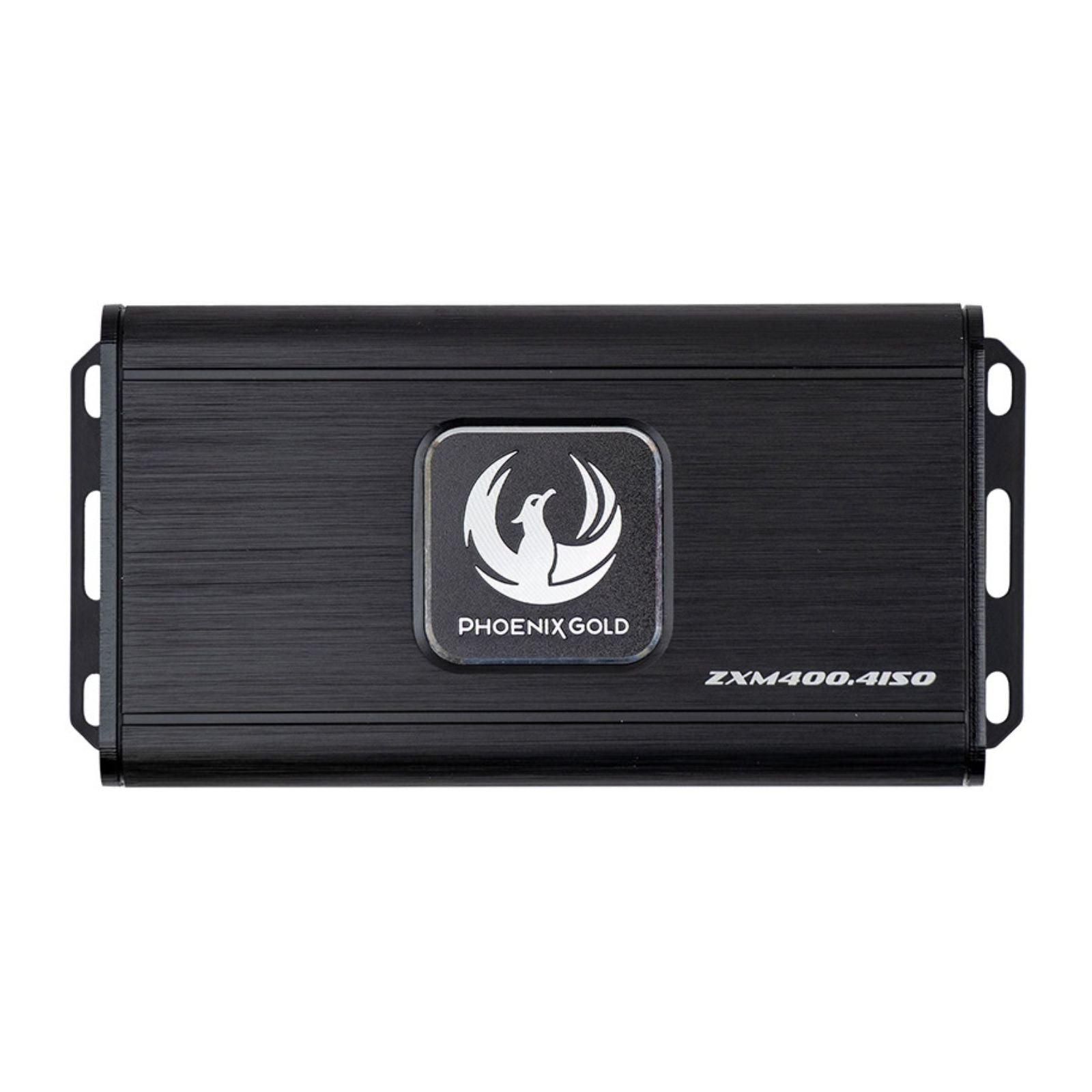

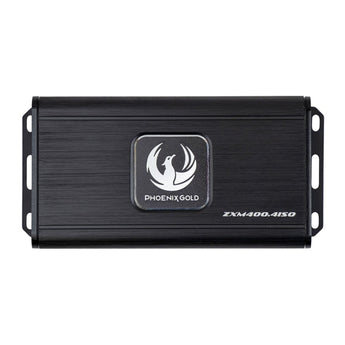

ZXM400.4ISO 4-Channel Plug & Play ISO Mini Amplifier

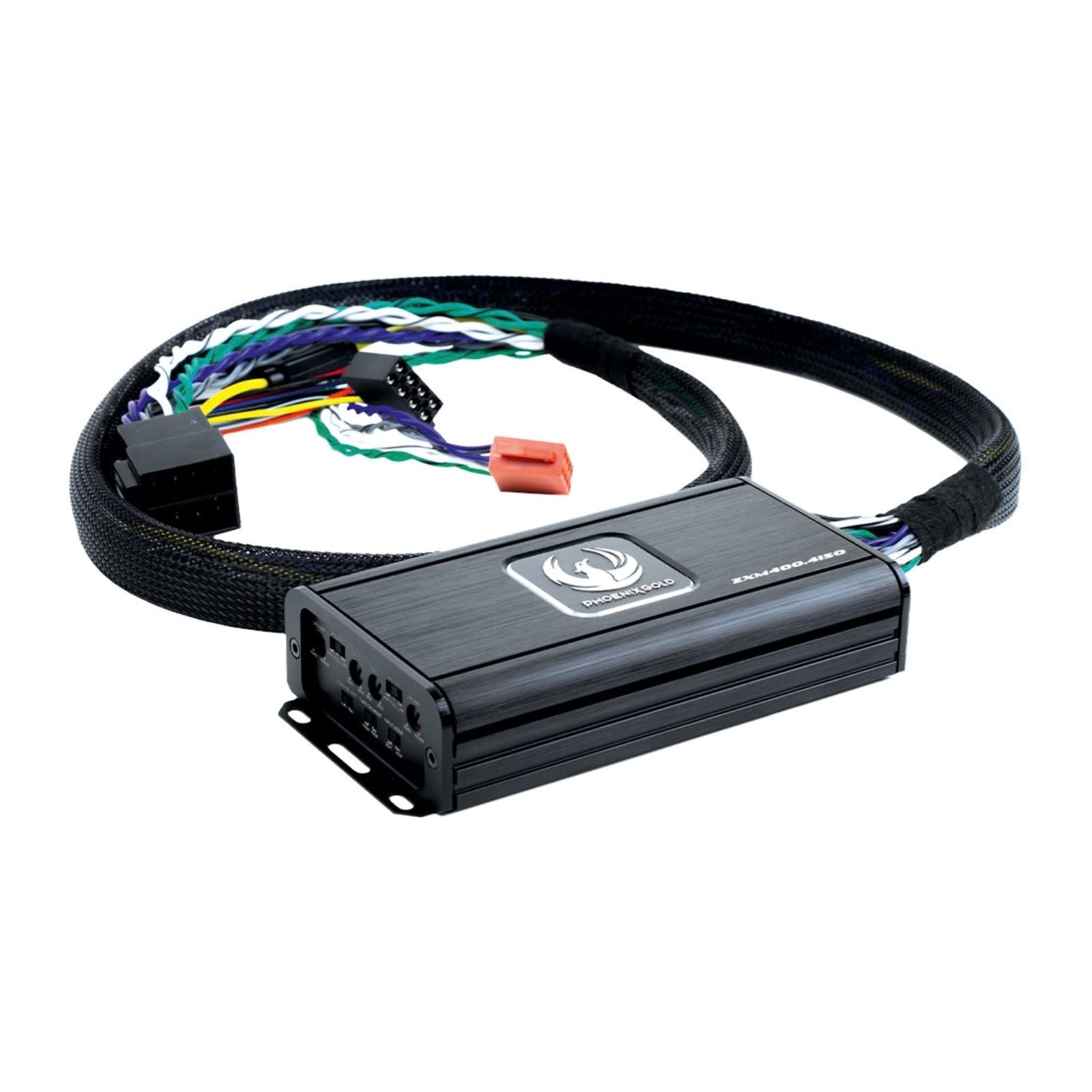

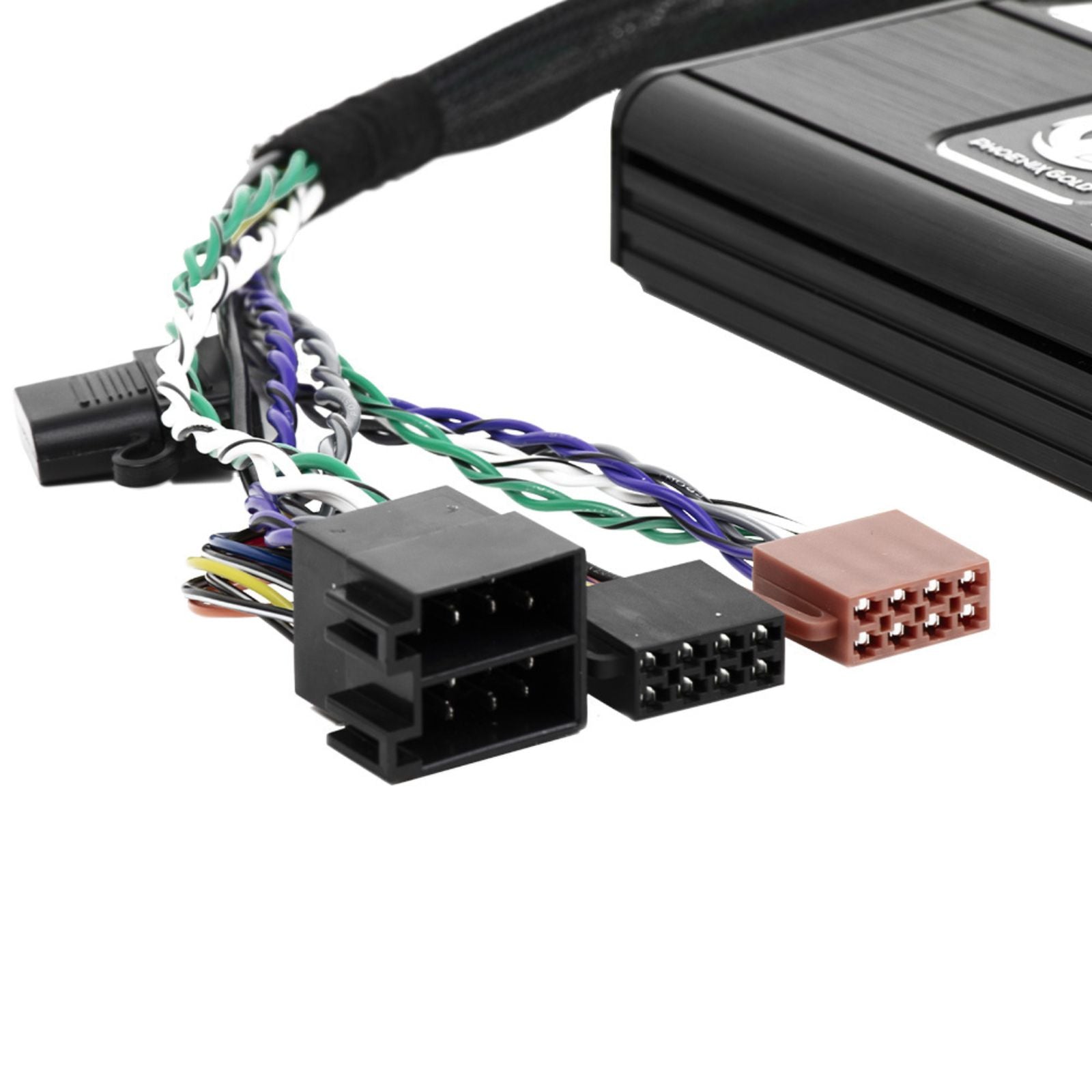

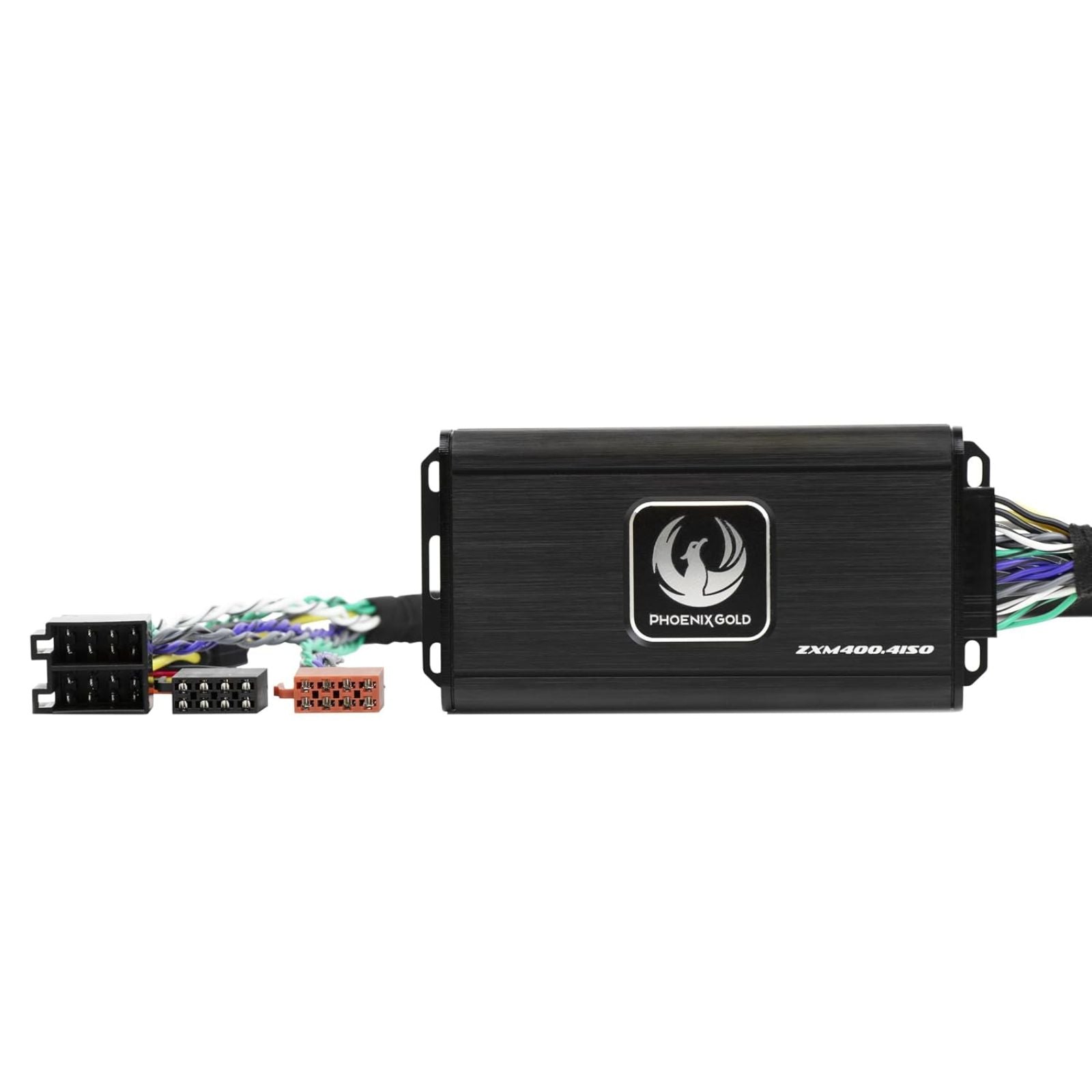

The ZXM400.4ISO is a compact, plug-and-play ISO mini-amplifier designed for effortless OEM audio upgrades. Compatible with our full range of plug & play harnesses, it allows simple installation across more than 2,000 vehicles, with no cutting, coding, or complexity. Delivering clean Class-D power in an ultra-small chassis, it’s the ideal solution for boosting factory sound with maximum ease.
Features
- Class-D efficiency and clean output
- Short circuit / thermal/high-low voltage protection
- Excellent signal-to-noise ratio & FM noise rejection
- LED status indicator
- Surface-mount technology for reliability
- Ultra-small footprint for easy mounting
- Auto-start with high-level input
- Fully adjustable high-pass & low-pass filters
Explore the full range in Phoenix Gold.
Specification
| Power (MAX) | 1000W |
|---|---|
| RMS Power | 125W x 4 @ 2Ω / 60W x 4 @ 4Ω / 250W x 2 @ 4Ω bridged |
| Frequency Response | 20Hz–20kHz |
| Signal to Noise Ratio | > 90dB |
| THD | < 1% |
| Low Pass Filter | 40Hz–400Hz (12dB/Oct) |
| High Pass Filter | 40Hz–400Hz (12dB/Oct) |
| Crosstalk | -45dB |
| Input Sensitivity | 0.45V–20V |
| High-Level Auto Turn-On | Yes |
| Input Mode | 2CH / 4CH |
| OIS – OEM Impedance Simulation | Yes |
| Operating Voltage | 7V–16.5V |
| Idle Current | 0.70A |
| Max Current Draw | 48A |
| Total Efficiency (4Ω) | 90% |
| Power Terminal | 10mm² |
| Speaker Terminal | 1mm² |
| Dimensions | (w/ Feet) 165mm × 83.1mm × 34.8 mm |
| Dimensions | (w/o Feet) 149mm × 83.1mm × 34.8 mm |
What's Included
- Phoenix Gold ZXM400.4ISO
Phoenix Gold
Explore the full Phoenix Gold range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Phoenix Gold
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Phoenix Gold
More options from the same range, in stock and ready to go
Save 3% Phoenix Gold ZT Series ZT15001 Monoblock 24V Class-D Amplifier RRP£349.99£339.99 / Save 3%Low stock
Save 22% Phoenix Gold Z880 Z Series 8 Inch Sub Slim Active Under Seat Subwoofer 80w RMS RRP£189.99£149.00 / Save 22%In stock
Save 10% Phoenix Gold Z8AB 8 Inch Active Sub Amplified Subwoofer Enclosure 125w RMS RRP£199.99£179.99 / Save 10%Low stock
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
