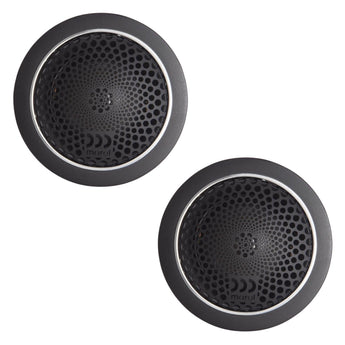

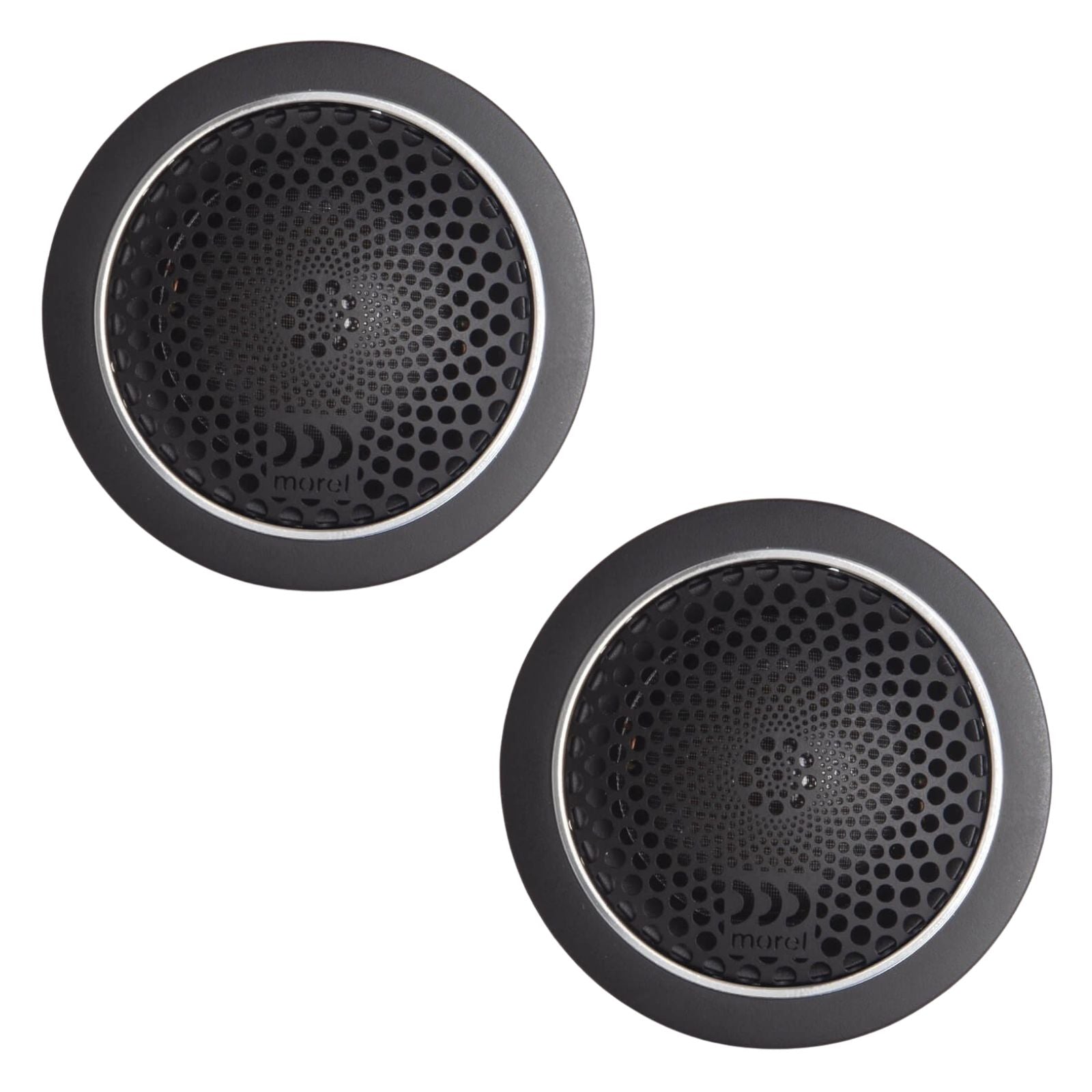

Morel Elate Carbon MT450 1.1 Inch Tweeters 130w RMS Pair

The Morel Elate Carbon MT450 is a pair of 28mm (1.1 inch) Acuflex coated soft dome tweeters from Morel's Elate Carbon range, with a dual neodymium (DMM) motor and 130W RMS power handling.

The MT450 is the tweeter supplied with the standard Elate Carbon component systems, such as the Elate Carbon 63. For the higher-power tweeter used in the Pro systems, see the Elate Carbon Alto.

Key specifications

• Type: 28mm (1.1") soft dome tweeter, supplied as a pair
• Dome: Acuflex hand-coated silk, open cavity design
• Motor: DMM dual neodymium, rear vented
• Impedance: 6 ohms
• Power handling: 130W RMS, 350W max transient (10ms)
• Sensitivity: 91 dB (2.83V/1m)
• Frequency response: 1400 - 25,000 Hz
• Mounting: 46mm cutout, 13mm depth, 43mm unit diameter

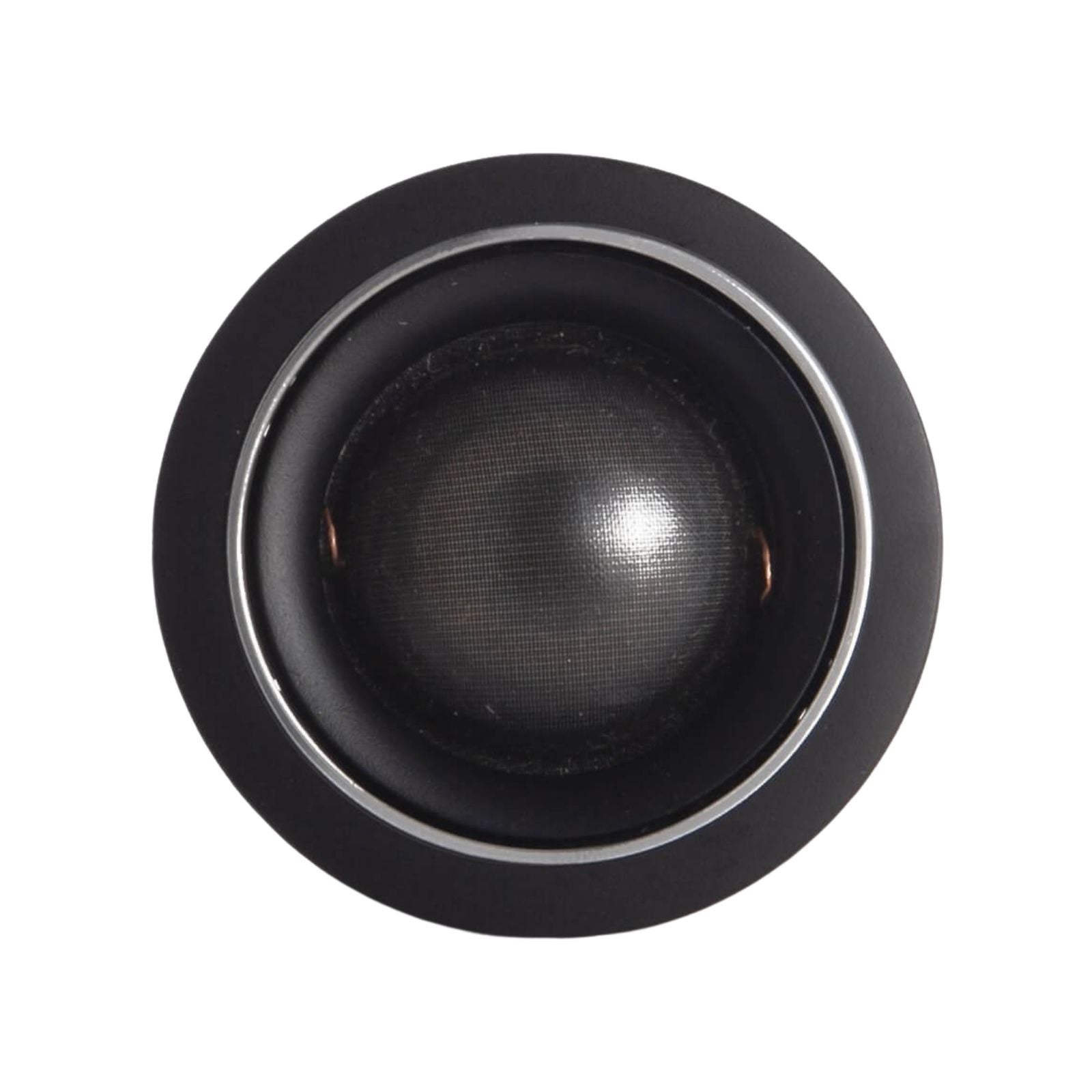

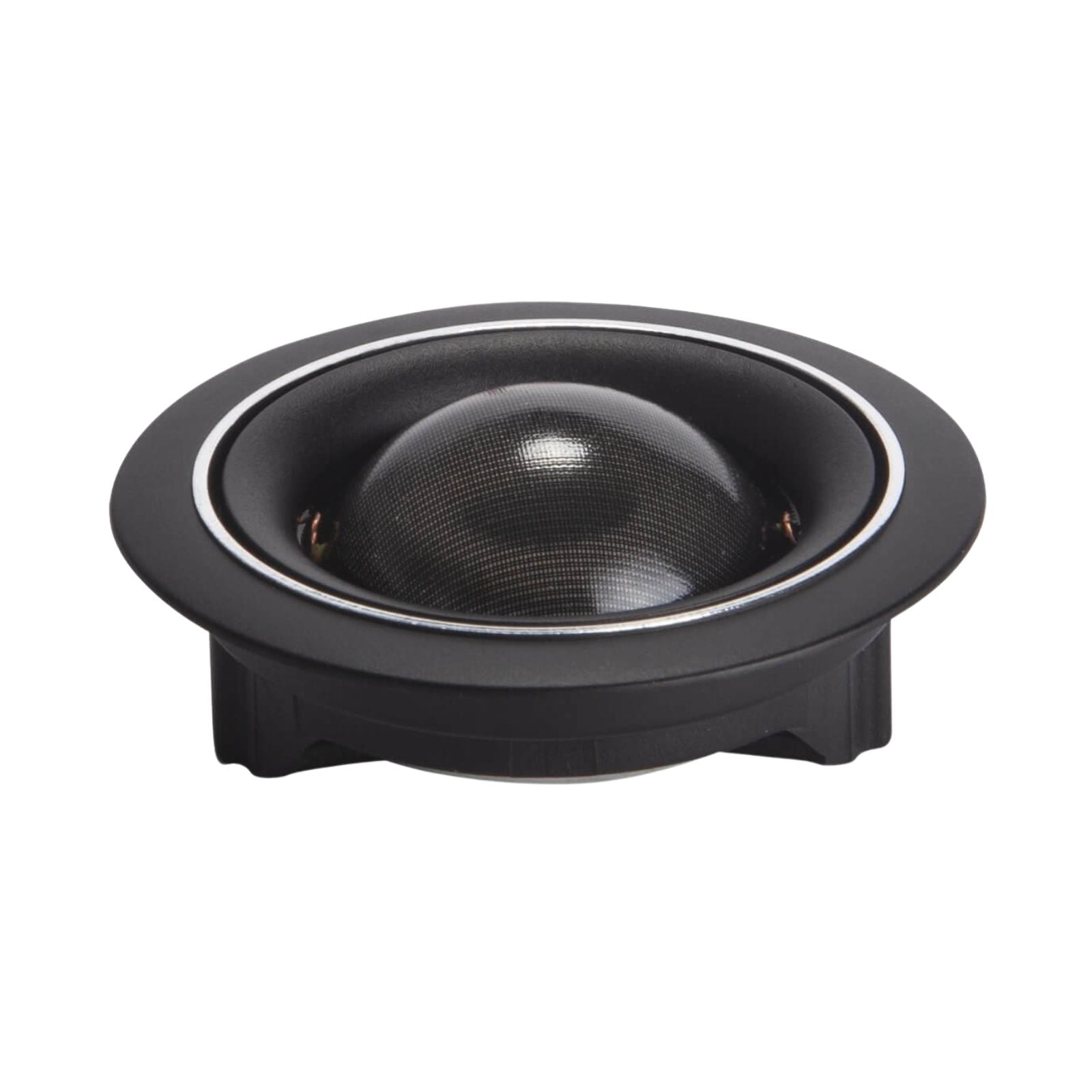

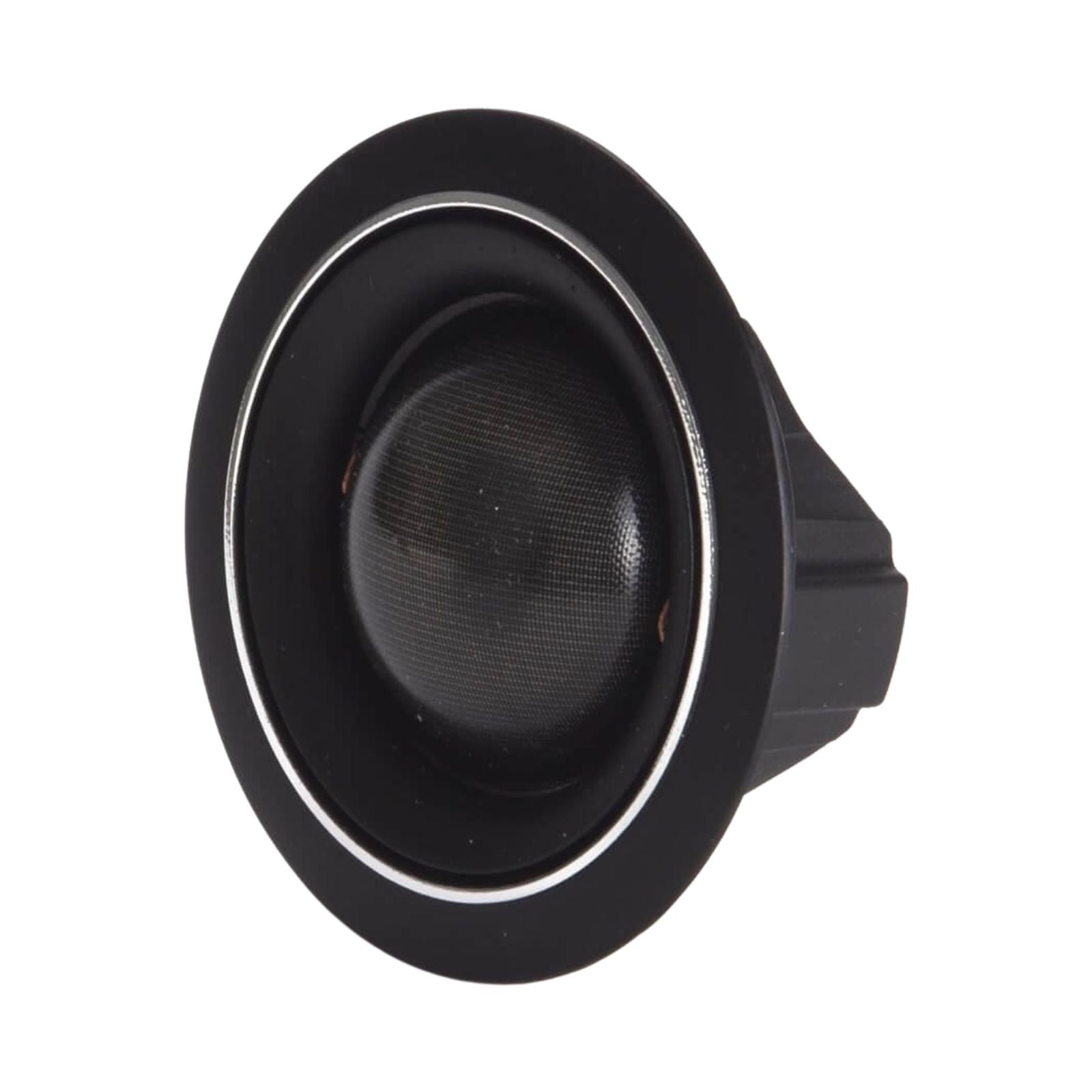

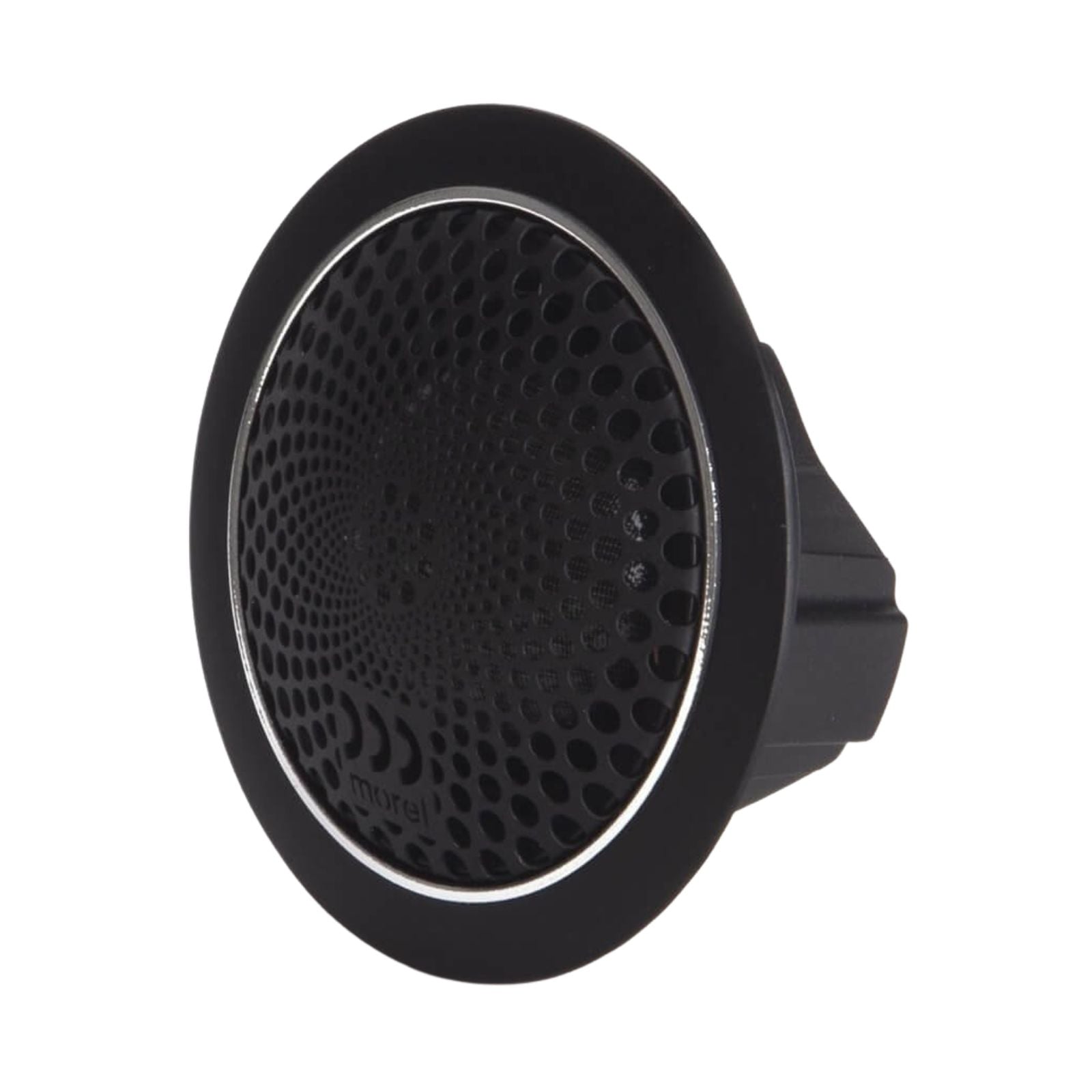

Morel Elate Carbon MT450 Tweeter

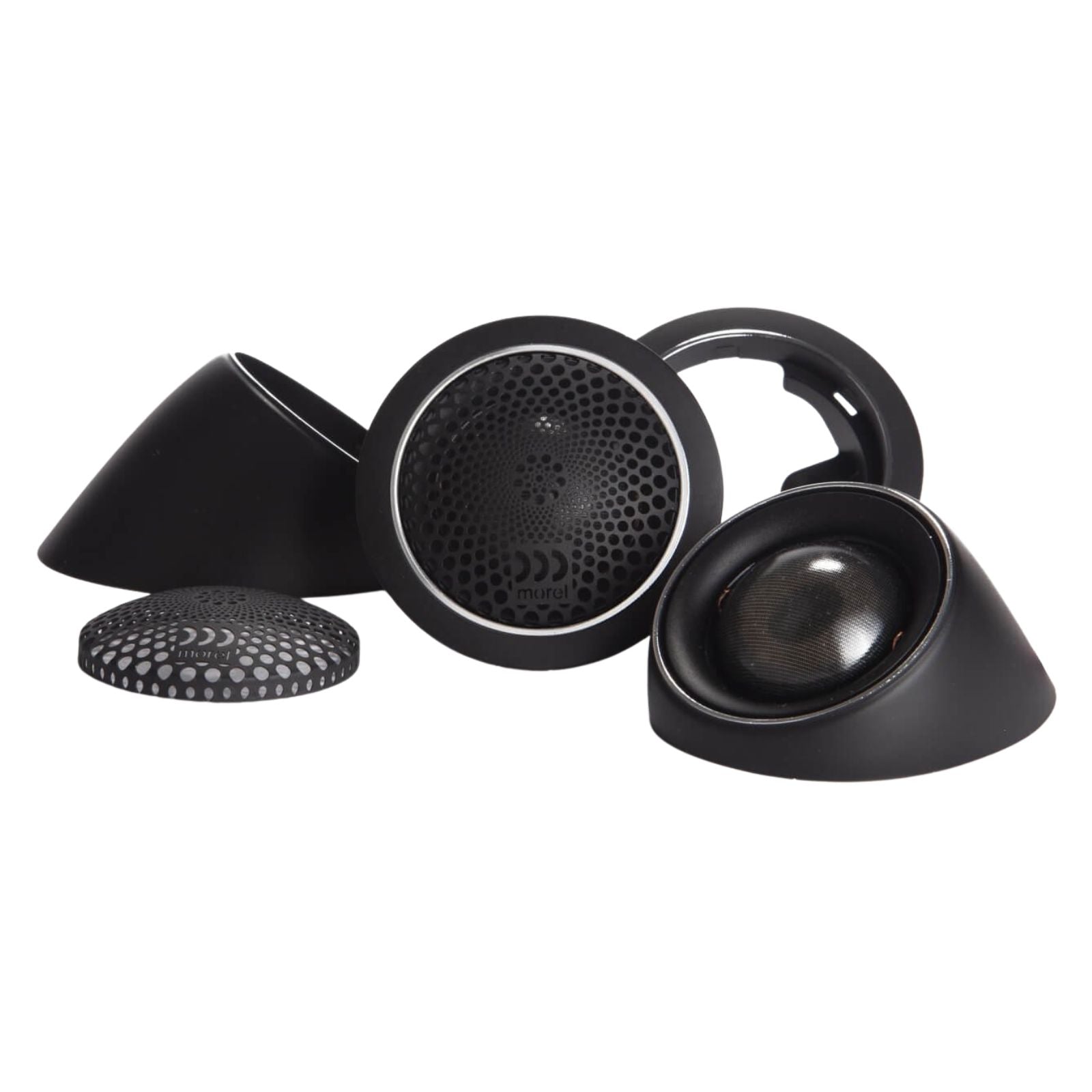

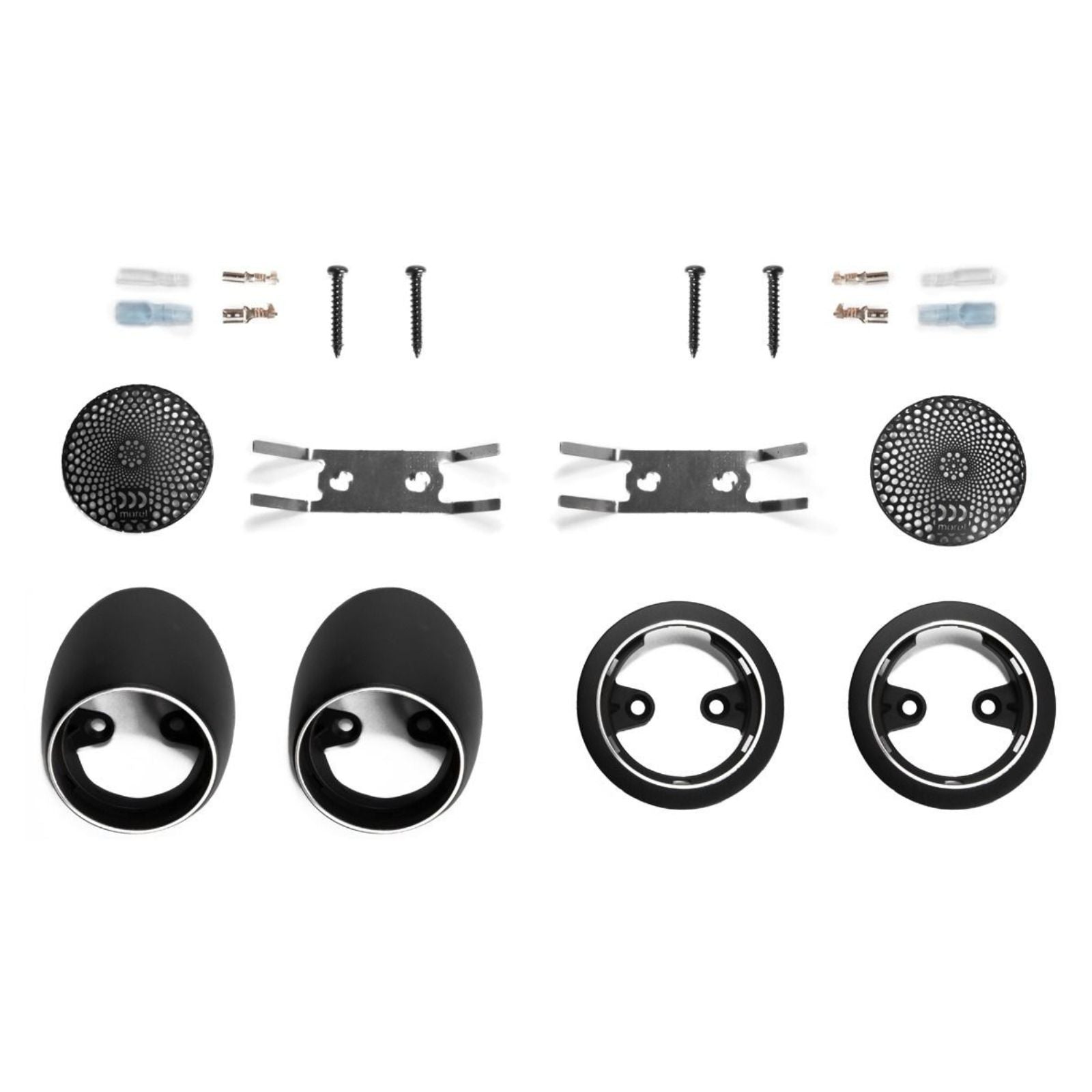

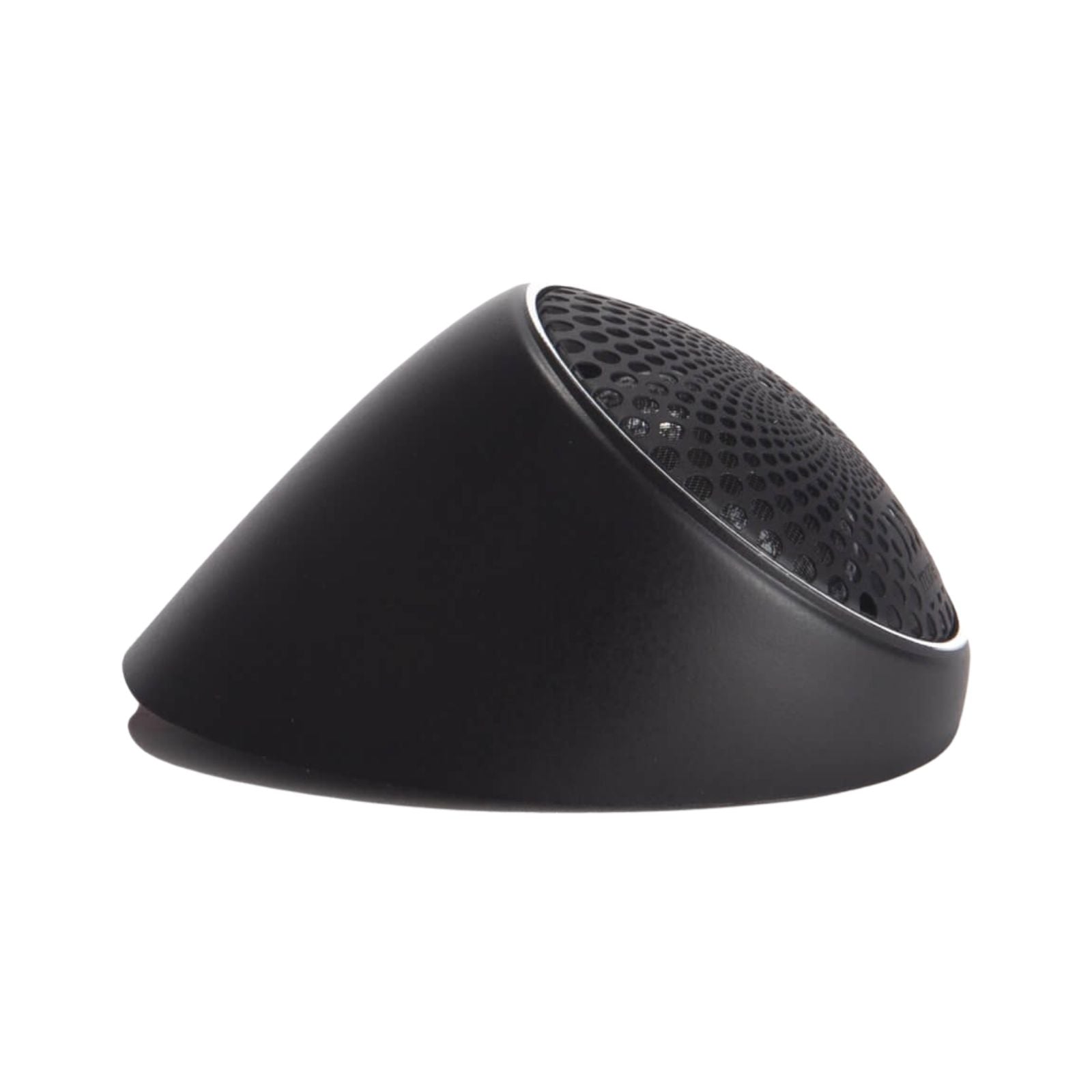

The Elate Carbon MT450 delivers high-frequency performance in a compact form, with high power handling and very low distortion. Its size fits most factory locations, and both chrome-ringed surface and flush mount options are included for a clean finish in modern vehicles.

DMM Motor

Morel's double drive system generates more magnetic energy than a single magnet of similar size, increasing efficiency and dynamic range. The secondary magnet is fixed above the top plate, which controls stray magnetic flux, focuses the magnetic field, and contributes to the shielded characteristic of the speaker.

Handcrafted Acuflex Soft Dome

A specially engineered damping compound is hand-applied to the soft dome, adding rigidity and damping to improve clarity and bandwidth. The Acuflex diaphragm uses controlled cancelling break-up (accurate–flexing), where each break-up mode is counteracted by another in the opposite direction, resulting in a smooth frequency response.

Hexatech Aluminium Voice Coil

The Hexatech voice coil is wound from 100% aluminium wire shaped in a honeycomb configuration, reducing air gaps in the coil windings and increasing efficiency by up to 20%. Its low mass contributes to the fast transient response Morel drive units are known for.
