JL Audio 10W7AE-3 W7 Series Anniversary Edition 10 Inch Sub Subwoofer 750w RMS

£929.00
Black Friday
Low stock
SKU: 90925MPN: 10W7AE-3
Part of the range · 60 productsPart of the JL Audio Subwoofers range · 60 products See the range →

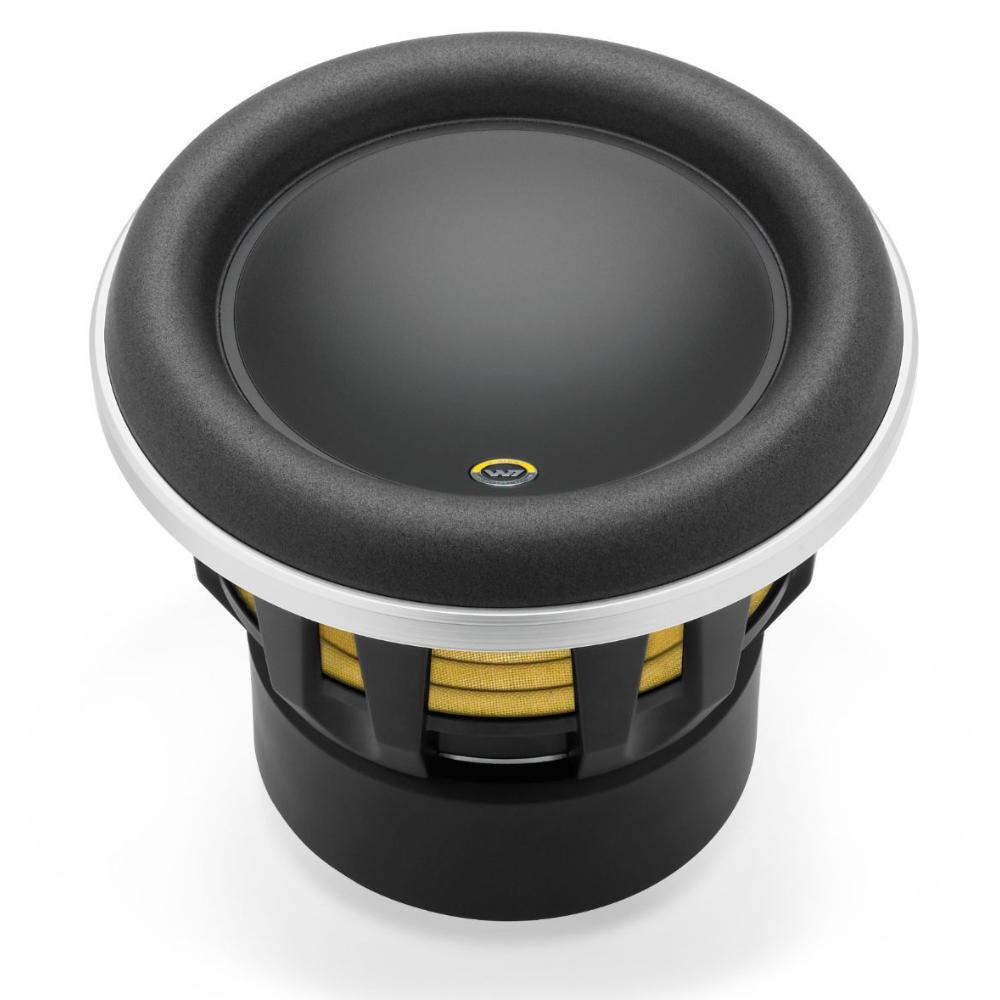

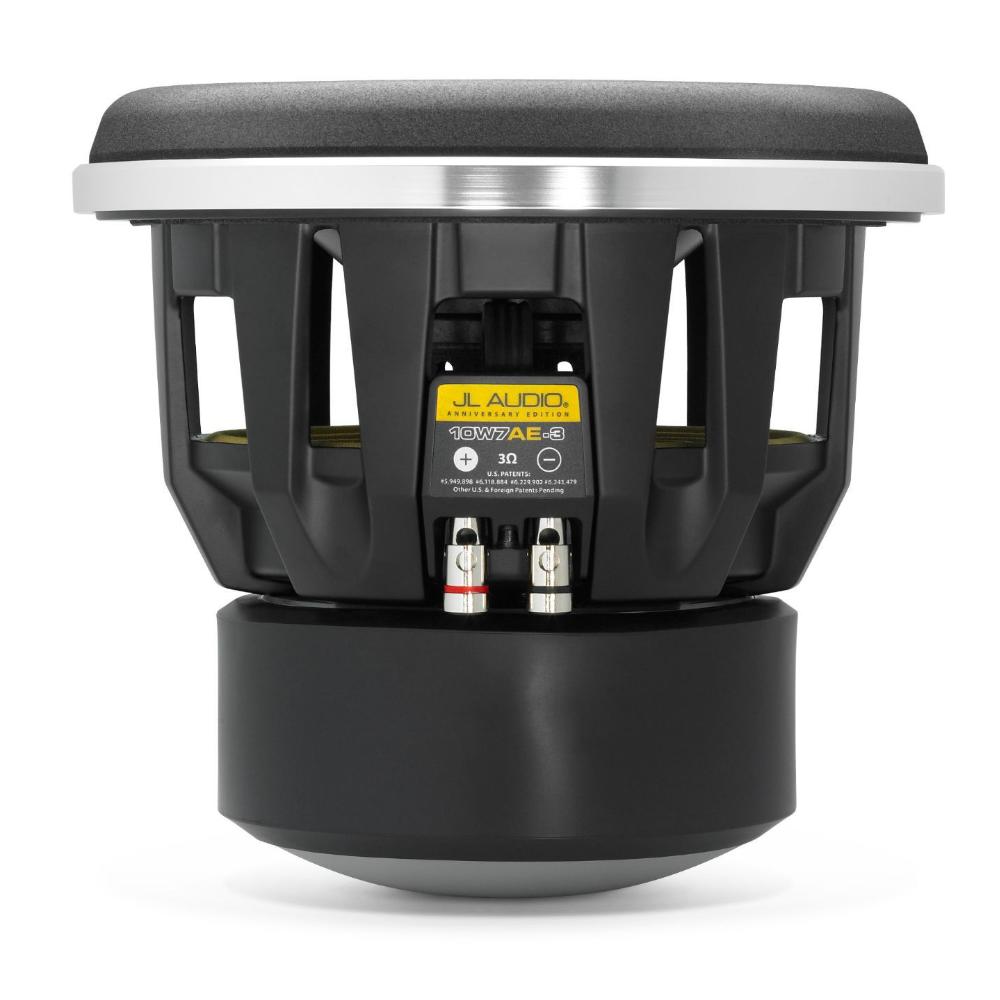

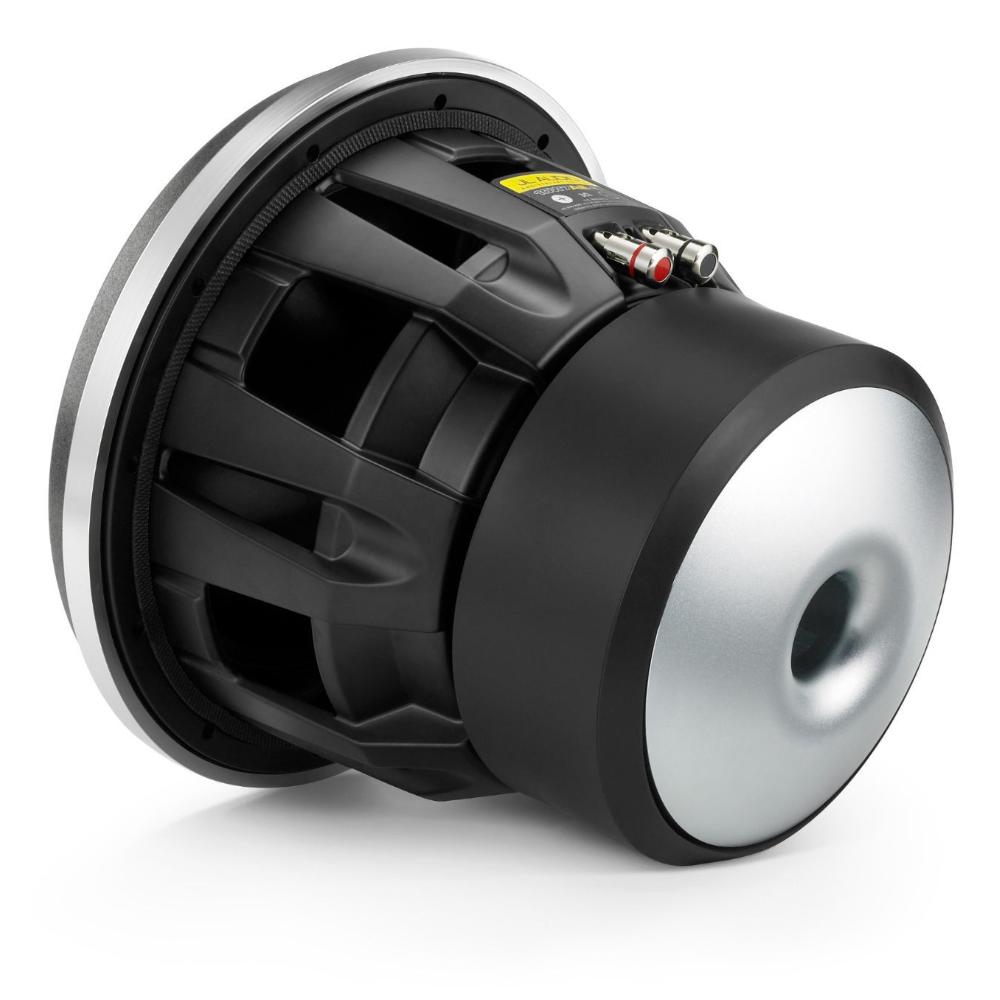

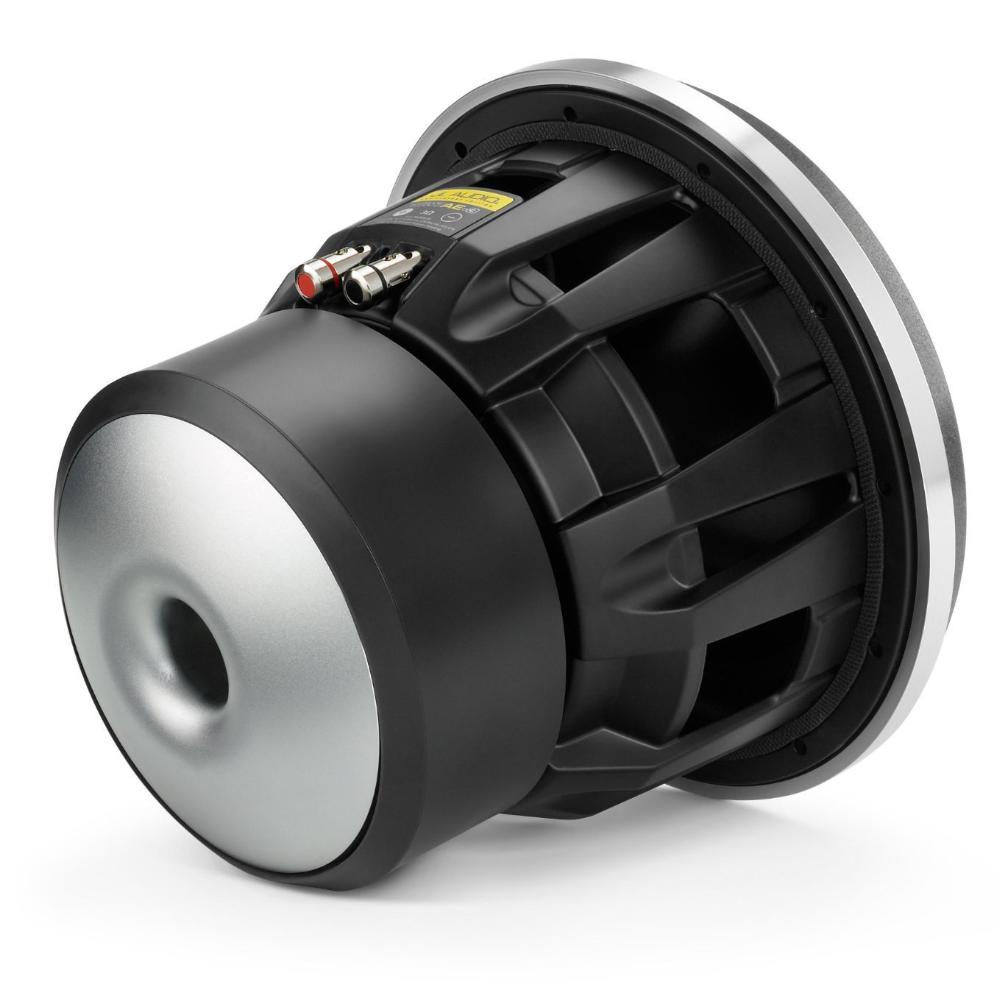

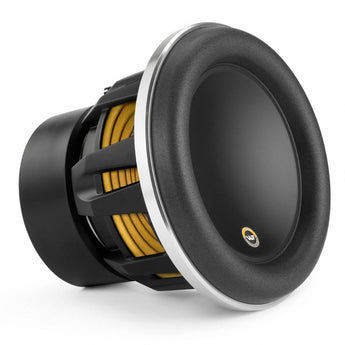

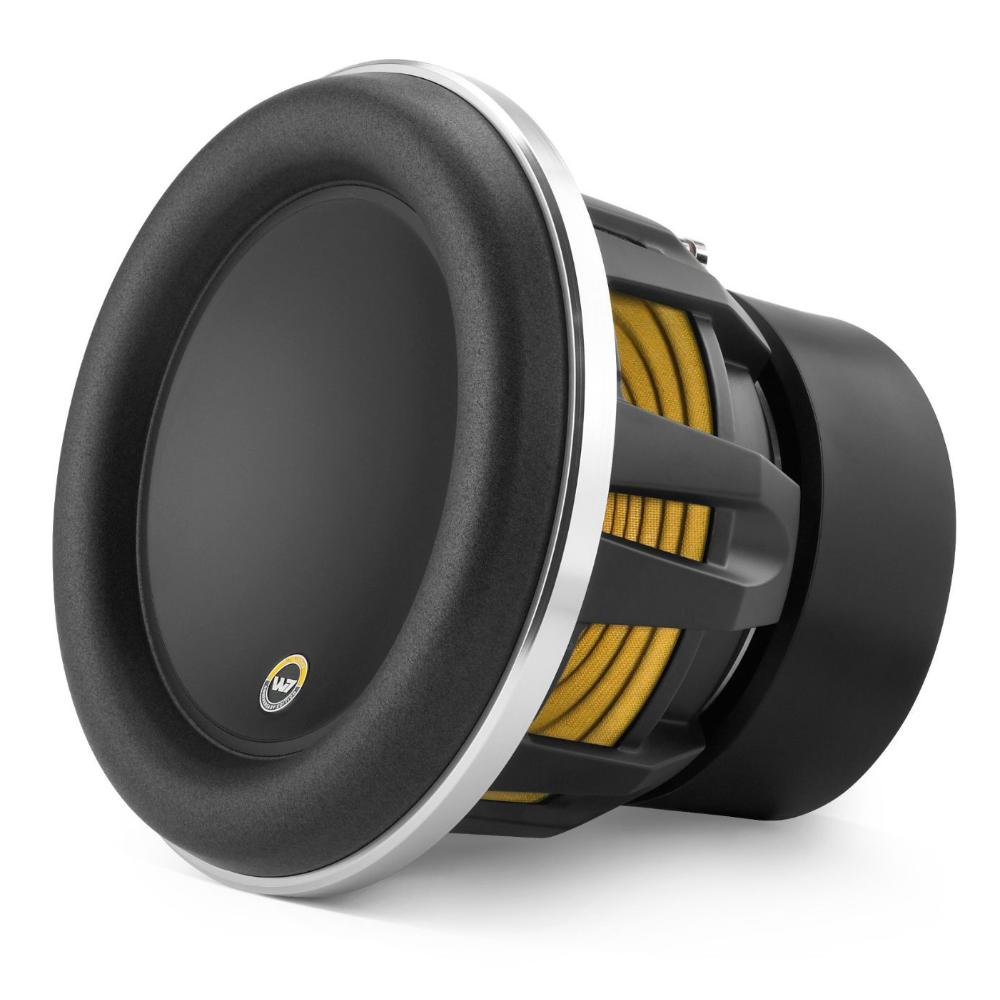

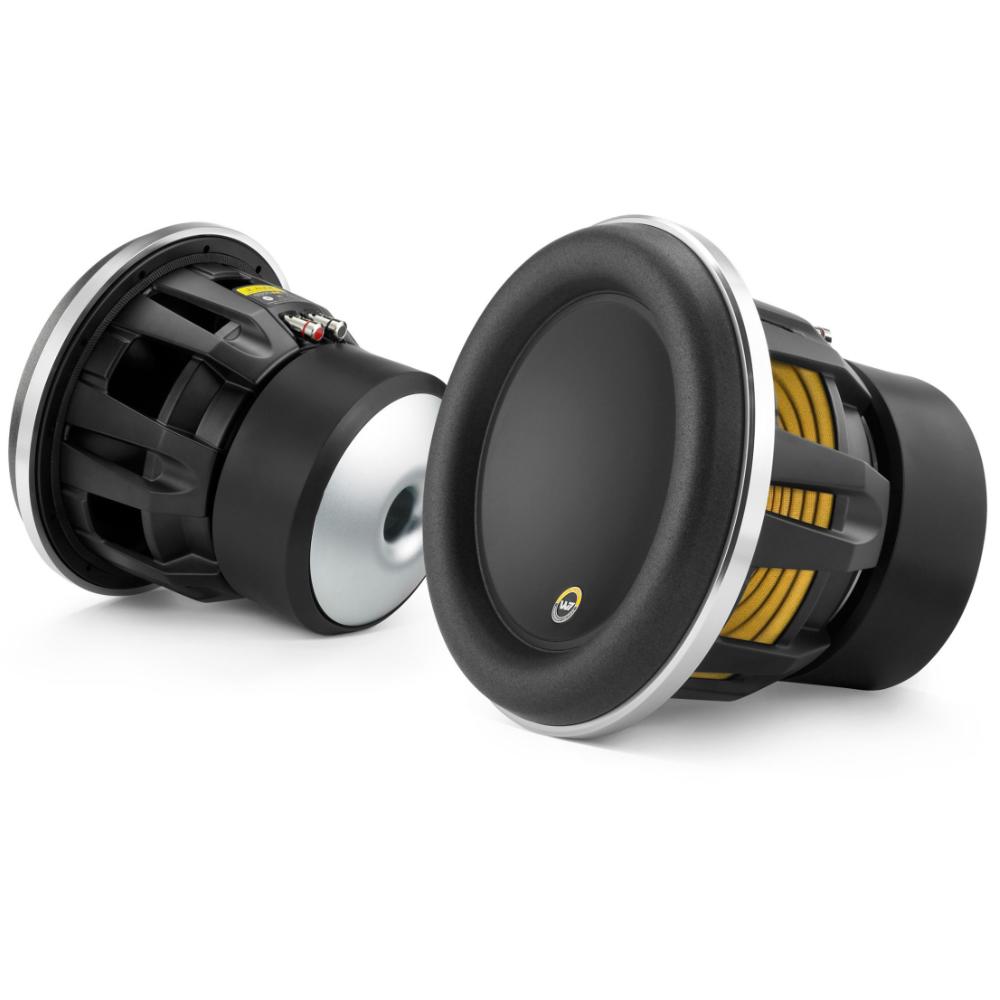

The JL Audio 10W7AE-3 is a 10-inch (250 mm) single voice coil subwoofer driver rated at 750W RMS at 3 ohms, part of the W7 Anniversary Edition range from JL Audio.

Key specifications

  • Size: 10 inch (250 mm)
  • Power handling: 750W RMS
  • Recommended amplifier power: 300–750W RMS
  • Nominal impedance: 3 ohms (single voice coil)
  • Recommended sealed enclosure: 1.25 cu ft (35.4 litres)
  • Recommended ported enclosure: 1.5 cu ft (42.5 litres)
  • Mounting depth: 203 mm
  • Linear excursion (Xmax, one way): 23 mm

10W7AE-3: 10th Anniversary Edition W7 10-inch subwoofer (750 W, 3 Ω)

The 10W7AE-3 delivers reference-grade sub-bass from a 10-inch driver. Total Car Audio (UK) said of the 10W7: "This gives an all round performance of such high quality on every level, that bettering it will be very hard to achieve." The 10W7 combines exceptional excursion capability for its size with composure under power and accurate tracking of complex bass material.

The 10W7AE-3 works best with amplifier power in the 300–750W RMS range. It is optimised for a 1.25 cu ft (35.4 l) sealed enclosure or a 1.5 cu ft (42.5 l) ported enclosure. Full enclosure recommendations are in the Specifications tab.

Anniversary Edition

W7AE subwoofers mark the 10th anniversary of the W7 launch. They are functionally identical to the original W7s but feature the following cosmetic differences:

  • Satin-black powder-coated baskets
  • Bright anodised surround clamp ring
  • Anniversary Edition cone badge
  • Anniversary Edition terminal label

W-Cone

The W-Cone is a unit-body cone assembly offering high stiffness with minimal mass. Its shape provides torsional rigidity, which maintains voice coil alignment at the suspension limits.

OverRoll™ Surround

This design uses space wasted in conventional speakers to control the W7's massive excursion without sacrificing cone area.

Floating Cone Attach Method (FCAM™)

Conceived by JL Audio, this assembly technique ensures correct surround geometry in the finished speaker for better excursion control and dynamic voice coil alignment.

Radially Cross-Drilled Pole-Piece

This venting system directs airflow onto the voice coil former, working with the Elevated Frame cooling technology to remove heat from the voice coil. The result is improved power handling, reduced power compression and more linear performance.

Engineered Lead-Wire System

The lead-wire design and attachments are engineered to ensure controlled, quiet lead-wire behaviour under the most extreme excursion demands.

Specification
Mounting Depth(E)    8.0 in / 203 mm
More specs
  • Continuous Power Handling (RMS)    750 W
  • Recommended Amplifier Power (RMS)    300 - 750 W
  • Nominal Impedance (Znom)    3 Ω
  • Nominal Diameter    10.0 in / 250 mm
  • Overall Diameter (A)    10.5 in / 267 mm
  • Mounting Hole Diameter (B)    8.74 in / 222 mm
  • Bolt Hole Circle Diameter (C)    9.34 in / 237 mm
  • Motor Outer Diameter (D)    6.55 in / 166 mm
  • Driver Displacement    0.09 cu ft / 2.5 L
  • Net Weight    30 lb / 13.6 kg
  • Free Air Resonance (Fs)    30.6 Hz
  • Electrical “Q” (Qes)    0.578
  • Mechanical “Q” (Qms)    7.647
  • Total Speaker “Q” (Qts)    0.537
  • Equivalent Compliance (Vas)    1.28 cu ft / 36.1 L
  • One-Way Linear Excursion (Xmax)*    0.9 in / 23 mm
  • Reference Efficiency (no)    0.17%
  • Efficiency (1 W / 1 m)**    84.3 dB SPL
  • Effective Piston Area (Sd)    59.8 sq in / 0.0386 sq m
  • DC Resistance (Re)    2.75 Ω
What's Included
  • 10W7AE-3
  • Warranty Information
Product information

JL Audio

About the JL Audio 10W7AE-3

From our tech experts at CEN

A JL Audio 10 inch W7 Series subwoofer driver, handling 750w RMS.

Who it suits

Drivers building a system around a properly specified enclosure rather than a box off the shelf. W7 is the flagship and expects a serious amplifier and a properly built enclosure.

Our tech experts advise

This is a driver, not a finished system: enclosure volume and tuning decide most of what you hear, and JL publish specifications worth building to. We build enclosures to suit both driver and vehicle at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full JL Audio range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all JL Audio

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

Frequently Asked Questions

Q: Do I need an amplifier for this subwoofer?

A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.

Q: What size enclosure does this subwoofer need?

A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.

Q: What does RMS power mean?

A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.

Q: Sealed or ported enclosure - which should I choose?

A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.

Q: Can CEN build or supply an enclosure and fit everything?

A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.

Q: What enclosure size does the 10W7AE-3 need?

A: JL Audio optimises the 10W7AE-3 for a 1.25 cu ft (35.4 litre) sealed enclosure or a 1.5 cu ft (42.5 litre) ported enclosure.

Q: Is the 10W7AE-3 different from the original 10W7?

A: Functionally it is identical to the original W7. The Anniversary Edition differs only cosmetically, with a satin-black powder-coated basket, bright anodised surround clamp ring, Anniversary Edition cone badge and terminal label.

Q: What impedance is the 10W7AE-3?

A: It has a nominal impedance of 3 ohms, with a DC resistance of 2.75 ohms. Pair it with an amplifier delivering 300 to 750W RMS into that load.
