Hertz Marine Venezia V6 24V Amp 6 Channel Class D IPX2 Marine Amplifier 160w RMS
Couldn't Load Pickup availability

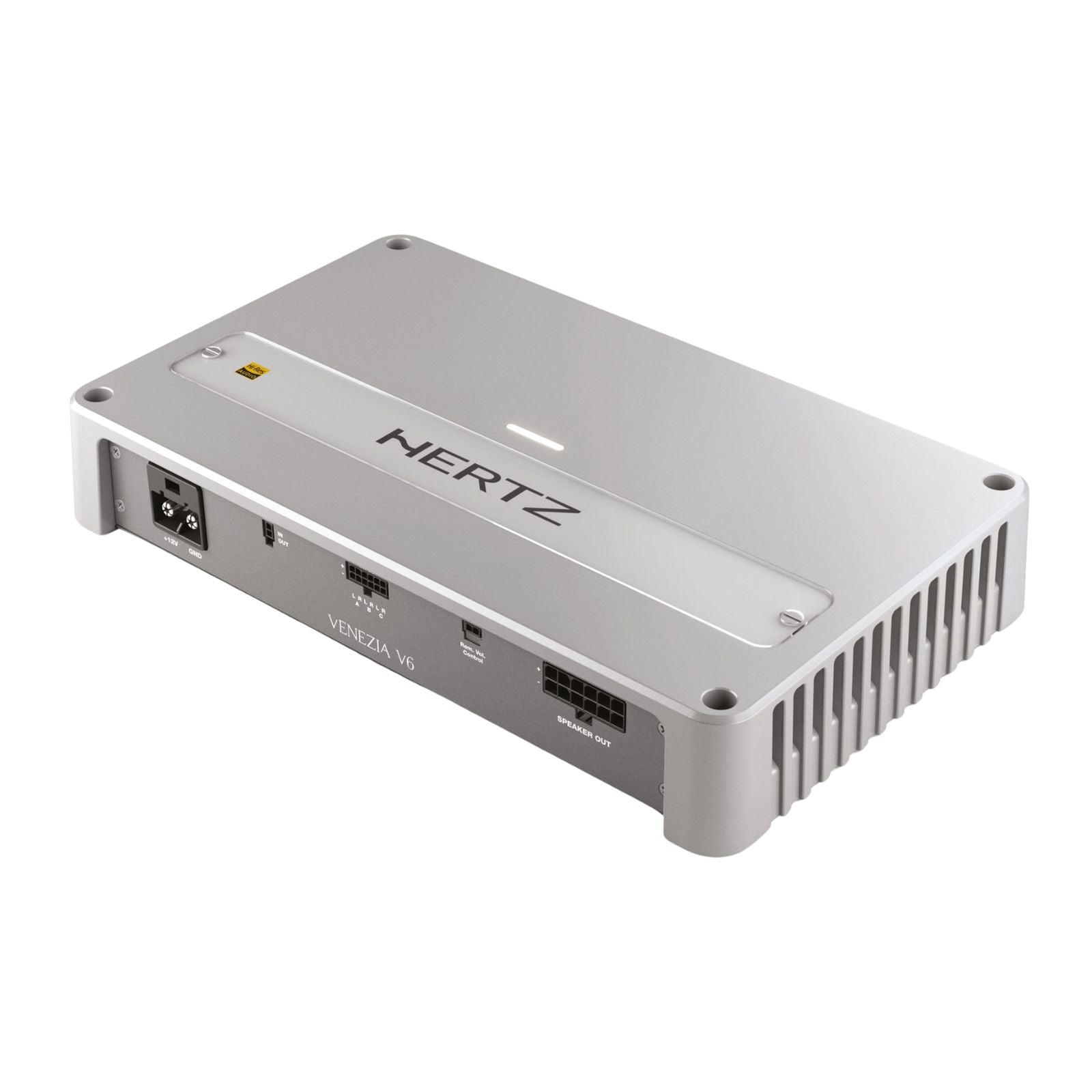

The Hertz Marine Venezia V6 24V is a six-channel Class D marine amplifier from Hertz's Venezia range, rated at 160 W RMS x 6 into 4 ohms. It runs on 22–33 V DC for 24 V electrical systems and holds IPX2 and Hi-Res certification.
This listing is the 24 V version. The Venezia V6 is also available in a 12 V variant: the Hertz Marine Venezia V6, which runs from 9 to 16 V DC.
Key specifications
- Channels: 6, 5, 4 or 3 (bridgeable), Class D
- Power supply: 22 to 33 V DC (24 V systems)
- Output power: 160 W x 6 RMS at 4 ohms
- Output power: 290 W x 6 RMS at 2 ohms
- Bridged: 580 W x 3 RMS at 4 ohms
- Inputs: separate A, B and C pre-in
- Remote out: 14 to 33 V DC
- Marine rating: IPX2
- Hi-Res certified
Hertz Marine VENEZIA V6 24V
Ch: 6 - 5 - 4 - 3
The Venezia V6 24V is Hertz's first six-channel marine amplifier, delivering 160 W x 6 at 4 ohms. Hertz Advanced Class D technology maximises efficiency and power whilst minimising heat and electromagnetic radiation, with Hi-Res certification underpinning sound quality. Channels can be bridged for subwoofer or dual-mono use. The amplifier is engineered and tested for marine environments — UV, salt-fog, vibration, high/low temperature and thermal shock — and carries IPX2 certification. Safe-Lock Input, Output and Power connectors simplify installation and improve durability. Cooling is handled by a fanless convection system integrated into the cast heat-sink chassis. Balanced fully-differential input circuitry rejects electromagnetic noise, and the preamp filter section is both powerful and flexible. Short-circuit, overload and thermal protections are all auto-resetting.
Features
- Engineered and tested for marine use (UV, salt-fog, vibrations, high/low temperature, thermal shock) with IPX2 certification.
- ADC (Advanced D-Class) technology with 2 ohm stable output stage — Hi-Res certified audio performance with superior efficiency.
- Die-cast aluminium compact design with fanless convection cooling for low operating temperature even at maximum power.
- Balanced fully-differential input circuitry to reject electromagnetic disturbances.
- Bridge operation mode to drive a subwoofer or create a powerful dual-mono system.

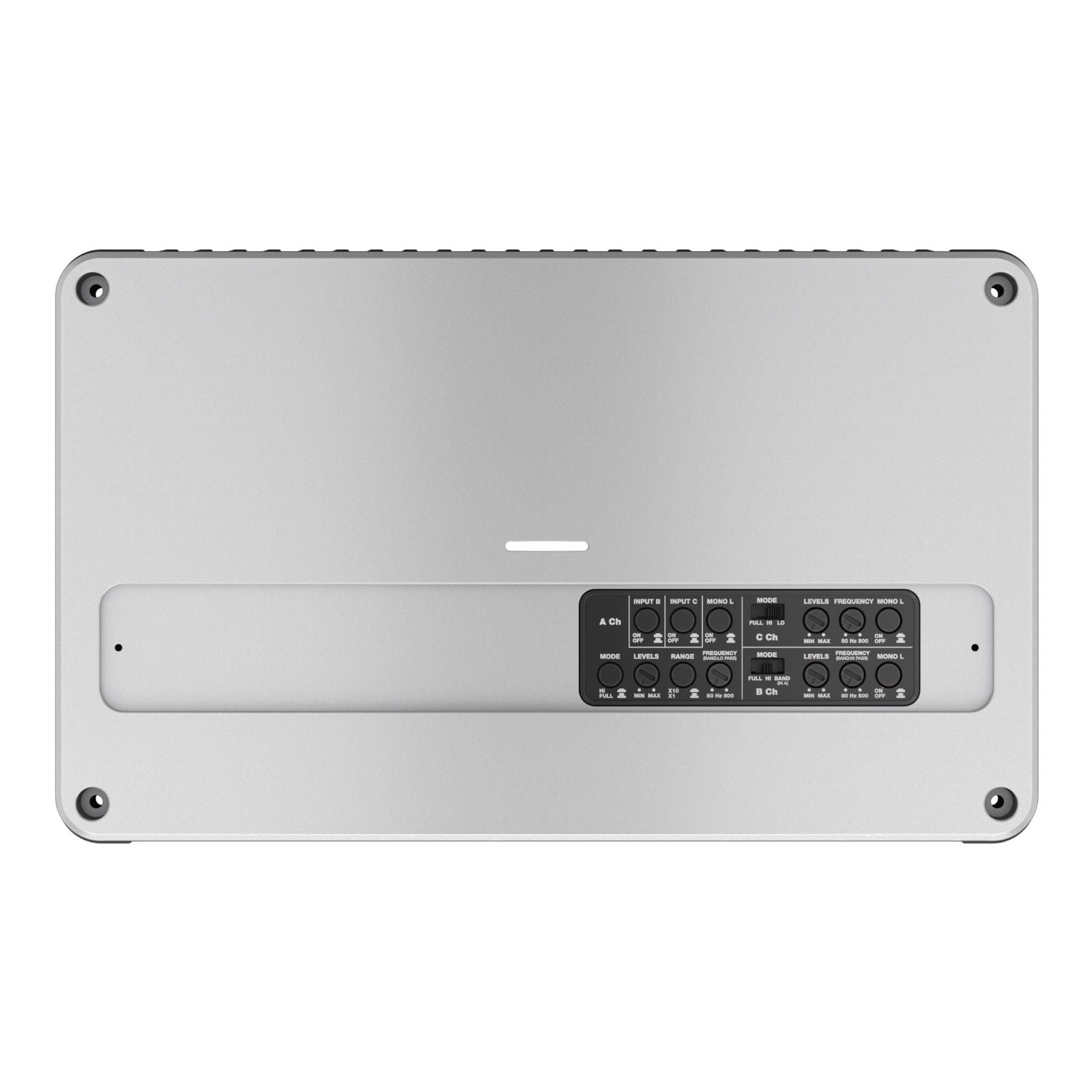

- Built-in filter section protected by a polycarbonate panel, suitable for any system configuration.
- Short-circuit, overload and thermal protections with auto-resetting.

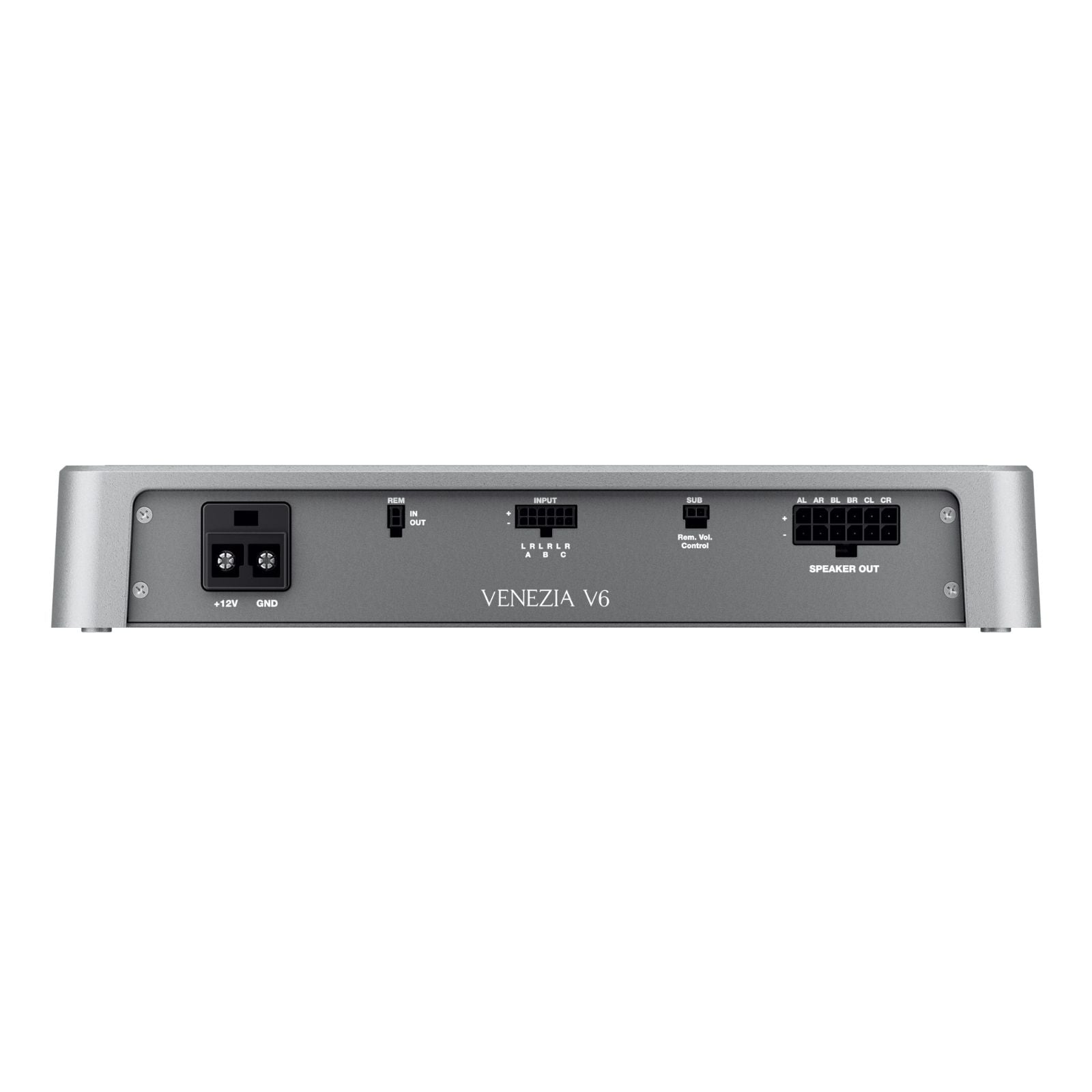

- Plug & Play Input and Output connections with safe-lock.
- Proprietary Plug & Play Power Supply Connector with safe-lock.
Explore the full range in Amplifiers.
Specification
| Power supply voltage | 22 ÷ 33 VDC |
|---|---|
| Idling current (power ON/OFF) | 1 A / 0.04 mA |
| Remote In | 7 ÷ 33 VDC - 1 mA |
| Remote Out | 14÷ 33 VDC |
| Distortion - THD (100Hz @ 4Ω) | <0,06% |
| Bandwidth | 10 ÷ 42 kHz |
| S/N Ratio (A weighted @ 1 V) | 100 dB |
| Damping factor (100Hz @ 4Ω) | 130 |
| Pre-In sensitivity | 0.2 ÷ 5 VRMS |
| Pre-In impedance | 10 kΩ |
| @6Ch | 2Ω |
| @5Ch | 2Ω + 2Ω + 2Ω +2Ω + 4Ω |
| @4Ch | 2Ω + 2Ω + 2Ω +4Ω + 4Ω |
| @3Ch | 4Ω |
| Adjustable Crossovers | yes |
| 6Ch | 160 W x 6 (4Ω) |
| 6Ch | 290 W x 6 (2Ω) |
| 5Ch | 160 x 4 (4Ω) + 580 x 1 (4Ω) |
| 5Ch | 290 x 4 (2Ω) + 580 x 1 (4Ω) |
| 4Ch | 160 x 2 (4Ω) + 580 x 2 (4Ω) |
| 4Ch | 290 x 2 (2Ω) + 580 x 2 (4Ω) |
| 3Ch | 580 x 3 (4Ω) |
| Total Power | 1740 W |
| Inputs | A Ch. Pre in - B Ch. Pre in - C Ch. Pre in |
| Pre Out | No |
| Ch. A filters | Yes |
| MONO IN (on/off) | Yes |
| By-pass | Yes |
| Hi-pass | 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct |
| Ch. B filters | Yes |
| MONO IN (on/off) | Yes |
| By-pass | Yes |
| Hi-pass | 50 ÷ 500 Hz @ 12 dB/Oct |
| Band-pass | 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct |
| Ch. C filters | Yes |
| MONO IN (on-off) | Yes |
| By-pass | Yes |
| Hi-pass | 50 ÷ 500 Hz @ 12 dB/Oct |
| Lo-pass | 50 ÷ 500 Hz @ 12 dB/Oct |
| Bass boost 50 Hz (adjust) | (0 ÷ 12) dB |
More specs
| |
What's Included
- VENEZIA V6 24V
Hertz
About the Hertz VENEZIA V6 24V
From our tech experts at CEN
A marine amplifier, 6 channel, rated at 160w RMS, coated and sealed against damp and salt air, and built for 24V systems.
Who it suits
Boats, ribs and commercial craft, plus open builds where an amplifier will get damp. The 24V design suits larger vessels running that system voltage.
Our tech experts advise
Mount it ventilated and as dry as the vessel allows, and fuse the feed at the battery. Marine installs want tinned cable and sealed joints throughout. get in touch and we will talk through mounting, wiring and power for your boat.
Explore the full Hertz range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Hertz
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Hertz Car Audio Range
Hertz produces high-performance car audio systems driven by research.Music fans who attend live concerts know well the emotions that low undistorted frequencies without dynamic compression can arouse.
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Amplifiers
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Will the Venezia V6 24V work on a 12 V boat?
A: No. It needs a 22 to 33 V DC supply. For 12 V systems use the standard Venezia V6, which runs from 9 to 16 V DC.
Q: How many speakers can the Venezia V6 24V run?
A: Up to six channels at 160 W x 6 into 4 ohms or 290 W x 6 into 2 ohms. It can also be bridged to 5, 4 or 3 channels, up to 580 W x 3 into 4 ohms.
Q: Is the Venezia waterproof?
A: It is engineered and tested for marine use (UV, salt fog, vibration, high and low temperature and thermal shock) and carries IPX2 certification, which covers dripping water. It is not rated for submersion, so mount it in a protected location on the boat.
