Hertz Marine Venezia V5C Amp 5 Channel Class D Compact Marine Amplifier 80w RMS
Couldn't Load Pickup availability
The Hertz Venezia V5C is a compact five-channel Class D marine amplifier with 80 W RMS x 4 into 4 ohms plus a 330 W subwoofer channel, so one unit can run a full boat system. It is IPX2 certified and Hi-Res certified.
Need more power? The full-size Venezia V5 delivers 130 W x 4 plus 490 W at 4 ohms.
Key specifications
- Channels: 5 or 3, Class D
- Output power: 80 W x 4 + 330 W x 1 RMS at 4 ohms
- Output power: 115 W x 4 + 550 W x 1 RMS at 2 ohms
- Total power: 1010 W RMS
- Inputs: separate A, B and Sub pre-in
- Sub low-pass: 50 to 250 Hz at 24 dB/octave
- Subsonic: 25 Hz at 24 dB/octave
- Power supply: 9 to 16 V DC
- Marine rating: IPX2
Hertz Marine Venezia V5C
Ch: 5 - 3 | 1010 W
Venezia V5C is the compact five channels marine amplifier, featuring 80 W x 4 (4Ω) plus 330 W (4Ω) for the subwoofer. Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification. High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V5C is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The preamp filter options are powerful and flexible. Last but not least, Venezia V5C is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.
Features
- Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
- ADC (Advanced D-Class) Technology 2Ω stable output stage providing Hi-Res certified audio performance with superior efficiency.
- Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
- Balanced fully-differential input circuitry to reject electromagnetic disturbances.
- Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.

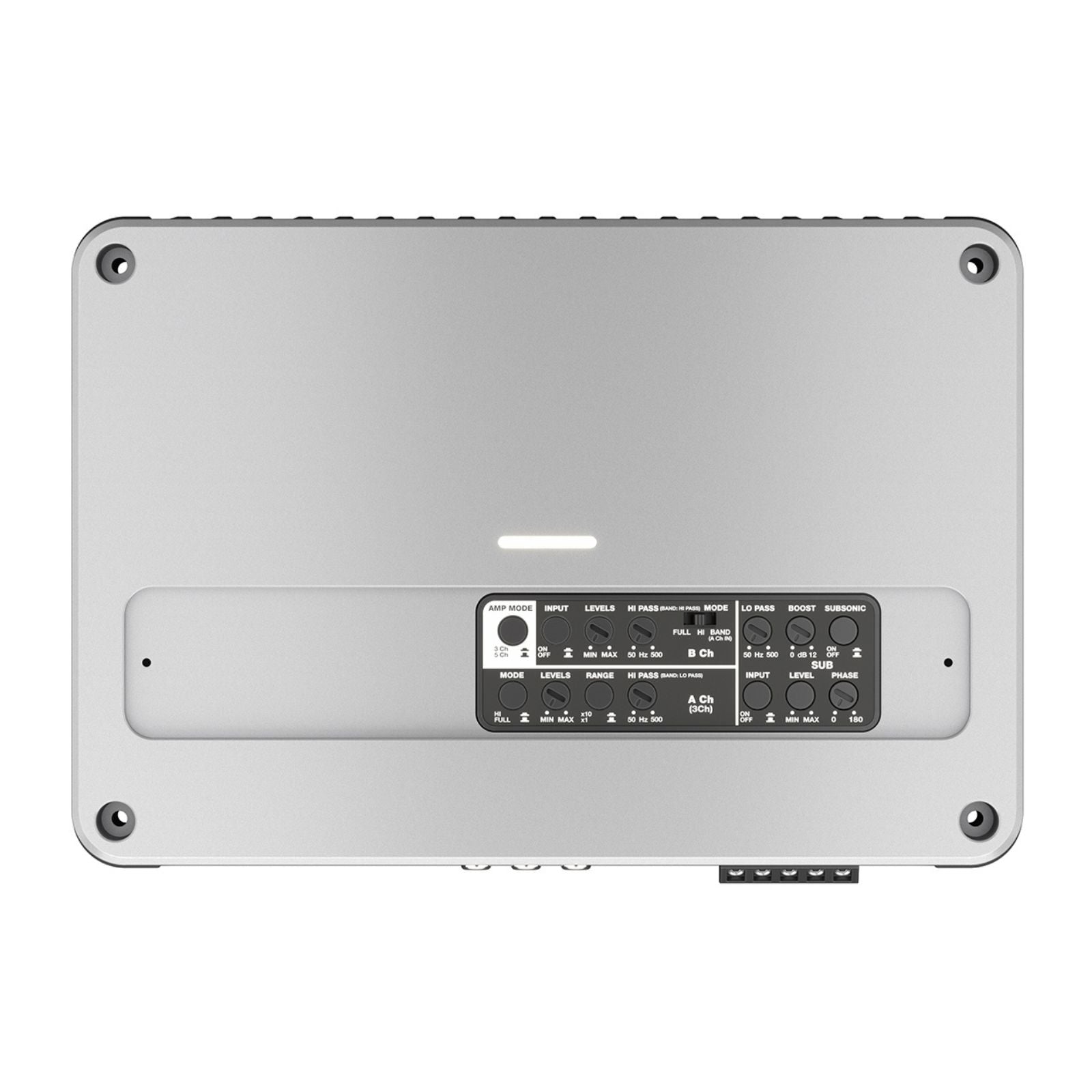

- Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
- Short-circuit, overload, and thermal protections with auto-resetting.

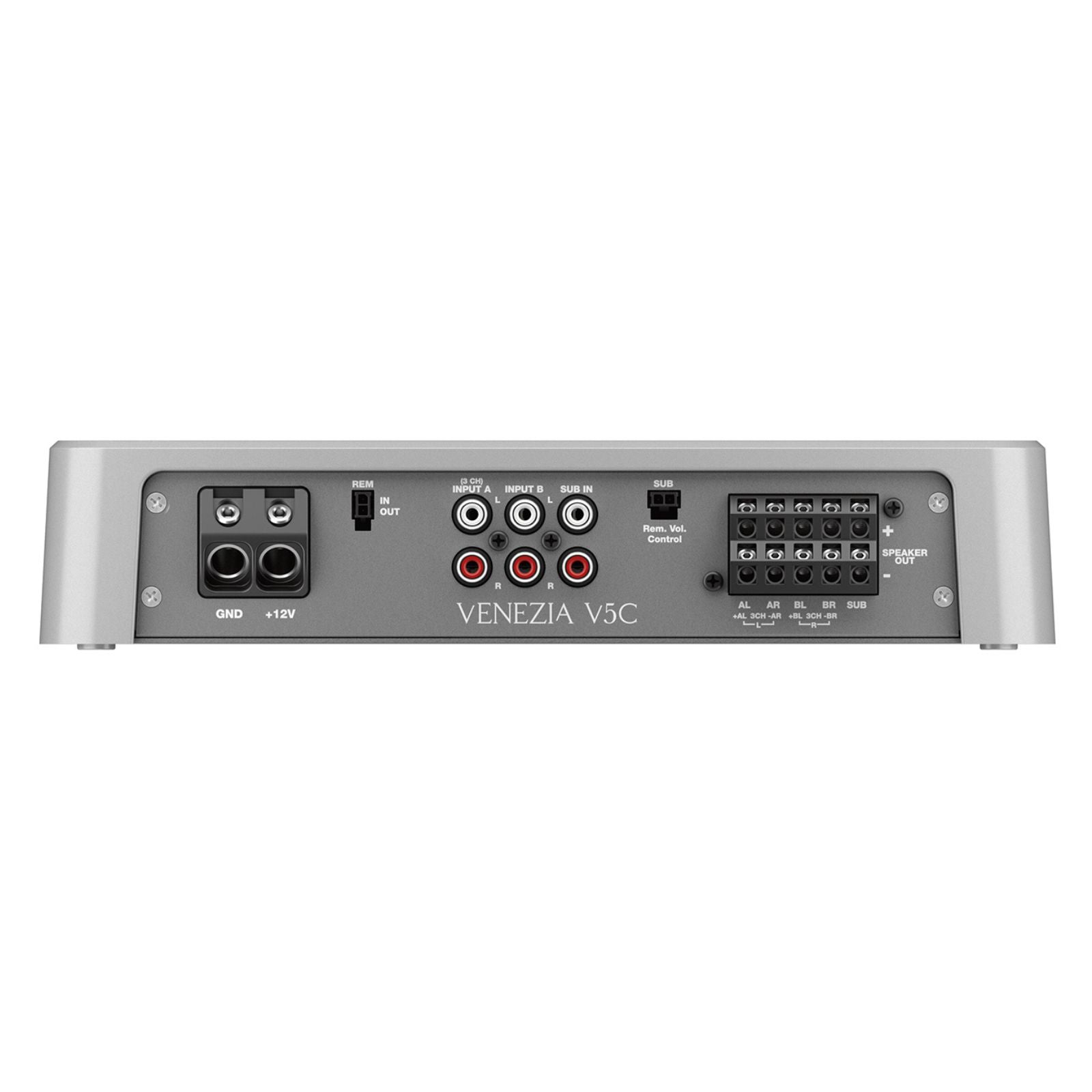

- Plug&Play Input and Output connections with safe-lock.
- Proprietary Plug&Play Power Supply Connector with safe-lock.
Explore the full range in Amplifiers.
Specification
| Channels | 5 - 3 |
|---|---|
| Power supply voltage | 9 ÷ 16 VDC |
| Idling current (power ON/OFF) | 1.7 A / 0.04 mA |
| Remote In | 7 ÷ 15 VDC - 1 mA |
| Distortion - THD (100Hz @ 4Ω) | <0,05% |
| Bandwidth | 10 ÷ 42 kHz |
| S/N Ratio (A weighted @ 1 V) | 102 dB |
| Damping factor (100Hz @ 4Ω) | 130 |
| Pre-In sensitivity | 0.2 ÷ 5 VRMS |
| Pre-In impedance | 10 kΩ |
| @5Ch | 2Ω |
| @3Ch | 4Ω + 4Ω + 2Ω |
| Weight | (kg/lb) 3.72 / 8.2 |
| Adjustable Crossovers | yes |
| 5Ch | 80 W x 4 (4Ω) + 330 x 1 (4Ω) |
| 5Ch | 115 W x 4 (2Ω) + 550 W x 1 (2Ω) |
| 3Ch | 230 W x 2 (4Ω) + 330 W x 1 (4Ω) |
| 3Ch | 230 W x 2 (4Ω) + 550 W x 1 (2Ω) |
| Total Power | 1010 W |
| Inputs | A Ch. Pre in - B Ch. Pre in - Sub Ch. Pre in |
| Pre Out | No |
| A Ch. filters | Yes |
| By-Pass | Yes |
| Hi-Pass | 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct |
| B Ch. filters | Yes |
| By-pass | Yes |
| Hi-Pass | 50 ÷ 500 Hz @ 12 dB/Oct |
| Band-Pass | 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct |
| Sub Ch. filters | Yes |
| By-pass | No |
| Low-Pass | 50 ÷ 250 Hz @ 24 dB/Oct |
| Phase (adjust°) | (0 ÷ 180°) |
| Subsonic | 25 Hz @ 24 dB/Oct |
| Boost 50 Hz (adjust) | (0 ÷ 12) dB |
More specs
| |
What's Included
- VENEZIA V5C
Hertz
About the Hertz VENEZIA V5C
From our tech experts at CEN
A marine amplifier, 5 channel, rated at 80w RMS, coated and sealed against damp and salt air.
Who it suits
Boats, ribs and commercial craft, plus open builds where an amplifier will get damp.
Our tech experts advise
Mount it ventilated and as dry as the vessel allows, and fuse the feed at the battery. Marine installs want tinned cable and sealed joints throughout. get in touch and we will talk through mounting, wiring and power for your boat.
Explore the full Hertz range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Hertz
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Hertz Car Audio Range
Hertz produces high-performance car audio systems driven by research.Music fans who attend live concerts know well the emotions that low undistorted frequencies without dynamic compression can arouse.
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Amplifiers
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: What is the difference between the Venezia V5C and V5?
A: The V5C is the compact version, rated at 80 W x 4 plus 330 W at 4 ohms and 1010 W total. The V5 is rated at 130 W x 4 plus 490 W at 4 ohms and 1700 W total.
Q: Does the Venezia V5C have a subwoofer channel?
A: Yes. The fifth channel is a dedicated subwoofer output rated at 330 W into 4 ohms or 550 W into 2 ohms, with a 50 to 250 Hz low-pass filter, 25 Hz subsonic filter and phase control.
Q: Is the Venezia waterproof?
A: It is engineered and tested for marine use (UV, salt fog, vibration, high and low temperature and thermal shock) and carries IPX2 certification, which covers dripping water. It is not rated for submersion, so mount it in a protected location on the boat.
