Edge DBX Series EDBX12D2-E3 Car Sub 2 Ohms 12 Inch Subwoofer 1000w RMS
Couldn't Load Pickup availability
The Edge EDBX12D2-E3 is a 12 inch passive car subwoofer from the Edge DBX Series, rated at 1000W RMS (2000W peak) with dual 2 ohm impedance and a 2.5 inch voice coil.
It is a passive driver, so it needs a separate amplifier and enclosure. A suitable monoblock is the EDBX1800.1D-E4; for a ready-built powered option see the EDBX12ADSP-E3 active enclosure.
Key specifications
- Size: 12 inch (280mm overall diameter)
- RMS power: 1000W
- Peak power: 2000W
- Impedance: dual 2 ohms
- Frequency response: 25Hz – 850Hz
- Voice coil: 2.5 inch black aluminium former
- Mounting depth: 170mm
- Enclosure volume: 1.5 – 2.5 cu ft
- Magnet: 100 oz dual stacked ferrite

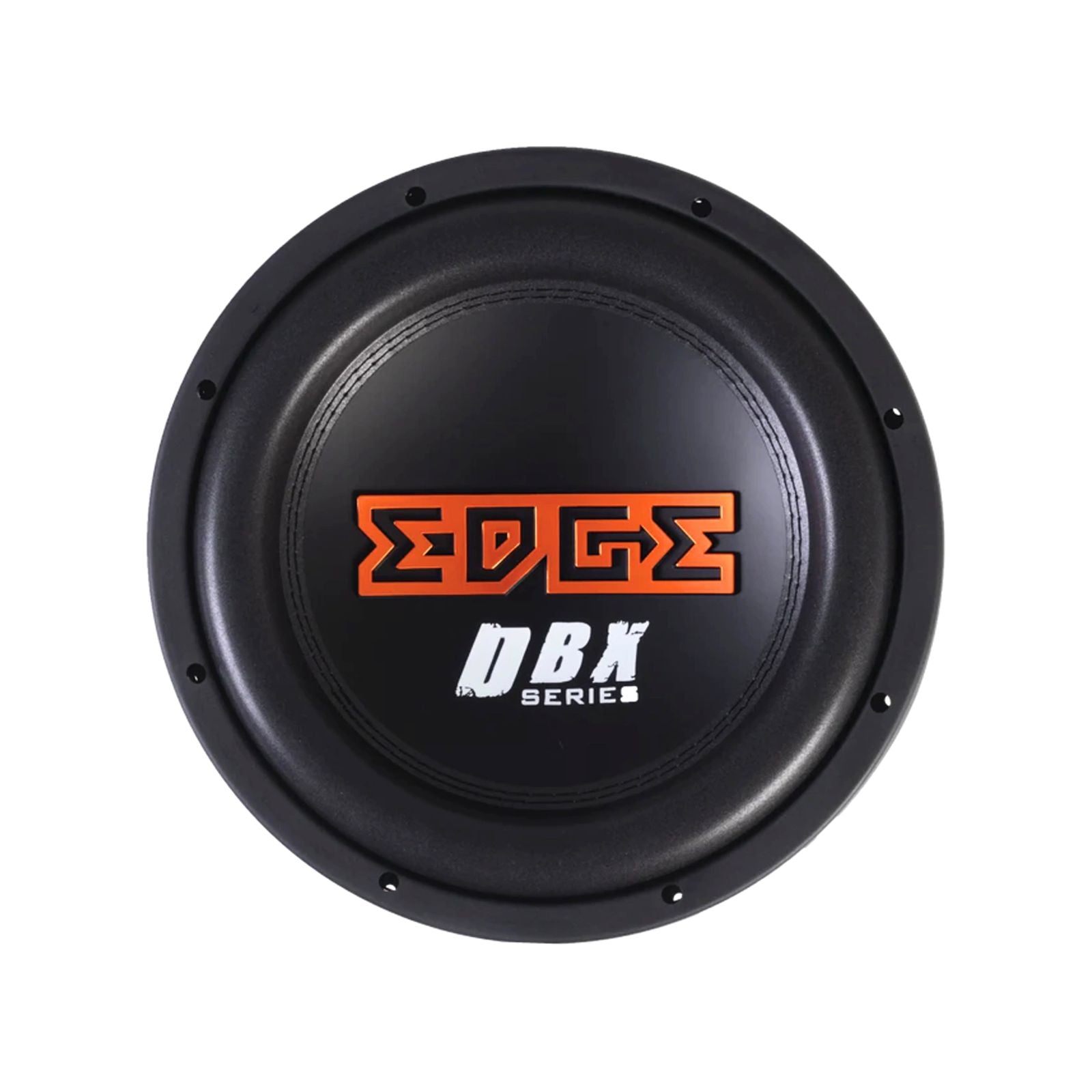

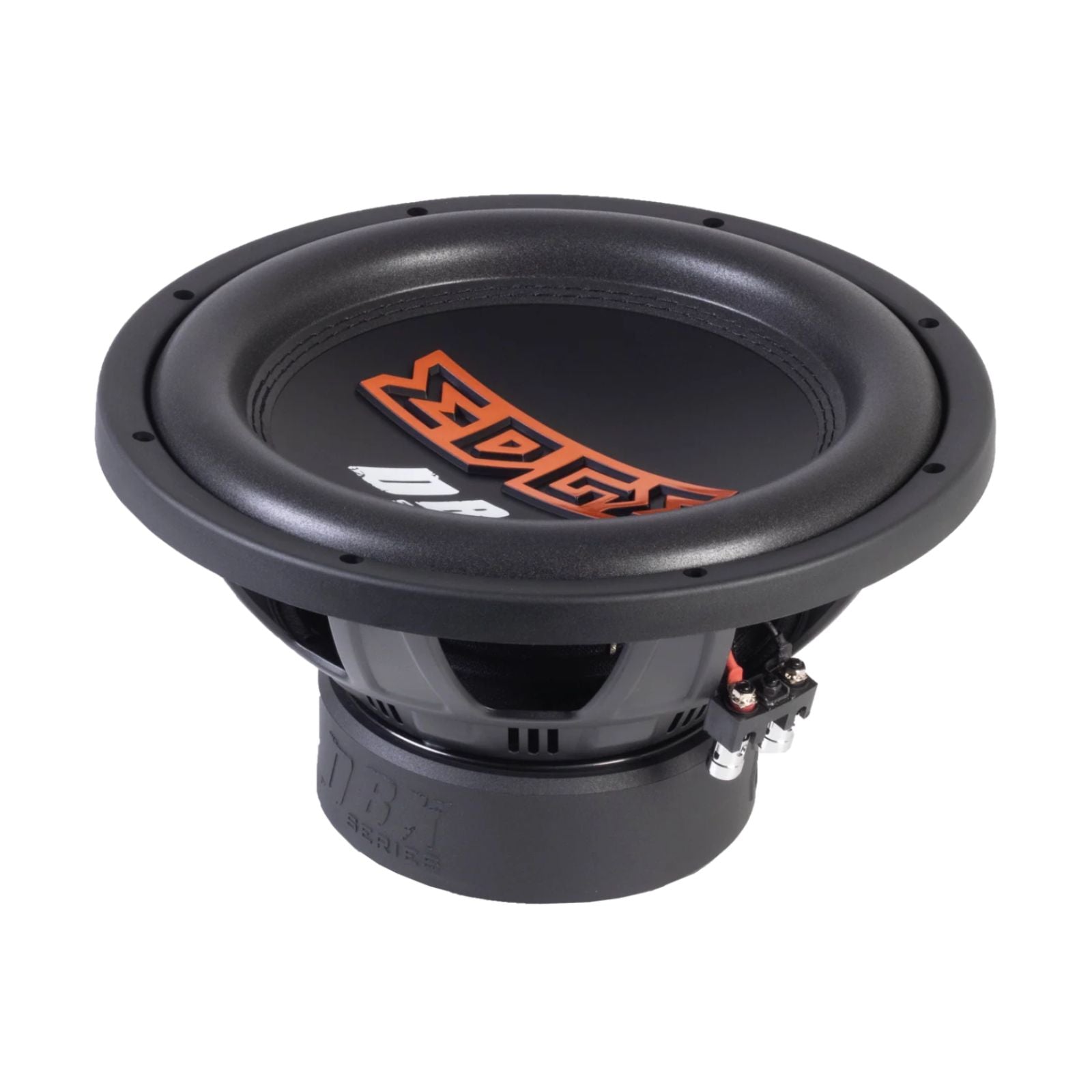

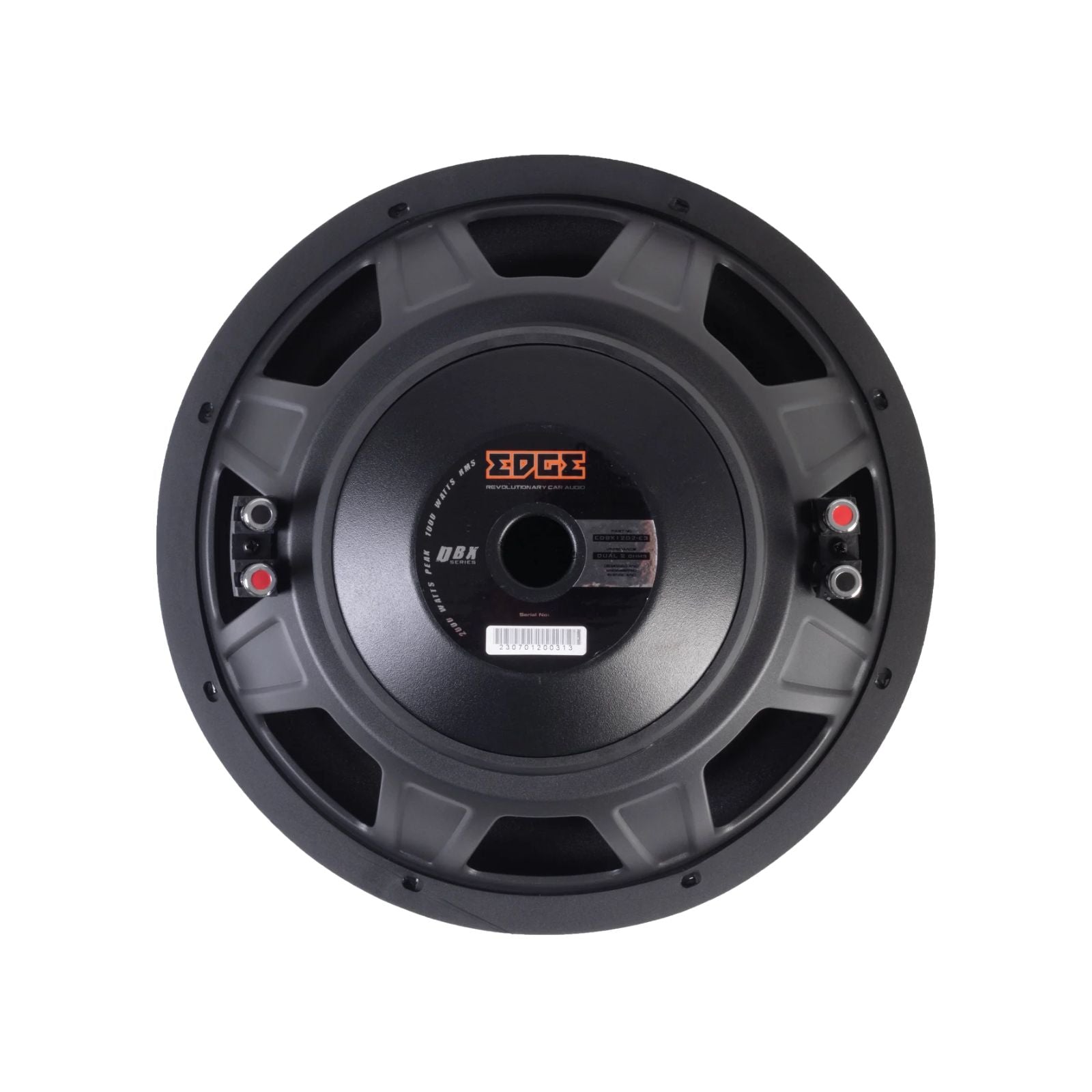

EDBX12D2-E3 DBX Series 12 inch subwoofer

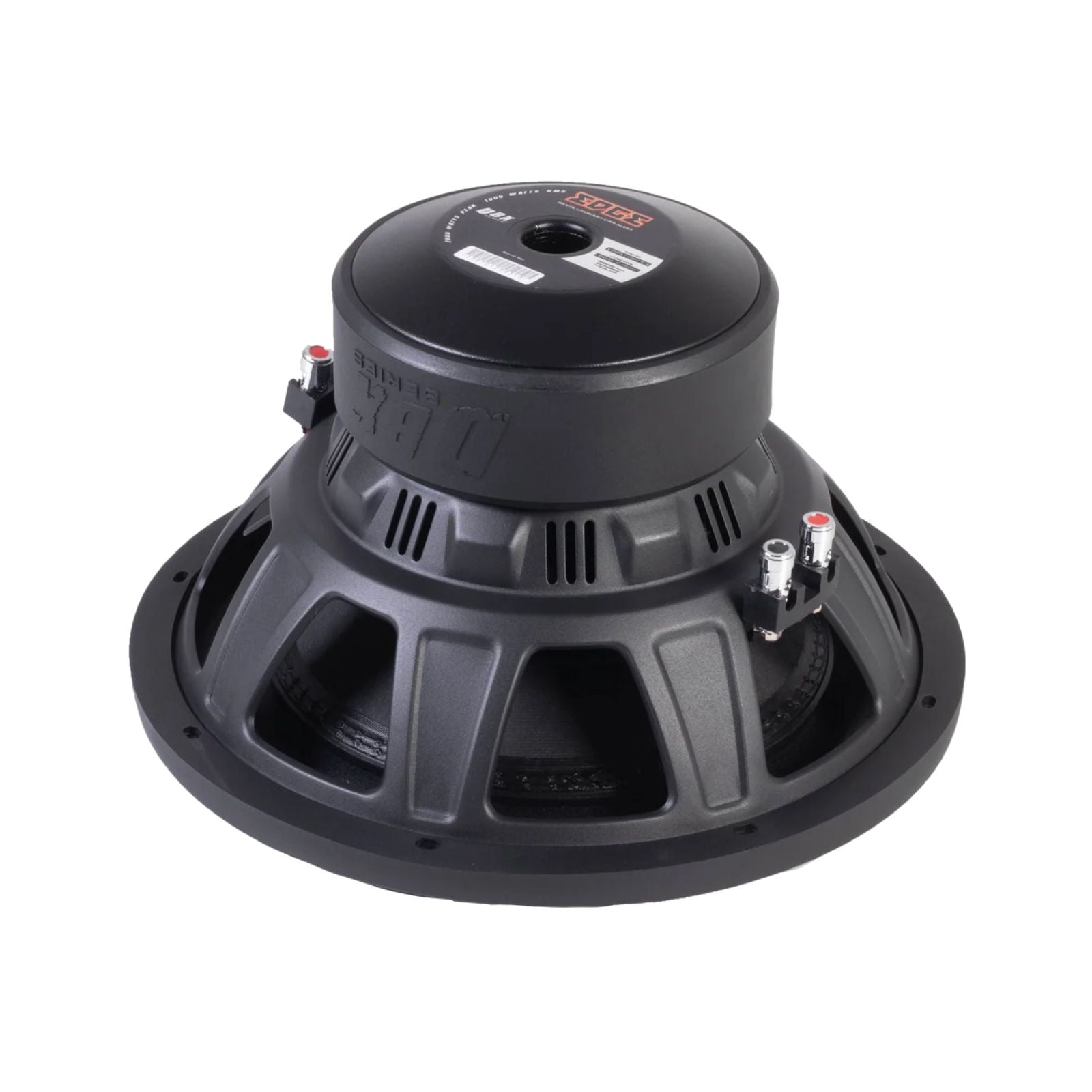

The DBX Series features Edge's unique two-piece dust cap across the range, adding rigidity to the cone. The pressed steel torsion basket and double-stacked Y35 ferrite magnets deliver the correct level of motor force.
A 2.5 inch voice coil, non-pressed paper cone and high-roll foam surround work alongside the motor structure for efficient, accurate bass reproduction.
The DBX Series is designed to add the depth and bass missing from a standard car audio system, offering high performance at a competitive price.
Features
- Non-pressed paper cone
- Wide roll foam surround
- 100 oz dual stacked Y35 ferrite magnet
- Spring loaded connectors
- Dual 2 ohm impedance
- Double stitched surround
Explore the full range in Edge DBX Series.
Specification
| Model | EDBX12D2-E3 |
|---|---|
| Cone | Non pressed paper cone |
| Surround | Big roll foam - stitched |
| Dustcap | Custom tooled IMPP |
| Voice Coil | Former 2.5" Black Aluminium |
| Spider | 1 layer Black PC |
| Gasket | Rubber |
| Top Plate | 10mm Black anodised |
| T-Yoke | 10mm Black anodised flat |
| Terminal / Wire | Spring loaded connectors |
| Impedance | Dual 2 Ohms |
| RMS Power | 1000 watts |
| Peak Power | 2000 watts |
| Freq Response | 25Hz - 850Hz |
| Overall Diameter | 11" (280mm) |
| Mounting Depth | 6.7" (170mm) |
| Enclosure Volume | 1.5-2.5ft3 |
What's Included
- EDBX12D2-E3
Edge
About the Edge EDBX12D2-E3
From our tech experts at CEN
An Edge 12 inch subwoofer, dual voice coil, 2 ohm, handling 1000w RMS.
Who it suits
Drivers building a system where the bass does real work, and SPL builds where output is the point.
Our tech experts advise
Enclosure volume and tuning decide most of what you hear, and the dual coils give you wiring options. Bigger output builds also need the electrical side checked, because large amplifiers pull current the standard charging system was never designed for. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge DBX Series
More options from the same range, in stock and ready to go
Best SellerEdge DBX Series EDBX12ADSP-E3 12 Inch Active Bass Enclosure DSP 400w RMS
£199.99
View product
Best SellerEdge DBX Series EDBX6-E1 3 Way Coaxial Speakers 6.5 Inch 90w RMS Pair
£39.99
Edge DBX Series EDBX10ADSP-E3 10 Inch Active Bass Enclosure DSP 300w RMS
£179.99
Edge DBX Series EDBXPB62.1-E5 6.5 Inch Full Range Ported Enclosure 1000w RMS
£249.99
Edge DBX Series EDBX100.4-E1 Amp Class AB 4 Channel Amplifier 400w RMS
£159.99
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: What enclosure volume does the EDBX12D2-E3 need?
A: EDGE specifies 1.5 to 2.5 cubic feet. The mounting depth is 170mm.
Q: What impedance can the EDBX12D2-E3 be wired to?
A: It has dual 2 ohm voice coils, so it can be wired to 1 ohm (parallel) or 4 ohms (series) to suit your amplifier.
Q: How much power does the EDBX12D2-E3 handle?
A: 1000W RMS and 2000W peak. Match your amplifier's RMS output at the wired impedance to the 1000W RMS rating.
