Audison Prima APK 130 5" 13cm 130mm 2 Way Car Component Door Speakers 75w RMS
Couldn't Load Pickup availability

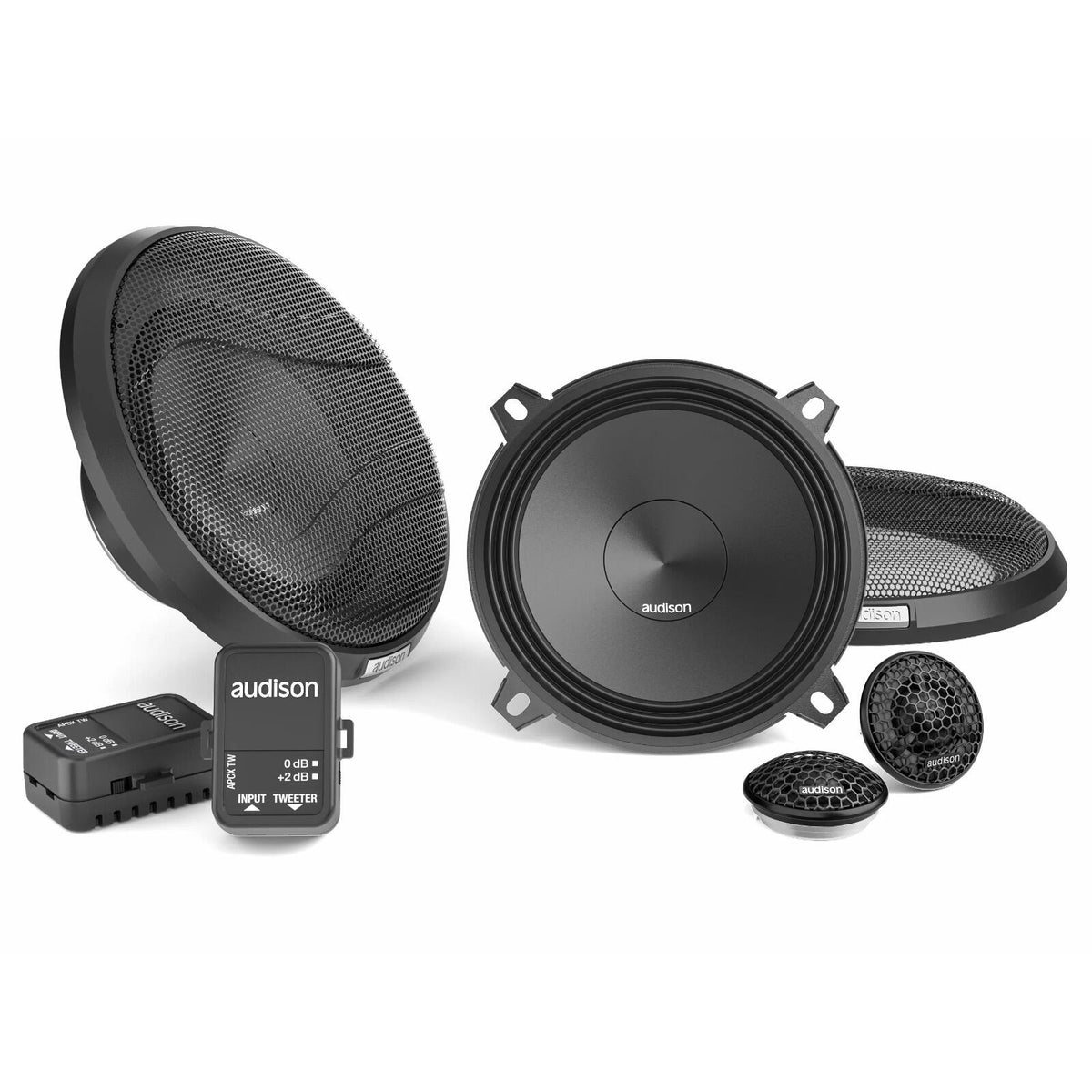

The Audison Prima APK 130 is a 5" (130mm) 2-way component speaker kit comprising AP 5 woofers, AP 1 tweeters and APCX TW passive crossovers, rated at 75W RMS (225W peak). It is part of the Audison Prima range, designed for straightforward OEM integration.
This listing is the 5" / 130mm kit. The Audison Prima component speaker range is also available as the APK 165P in 6.5" / 165mm.
Protective grilles for the woofers are available separately as the Audison Prima APG 5.
Key specifications
- Woofer: AP 5, 130mm (5"), 32mm copper voice coil
- Tweeter: AP 1, 26mm with acoustic lens
- Power handling: 75W RMS continuous / 225W peak
- Impedance: 4 ohms
- Frequency response: 70Hz–20kHz
- Woofer sensitivity: 93dB
- Crossover: APCX TW, high-pass at 3.5kHz, 6dB/octave
- Tweeter level: 0dB or +2dB
Audison Prima
Audison Prima is designed for car enthusiasts who want to hear every nuance of their music through components that integrate cleanly with factory (OEM) systems, without compromising on space.
The APK 130 pairs the AP 1 tweeter with the AP 5 woofer. The APCX TW crossover includes a two-position level selector: +2dB when installed behind an OEM grille, or 0dB for an A-pillar installation with no grille between tweeter and listener.

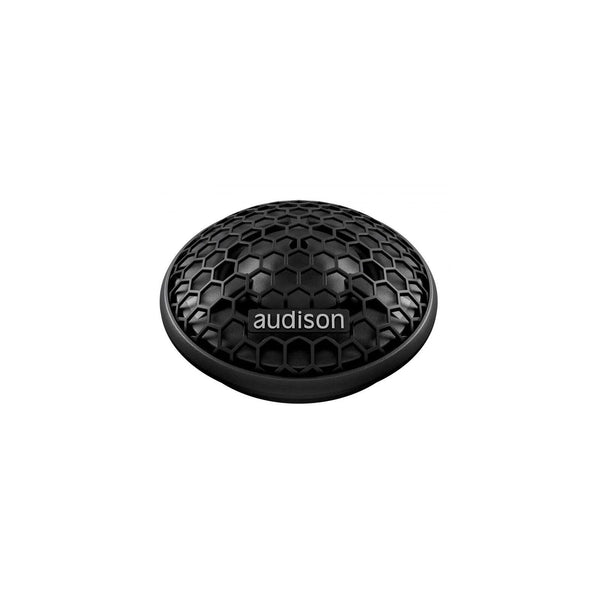

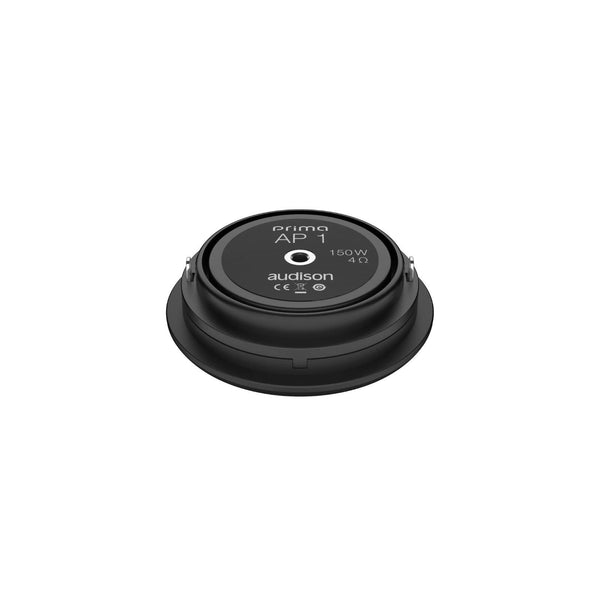

- AP 1 tweeter with 26mm diaphragm and wide-roll surround for high efficiency and reduced resonance frequency.
- AP 1 tweeter with acoustic lens to compensate for in-car frequency response anomalies in the 10kHz–13kHz bandwidth caused by restrictive OEM grilles.

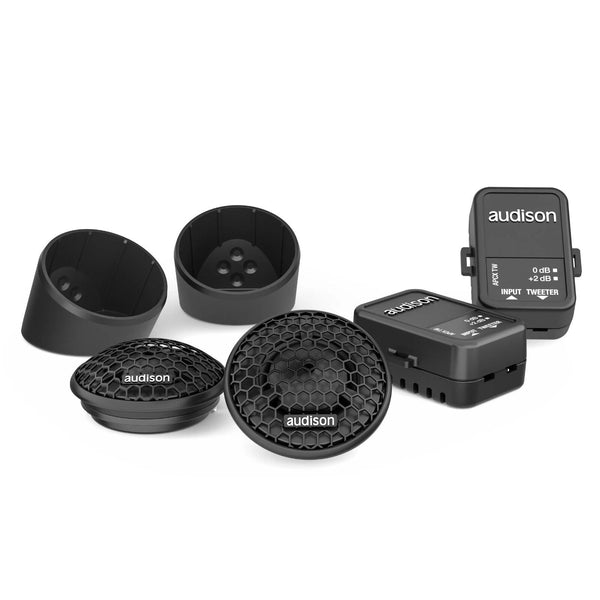

- APCX TW compact passive crossover optimised for OEM integration, with 0dB/+2dB attenuation switch.
- Passive crossovers supplied with OEM-compliant fast-on connectors — different ends on each pole to eliminate connection errors and speed up installation.

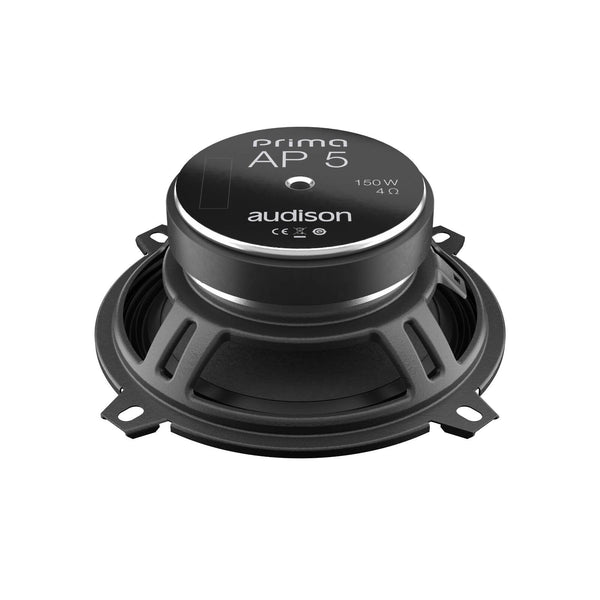

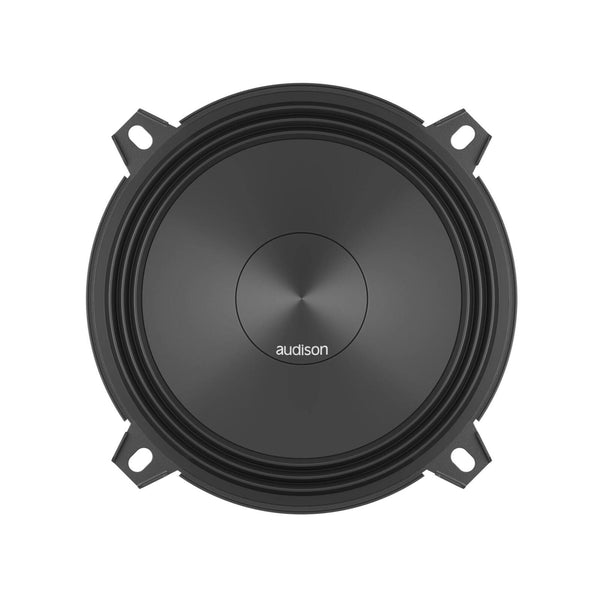

- AP 5 woofer with 32mm pure copper voice coil for high power handling and low-frequency control.
- AP 5 woofer with water-repellent treated paper cone, profiled using FEM (Finite Element Method) simulation and optimised with the Klippel R&D Scan Vibrometer.
- AP 5 woofer with reduced mounting depth for easy fitment in OEM positions.
- AP 5 woofer with TPU (Thermoplastic Polyurethane) surround featuring the exclusive shallow Triple Wave profile for maximum excursion linearity.
- AP 5 woofer with abrasion-resistant, scratch-proof basket coating and motor secured with damping epoxy adhesive.
- AP 5 woofer with high-current fast-on terminals, double contact on positive and negative poles, and a temperature-resistant cover to prevent accidental short circuits.
- Developed using the Klippel suite.
Explore the full range in Audison Prima.
Specification
| Magnet | Size Woofer 85 x 40 x 13 |
|---|---|
| Power Handling | - Peak 225 W |
| Power Handling | - Continuous 75 W |
| Impedance | 4 Ohm |
| Frequency Response | 70 ÷ 20k |
| Weight | Woofer 0.65 kg |
| Weight | Tweeter 0.04 kg |
More specs
| |
What's Included
- Audison Prima APK 130 Speakers
Audison
About the Audison APK 130
From our tech experts at CEN
Audison Prima 5 inch two-way component speakers, with separate tweeters for mounting where you will actually hear them, rated at 75w RMS.
Who it suits
Drivers building a proper front stage, happy for tweeters to be mounted separately, which usually means a professional fit. Prima is the accessible end of the Audison range and still built to the same thinking.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering. Door treatment matters as much as the speaker, and Audison drivers repay amplification and tuning. Installation and tuning are priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Audison range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Audison
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Audison News & Guides
The latest Audison product news, launches and guides from the CEN team in Nottingham.
Audison Prima APBX 10 AS2 Review: Compact Active Bass Done Properly
The Audison Prima APBX 10 AS2 answers the most common bass request we get: proper low-end from a factory-looking system,...
Car Subwoofer Buying Guide: Size, Power and Enclosures Explained
The short version: for most cars, a 10" or 12" subwoofer in a sealed enclosure, driven by a properly matched...
Powerful, Precise Bass with Audison VOCE II Subwoofers
Reproducing low frequencies with authority, precision and dynamic control is essential for achieving a realistic and immersive sound experience. For...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Audison Prima
More options from the same range, in stock and ready to go
Best SellerAudison Prima APBX 10 AS2 10" Active Subwoofer Enclosure Compact Sub Box 400w
£529.99RRP £569.99Save 7%
Audison Prima AP SPK OUT 4.9 Speaker Output Cable for AP4.9
£24.99£30.99Save 19%
Audison Prima Tower Kit 3 APTK 3 Amplifier Stacking System
£69.99£119.99Save 41%
PopularAudison Prima AP 6.5 2 ohm 6.5" 17cm Car Midbass Woofer Door Speakers 70w RMS
(1)£109.99
Best SellerAudison Prima APBX 10 DS 10" Passive Sub Box Compact Subwoofer Enclosure 400w
£379.99
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Does the APK 130 come with crossovers?
A: Yes. It includes APCX TW compact tweeter crossovers, a 3.5kHz high-pass at 6dB per octave, with a level switch: +2dB when the tweeter sits behind a factory grille, or 0dB for an A-pillar installation with no grille in front.
Q: What size are the APK 130 speakers?
A: The AP 5 woofers are 130mm (5 inch) and the AP 1 tweeters are 26mm. The woofers have a reduced mounting depth for easier installation in factory locations.
Q: Are grilles available for the APK 130 woofers?
A: Yes. The Audison Prima APG 5 is a pair of 130mm grilles designed for the AP 5 woofers used in this kit.
