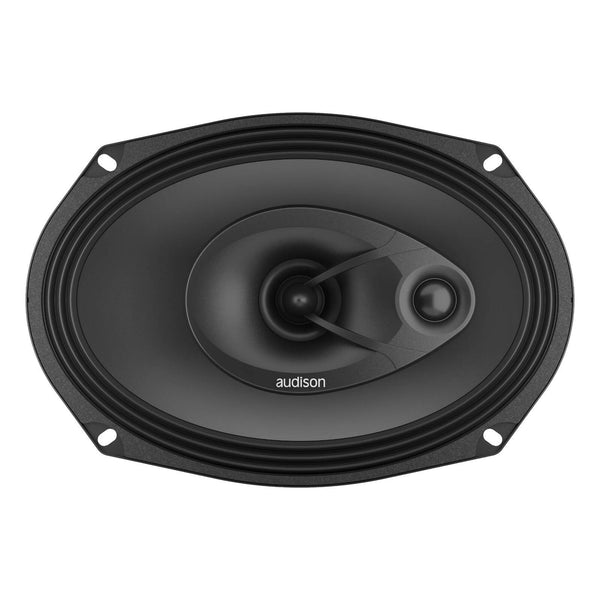

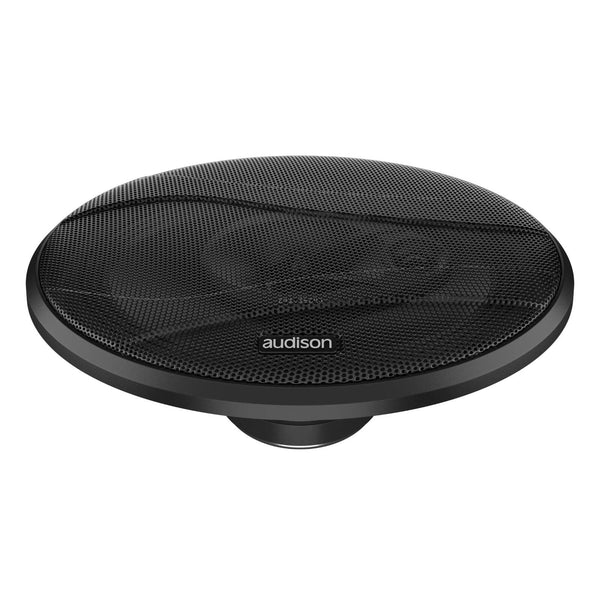

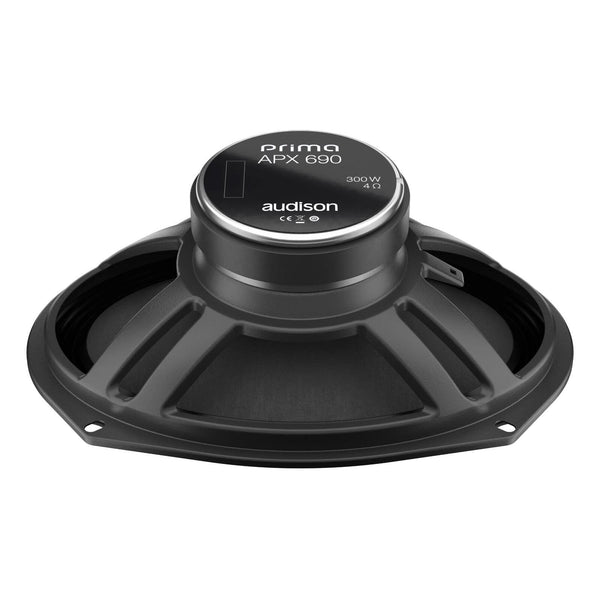

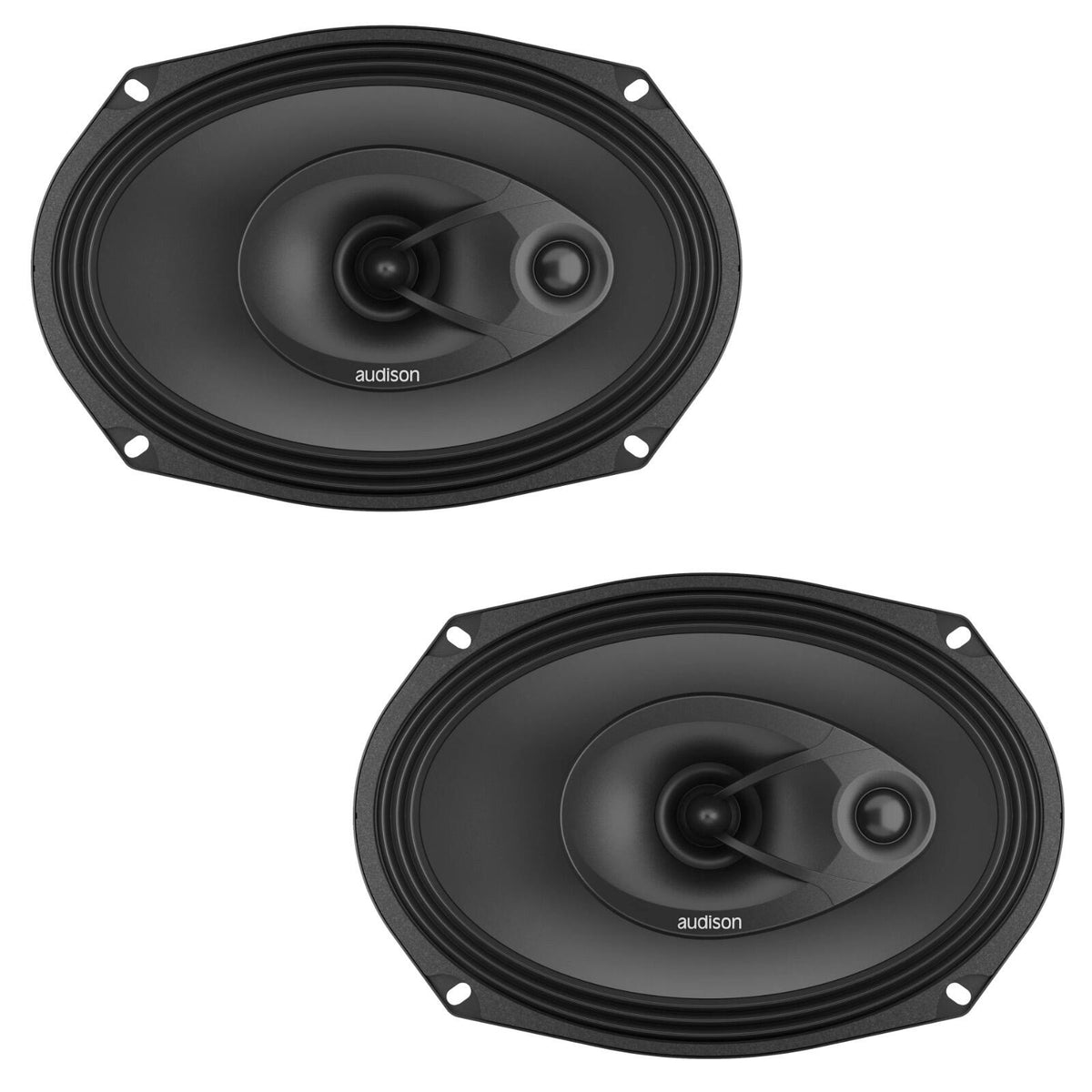

Audison Prima APX 690 6x9" Car Coaxial Midbass Shelf Door Speakers 100w RMS Pair
Couldn't Load Pickup availability
The Audison Prima APX 690 is a pair of 6x9-inch coaxial speakers from the Audison Prima range, rated at 100W RMS (300W peak) with 96dB sensitivity. They feature a 40mm horn-loaded dome tweeter with acoustic lens and a 15mm PEI super tweeter, and are designed to upgrade factory 6x9-inch rear shelf or door speakers.
This listing is the 6x9-inch coaxial. The Audison Prima coaxial range is also available in 6.5-inch (APX 6.5).
For a 6x9-inch component set with separate tweeters, see the Audison Prima APK 690.
Key specifications
- Size: 6x9 inch elliptical coaxial
- Tweeter: 40mm horn-loaded dome with acoustic lens
- Super tweeter: 15mm PEI
- Power: 100W continuous / 300W peak
- Impedance: 4 ohms
- Frequency response: 40Hz–23kHz
- Sensitivity: 96dB
Prima APX 690: Coaxial, 300W Peak Power, 6″ x 9″, 4 ohm
The APX 690 features a 40mm horn-loaded dome tweeter for efficiency up to 96dB SPL, plus an acoustic lens designed to increase high-frequency dispersion.
- 40mm horn-loaded dome tweeter delivering up to 96dB SPL sensitivity.
- Acoustic lens on the tweeter to increase dispersion in the high-frequency range.
- 15mm PEI (polyethylene injected) super tweeter strengthens very high-frequency emission, particularly useful for rear deck installations where off-axis positioning is common.
- Water-repellent treated paper cone, profiled using FEM (Finite Element Method) simulation and optimised with the Klippel Scan Vibrometer.
- Pure copper voice coil wound on a Kapton former for improved thermal and mechanical capacity.
- TPU (thermoplastic polyurethane) surround with a "triple wave" profile for maximum linearity of excursion.
- Polycotton spider for reliable performance and linear response to musical transients.
- Large motor assembly optimised with FEM technology for stable control and linear excursion.
- Low carbon content plates for maximum magnetic permeability and high heat dissipation.
- Compact basket with abrasion-resistant, scratch-proof coating; motor affixed with damping epoxy adhesive.
- High-current fast-on terminals with temperature-resistant plastic covers to guard against accidental short circuits.
- Developed using the Klippel suite.
Explore the full range in Audison Prima.
Specification
| Size | 6x9 Inch |
|---|---|
| Shape | Oval |
| Type | Coaxial |
| Series | Prima |
| Article Number | APX 690 |
| Country of Manufacture | China |
More specs
| |
What's Included
- Audison Prima APX 690 Speakers
Audison
About the Audison APX 690
From our tech experts at CEN
Audison Prima 6x9 inch coaxial speakers, with the tweeter in the centre of the woofer, rated at 100w RMS.
Who it suits
Drivers replacing tired factory speakers who want a clear improvement without relocating tweeters. Prima is the accessible end of the Audison range and still built to the same thinking.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering. Door treatment matters as much as the speaker, and Audison drivers repay amplification and tuning. Installation and tuning are priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Audison range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Audison
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Audison Prima
More options from the same range, in stock and ready to go

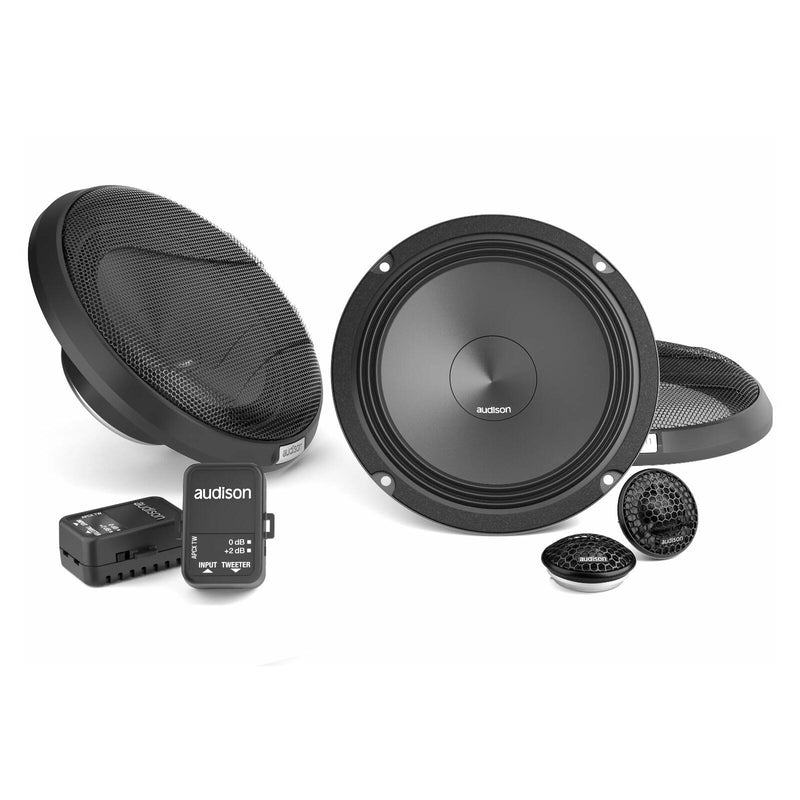

Best SellerAudison Prima APK 165 4 ohms 6.5" 17cm 2 Way Car Component Door Speakers 100w
£229.99
View product

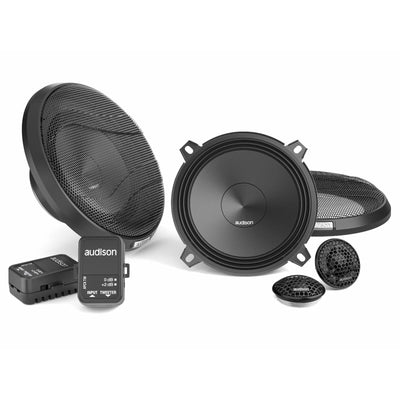

Audison Prima APK 130 5" 13cm 130mm 2 Way Car Component Door Speakers 75w RMS
£219.99

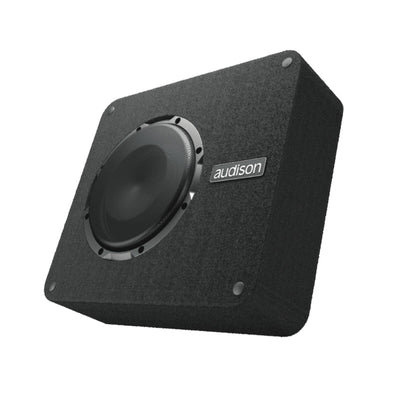

Audison Prima APBX 8 DS 8" Passive Sub Box Compact Subwoofer Enclosure 250w RMS
£309.99

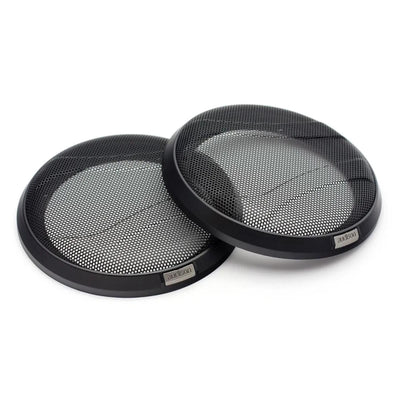

Audison Prima APG 6.5" 16.5cm Speaker Grills for Prima AP 6.5 APX 6.5 & APK 165
£30.99
Audison Prima AP SPK OUT 4.9 Speaker Output Cable for AP4.9
RRP £30.99Save 19%£24.99
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Why does the APX 690 have a super tweeter?
A: The PEI super tweeter strengthens the very high frequencies that are otherwise lost when speakers are mounted off-axis to the listener, as is common on rear shelves.
Q: How much power can the APX 690 handle?
A: It is rated at 100W continuous and 300W peak, with a 4 ohm impedance. Its 96dB sensitivity means it also works well from lower-powered sources.
