Alpine INE-AW409S Apple CarPlay Android Auto Bluetooth Stereo

The Alpine INE-AW409S is a 9-inch Android 13 in-car media station with Apple CarPlay, Android Auto and Bluetooth 5.0, from Alpine's INE series. It features a 1280 x 720 HD laminated touchscreen, 4 GB RAM, 64 GB internal storage and a built-in 4 x 50 W amplifier.

Key specifications

• Screen: 9-inch laminated HD touchscreen, 1280 x 720 resolution
• Operating system: Android 13
• Processor: Cortex A35
• RAM: 4 GB
• Internal storage: 64 GB
• Bluetooth: 5.0 (wideband)
• Wireless: Built-in Wi-Fi

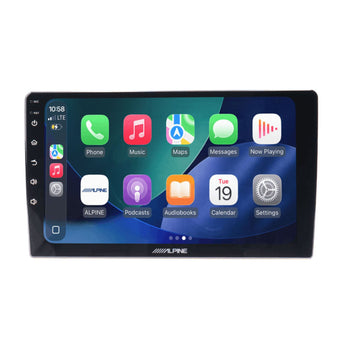

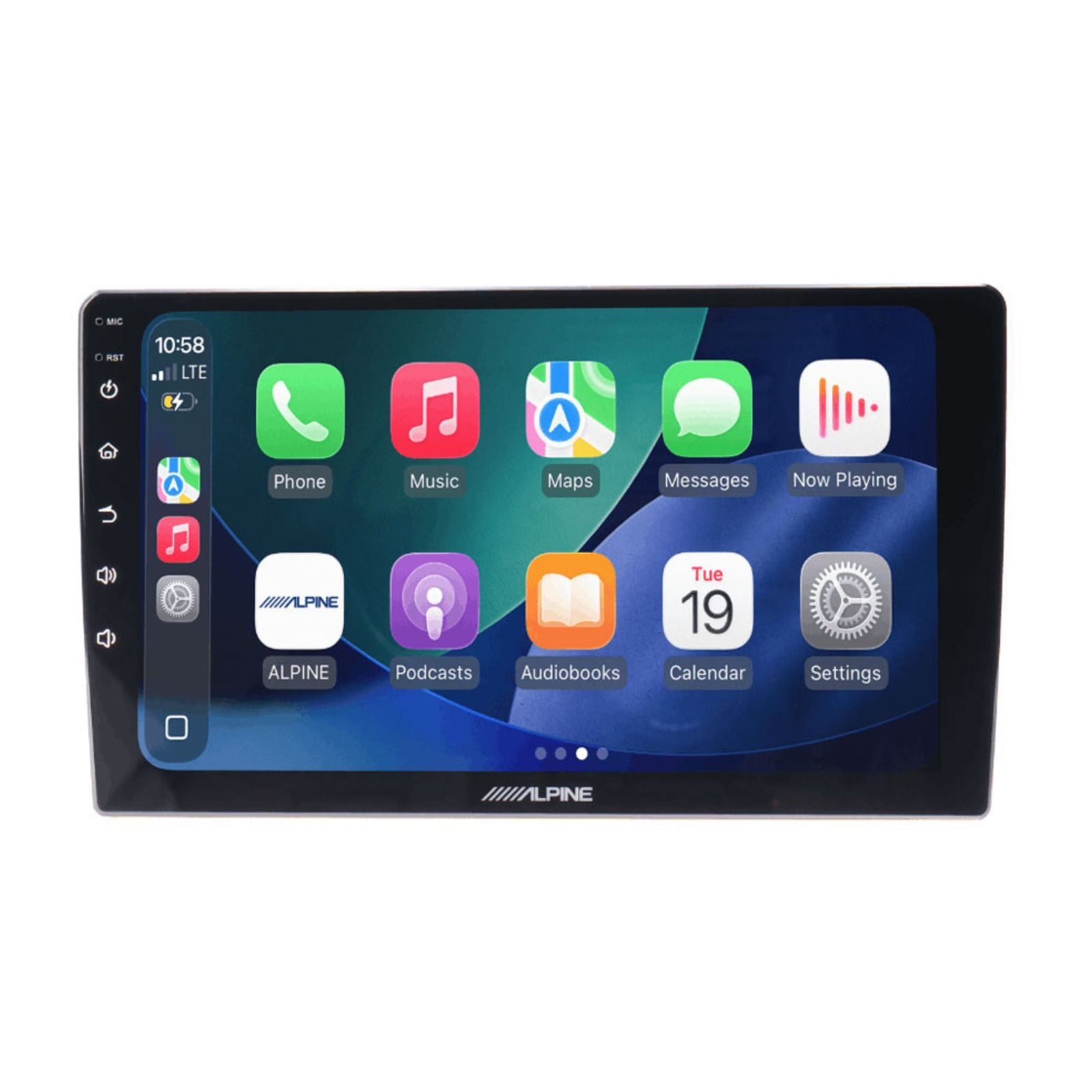

• Smartphone integration: Apple CarPlay, Android Auto
• USB connections: 2 x rear USB
• Amplifier output: 4 x 50 W maximum
• Pre-out: Front pre-out
• Equaliser: 3-band with 5 presets (Normal, Pop, Rock, Classic, Jazz)
• Camera inputs: AHD and composite
• Tuner: RDS with auto memory, TA, AF and EON
• Menu languages: 22
• App store: Google Play Store access
• Supported formats: FLAC, AAC, H.264/AVC, H.265/HEVC, MKV

A Clear 9-inch View for Every Journey

The 9-inch laminated touchscreen delivers a crisp 1280 x 720 HD picture with smooth touch, drag, flick and pinch operation, making maps, media and menus easy to view and control. Android 13, a Cortex A35 processor, 4 GB RAM and 64 GB internal storage provide a flexible in-car platform. A customisable home screen, 22 menu languages and Google Play Store access let you make the system your own.

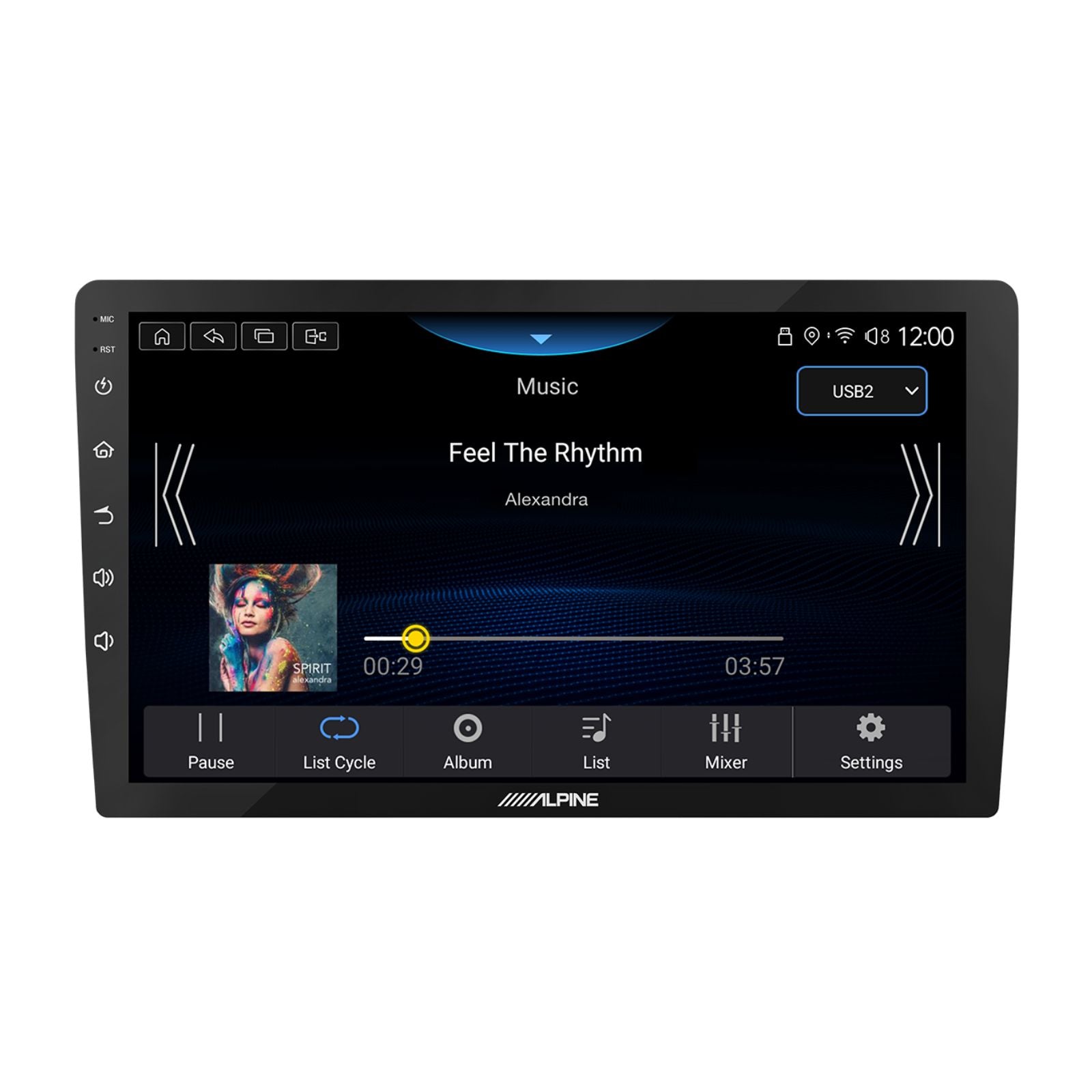

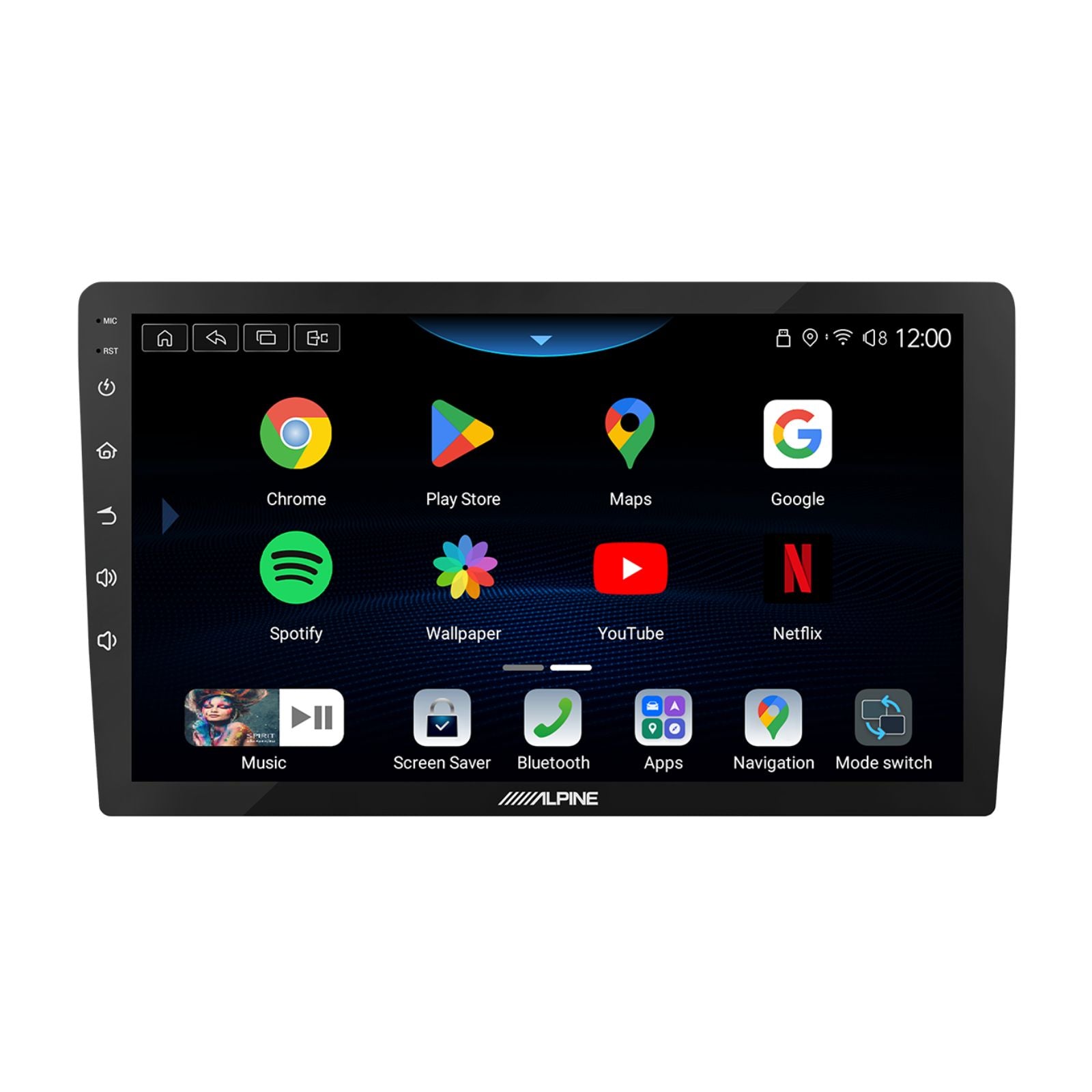

Your Apps, Your Entertainment

Access navigation, music, video and stationary entertainment directly from the INE-AW409S. Pre-loaded applications give you useful functions from the start, and additional apps can be added via USB to build an infotainment experience that suits the way you travel.

Two USB Ports, More Flexibility

Two rear USB connections keep your media and devices ready. One port supports high-speed data transfer, firmware updates and audio/video playback; the second provides a convenient connection for charging or a USB flash drive. Supported formats include FLAC, AAC, H.264/AVC, H.265/HEVC and MKV.

Shape the Sound to Your Taste

A 3-band equaliser covers bass, mid and treble, with five ready-to-use presets — Normal, Pop, Rock, Classic and Jazz — for quick sound choices. Fader and balance controls help position the sound to suit your vehicle and seating arrangement.

Stay Connected with Built-in Wi-Fi

Connect to a wireless network or external hotspot to support streaming, app downloads and internet-based navigation services, without the need for an integrated 4G module. Wideband Bluetooth 5.0, Apple CarPlay and Android Auto cover further connectivity options.

Keep Your Familiar Steering Wheel Controls

The on-screen steering wheel control learning function lets compatible vehicle buttons be assigned directly in the system menu, helping you retain convenient control of key functions from the wheel. Depending on the vehicle, an optional adapter may be required.

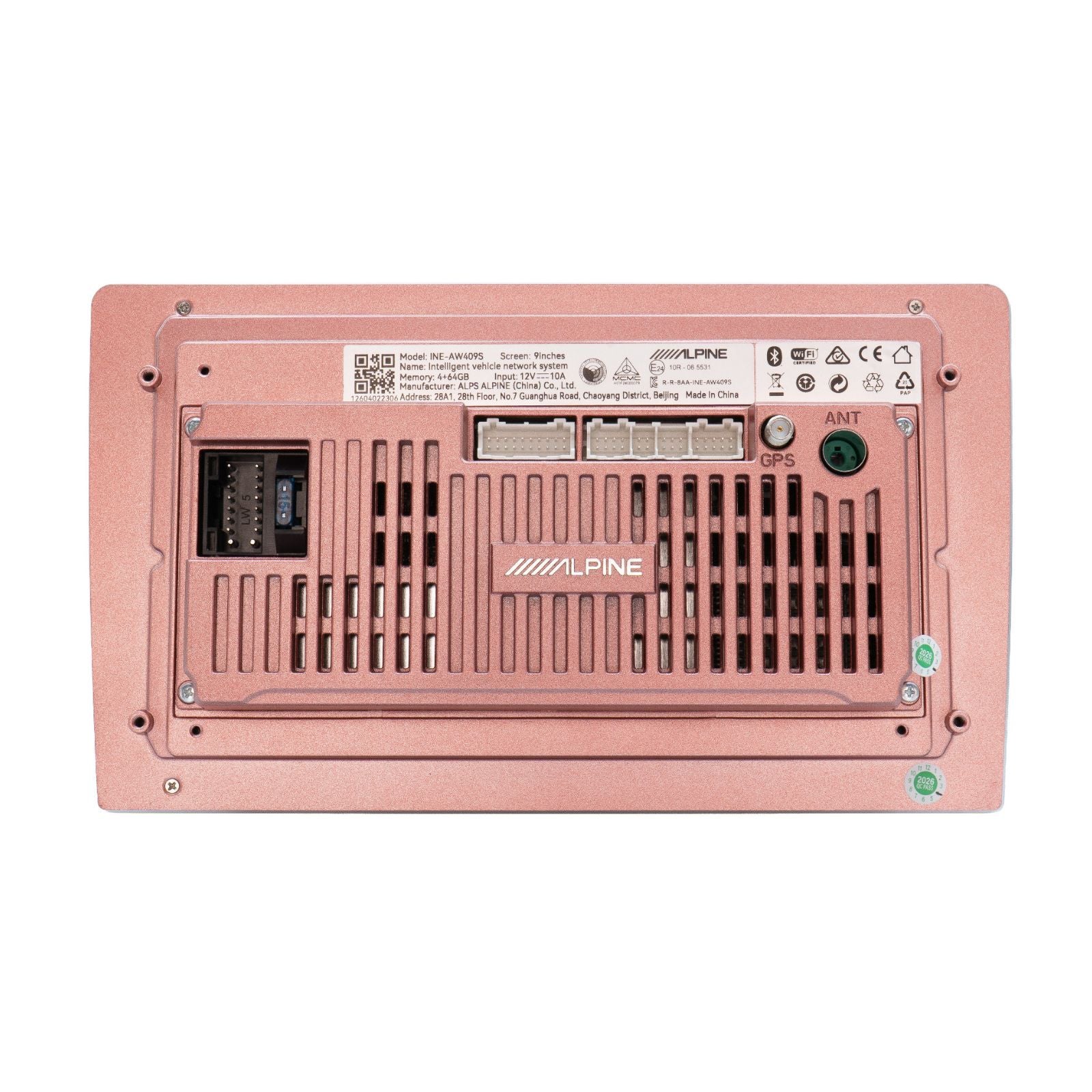

Ready for Flexible Vehicle Integration

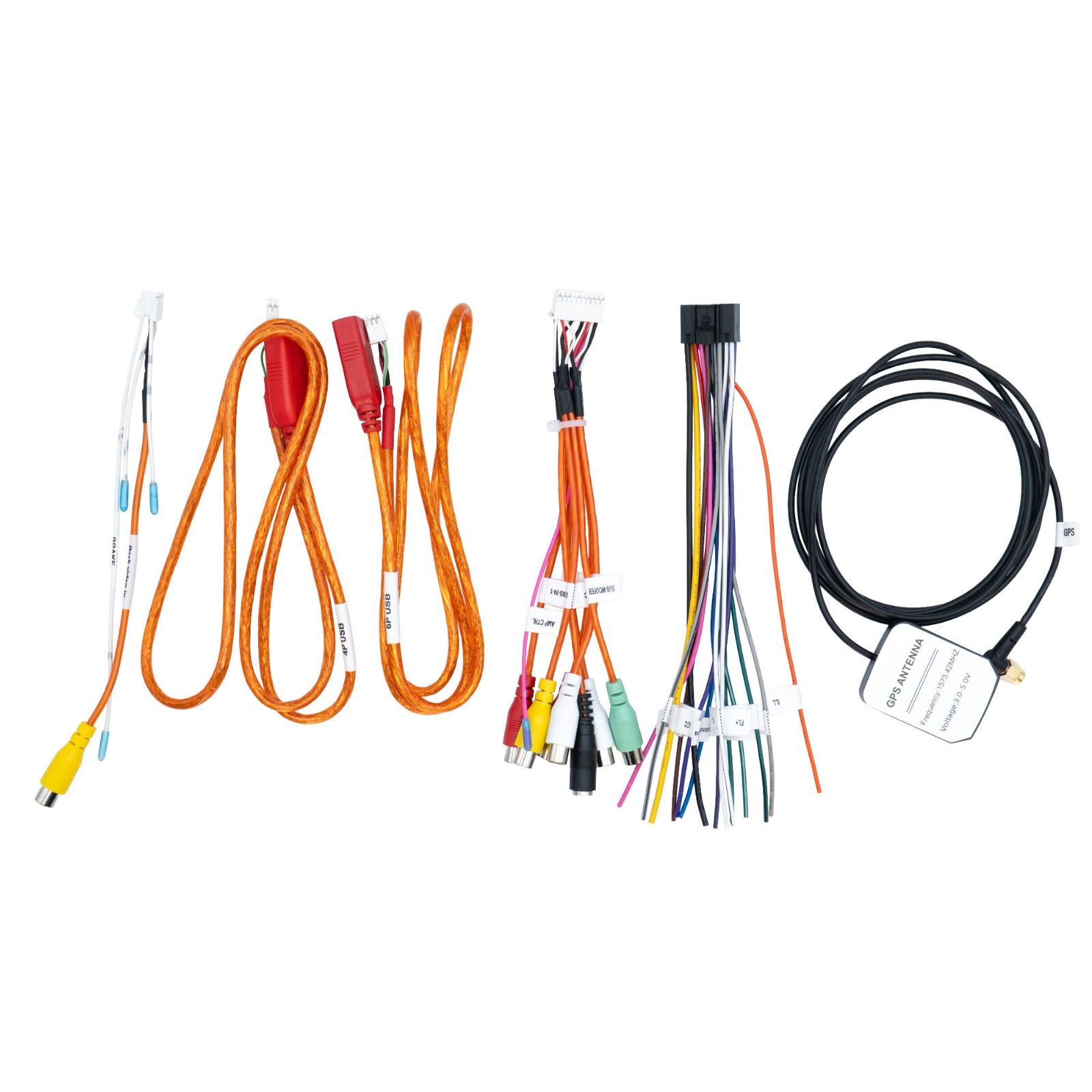

The rear connection panel includes two USB connections, AHD and composite camera inputs, AUX input, GPS and antenna connections, and the main vehicle harness. A built-in microphone is included, with support for an external microphone when required.

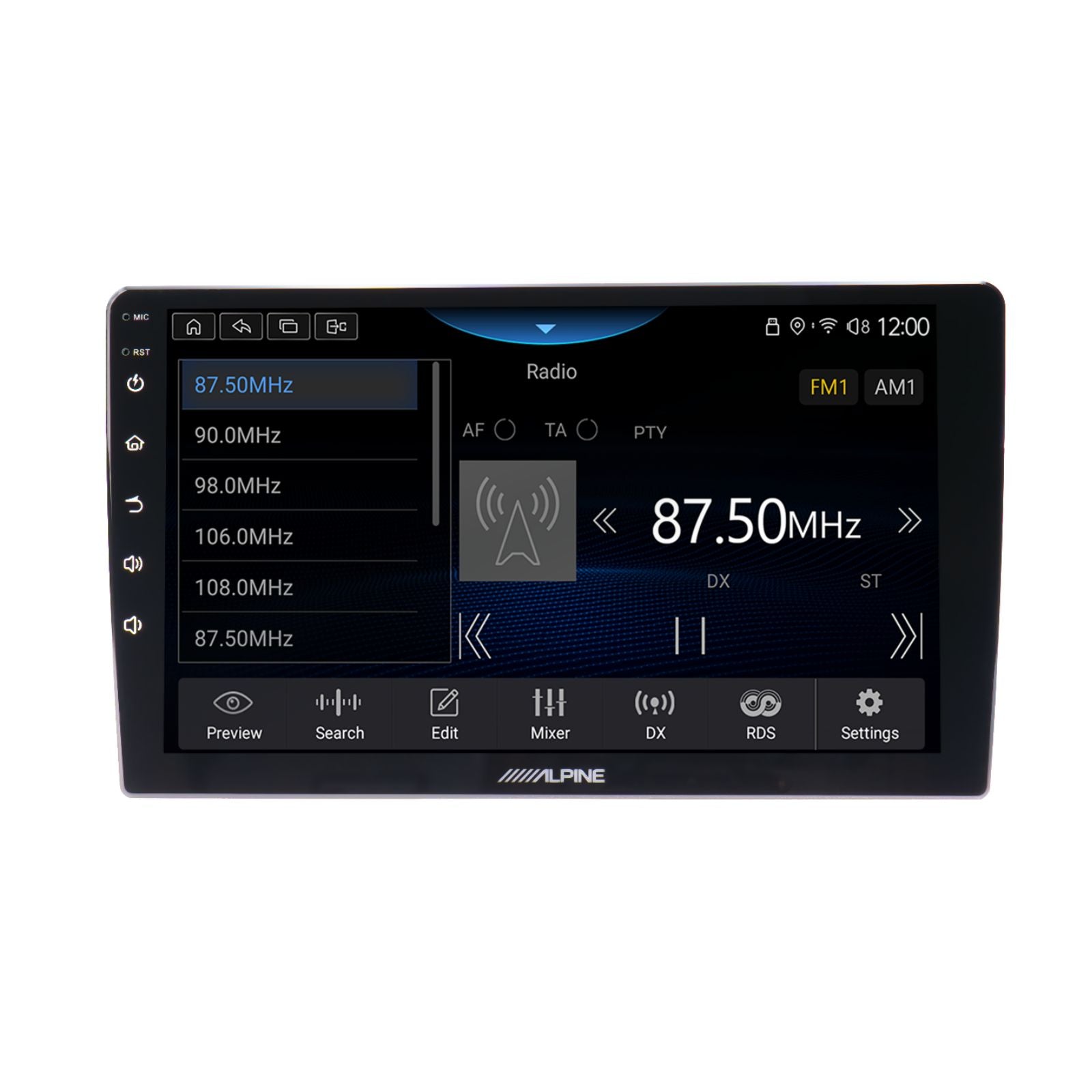

Radio, Power and Easy Expansion

An RDS tuner with auto memory, TA, AF and EON handles radio duties. The integrated amplifier delivers up to 4 x 50 W maximum output, and a front pre-out provides a straightforward route for expanding your audio system.

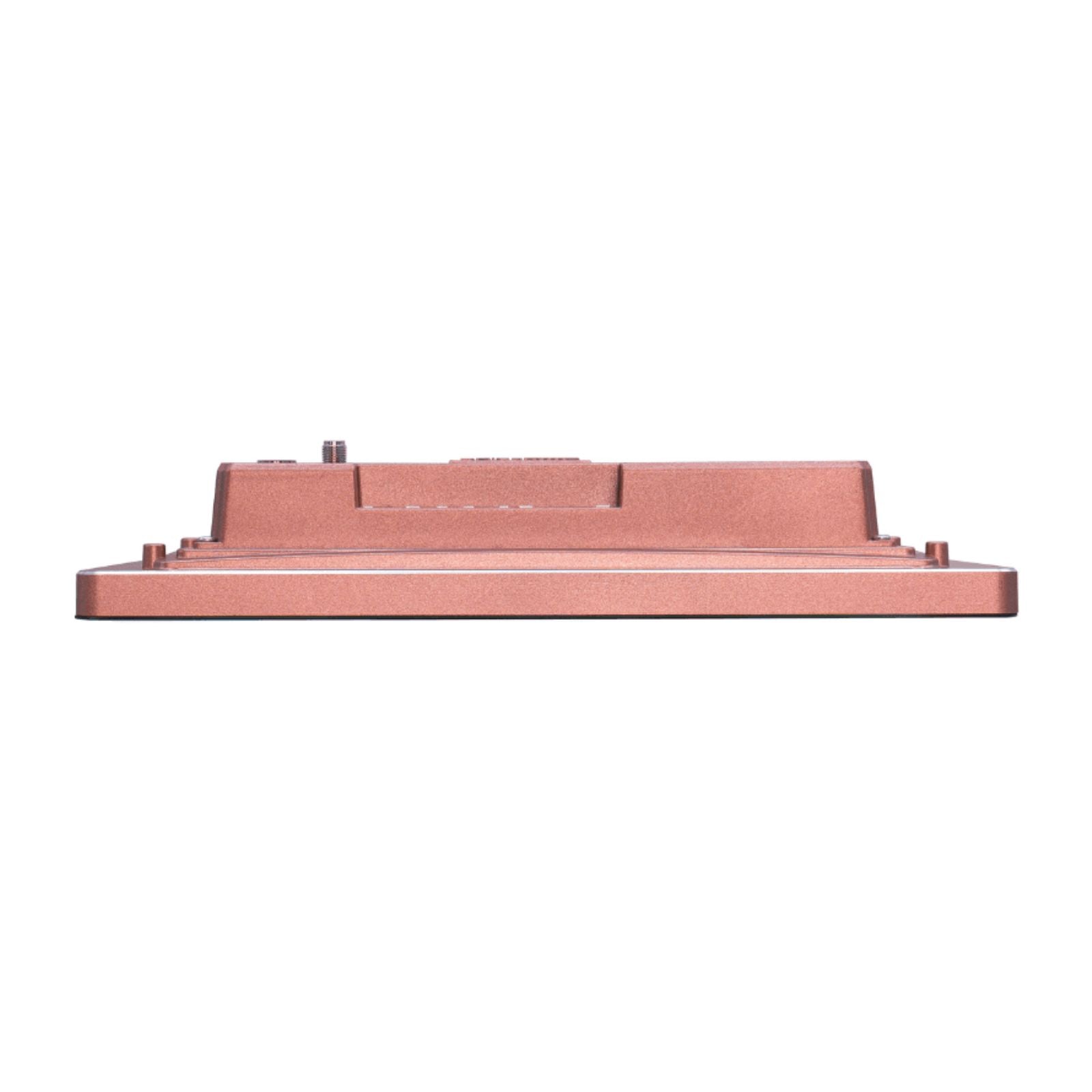

A Practical Profile for Dashboard Integration

The slim display assembly and rear chassis position behind the 9-inch touchscreen help installers evaluate available space and plan a clean dashboard installation.
